Product Overview

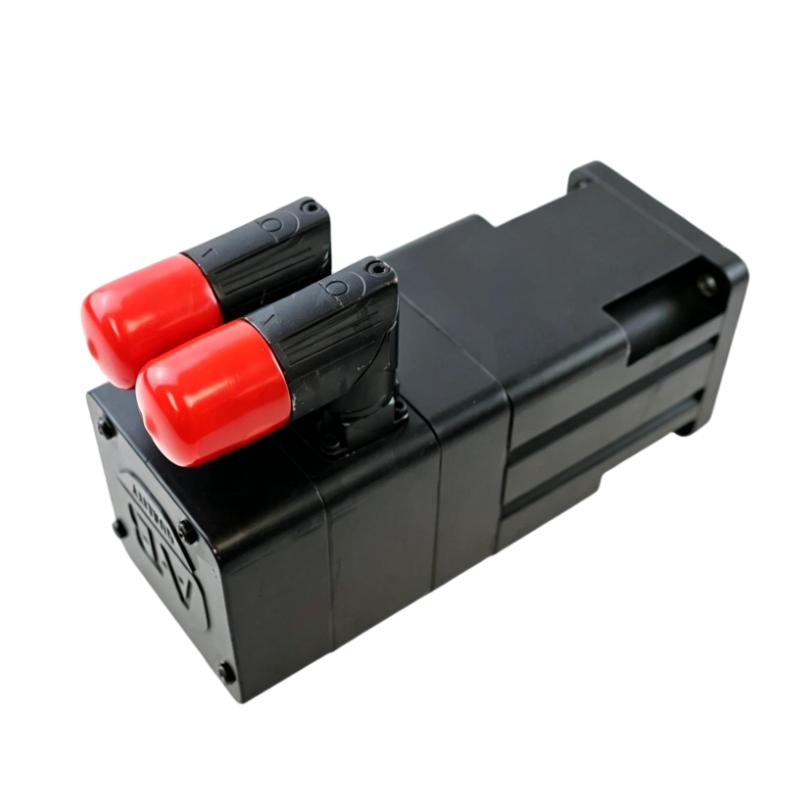

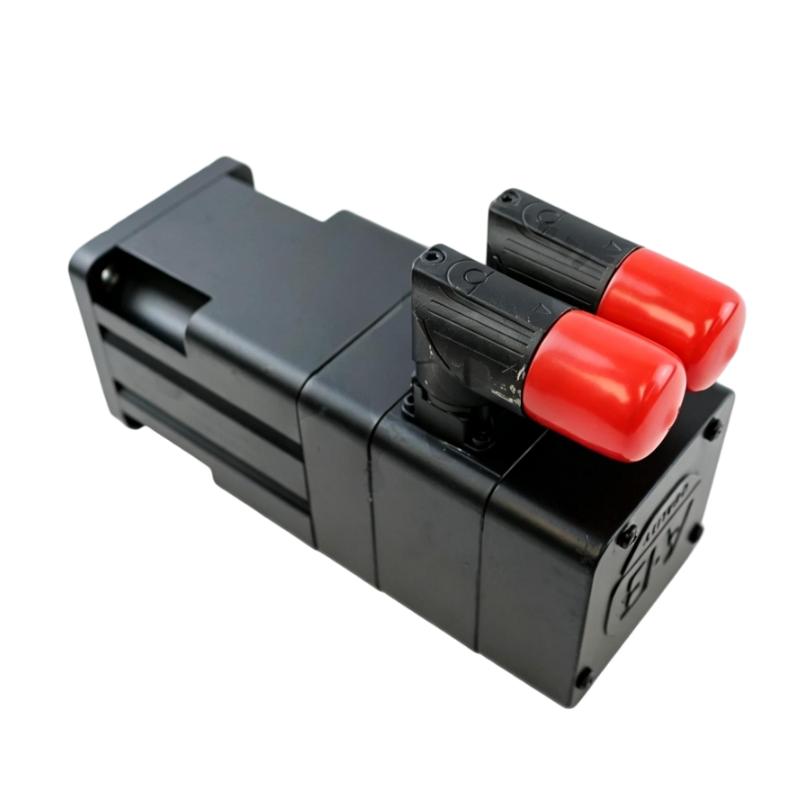

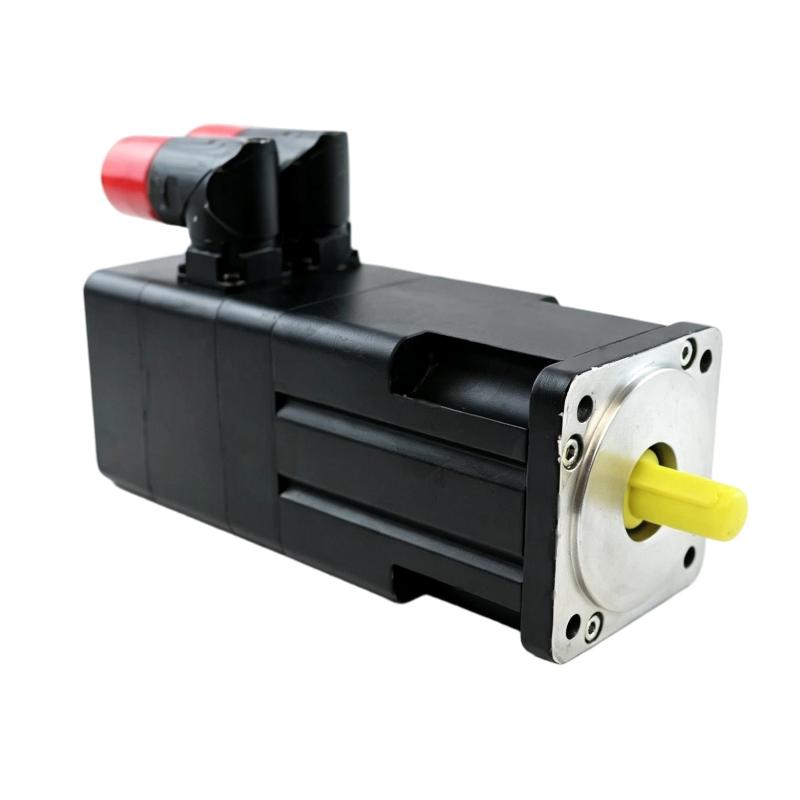

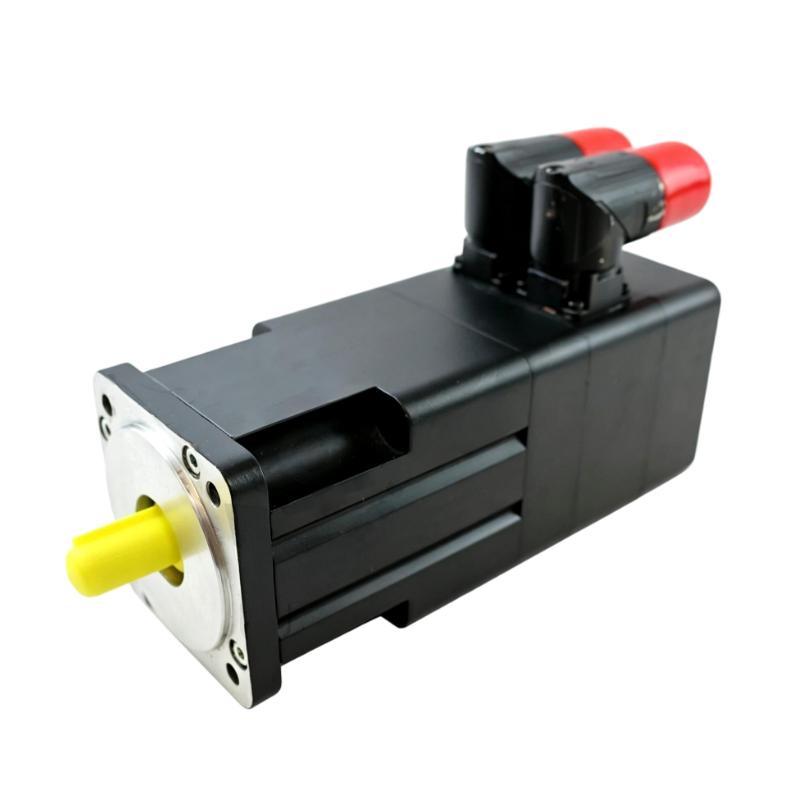

The Allen Bradley MPL-B220T-EJ74AA is an MP-Series rotary servo motor used in Allen-Bradley motion control systems where controlled rotation, repeatable positioning, and coordinated axis movement are required. It works as the motor element of a closed-loop motion axis, receiving power and control commands from a compatible servo drive while returning feedback for position and motion regulation.
This motor is suited to machine axes that repeatedly accelerate, decelerate, stop, and reverse under controller supervision. Typical applications include indexing mechanisms, automated handling equipment, packaging machinery, assembly systems, and other industrial machines where the motor must follow programmed motion profiles rather than operate simply as a constant-speed motor.
The motor is normally installed as part of a complete motion chain consisting of a controller, servo drive, motor feedback path, mechanical transmission, and load. Proper matching between these elements is important because the motor’s performance depends not only on the motor itself but also on drive configuration, feedback integration, mechanical coupling, and the requirements of the driven axis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MPL-B220T-EJ74AA |
| Product Type | MP-Series Rotary Servo Motor |
| Product Family | MP-Series |
| Series | Allen-Bradley MP-Series |
| Motor Type | Rotary Servo Motor |
| Motion Type | Rotary Motion |
| Control Method | Closed-Loop Servo Control |
| Primary Function | Precision Motorized Axis Movement |
| Feedback | Servo Motor Feedback |
| System Integration | Allen-Bradley Motion Control System |
| Drive Interface | Compatible Servo Drive |
| Application | Industrial Machine Motion |
| Installation | Machine-Mounted |
| Frame Size | 75 mm |
| Weight | 2 kg |
Product Features
- MP-Series rotary servo motor for industrial motion applications.
- Supports closed-loop operation with a compatible servo drive and controller.
- Suitable for repeated positioning, acceleration, deceleration, and directional changes.
- Provides the motor-side actuation required by coordinated machine axes.
- Can be integrated into multi-axis Allen-Bradley motion control architectures.
- Appropriate for applications requiring controlled rotary movement rather than simple fixed-speed operation.
- Supports coordinated operation with mechanical transmission components such as couplings, gearboxes, and driven assemblies.
- Suitable for machine builders and maintenance teams working with established MP-Series motion platforms.
- Motor and drive configuration can be matched to the requirements of the individual motion axis.
- Useful in applications where consistent axis response and repeatable programmed movement are required.
Working Principle
1. Motion command generation
The motion controller calculates the required axis movement according to the machine program. Depending on the application, the command can include target position, velocity, acceleration, deceleration, and coordinated movement with other axes.
2. Servo drive control
The servo drive receives the controller’s motion command and regulates the electrical power delivered to the motor. Drive parameters determine how the motor responds to the requested motion profile and how feedback is incorporated into the control loop.
3. Motor rotation
The MPL-B220T-EJ74AA converts the controlled electrical input from the servo drive into mechanical rotation. The motor shaft transfers this motion to the machine through an appropriate coupling, gearbox, pulley, lead screw, or other mechanical transmission.
4. Feedback and correction
During operation, the motor feedback system supplies motion information back through the servo drive. The drive compares the commanded motion with the actual motor response and continuously adjusts motor operation to reduce position or velocity error.
5. Closed-loop axis operation
The complete controller-drive-motor-feedback chain allows the axis to follow programmed motion rather than simply energizing the motor at a fixed output. This is particularly useful for indexing, synchronized movement, positioning, and repetitive machine cycles.
Role in a Servo Motion Control Architecture
The MPL-B220T-EJ74AA functions as the motor element within a closed-loop servo axis. It does not normally operate as a standalone motor; its practical function depends on the controller, compatible servo drive, feedback connection, and mechanical load.
| Architecture Layer | Main Function | Relationship to MPL-B220T-EJ74AA |
|---|---|---|
| Motion Controller | Generates axis commands and coordinates machine movement | Sends the required motion command through the control system |
| Servo Drive | Controls motor power and closes the servo loop | Supplies controlled electrical power to the motor |
| Servo Motor | Converts electrical energy into mechanical rotation | MPL-B220T-EJ74AA provides the rotary motion |
| Feedback Path | Reports actual motor movement | Supplies position/motion information used for closed-loop control |
| Mechanical Transmission | Transfers motor torque to the machine mechanism | Couples the motor to the driven axis |
| Machine Load | Performs the physical process | Receives the controlled rotary movement |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Indexing, synchronized movement, and controlled positioning of machine mechanisms |
| Material Handling | Controlled movement of conveyors, transfer mechanisms, and automated handling axes |
| Assembly Equipment | Repeatable rotary positioning during automated assembly operations |
| Machine Tools | Controlled axis movement and coordinated mechanical positioning |
| Printing Machinery | Synchronization of rollers and other rotating mechanisms |
| Automated Production Lines | Multi-axis movement coordinated with PLC and motion control systems |
| Pick-and-Place Systems | Rapid and repeatable positioning of rotary or mechanically converted axes |
| Process Machinery | Programmed rotary movement where controlled acceleration and positioning are required |
Installation and Maintenance
- Verify servo drive compatibility — Confirm that the motor is suitable for the intended Allen-Bradley servo drive and motion platform before installation.
- Check motor identification — Verify the complete MPL-B220T-EJ74AA catalog number before configuring the axis or replacing an existing motor.
- Inspect the mounting interface — Ensure the motor mounting surface is clean, secure, and properly aligned with the machine structure.
- Check mechanical coupling — Align the motor shaft with the driven mechanism and avoid excessive radial or axial loading caused by incorrect coupling installation.
- Connect motor power correctly — Use the appropriate motor power connection and confirm that all connections are secure before energizing the system.
- Connect feedback wiring — Install the compatible feedback connection carefully and keep feedback wiring protected from electrical interference and mechanical damage.
- Separate power and feedback cables — Maintain appropriate cable routing practices to reduce the possibility of electrical noise affecting feedback signals.
- Configure the servo axis — Enter the correct motor identification and applicable axis parameters in the motion control system rather than relying on settings from a different motor.
- Check the load before startup — Make sure the connected mechanism can move freely and that no mechanical obstruction is present.
- Perform a controlled test run — Start with low-risk motion conditions and verify direction, positioning response, acceleration, and deceleration before returning the machine to normal operation.
- Monitor operating condition — During maintenance inspections, check for abnormal vibration, unusual noise, excessive heating, connector problems, or changes in positioning behavior.
- Investigate servo faults systematically — When an axis fault occurs, check the controller command, drive status, motor wiring, feedback path, mechanical load, and configuration instead of replacing the motor immediately.
Related Components
| Component | Function |
|---|---|
| Allen-Bradley Servo Drive | Provides controlled power and servo regulation for the motor |
| Allen-Bradley Motion Controller | Generates and coordinates programmed axis movement |
| Motor Feedback Connection | Returns motor motion information to the servo control loop |
| Motor Power Cable | Connects the servo drive to the motor power circuit |
| Shaft Coupling | Transfers motor rotation to the machine mechanism |
| Gearbox | Adapts motor speed and mechanical output to the application |
| Linear Transmission | Converts rotary motor movement into controlled linear motion where required |
| HMI | Provides operator access to machine status, commands, and motion-related information |
| Industrial Network | Connects controllers, drives, and other automation devices within the machine architecture |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-B220T-EJ72AA | MP-Series Rotary Servo Motor | Rotary motion and closed-loop machine axes |
| MPL-B220H-V-X252 | MP-Series Rotary Servo Motor | Industrial servo axis applications |
| MPL-B220H-V-X253 | MP-Series Rotary Servo Motor | Controlled rotary machine movement |
| MPL-B210V-EJ72AA | MP-Series Rotary Servo Motor | Compact machine motion applications |
| MPL-B210V-EJ74AA | MP-Series Rotary Servo Motor | Closed-loop rotary positioning |
| MPL-B210V-VJ72AA | MP-Series Rotary Servo Motor | Automated motion and positioning |
| MPL-B1530U-VJ74AA | MP-Series Rotary Servo Motor | Precision rotary axis applications |
Key Advantages
- MP-Series platform for Allen-Bradley motion control applications.
- Closed-loop operation supports controlled and repeatable machine movement.
- Suitable for coordinated multi-axis automation.
- Applicable to indexing, positioning, and cyclic motion.
- Integrates with servo drives and feedback systems as part of a complete motion axis.
- Useful for both machine construction and replacement of compatible MP-Series motors.
Technical FAQs
What should be checked when replacing an existing MP-Series servo motor with the MPL-B220T-EJ74AA?
The complete catalog number should be verified first, followed by servo drive compatibility, feedback compatibility, motor power connections, mechanical mounting, coupling requirements, and the configured motor parameters. A physically similar motor should not automatically be treated as a direct electrical or control-system replacement.
Why is feedback important when operating the MPL-B220T-EJ74AA?
Feedback allows the servo drive to determine the actual motor movement and compare it with the commanded motion. This information is fundamental to closed-loop control because the drive can respond to position or motion error instead of operating the motor only from an open-loop command.
What symptoms can indicate a problem in the servo motor axis?
Common symptoms can include unexpected axis faults, abnormal vibration or noise, incorrect movement direction, positioning errors, intermittent operation, or unusual temperature rise. Troubleshooting should consider the motor, feedback connection, servo drive, mechanical coupling, load, and axis configuration together.
Can the MPL-B220T-EJ74AA be used independently without a servo drive?
A complete servo axis normally requires a compatible servo drive and motion-control system. The drive regulates the electrical power supplied to the motor and processes the feedback required for closed-loop operation, so the motor should be selected and configured as part of the complete axis rather than treated as an independent motor.
