Product Overview

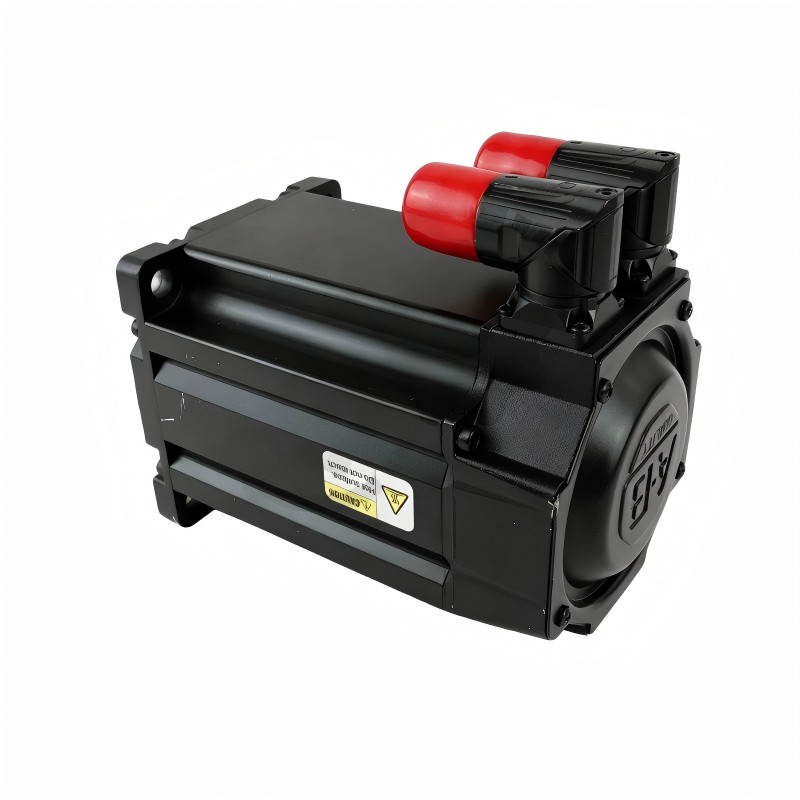

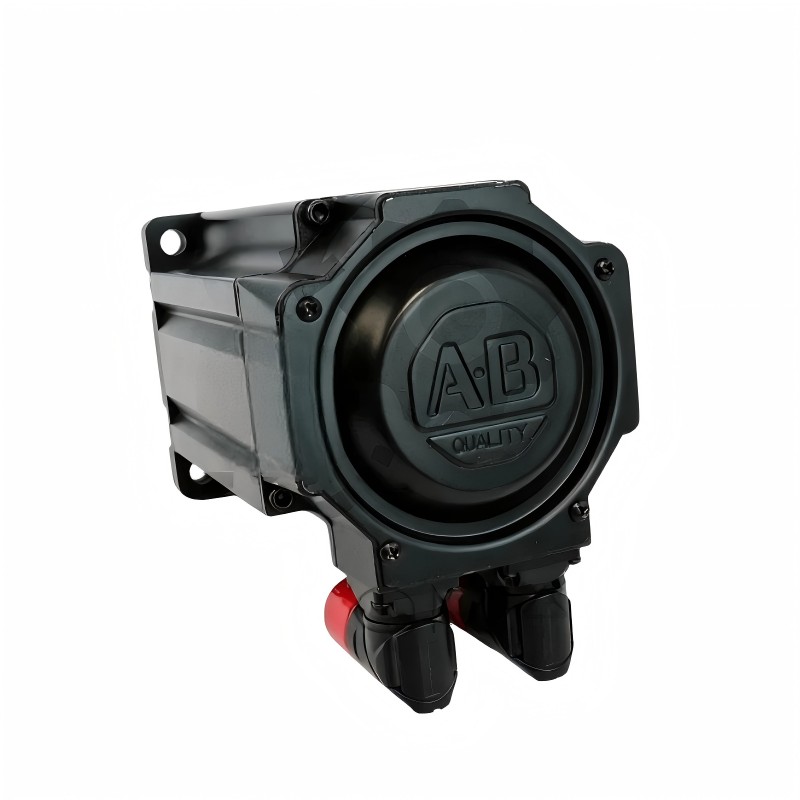

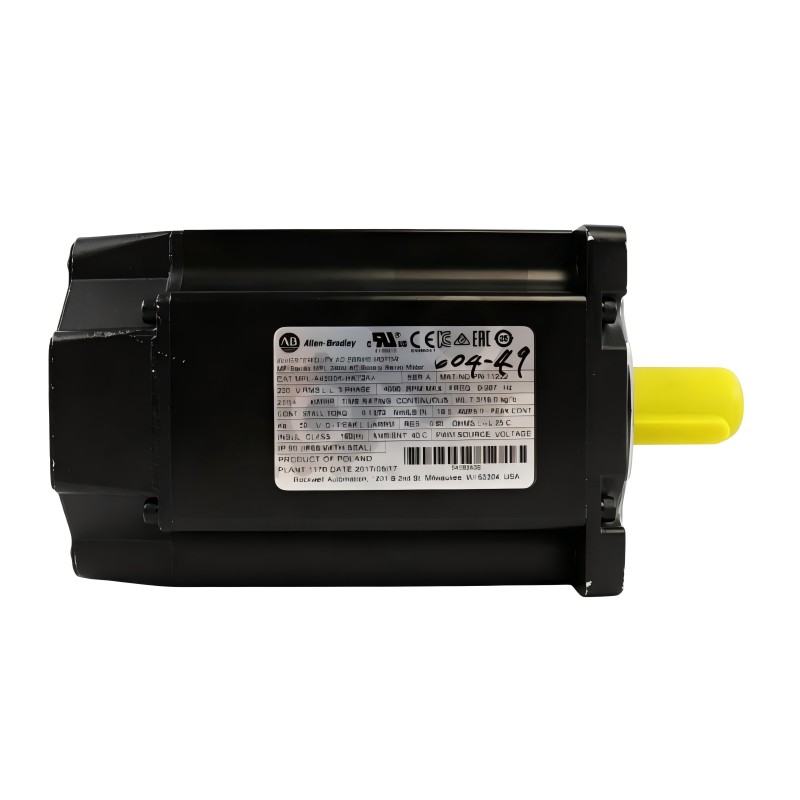

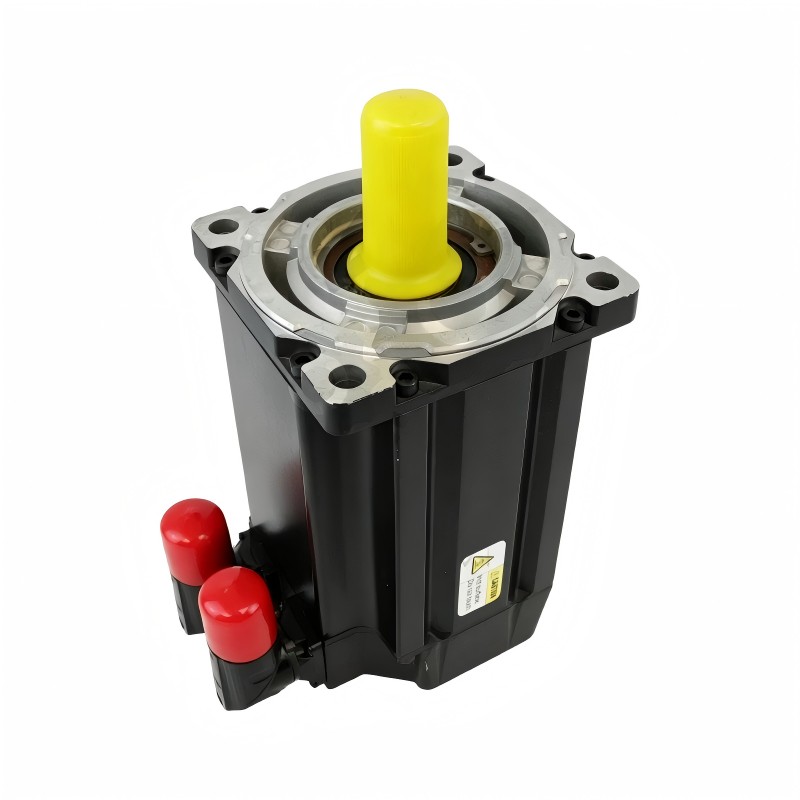

The Allen Bradley MPL-A4530K-HK72AA Servo Motor is an industrial servo motor designed for integration into automated motion-control equipment. As part of the Allen Bradley MPL servo motor family, this model is intended for machine applications that require controlled rotary movement, repeatable positioning, coordinated motion, and consistent operating performance.

A servo motor normally works as one element of a complete motion-control architecture. A compatible servo drive supplies and regulates electrical power, while a motion controller determines the required movement. Feedback from the motor allows the control system to monitor actual operating conditions and maintain the desired motion profile.

The supplied specifications identify the MPL-A4530K-HK72AA with a 130 mm frame size and a weight of 7.3 kg. These physical characteristics are important when evaluating machine mounting arrangements, mechanical support, transportation, handling, and replacement requirements.

The motor can be considered for a range of industrial applications involving automated rotary motion, including production machinery, packaging systems, material handling equipment, assembly equipment, indexing mechanisms, and other servo-controlled machines.

Exact electrical ratings, feedback characteristics, shaft dimensions, connector configuration, and drive compatibility should be confirmed from the specific motor nameplate and applicable technical documentation before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Product Family	MPL Servo Motor
Model	MPL-A4530K-HK72AA
Product Type	Industrial Servo Motor
Motor Technology	Permanent-Magnet Servo Motor
Frame Size	130 mm
Weight	7.3 kg
Primary Application	Industrial Motion Control
Control Architecture	Closed-Loop Servo System
Typical System	Motion Controller + Servo Drive + Servo Motor
Primary Function	Controlled Rotary Motion
Feedback	Verify according to specific motor configuration
Shaft Details	Verify according to specific motor documentation
Connector Details	Verify according to specific motor documentation
Installation	Industrial Automation Machinery

The frame size and weight shown above are the supplied product information. Configuration-specific electrical and mechanical values should be verified before engineering, installation, or replacement.

---

Understanding the MPL-A4530K-HK72AA

The Allen Bradley MPL-A4530K-HK72AA is a servo motor intended to provide controlled mechanical rotation within an industrial automation system.

A servo motor is normally operated as part of a closed-loop system rather than as an independent motor. The motion controller establishes the required movement, the servo drive converts the command into appropriate motor control, and feedback allows the system to compare actual motor behavior with the requested motion.

A simplified system can be represented as:

Motion Controller → Servo Drive → MPL-A4530K-HK72AA → Mechanical Load

Feedback → Servo Drive / Motion Controller

This arrangement allows the motor to participate in controlled positioning, speed regulation, acceleration, deceleration, and coordinated machine movement.

The motor may drive a mechanical axis directly or operate through a coupling, gearbox, belt, screw mechanism, or another suitable transmission system.

---

Servo Motor Operating Principle

The MPL-A4530K-HK72AA operates within a feedback-controlled servo architecture.

The motion controller generates a command based on the programmed machine operation. The servo drive receives this command and controls electrical power delivered to the motor.

The motor then generates mechanical rotation.

Feedback information is used to monitor actual motor operation. The control system can compare the actual condition with the commanded condition and make appropriate adjustments.

The general control process is:

Motion Command → Servo Drive → Motor → Mechanical Movement → Feedback → Control Correction

This closed-loop process allows servo systems to maintain controlled motion during changing machine conditions.

Depending on the application, the system can be configured for:

• Position control
• Velocity control
• Controlled acceleration
• Controlled deceleration
• Direction control
• Repetitive indexing
• Coordinated multi-axis movement
• Automated machine synchronization

Actual performance depends on the complete servo system and its configuration.

---

Core Functions

Controlled Mechanical Rotation

The motor converts electrical energy from the servo drive into mechanical rotation for the machine.

Automated Positioning

Servo systems can move machine mechanisms to programmed positions with repeatable control.

Speed Regulation

The drive can regulate motor operation according to the required machine motion.

Acceleration and Deceleration

Controlled motion profiles can help reduce sudden mechanical changes and support consistent production cycles.

Axis Synchronization

When multiple servo axes are used, the motor can participate in coordinated machine movement.

Dynamic Motion Control

Servo systems can respond to changing motion commands during automated production processes.

---

Role in Industrial Automation

The MPL-A4530K-HK72AA can form the motor stage of a complete industrial automation system.

A typical architecture may include:

PLC or Motion Controller

↓

Motion Program

↓

Servo Drive

↓

MPL-A4530K-HK72AA

↓

Mechanical Transmission

↓

Machine Mechanism

The controller determines the desired movement. The servo drive controls the motor. The motor produces the mechanical movement required by the machine.

Feedback provides information about actual motor operation and helps the system maintain the commanded motion.

This type of architecture is particularly useful when machine movement must be repeatable, coordinated, and automatically controlled.

---

Industrial Applications

The MPL-A4530K-HK72AA can be used in industrial motion applications when its verified specifications are appropriate for the machine requirements.

Typical application categories include:

Automated Manufacturing

Servo motors can drive machine axes and production mechanisms requiring programmed movement.

Packaging Equipment

Controlled rotary motion can be used for indexing, feeding, positioning, and synchronized machine functions.

Assembly Machinery

Servo-controlled movement can position components accurately during automated assembly processes.

Material Handling

Servo motors can control automated transfer and positioning mechanisms.

Machine Tools

Servo systems can provide controlled movement for machine axes and auxiliary mechanisms.

Printing and Converting

Servo-controlled motion can help synchronize material handling and machine processes.

Inspection Equipment

Controlled motion can position products, inspection heads, sensors, or cameras.

Indexing Systems

The motor can participate in repetitive rotary movement where accurate machine sequencing is required.

Actual application suitability depends on the motor’s verified specifications, mechanical load, drive configuration, and operating conditions.

---

Mechanical Integration

Proper mechanical integration is essential for servo motor reliability.

The 130 mm frame size should be considered when checking the machine mounting structure and available installation space.

Motor Mounting

The motor should be installed on a rigid and stable mounting surface. The mounting structure must be capable of supporting the motor and the mechanical forces generated during operation.

Shaft Alignment

Correct alignment between the motor and driven mechanism is important.

Misalignment can increase vibration and mechanical loading and may reduce the service life of connected components.

Coupling

When a coupling is used, it should be selected according to the actual application and verified shaft configuration.

Exact shaft dimensions should not be assumed without checking the specific motor documentation.

Load Inertia

The connected mechanical load should be evaluated before commissioning. Excessive inertia can influence acceleration, deceleration, response, and positioning behavior.

Machine Clearance

Adequate clearance should be provided around the motor for installation, inspection, ventilation, and maintenance access.

---

Servo Drive Integration

The MPL-A4530K-HK72AA must be considered as part of a compatible servo-control system.

Before connecting the motor, verify:

• Complete motor model
• Motor nameplate information
• Servo drive compatibility
• Feedback configuration
• Motor power connection
• Feedback connection
• Cable arrangement
• Connector configuration
• Grounding
• Mechanical load
• Motion controller configuration

The exact servo drive should not be selected solely because it belongs to the same general automation family. Compatibility should be confirmed for the specific motor configuration and application.

Incorrect drive configuration can produce alarms, unstable motion, poor positioning, or other system problems.

---

Installation Guidelines

1. Verify the Model

Confirm the motor identification:

Allen Bradley MPL-A4530K-HK72AA

Check the nameplate and product markings before installation.

2. Inspect the Motor

Inspect the motor for:

• Physical damage
• Connector damage
• Cable damage
• Corrosion
• Contamination
• Abnormal shaft condition
• Signs of impact

3. Check the Mounting Structure

Confirm that the machine structure is suitable for the 130 mm frame size and the 7.3 kg motor weight.

4. Mount the Motor

Install the motor securely using the applicable machine mounting method.

Do not force the motor into position if the mounting or shaft alignment is incorrect.

5. Connect Motor Wiring

Connect the motor to the compatible servo drive using the appropriate motor and feedback connections.

Connector pin assignments should be verified rather than assumed.

6. Verify Grounding

Check protective grounding and cable routing before energizing the system.

7. Check the Mechanical Load

Manually or otherwise safely verify that the connected machine mechanism can move as expected before full-speed operation.

---

Commissioning Procedure

A controlled commissioning process helps identify installation problems before the machine enters normal production.

Motor Configuration

Confirm the motor model and required configuration parameters in the servo drive.

Feedback Check

Verify that the drive correctly detects the motor feedback system.

Direction Verification

Perform a controlled movement to verify that the motor direction matches the intended machine direction.

Low-Speed Test

Begin testing at conservative operating conditions.

Position Test

For positioning applications, verify movement to the required machine positions.

Load Test

Gradually introduce the normal machine load after basic motor operation has been confirmed.

Diagnostic Review

Check the servo drive and controller for alarms, warnings, or abnormal feedback behavior.

Production Trial

Perform repeated machine cycles to confirm stable operation under normal conditions.

---

Troubleshooting the MPL-A4530K-HK72AA

Servo motor problems should be investigated as complete system problems rather than immediately assuming that the motor has failed.

Motor Does Not Move

Possible causes include:

• Servo drive disabled
• Incorrect motor configuration
• Feedback problem
• Motor cable fault
• Controller command problem
• Drive alarm
• Mechanical obstruction
• Incorrect wiring

Review the servo drive diagnostic information before replacing the motor.

Excessive Vibration

Possible causes include:

• Shaft misalignment
• Mechanical imbalance
• Coupling problems
• Loose mounting
• Excessive mechanical load
• Servo tuning problems
• Bearing-related issues

Both the mechanical system and control configuration should be examined.

Positioning Accuracy Problems

Possible causes include:

• Mechanical backlash
• Feedback issues
• Incorrect motion parameters
• Excessive load inertia
• Mechanical coupling movement
• Shaft alignment problems
• Control-system configuration errors

The complete motion chain should be evaluated.

Overheating

Potential contributors include:

• Excessive mechanical load
• Abnormal mechanical resistance
• Demanding acceleration cycles
• Incorrect application conditions
• Insufficient cooling
• Incorrect drive configuration

Operating conditions should be compared with the verified motor requirements.

Intermittent Operation

Intermittent problems can be caused by:

• Loose connectors
• Damaged cables
• Electrical interference
• Feedback problems
• Mechanical vibration
• Drive faults
• Control configuration problems

A detailed inspection of wiring and diagnostic information can help isolate the problem.

---

Preventive Maintenance

Regular inspection can help maintain stable servo performance.

Cable Inspection

Check motor and feedback cables for abrasion, cuts, bending damage, or connector stress.

Connector Inspection

Ensure connectors remain properly secured and protected from contamination.

Mounting Inspection

Check the motor mounting arrangement for looseness or mechanical movement.

Coupling Inspection

Inspect the connected mechanical coupling and transmission for alignment and abnormal wear.

Vibration Monitoring

Changes in vibration or operating noise can indicate developing mechanical problems.

Performance Monitoring

Monitor positioning behavior, machine-cycle consistency, acceleration response, and abnormal alarms.

---

Physical Dimensions and Weight

The supplied physical specifications for the Allen Bradley MPL-A4530K-HK72AA Servo Motor are:

• Frame Size: 130 mm
• Weight: 7.3 kg

The frame size is an important parameter when evaluating machine mounting compatibility.

The weight is relevant when planning:

• Motor handling
• Installation procedures
• Machine support
• Transportation
• Replacement activities
• Maintenance access

The 130 mm frame size should not be interpreted as the complete external motor envelope. Exact mounting dimensions, shaft dimensions, overall length, connector locations, and other mechanical details should be verified from the applicable technical documentation.

---

Servo System Architecture

A complete servo application using the MPL-A4530K-HK72AA may contain several functional layers.

Controller

The controller executes the machine motion program.

Motion Interface

The motion-control system generates commands for the servo drive.

Servo Drive

The drive manages the electrical operation of the motor.

Servo Motor

The MPL-A4530K-HK72AA converts electrical energy into controlled mechanical rotation.

Feedback

Feedback information allows the servo system to monitor actual motor behavior.

Mechanical Transmission

A coupling, gearbox, belt, screw, or other mechanism transfers motor movement to the machine.

Machine Load

The final machine mechanism performs the required industrial operation.

This architecture makes the servo motor an integrated part of the machine rather than an isolated component.

---

Replacement and Compatibility Considerations

When replacing an MPL-series servo motor, technicians should verify the complete model number.

The model covered by this article is:

MPL-A4530K-HK72AA

Before installing a replacement, verify:

• Full model number
• Motor nameplate
• Frame size
• Weight
• Mounting arrangement
• Shaft configuration
• Feedback configuration
• Connector arrangement
• Motor cables
• Servo drive compatibility
• Mechanical load
• Controller configuration

A motor with a similar physical appearance or frame size should not automatically be treated as a direct replacement.

For accurate inventory and replacement management, the complete MPL-A4530K-HK72AA designation should be retained.

---

Engineering Best Practices

Reliable servo operation requires coordination between the electrical, mechanical, and control sections of the machine.

Select Appropriate Drive Hardware

The drive should be verified for the exact motor configuration.

Maintain Mechanical Alignment

Correct alignment can reduce unnecessary vibration and mechanical loading.

Protect Feedback Wiring

Feedback cables should be routed and protected appropriately to minimize electrical interference and physical damage.

Verify the Machine Load

The connected mechanism should be evaluated before commissioning.

Use Controlled Startup

Initial testing should be performed under controlled conditions before the machine operates at full production speed.

Record Diagnostic Information

Servo alarms and abnormal operating behavior should be documented during troubleshooting and maintenance.

---

Key Advantages

The Allen Bradley MPL-A4530K-HK72AA provides several characteristics relevant to industrial motion-control applications:

• 130 mm frame size
• 7.3 kg weight
• Industrial servo motor construction
• Closed-loop motion-control operation
• Controlled rotary movement
• Suitable for automated positioning applications
• Supports coordinated motion architectures
• Suitable for integration into industrial machinery
• Useful for repeatable machine movement
• Designed to operate as part of a complete servo system

---

Technical FAQs

What is the Allen Bradley MPL-A4530K-HK72AA?

The Allen Bradley MPL-A4530K-HK72AA is an industrial servo motor designed for integration into automated closed-loop motion-control systems.

What is the frame size of the MPL-A4530K-HK72AA?

The supplied frame size is 130 mm.

How much does the motor weigh?

The supplied weight is 7.3 kg.

What is the main function of this servo motor?

The motor provides controlled mechanical rotation as part of an industrial servo-control system.

Does this motor require a servo drive?

A servo motor is normally operated through a compatible servo drive, which manages the electrical power and motor control functions.

Where can this servo motor be used?

Potential applications include automated manufacturing machinery, packaging equipment, assembly systems, material handling equipment, machine tools, indexing systems, and other industrial motion-control applications.

What should be verified before installation?

The complete motor model, nameplate information, mounting requirements, feedback configuration, connector arrangement, motor cables, drive compatibility, and mechanical load should be checked.

Does 130 mm represent the complete motor dimensions?

No. The 130 mm value supplied here is the frame size. It should not be assumed to represent the complete motor length, width, height, shaft dimensions, or mounting dimensions.

What can cause a servo motor to vibrate?

Possible causes include mechanical misalignment, coupling problems, mounting looseness, mechanical imbalance, excessive load, or control-system configuration issues.

What can cause positioning errors?

Positioning errors can originate from feedback problems, mechanical backlash, excessive load, incorrect configuration, coupling movement, alignment problems, or motion-control parameters.

How should the MPL-A4530K-HK72AA be maintained?

Maintenance should include inspection of cables, connectors, mounting hardware, mechanical couplings, vibration, and machine operating behavior. Abnormal changes should be investigated before they result in equipment downtime.

---

Conclusion

The Allen Bradley MPL-A4530K-HK72AA Servo Motor is an industrial motion-control component designed to provide controlled rotary movement within a closed-loop automation architecture. With a supplied 130 mm frame size and 7.3 kg weight, it represents a larger-frame servo motor suitable for industrial machinery where controlled and repeatable movement is required.

When correctly integrated with a compatible servo drive, motion controller, feedback system, and mechanical transmission, the MPL-A4530K-HK72AA can participate in automated positioning, speed control, acceleration, deceleration, and coordinated machine movement.

Successful installation depends on more than matching the motor model. Mechanical alignment, drive compatibility, feedback configuration, cabling, machine load, and commissioning parameters should all be verified before normal operation.

For replacement and maintenance, the complete MPL-A4530K-HK72AA model designation should be checked against the existing motor and system configuration. Exact electrical ratings, feedback specifications, shaft dimensions, connector details, and other configuration-specific characteristics should be confirmed from the applicable technical documentation before the motor is installed or substituted.

With proper system integration, commissioning, and preventive maintenance, the MPL-A4530K-HK72AA can serve as a reliable servo motor component in a wide range of industrial automation and machine-control applications.
