Product Overview

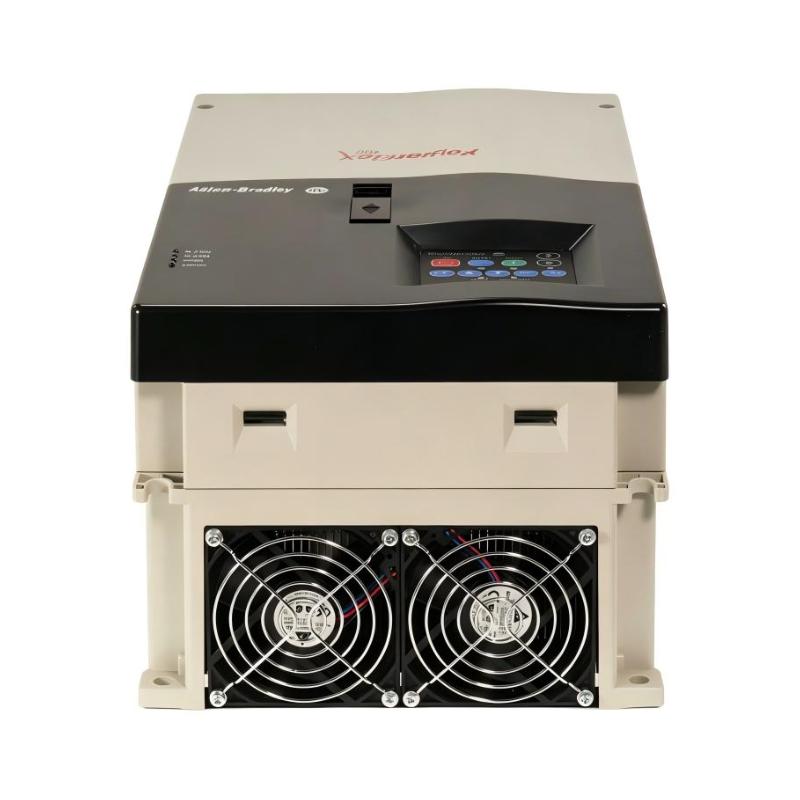

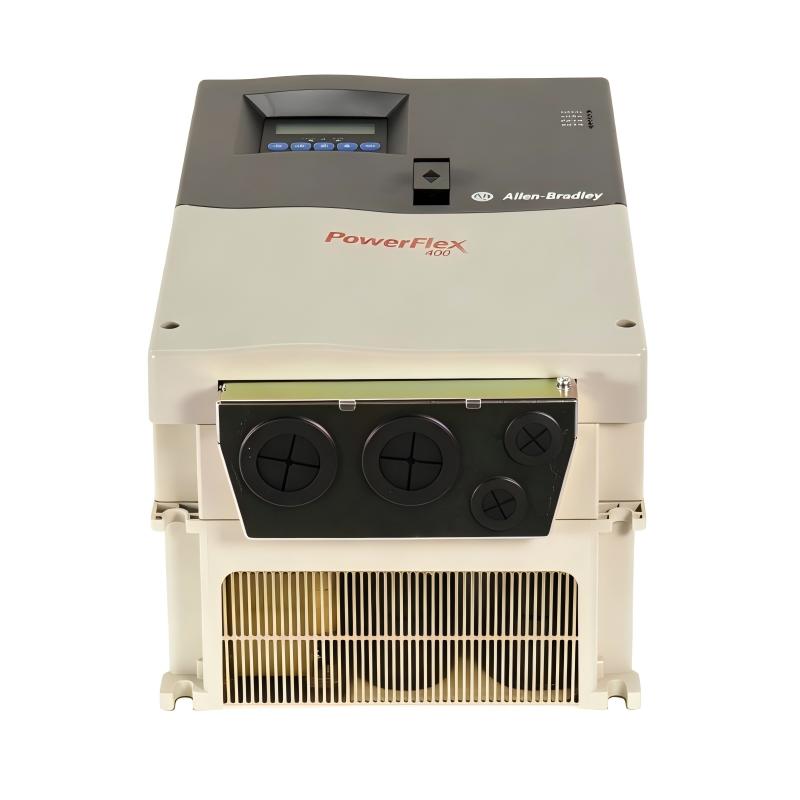

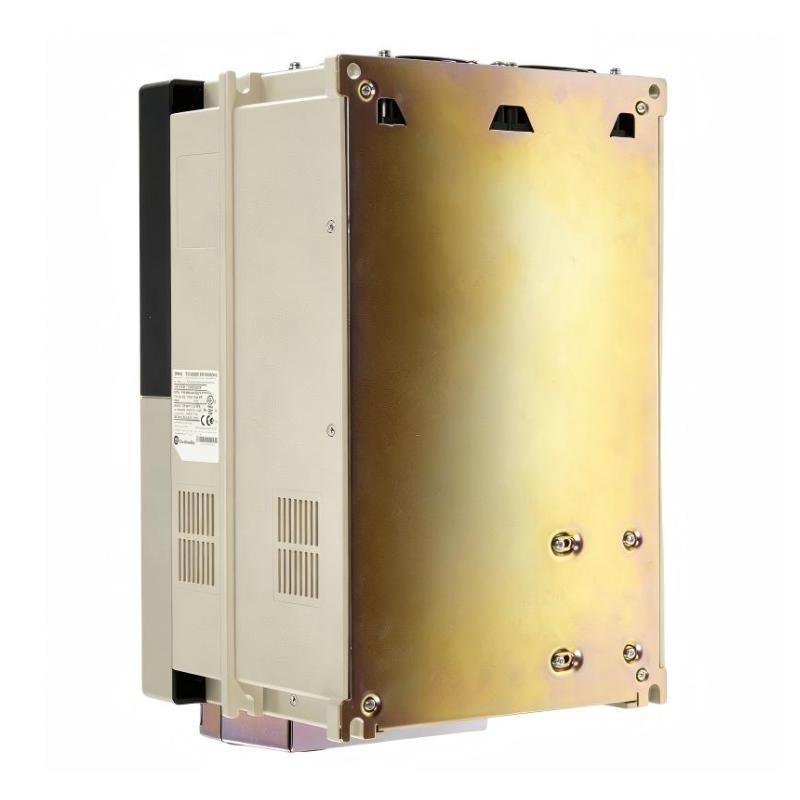

The Allen Bradley 22C-D060A103 PowerFlex 400 AC Drive is an adjustable-frequency drive for controlling AC motors in industrial and process-oriented equipment. It belongs to the PowerFlex 400 family, which is commonly associated with applications where motor speed needs to follow changing operating conditions.

A practical example is a large ventilation system. The fan motor may not need to operate at the same speed throughout the day, so the drive can be used to adjust motor operation according to airflow requirements. Similar arrangements can be found in pump systems, material-handling equipment, conveyors, and other motor-driven machinery.

The 22C-D060A103 is a substantially larger unit than compact machine-level drives, making cabinet layout and installation planning more significant. Its application should be evaluated around the complete motor system, including the motor, mechanical load, incoming power, control signals, ventilation, and protection equipment.

Technical Specifications

Product Features

The 22C-D060A103 is intended for applications requiring controlled operation of a relatively substantial AC motor load.

Key characteristics include:

• Allen Bradley PowerFlex 400 platform
• Adjustable-frequency AC drive configuration
• Suitable for variable-speed motor applications
• Applicable to pump and fan systems
• Suitable for conveyor and material-handling equipment
• Supports controlled motor operation during acceleration and deceleration
• Can be incorporated into PLC-based automation systems
• Appropriate for process-oriented motor control
• Dimensions of 370 × 605.5 × 259.2 mm
• Stated weight of 51.2 kg

Because of its physical size and weight, cabinet mounting, access for maintenance, lifting arrangements, and ventilation should be considered during installation.

Working Principle

The operating relationship is straightforward:

Control System → PowerFlex 400 Drive → AC Motor → Mechanical Load

The controller determines the required operating condition, while the drive regulates the electrical output supplied to the motor. This allows motor speed to be adjusted according to the machine or process requirement.

For example, in a large pumping installation, process demand may change throughout the production cycle. Instead of keeping the motor at a constant operating condition, the drive can alter motor speed to suit the required process state.

The same approach applies to large fans and blowers. If airflow demand decreases, the motor can operate at a lower speed rather than continuously running at full speed.

During commissioning, the drive’s configuration should be considered together with the motor and mechanical system. Incorrect motor information, unsuitable operating parameters, excessive load, or a problem on the driven equipment can all affect drive behavior.

Industrial Applications

The 22C-D060A103 is suitable for industrial equipment where adjustable-speed motor operation is required, particularly in applications involving larger process loads.

The appropriate application depends on the actual motor characteristics, load profile, electrical supply, environmental conditions, and required control method.

Compatible System Components

The 22C-D060A103 is normally installed as one part of a complete motor-control system.

For larger motor applications, the interaction between electrical and mechanical equipment becomes especially important. A drive fault may be triggered by conditions originating from the motor or driven equipment rather than from the drive itself.

Installation and Maintenance

The 22C-D060A103 requires careful installation because of its physical dimensions and 51.2 kg stated weight. The enclosure, mounting structure, lifting method, ventilation arrangement, and service access should be planned before installation.

Recommended checks include:

• Confirm the complete 22C-D060A103 part number.
• Verify the motor’s electrical requirements.
• Check the incoming power arrangement.
• Inspect motor output connections.
• Verify grounding.
• Check control and communication wiring.
• Confirm adequate cabinet ventilation.
• Review the existing drive configuration before replacement.
• Verify acceleration and deceleration settings.
• Inspect circuit protection.
• Check the motor and mechanical load.
• Inspect cooling paths for obstruction or contamination.
• Confirm sufficient clearance for maintenance.
• Use appropriate handling equipment when installing or removing the drive.
• Perform controlled commissioning after installation.

For pump and fan applications, process conditions should also be checked when abnormal current, speed, or acceleration behavior occurs. Mechanical restrictions, changing system pressure, blocked airflow, or other process conditions can affect motor operation.

Recommended Related Models

For a large PowerFlex 400 installation, the most appropriate related equipment depends on motor requirements and the process rather than simply selecting a physically similar drive.

When selecting a replacement, check motor electrical characteristics, application duty, input power, control requirements, environmental conditions, cabinet dimensions, and mechanical installation requirements.

Key Advantages

• PowerFlex 400 adjustable-frequency drive platform
• Suitable for variable-speed AC motor applications
• Applicable to pumps, fans, conveyors, and process equipment
• Supports controlled motor acceleration and deceleration
• Suitable for PLC-based industrial control systems
• Appropriate for larger motor-control installations
• Dimensions of 370 × 605.5 × 259.2 mm
• Stated weight of 51.2 kg

Technical FAQs

What should be considered when installing a 22C-D060A103 with a weight of 51.2 kg?

The cabinet mounting structure, handling method, installation clearance, service access, and ventilation should all be considered. The drive should not be treated like a small panel-mounted VFD during mechanical installation.

Why can a large pump or fan cause apparent drive problems?

The mechanical load directly affects motor current and operating behavior. Changes such as increased pump resistance, restricted airflow, mechanical binding, or other process conditions can cause abnormal drive operation even when the drive itself is functioning correctly.

What information should be checked before replacing an existing 22C-D060A103?

The motor data, incoming power arrangement, control wiring, operating parameters, acceleration and deceleration settings, mechanical load, and cabinet installation should be documented and verified before commissioning the replacement.

Why is cabinet ventilation particularly important for this type of AC drive?

The drive’s power electronics generate heat during operation. If heat cannot be removed effectively, internal temperatures can rise and affect operation or service life. Cabinet airflow, clearance, ambient conditions, and cooling paths should therefore be checked as part of installation and maintenance.
