- Allen Bradley
- 1790D-T32BV0
- DeviceNet LDX I/O Universal Input Base Module
- USA
- 176 x 42 x 52 mm
- 0.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 26
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

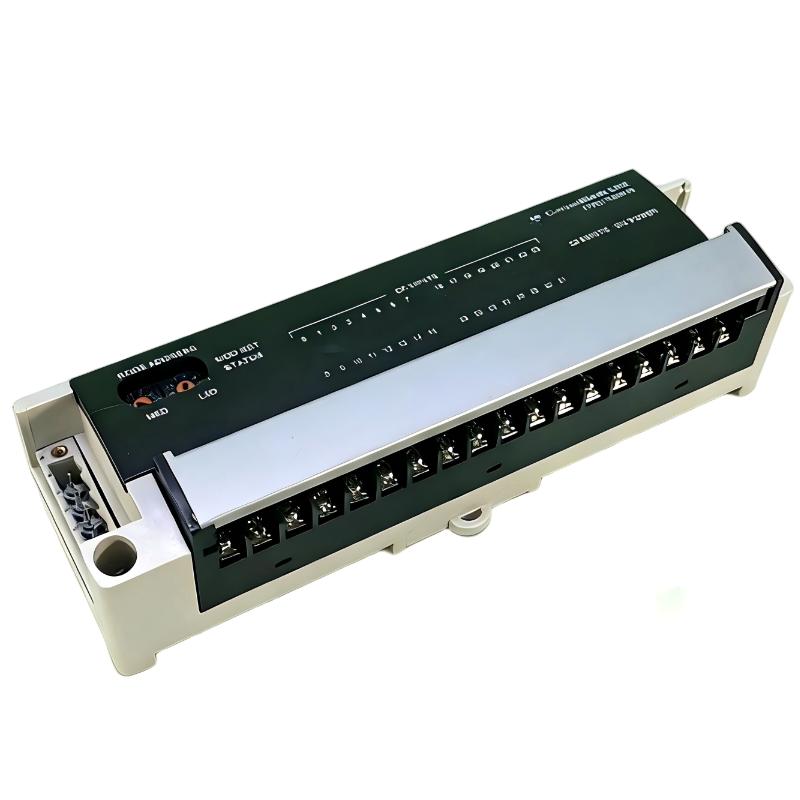

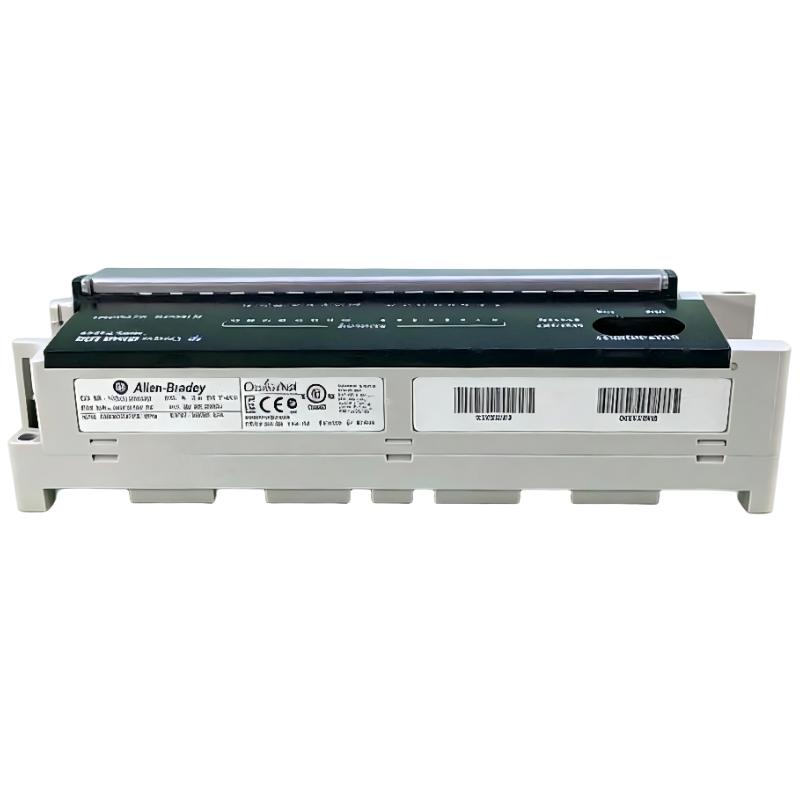

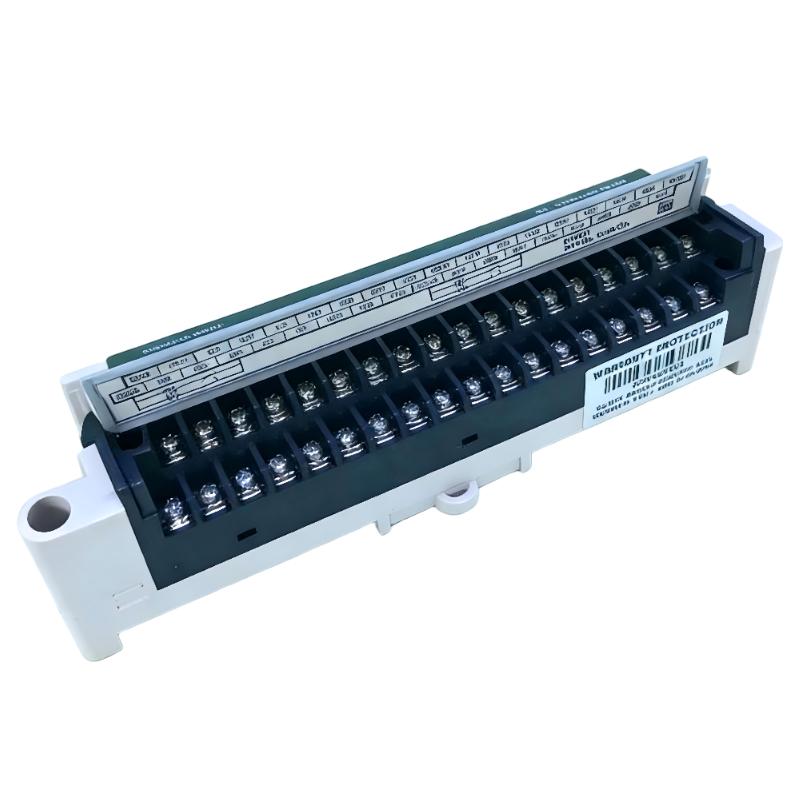

The Allen Bradley 1790D-T32BV0 is a DeviceNet LDX I/O Universal Input Base Module designed for modular digital and analog I/O applications in industrial automation systems. Measuring 176 × 42 × 52 mm and weighing 0.3 kg, this module provides high-density input capabilities, making it suitable for medium-to-large automation networks. It supports DeviceNet communication, enabling reliable integration with CompactBlock LDX controllers and other DeviceNet-enabled devices.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1790D-T32BV0 |
| Product Type | DeviceNet LDX I/O Universal Input Base Module |
| Dimensions | 176 × 42 × 52 mm |
| Weight | 0.3 kg |
| Module Type | Universal Input (Digital/Analog) |
| Channel Count | 32 universal input channels |
| Mounting | DIN-rail or modular rack installation |
| Communication | DeviceNet protocol |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
| Compatibility | CompactBlock LDX I/O system, DeviceNet networks |
Function and Working Principle
The 1790D-T32BV0 functions by:
- Providing 32 universal input channels for digital and analog signals
- Receiving signals from a variety of sensors and field devices
- Transmitting input data over DeviceNet networks to LDX controllers
- Supporting modular integration with other LDX I/O modules
- Facilitating flexible and scalable automation system designs
It acts as a core input module for monitoring multiple industrial parameters efficiently.
Role in Industrial Automation
This module is critical for:
- Expanding universal input capabilities in DeviceNet LDX systems
- Collecting sensor and field device signals from digital and analog sources
- Providing reliable DeviceNet communication for automation controllers
- Supporting modular, scalable industrial I/O networks
Industrial Applications
- Factory automation and process control systems
- Monitoring sensors, switches, and analog devices in industrial environments
- Integration with CompactBlock LDX controllers and DeviceNet networks
- Applications requiring high-density universal input solutions
Installation and Usage
- Mount the 1790D-T32BV0 module on a DIN rail or in a modular rack slot
- Connect digital and analog input devices to the module terminals
- Link the module to a DeviceNet network and LDX controller
- Configure I/O addresses and communication parameters via the controller software
- Verify proper signal acquisition and communication integrity
Its high-density design supports 32 channels in a compact form factor, reducing the need for multiple modules.
Compatible System Components
- CompactBlock LDX controllers
- Other LDX I/O modules (digital, analog, output modules)
- DeviceNet-enabled field devices (sensors, actuators)
- DIN-rail or modular automation racks
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1790D-T32BV0 | DeviceNet Universal Input Module | 32 universal input channels | Medium-to-large I/O applications |
| 1790D-T16BV0 | CompactBlock LDX I/O Basic Module | 16-channel input | Small-scale I/O expansion |
| 1790D-T0V32 | CompactBlock LDX I/O Basic Module | 32 digital I/O channels | High-density digital networks |
Key Advantages
- High-density 32-channel universal input module
- Supports both digital and analog input signals
- DeviceNet communication for seamless network integration
- Industrial-grade durability for harsh environments
- Compact modular design for space-efficient installations
Technical FAQs
What is the primary function?
It provides 32 universal input channels (digital and analog) for DeviceNet LDX automation systems.
Which systems is it compatible with?
Compatible with CompactBlock LDX controllers and DeviceNet-enabled I/O networks.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, suitable for vibration, dust, and temperature extremes.
Is it suitable for high-channel-count input applications?
Yes, its 32-channel capacity supports larger input requirements efficiently.
Conclusion
The Allen Bradley 1790D-T32BV0 DeviceNet LDX I/O Universal Input Base Module is a high-density, reliable, and modular solution for monitoring digital and analog signals in industrial automation systems. Its DeviceNet integration, 32-channel capacity, and compact design make it ideal for space-constrained, medium-to-large automation networks requiring scalable and efficient input solutions.
