Product Overview

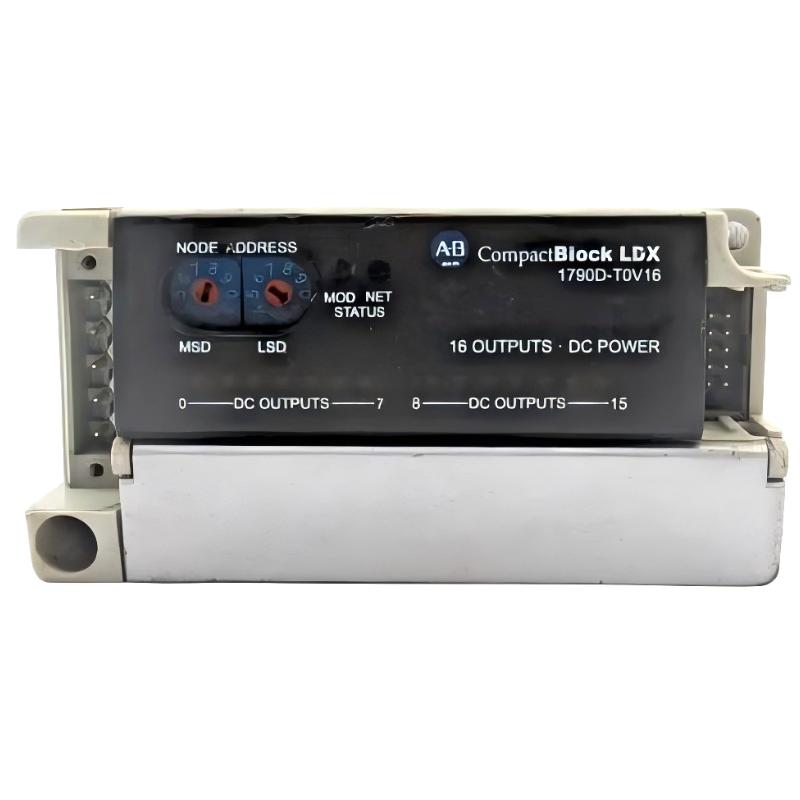

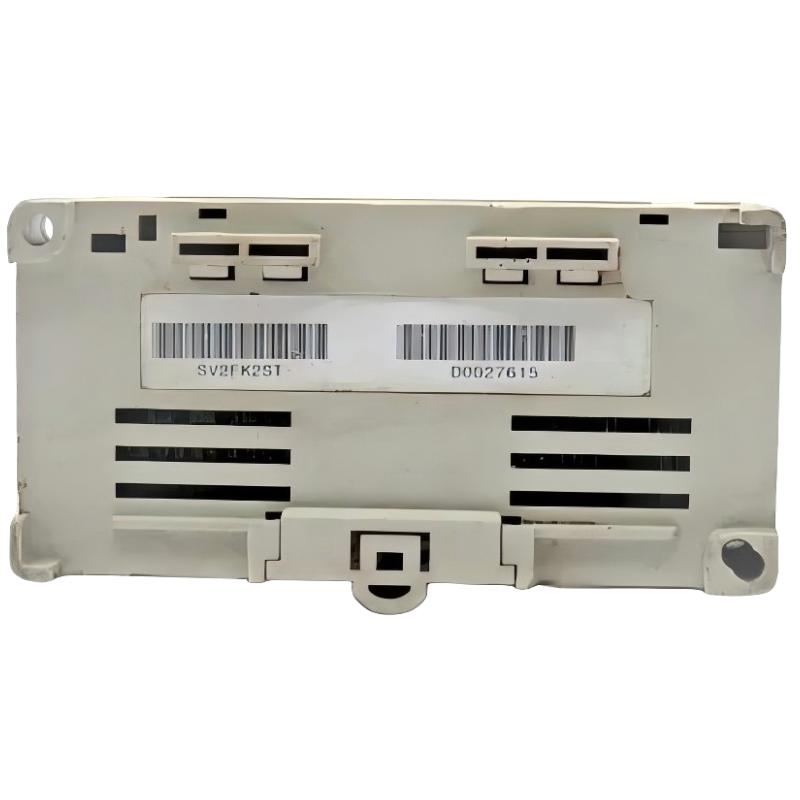

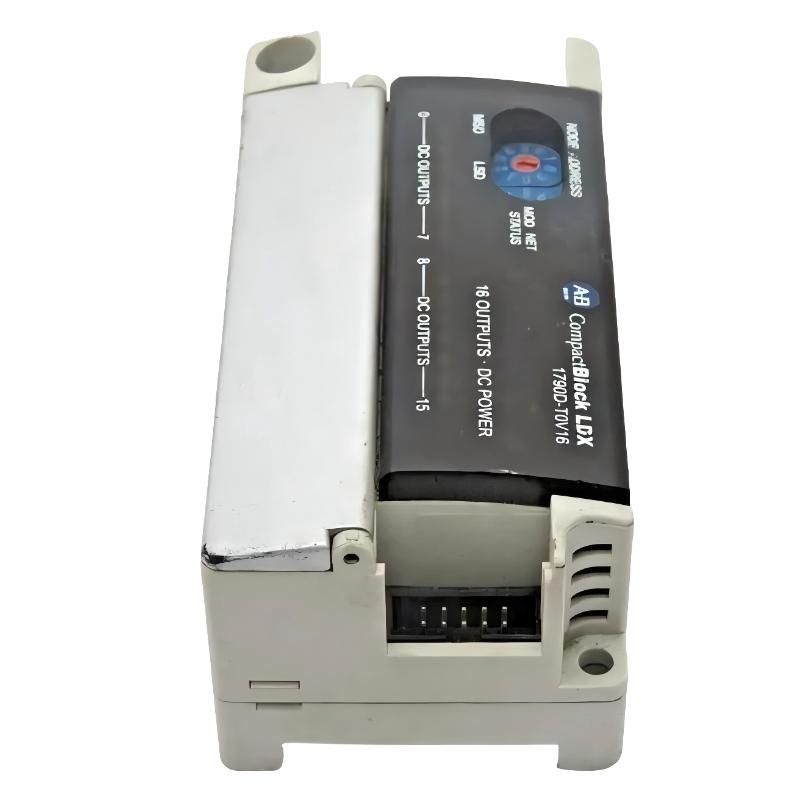

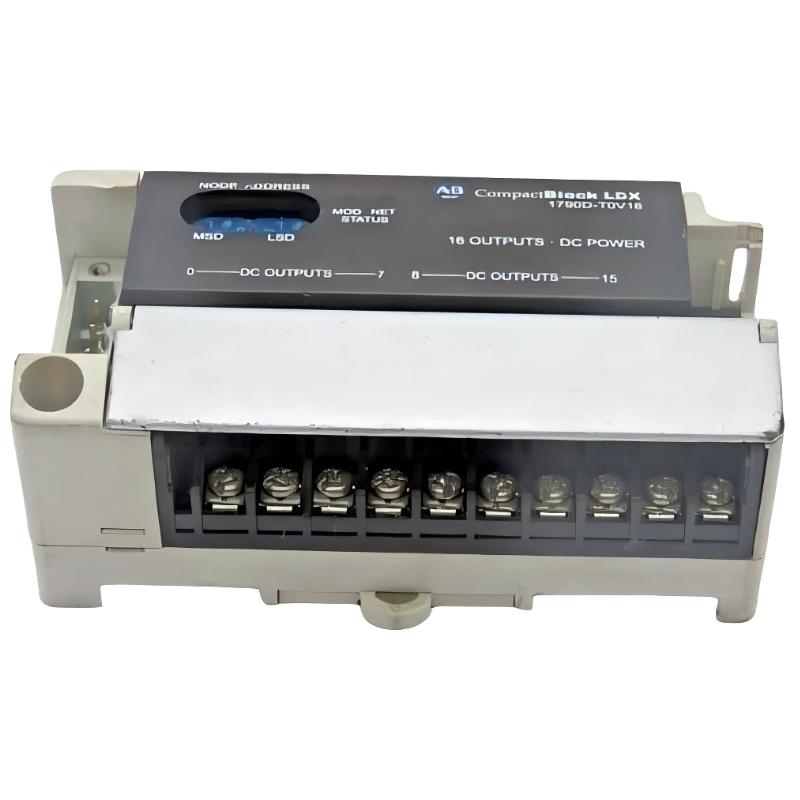

The Allen Bradley 1790D-T0V16 is a CompactBlock LDX I/O Basic Module designed for modular digital I/O applications in industrial automation systems. Measuring 104 × 42 × 52 mm and weighing 0.1 kg, this module is compact and lightweight, making it suitable for space-constrained installations. It provides robust digital I/O functionality for monitoring and controlling industrial devices such as sensors, actuators, and switches.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1790D-T0V16 |
| Product Type | CompactBlock LDX I/O Basic Module |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
| Module Type | Digital Input/Output (I/O) |
| Mounting | DIN-rail or modular rack installation |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
| Compatibility | CompactBlock LDX I/O system components |
Function and Working Principle
The 1790D-T0V16 operates by:
- Providing digital I/O channels for modular automation systems
- Transmitting input signals from sensors and output signals to actuators
- Integrating seamlessly with CompactBlock LDX controllers and other I/O modules
- Supporting scalable and flexible automation system design
This module is a core component for reliable and efficient digital I/O communication in industrial networks.
Role in Industrial Automation
The 1790D-T0V16 is used to:
- Expand digital I/O capabilities in CompactBlock LDX systems
- Connect field devices such as sensors, switches, and actuators
- Provide modular and space-efficient system integration
- Ensure reliable signal transmission for control and monitoring
Industrial Applications
- Factory and process automation systems
- Integration with CompactBlock LDX controllers and I/O modules
- Monitoring and controlling industrial equipment
- Applications requiring compact, modular digital I/O solutions
Installation and Usage
- Mount the 1790D-T0V16 module on a DIN rail or in a modular rack slot
- Connect digital input and output devices to the terminal points
- Link the module to the CompactBlock LDX network or controller
- Configure the module’s I/O addresses via the controller
- Verify signal integrity and functionality of connected devices
Its compact form factor allows easy integration in tight spaces without compromising network performance.
Compatible System Components
- CompactBlock LDX controllers
- Other LDX I/O modules
- Field devices such as sensors, actuators, and switches
- DIN-rail or modular automation racks
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1790D-T0V16 | Digital I/O Basic Module | Compact modular design | Small-scale digital I/O expansion |
| 1790D-T0V32 | Digital I/O Basic Module | Higher channel count | Larger I/O requirements |
| 1790D-T1V16 | Digital I/O Advanced Module | Extended features | Advanced control and monitoring in LDX networks |
Key Advantages
- Compact and lightweight (0.1 kg)
- Modular integration for flexible system design
- Reliable digital I/O communication
- Industrial-grade durability
- Space-efficient for small-to-medium automation networks
Technical FAQs
What is the primary function?
It provides digital input/output channels for modular CompactBlock LDX automation systems.
Which systems is it compatible with?
Compatible with CompactBlock LDX controllers and other LDX I/O modules.
Can it operate in harsh environments?
Yes, it is industrial-grade, suitable for vibration, dust, and temperature variations.
Is it suitable for space-constrained installations?
Yes, its compact size makes it ideal for tight modular racks.
Conclusion
The Allen Bradley 1790D-T0V16 CompactBlock LDX I/O Basic Module is a reliable, compact, and industrial-grade digital I/O solution. Its lightweight, modular design makes it perfect for space-limited automation systems while providing robust and flexible digital I/O capabilities.
