- Allen Bradley
- 1790D-T0B16
- CompactBlock LDX I/O Basic Module
- USA
- 104 x 42 x 52 mm
- 0.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 34
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

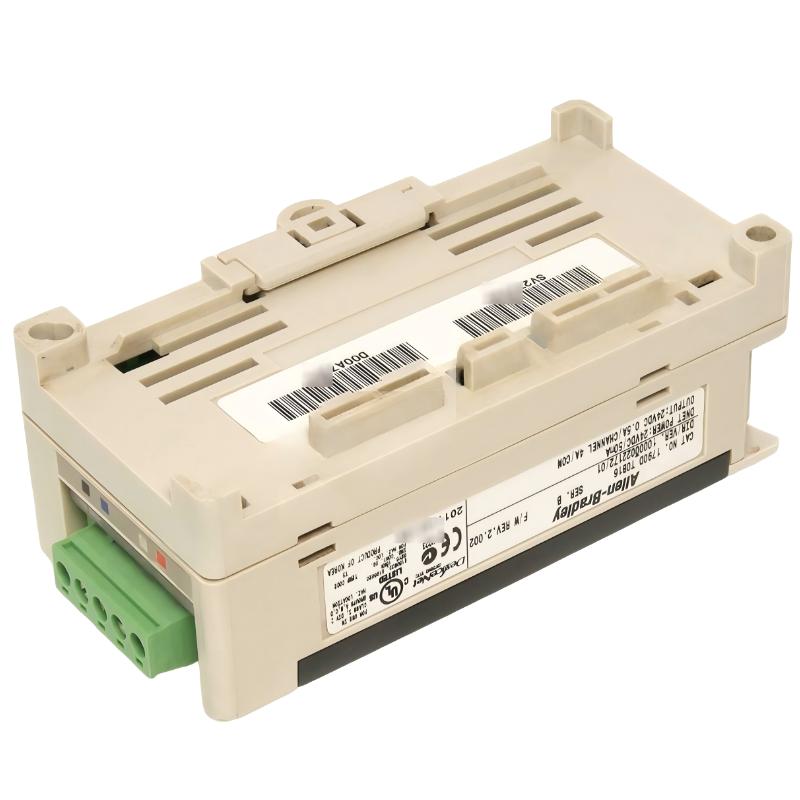

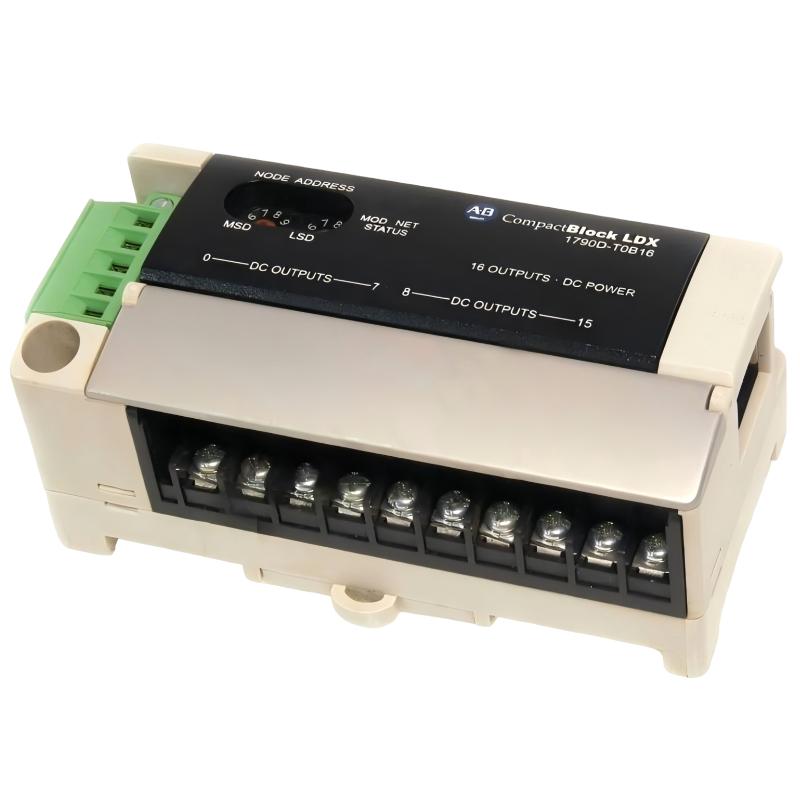

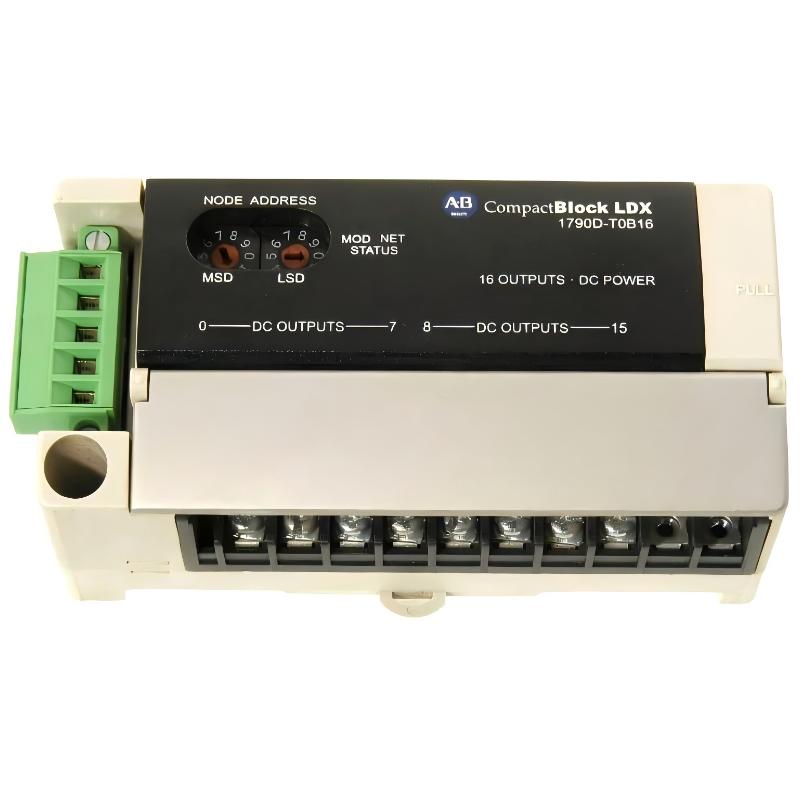

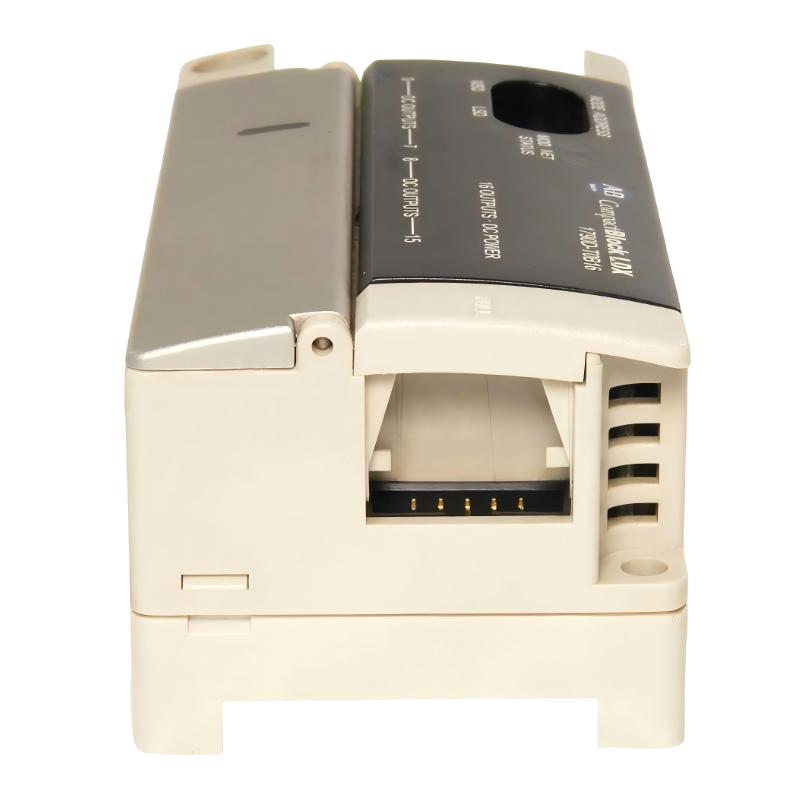

The Allen Bradley 1790D-T0B16 is a CompactBlock LDX I/O Basic Module designed for modular digital input/output (I/O) integration in industrial automation systems. With compact dimensions of 104 × 42 × 52 mm and a lightweight profile of 0.1 kg, this module is ideal for space-constrained installations. It provides reliable digital I/O channels for monitoring and controlling sensors, switches, and actuators within automated processes.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1790D-T0B16 |
| Product Type | CompactBlock LDX I/O Basic Module |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
| Module Type | Digital Input/Output (I/O) |
| Mounting | DIN-rail or modular rack installation |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
| Compatibility | CompactBlock LDX I/O system components |
Function and Working Principle
The 1790D-T0B16 functions by:
- Providing digital I/O channels for industrial control systems
- Transmitting input signals from sensors and output signals to actuators
- Supporting modular integration with CompactBlock LDX controllers and other I/O modules
- Enabling scalable and flexible automation system design
It serves as a core building block for efficient, reliable, and modular digital I/O networks.
Role in Industrial Automation
The module is essential for:
- Expanding digital I/O capabilities in CompactBlock LDX systems
- Connecting field devices such as switches, sensors, and actuators
- Supporting compact and modular automation network layouts
- Ensuring reliable signal transmission for monitoring and control
Industrial Applications
- Factory and process automation systems
- Monitoring and controlling industrial devices
- Integration with CompactBlock LDX controllers and I/O modules
- Industrial applications requiring compact, modular digital I/O solutions
Installation and Usage
- Mount the module on a DIN rail or in a modular rack slot
- Connect digital input and output devices to the terminals
- Link the module to the CompactBlock LDX controller
- Configure I/O addresses and parameters via the controller
- Verify signal integrity and functionality of connected devices
Its compact and lightweight design allows easy installation in tight or modular spaces.
Compatible System Components
- CompactBlock LDX controllers
- Other LDX I/O modules
- Field devices such as sensors, switches, and actuators
- DIN-rail or modular automation racks
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1790D-T0B16 | Digital I/O Basic Module | Compact modular design | Small-scale digital I/O expansion |
| 1790D-T0B32 | Digital I/O Basic Module | Higher channel count | Larger I/O requirements |
| 1790D-T1B16 | Digital I/O Advanced Module | Extended features | Advanced control and monitoring in LDX systems |
Key Advantages
- Compact and lightweight (0.1 kg)
- Modular integration for flexible system design
- Reliable digital I/O signal transmission
- Industrial-grade durability
- Space-efficient solution for small-to-medium automation networks
Technical FAQs
What is the primary function?
It provides digital input/output channels for modular CompactBlock LDX automation systems.
Which systems is it compatible with?
Compatible with CompactBlock LDX controllers and other LDX I/O modules.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, suitable for vibration, dust, and temperature variations.
Is it suitable for space-constrained installations?
Yes, its compact dimensions make it ideal for tight modular racks.
Conclusion
The Allen Bradley 1790D-T0B16 CompactBlock LDX I/O Basic Module is a reliable, industrial-grade digital I/O solution for modular automation systems. Its compact size, lightweight design, and flexibility make it ideal for space-constrained applications requiring scalable and robust I/O capabilities.
