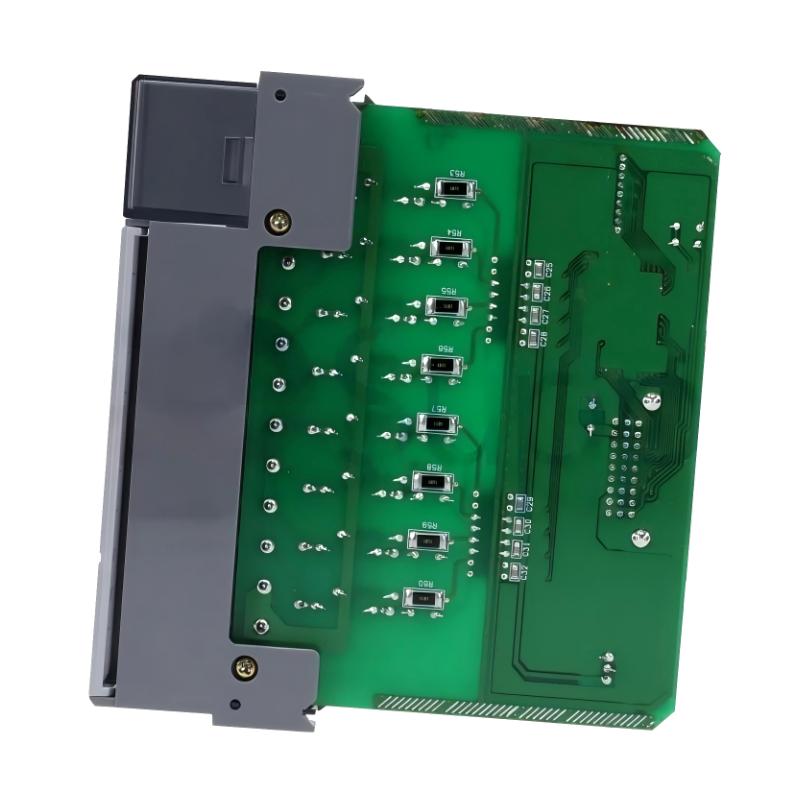

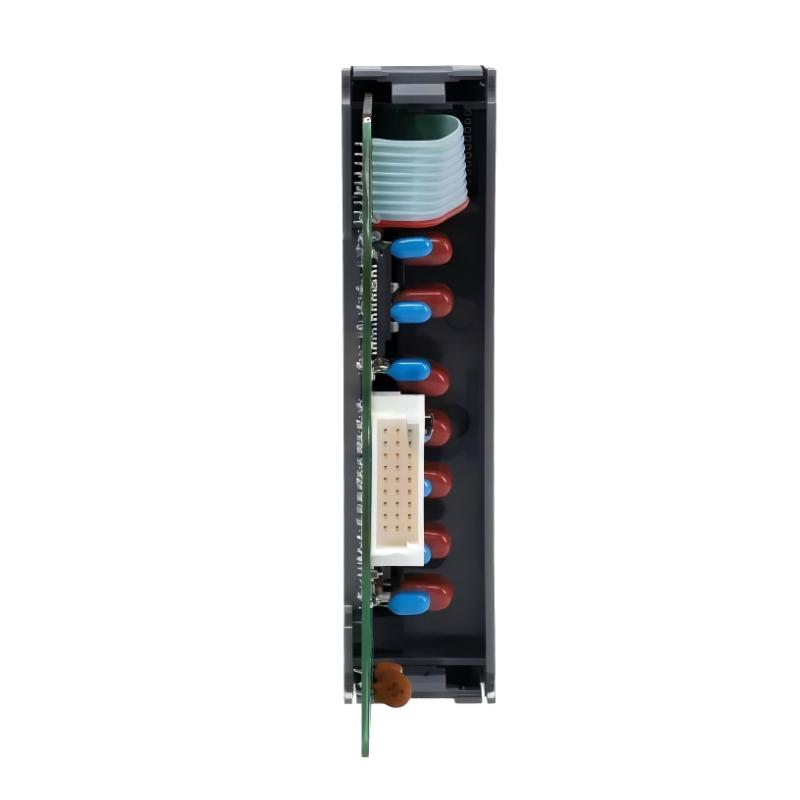

Allen Bradley 1746-IM8/A — Detailed Technical Overview

1. Product Introduction

The Allen Bradley 1746-IM8/A is a digital AC input module designed for integration within the SLC 500 PLC platform. The “/A” revision represents an early and widely deployed hardware version, known for stable operation and compatibility with standard SLC 500 systems.

This module provides eight discrete input channels intended for monitoring higher-voltage AC signals, typically in the 200–240V AC range. It is commonly used in industrial environments where field devices such as contactors, relays, and switches operate at elevated AC voltages.

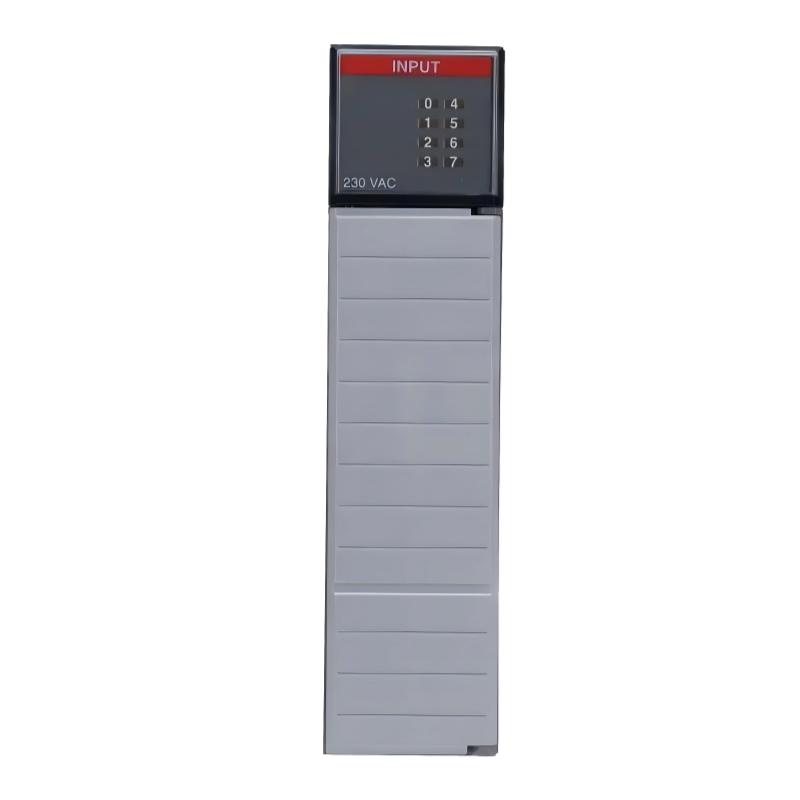

Each input channel includes an individual LED indicator for real-time signal monitoring, allowing quick identification of input states. The module installs directly into the PLC rack and communicates with the processor via the backplane, ensuring reliable and consistent signal acquisition.

2. Product Parameters

Technical Specifications

3. Product Applications

The 1746-IM8/A is used in industrial automation systems where higher-voltage AC signals must be monitored reliably.

Typical applications include:

• Monitoring contactors and motor starter feedback
• Detecting relay outputs in high-voltage systems
• Industrial machinery with 220–240V AC control circuits
• Conveyor and material handling systems
• Process control panels with AC field wiring
• Equipment status monitoring in manufacturing lines

It is particularly suited for systems where standard 120V modules are not adequate due to higher voltage requirements.

4. Product Advantages

Designed for High-Voltage AC Inputs
Optimized for 240V AC systems, ensuring accurate and stable signal detection.

Compact Channel Configuration
Eight input channels provide efficient use of rack space.

Reliable Signal Isolation
Optical isolation improves system safety and protects against electrical noise.

Clear Diagnostic Feedback
LED indicators on each channel allow quick identification of input states.

Easy Integration
Seamlessly integrates into SLC 500 racks without additional hardware.

Proven Hardware Design
The /A revision offers stable and consistent long-term operation.

5. Brand Information

Allen Bradley is widely recognized in industrial automation for producing PLC systems, I/O modules, and control equipment.

Its products are used across manufacturing, processing, and infrastructure industries due to their durability and dependable performance.

6. Product Series

• Series Name: SLC 500
• Category: Digital Input Module (High-Voltage AC)

The SLC 500 series is a modular PLC platform designed for flexible expansion and reliable control. It supports a wide range of digital, analog, and specialty modules to meet diverse industrial requirements.
