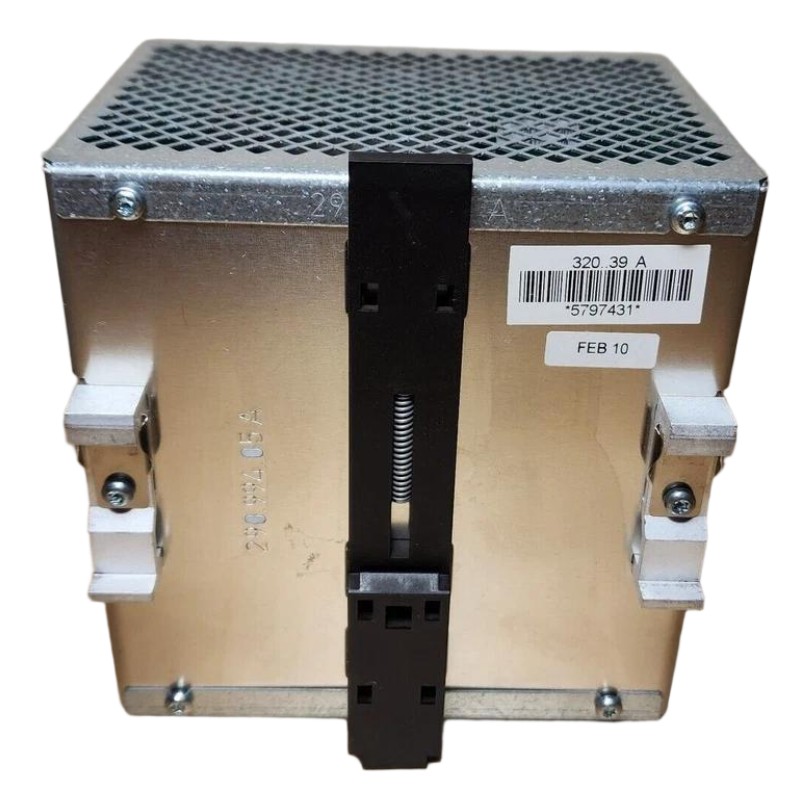

Allen Bradley 1606-XLDNET8 Troubleshooting Diagnostic Starting Point

Allen Bradley 1606-XLDNET8 Troubleshooting should begin by locating the point where the DC power condition becomes abnormal. If a PLC Controller resets, an I/O Module disappears, or a Sensor signal becomes unstable, the symptom identifies the affected equipment but not necessarily the root cause.

The first question should be: does the abnormal voltage exist at the 1606-XLDNET8, or only farther downstream? This single distinction can prevent unnecessary replacement of a healthy power module.

Allen Bradley 1606-XLDNET8 DC Power Module Fault Symptoms

Common symptoms that justify a detailed Fault Diagnosis include:

• PLC Controller resets during machine operation.
• I/O Modules intermittently disappear from the control system.
• Communication devices restart unexpectedly.
• Sensors generate unstable or intermittent signals.
• DC voltage decreases when additional loads are energized.
• Power-related faults occur only after the cabinet becomes warm.
• The system works correctly with a light load but fails under normal production conditions.
• Different downstream devices fail at apparently unrelated times.

Allen Bradley 1606-XLDNET8 Intermittent Fault Timing

Record when the fault occurs. A failure immediately after energization, a failure during a specific load transition, and a failure after several hours of operation point toward different diagnostic paths.

For intermittent faults, the machine sequence should be documented as precisely as possible. The exact moment a valve, contactor, communication device, or other load becomes active can provide more information than a general statement that the PLC “lost power.”

Allen Bradley 1606-XLDNET8 Fault Diagnosis Logic

The most practical Fault Diagnosis method is to divide the DC circuit into measurable sections. This allows the engineer to determine whether the fault follows the power source, the module, or a downstream branch.

1606-XLDNET8 DIAGNOSTIC PATH

        DC SOURCE
            |
            v
     [INPUT MEASUREMENT]
            |
            v
      1606-XLDNET8
            |
            v
     [OUTPUT MEASUREMENT]
            |
            v
      DC DISTRIBUTION
            |
            v
    [LOAD MEASUREMENT]
            |
            v
   PLC / I/O / SENSOR

Interpretation:

Input abnormal
  -> investigate upstream source

Input normal + output abnormal
  -> investigate power module/system condition

Output normal + load abnormal
  -> investigate distribution/load

All voltages normal + device fault
  -> investigate individual equipment

This logic is deliberately simple because field troubleshooting becomes more reliable when each measurement eliminates a section of the system.

Allen Bradley 1606-XLDNET8 Input-Side Fault Investigation

Begin by checking whether the 1606-XLDNET8 receives a stable DC input under the actual fault condition. A normal reading while the machine is idle is not enough if the failure occurs only when another circuit switches on.

Allen Bradley 1606-XLDNET8 Input Fault Causes

• Unstable upstream DC supply.
• Loose input terminal.
• Incorrect wiring.
• Incorrect polarity.
• Upstream protection operating unexpectedly.
• Excessive voltage drop in the incoming branch.
• Electrical disturbance generated by another load.

Compare the input measurement with the commissioning baseline whenever possible. A change from the original value can indicate that the surrounding electrical system, rather than the module itself, has changed.

Allen Bradley 1606-XLDNET8 Output Troubleshooting

Once the input is confirmed, check the DC output at the 1606-XLDNET8. The test should be repeated under different load conditions if the fault is load-dependent.

An output that is stable with no load but changes significantly when the system is energized requires additional investigation. The engineer should determine whether the change originates in the power module or is being caused by a downstream load pulling the circuit outside its intended operating condition.

OUTPUT DIAGNOSTIC SEQUENCE

Measure output with light load
        |
        v
Stable?
  |             |
 YES            NO
  |             |
Increase load   Check input,
gradually       wiring and
  |             module condition
  v
Observe output
  |
  +-- Stable --> inspect downstream branches
  |
  +-- Abnormal -> investigate load and power system

Allen Bradley 1606-XLDNET8 DC Distribution Faults

Downstream distribution is one of the most important areas to inspect when the 1606-XLDNET8 appears healthy at its terminals but connected automation equipment continues to fail.

A poor terminal, damaged conductor, excessive cable length, inappropriate conductor size, or overloaded branch can create voltage drop that becomes visible only when current increases.

Allen Bradley 1606-XLDNET8 Common Distribution Faults

• Loose terminal connections.
• Corroded or contaminated connection points.
• Undersized conductors.
• Excessive branch length.
• Overloaded DC distribution.
• Incorrectly connected auxiliary loads.
• Damaged field wiring.

When investigating these conditions, measure the voltage before and after the suspect connection under load. A measurable difference across a connection can provide stronger evidence than visual inspection alone.

Allen Bradley 1606-XLDNET8 Overload and Thermal Investigation

Some power-related faults are caused by a change in the connected load rather than an immediate hardware defect. Compare the current System Configuration with the original commissioning documentation.

If the cabinet has received additional I/O Modules, communication equipment, Sensors, relays, or other DC loads, recalculate the total demand. The original 1606-XLDNET8 installation may have been correctly engineered for a smaller load.

Thermal conditions should also be considered. If the fault appears only after prolonged operation, record cabinet temperature and the operating state of nearby heat-generating equipment before making a replacement decision.

Allen Bradley 1606-XLDNET8 Real Troubleshooting Case

In one field Fault Diagnosis case, an Allen Bradley PLC Controller began resetting approximately 20 to 30 minutes after a machine entered normal production. The DC power module had been operating correctly during startup, so the maintenance team initially suspected an intermittent module failure.

The engineer avoided immediate replacement and instead compared three conditions: the DC output at the module, the main distribution bus, and the PLC supply terminals.

At startup, the three measurement points were stable. After the production sequence began, the module-side voltage remained stable, while the PLC supply point showed a measurable transient reduction whenever several auxiliary loads became active.

The investigation then focused on the distribution path. One branch terminal showed evidence of heating and had a higher-than-expected voltage drop under load.

The connection was corrected and the machine was returned to the same production sequence. The PLC reset could no longer be reproduced.

The final diagnosis was a downstream distribution problem rather than a defective 1606-XLDNET8. The case demonstrates why power-module replacement should not be the first response to a PLC power fault.

Allen Bradley 1606-XLDNET8 Repair and Replacement Strategy

Repair decisions should be based on measured evidence. If the input is correct, the output is abnormal under an appropriate test condition, and downstream wiring and loads have been excluded as causes, the 1606-XLDNET8 becomes a reasonable suspect.

Where the module output is stable but a particular downstream branch fails, repair should focus on the branch. Replacing the power module without correcting the real problem may result in repeated failures.

Allen Bradley 1606-XLDNET8 Corrective Actions

• Correct incorrect wiring.
• Repair loose or high-resistance terminals.
• Correct overloaded DC branches.
• Investigate unstable upstream power.
• Remove unauthorized loads from the circuit where appropriate.
• Replace the module only after external causes have been reasonably excluded.

Allen Bradley 1606-XLDNET8 Post-Repair Verification

After Repair, repeat the operating sequence that originally produced the fault. A successful repair should demonstrate stable operation under the same relevant load and environmental conditions.

Allen Bradley 1606-XLDNET8 Recovery Verification

• Verify input DC voltage.
• Verify module output.
• Measure critical downstream voltage.
• Check PLC Controller stability.
• Check I/O Module status.
• Check communication equipment.
• Check Sensor behavior.
• Repeat the original fault-producing machine sequence.
• Document the final measurements.

Do not consider the repair complete simply because the PLC starts after a power cycle. The original fault condition should be reproduced and shown to be resolved.

Allen Bradley 1606-XLDNET8 Troubleshooting FAQ

Why does a PLC Controller reset even when the 1606-XLDNET8 output looks normal?

The problem may exist downstream of the power module. Cable resistance, loose terminals, overloaded branches, or a poor connection can cause a voltage drop at the PLC that is not visible at the module terminals.

What is the first measurement for Allen Bradley 1606-XLDNET8 Fault Diagnosis?

Verify the DC input and then the module output. If both are normal, compare the voltage at the main distribution point and the affected downstream equipment.

Can an overloaded DC branch cause intermittent I/O faults?

Yes. When several devices become active, increased current can produce additional voltage drop. This may cause remote I/O Modules or communication equipment to restart even though the power system appears normal at light load.

Should the 1606-XLDNET8 be replaced after an intermittent fault?

Not automatically. The input, output, wiring, load, distribution, and environmental conditions should be investigated first. Replacement is more appropriate when measurements indicate that the module itself is responsible for the abnormal condition.

How can a maintenance team make future Troubleshooting faster?

Keep the original Commissioning measurements, load information, wiring documentation, and fault records. Comparing current measurements with a known-good baseline often reveals changes that are otherwise difficult to identify.

Allen Bradley 1606-XLDNET8 Overall Fault Diagnosis Summary

Allen Bradley 1606-XLDNET8 Troubleshooting should follow the electrical path from the DC source to the final PLC, Module, Sensor, or communication load. The presence of a PLC reset does not establish that the DC power module is defective.

The strongest Fault Diagnosis method combines repeatable fault reproduction with measurements at multiple points. Input voltage, module output, distribution voltage, and load-side voltage can collectively identify where the abnormal condition begins.

After Repair, the original failure sequence should be repeated and the final measurements documented. Maintaining this technical baseline improves future Setup, Commissioning, Troubleshooting, and maintenance work on the Allen Bradley 1606-XLDNET8 and the wider industrial automation power system.
