Product Overview

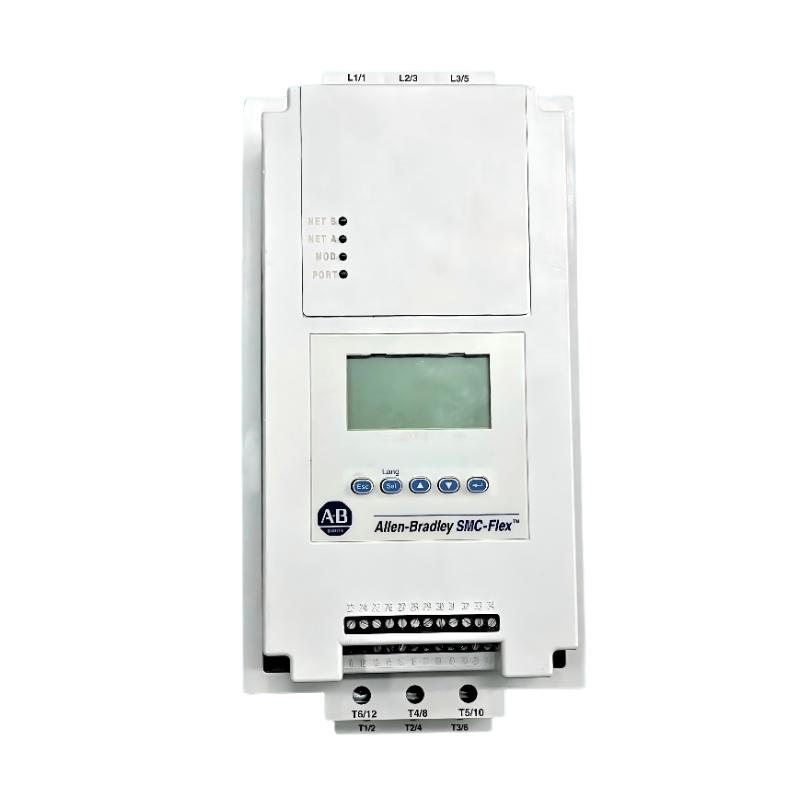

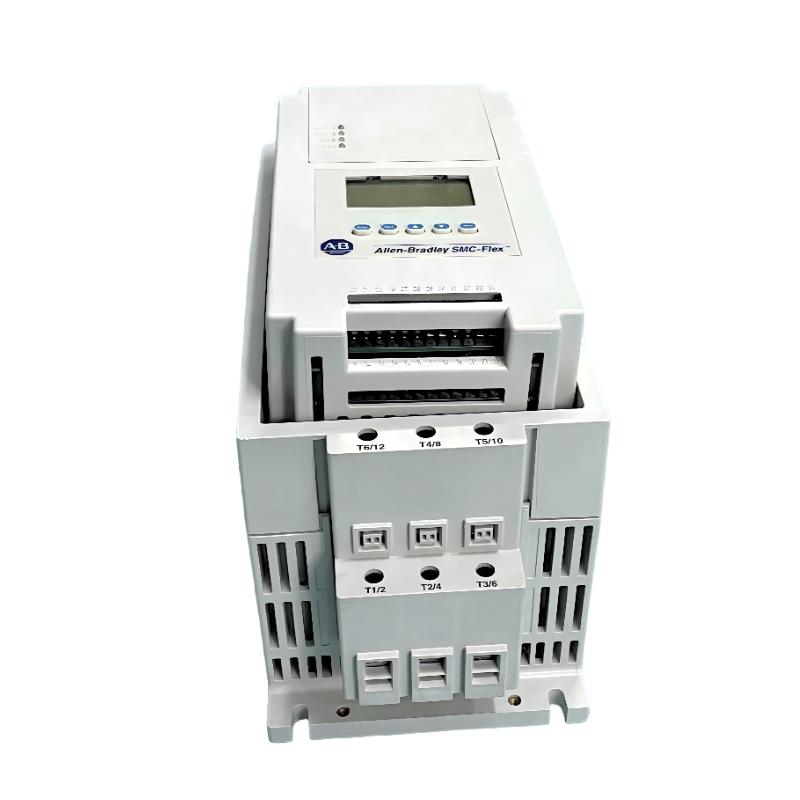

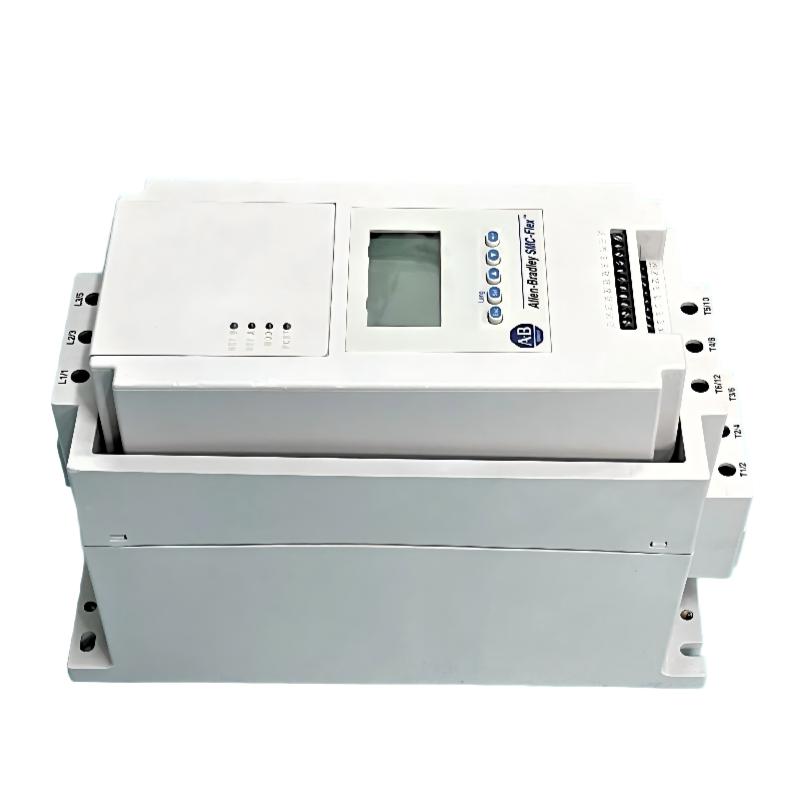

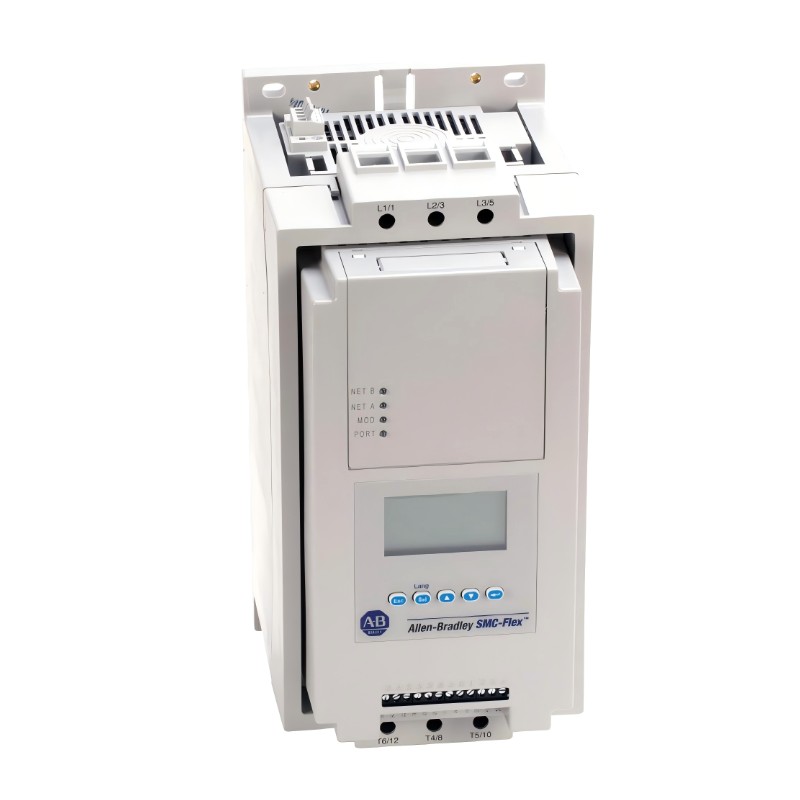

In industrial motor control systems, precise management of motor starting, stopping, and protection is essential for improving equipment lifespan and system efficiency. The Allen-Bradley 150-F85NBDB SMC Flex Smart Motor Controller is designed to provide advanced soft start control and intelligent motor protection for industrial applications.
As part of the SMC Flex series, this controller integrates solid-state technology with configurable control functions, enabling smooth motor operation, reduced mechanical stress, and enhanced system reliability in demanding environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 150-F85NBDB |
| Product Type | SMC Flex Smart Motor Controller |
| Rated Current | 85 A |
| Rated Voltage | 200 – 600 VAC |
| Control Voltage | 24 VDC / 110–240 VAC |
| Start Method | Soft start / soft stop |
| Protection Functions | Overload, phase loss, stall, undervoltage |
| Communication | Optional network modules |
| Dimensions | 321 × 150 × 203 mm |
| Weight | 5.7 kg |
| Mounting | Panel mounting |
| Application | Motor control and protection |
| Environment | Industrial-grade |
| Reliability | Designed for continuous operation |
Function and Working Principle
The 150-F85NBDB operates by controlling the voltage applied to the motor during startup and shutdown. Using solid-state switching technology, it gradually increases or decreases voltage to ensure smooth motor operation.
This enables:
Controlled motor acceleration and deceleration
Reduced inrush current during startup
Minimized mechanical stress on driven equipment
Improved system stability and efficiency
The controller continuously monitors motor conditions and applies protection functions when abnormal conditions are detected.
Role in Industrial Control Systems
The SMC Flex Smart Motor Controller plays a critical role in industrial automation systems, supporting:
Controlled motor starting and stopping
Motor protection and fault detection
Energy-efficient motor operation
Integration into automation control systems
It enhances overall system reliability and reduces maintenance requirements for motor-driven equipment.
Industrial Applications
The Allen-Bradley 150-F85NBDB is widely used in:
Pumps and pumping systems
Conveyor systems
Compressors and fans
HVAC systems
Mining and processing equipment
Manufacturing automation systems
It is especially suitable for applications requiring smooth motor control and high reliability.
Installation and System Integration
Proper installation ensures optimal performance:
Mounted on industrial control panels
Connected to motor power and control circuits
Configured via local or external control systems
Integrated into PLC or SCADA systems
Must follow electrical wiring and grounding standards
Correct setup ensures stable operation and long-term reliability.
Compatible System Components
The 150-F85NBDB typically works alongside:
Allen-Bradley PLC systems (ControlLogix, CompactLogix)
SMC Flex accessory modules
Motor protection devices
HMI and SCADA systems
Industrial motors and power systems
These components form a complete motor control and protection architecture.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 150-F75NBDB | Smart Motor Controller | Lower current rating | Small to medium motors |
| 150-F110NBDB | Smart Motor Controller | Higher capacity | Larger motor systems |
| SMC-50 Series | Motor Controller | Advanced features | Critical applications |
| PowerFlex Drives | VFD | Variable speed control | Advanced automation |
| 150-C Series | Soft Starter | Compact design | Space-limited systems |
Key Advantages
Intelligent motor starting and stopping control
Reduces mechanical and electrical stress
Built-in motor protection functions
Improves energy efficiency and system stability
Flexible integration with automation systems
Robust industrial-grade design
Technical FAQs
What is the main function of the 150-F85NBDB?
It provides controlled motor starting and stopping while protecting the motor from electrical and mechanical stress.
What types of motors does it support?
It supports industrial AC motors within its rated current and voltage range.
Where is it commonly used?
It is used in pumps, conveyors, HVAC systems, and other industrial motor applications.
Conclusion
The Allen-Bradley 150-F85NBDB SMC Flex Smart Motor Controller is a reliable and efficient solution for industrial motor control and protection. Its advanced soft start capabilities, integrated protection functions, and robust design make it ideal for demanding automation environments.
For engineers and system integrators, it provides a dependable way to improve motor performance, reduce operational stress, and ensure long-term system stability.
