- Allen-Bradley
- 150-F135NBD
- SMC Flex Soft Starter
- USA
- 443.7 x 196.4 x 212.2 mm
- 15 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

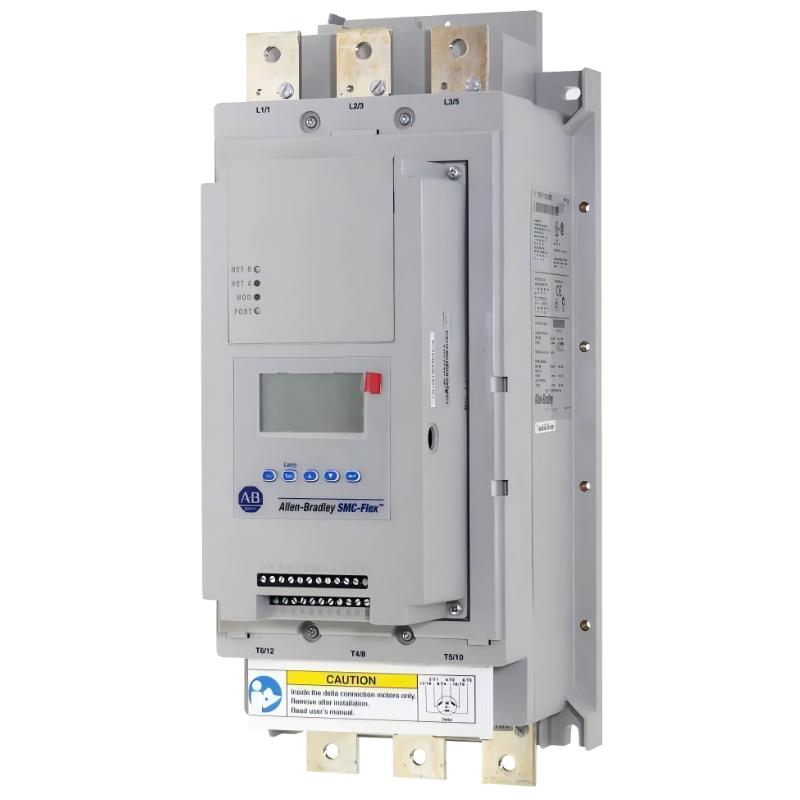

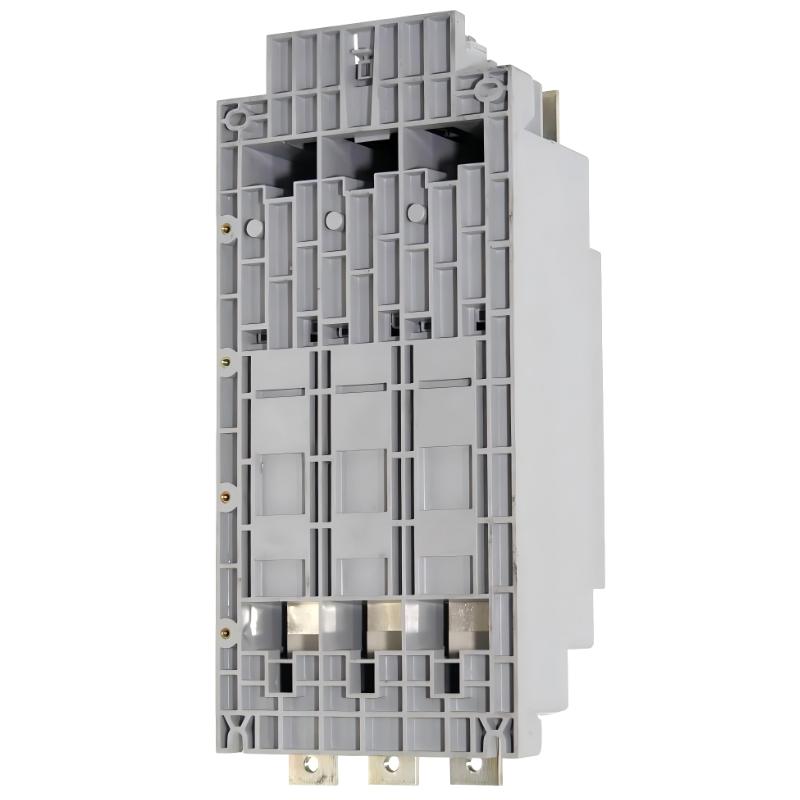

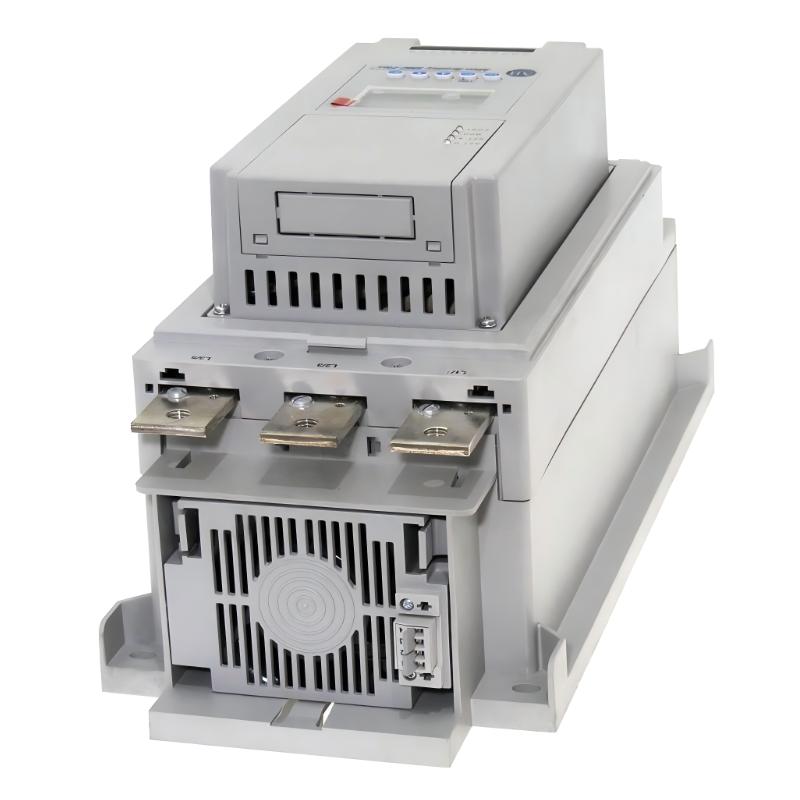

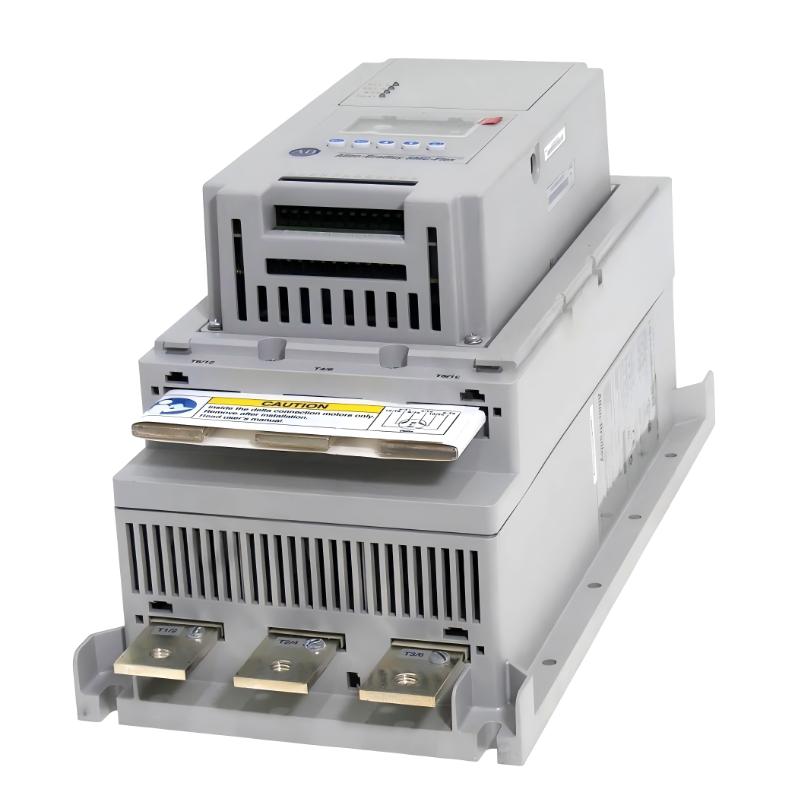

In industrial motor control systems, reducing mechanical stress and electrical impact during motor startup is essential for extending equipment life and improving system efficiency. The Allen-Bradley 150-F135NBD SMC Flex Soft Starter is designed to provide controlled motor starting and stopping, ensuring smooth acceleration and deceleration of motors.
This soft starter is part of the SMC Flex series, offering advanced motor control features, flexible configuration, and reliable protection for medium to large industrial motors. It helps minimize inrush current, reduce wear on mechanical components, and improve overall system performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 150-F135NBD |
| Product Type | SMC Flex Soft Starter |
| Rated Current | 135 A |
| Rated Voltage | 200 – 600 VAC |
| Control Voltage | 24 VDC / 110–240 VAC |
| Power Range | Medium to large motors |
| Start Method | Soft start / soft stop |
| Protection Features | Overload, phase loss, stall protection |
| Communication | Optional network modules |
| Dimensions | 443.7 × 196.4 × 212.2 mm |
| Weight | 15 kg |
| Mounting | Panel mounting |
| Application | Motor starting and protection |
| Environment | Industrial-grade |
| Reliability | Designed for continuous operation |
Function and Working Principle
The 150-F135NBD operates by controlling the voltage applied to the motor during startup and shutdown. It uses solid-state components to gradually increase voltage, reducing mechanical and electrical stress.
This enables:
Smooth motor acceleration and deceleration
Reduced inrush current during startup
Minimized mechanical wear on equipment
Improved system stability and efficiency
The soft starter adjusts voltage based on programmed parameters, ensuring optimal motor performance under varying load conditions.
Role in Industrial Control Systems
This soft starter is a key component in motor control systems, supporting:
Controlled motor startup and shutdown
Protection of motors and connected equipment
Reduction of electrical and mechanical stress
Integration into automation and control systems
It enhances system reliability and extends the lifespan of motors and machinery.
Industrial Applications
The Allen-Bradley 150-F135NBD is widely used in:
Pumps and water treatment systems
Conveyor and material handling systems
Compressors and fans
HVAC systems
Mining and heavy industry
Manufacturing automation systems
It is particularly suitable for applications requiring smooth motor control and protection.
Installation and System Integration
Proper installation ensures optimal performance:
Mounted on control panels
Connected to motor and power supply
Configured via control interface or external system
Integrated into PLC or DCS systems
Installation must follow electrical safety and wiring standards
Correct setup ensures reliable operation and long-term performance.
Compatible System Components
The 150-F135NBD typically works alongside:
Allen-Bradley PLC systems (ControlLogix, CompactLogix)
Motor protection devices
Communication modules
HMI and SCADA systems
Industrial motors and power systems
These components form a complete motor control and protection solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 150-F97NBD | Soft Starter | Lower current rating | Smaller motors |
| 150-F180NBD | Soft Starter | Higher capacity | Large motors |
| SMC-50 Series | Soft Starter | Advanced control | Critical systems |
| PowerFlex Drives | VFD | Variable speed control | Advanced applications |
| 150-C Series | Soft Starter | Compact design | Space-limited setups |
Key Advantages
Smooth motor starting and stopping
Reduces inrush current and mechanical stress
Built-in motor protection features
Flexible configuration options
Compatible with industrial automation systems
Robust and reliable industrial design
Technical FAQs
What is the main function of the 150-F135NBD?
It provides controlled motor starting and stopping to reduce stress and improve system performance.
What types of motors can it control?
It is suitable for medium to large industrial motors within its rated capacity.
Where is it typically used?
It is used in pumps, conveyors, compressors, and other motor-driven systems.
Conclusion
The Allen-Bradley 150-F135NBD SMC Flex Soft Starter is a reliable and efficient solution for industrial motor control. Its ability to reduce startup stress, protect equipment, and improve operational efficiency makes it an essential component in modern automation systems.
For engineers and system integrators, it provides a dependable way to enhance motor performance, reduce maintenance costs, and ensure stable operation in demanding industrial environments.
