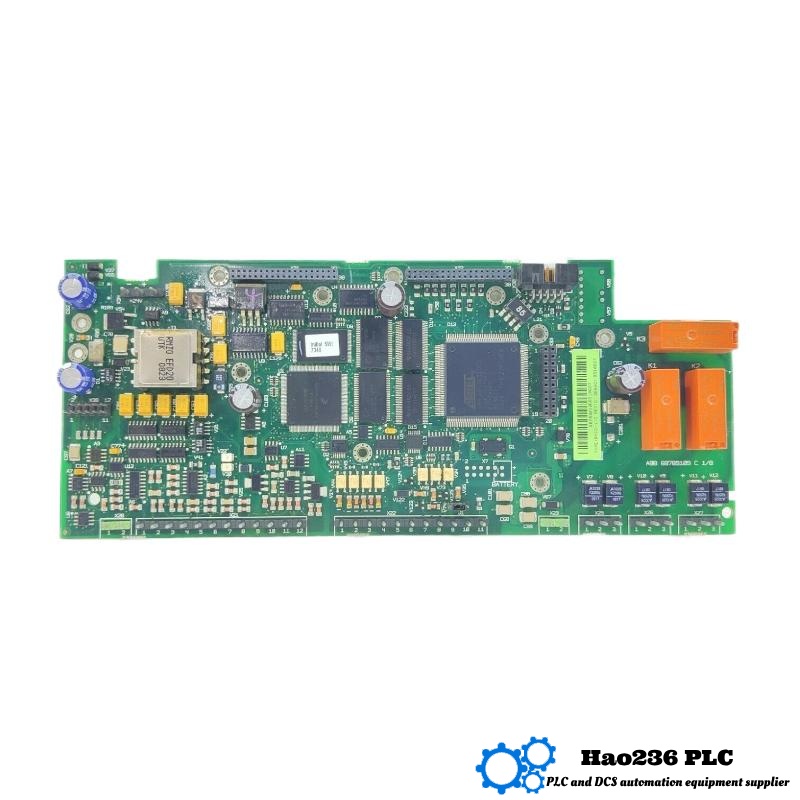

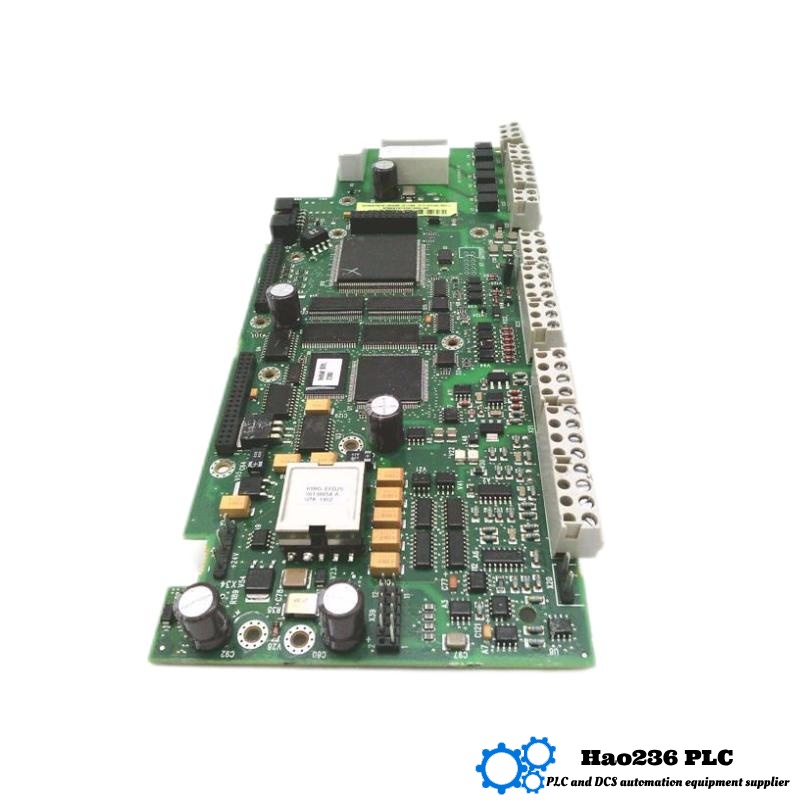

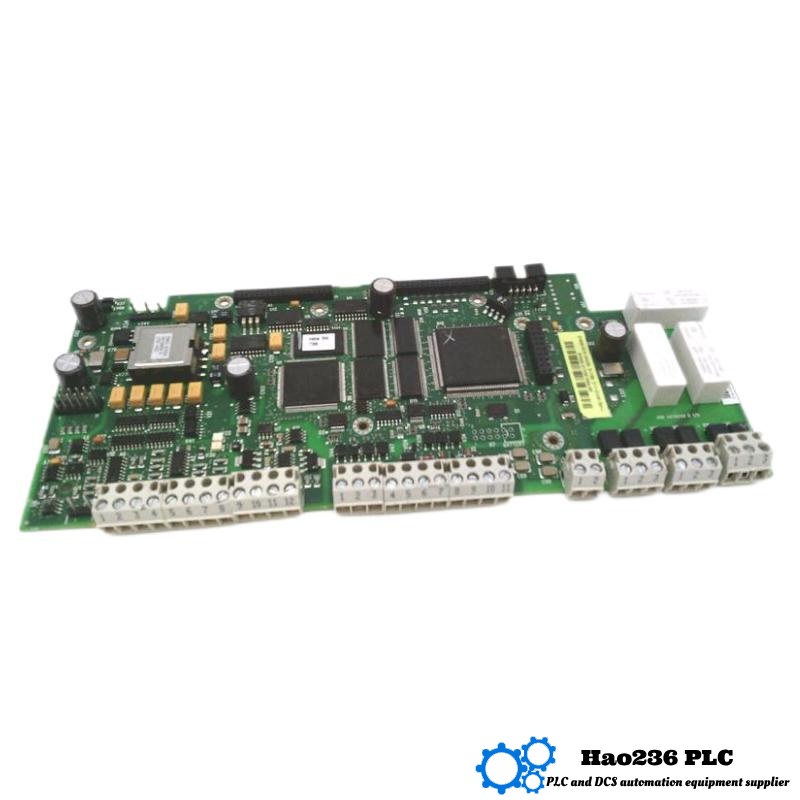

ABB RMIO-11C 68789010 Variable Frequency Drive Control Board
Product Introduction
The ABB RMIO-11C 68789010 is a versatile control board used in variable frequency drive (VFD) systems. It is part of the ACS800 series, which is designed to offer superior performance and reliability for controlling motors in various industrial applications. This control board facilitates communication between the VFD and other components, enabling precise control and monitoring of the motor’s operations.
The RMIO-11C is known for its easy integration with existing ACS800 drives, ensuring smooth and efficient operation. It supports advanced features such as communication with other I/O modules and provides seamless control in demanding environments.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | RMIO-11C 68789010 |
| Dimensions (L x W x H) | 50 x 120 x 290 mm |
| Weight | 0.25 kg |
| Power Supply | 24 V DC |
| Communication | RS-485, Modbus RTU |
| Digital Inputs | 6 (isolated) |
| Digital Outputs | 4 (relay outputs) |
| Analog Inputs | 2 (0-10V) |
| Analog Outputs | 2 (0-10V) |
| Operating Temperature | –20°C to +60°C |
| Protection Class | IP20 |
| Compatibility | ACS800 Series Drives |
Product Applications
The RMIO-11C 68789010 control board is typically used in the following applications:
-
Industrial Automation: Ensures smooth control of motors in manufacturing processes and automated machinery.
-
HVAC Systems: Manages the speed of fans and pumps in heating, ventilation, and air conditioning systems.
-
Conveyor Systems: Controls the speed and direction of motors in conveyor belts for logistics and production lines.
-
Pumps and Compressors: Regulates motor speed for efficient operation in water treatment and oil/gas industries.
-
Material Handling Systems: Provides precise control for motors in cranes, lifts, and other heavy machinery.
Product Advantages
-
Enhanced Control: The RMIO-11C provides precise motor control through its advanced I/O capabilities, ensuring optimal performance in various applications.
-
Easy Integration: Seamless compatibility with the ACS800 series allows for quick installation and integration into existing systems.
-
Compact Design: With dimensions of 50 x 120 x 290 mm, this control board is compact and can fit into tight spaces without compromising performance.
-
Robust Performance: Operating in temperatures ranging from –20°C to +60°C, the RMIO-11C can perform reliably in harsh industrial environments.
-
Energy Efficiency: Optimizes motor performance to reduce energy consumption, leading to cost savings in the long run.
-
Flexible Communication Options: Supports Modbus RTU and RS-485, making it suitable for a wide range of industrial communication needs.
Brand and Series
-
Brand: ABB
-
Product Series: ACS800 Series
-
Overview of ACS800 Series: The ACS800 series is ABB’s flagship variable frequency drive line, offering a wide range of solutions for controlling the speed, torque, and position of electric motors in industrial settings. Known for its robustness and flexibility, this series is designed to meet the needs of various industries, from manufacturing to process control.
Related Models from the ACS800 Series
| Model | Description | Power Supply | Dimensions (mm) | Weight (kg) | Communication |
|---|---|---|---|---|---|
| RMIO-02C | Control Board | 24 V DC | 50 x 120 x 290 | 0.25 | RS-485, Modbus |
| RMBA-01 | Brake Control Module | 24 V DC | 75 x 150 x 300 | 0.35 | None |
| RINT-5211C | Interface Module | 24 V DC | 60 x 130 x 280 | 0.3 | RS-232, RS-485 |
| RDI0-01C | Digital Input Module | 24 V DC | 55 x 115 x 250 | 0.2 | RS-485 |
| RMIO-13C | Control Board | 24 V DC | 50 x 120 x 290 | 0.25 | RS-485, Modbus |
Popular ABB Models
| Model | Description | Application | Power Supply | Weight (kg) |
|---|---|---|---|---|
| RMIO-12C | Control Board | Motor Control | 24 V DC | 0.25 |
| RMBA-01 | Brake Module | Motor Braking | 24 V DC | 0.35 |
| RINT-5211C | Interface Module | Communication | 24 V DC | 0.3 |
| RDI0-01C | Digital Input Module | Signal Processing | 24 V DC | 0.2 |
| RDCU-02C | Drive Control Unit | Drive Communication | 24 V DC | 0.4 |
FAQ (Frequently Asked Questions)
-
Q: What is the power supply requirement for the RMIO-11C 68789010?
A: The RMIO-11C requires a 24 V DC power supply. -
Q: Can the RMIO-11C be integrated with other ACS800 series drives?
A: Yes, the RMIO-11C is fully compatible with the ACS800 series drives. -
Q: What communication protocols are supported by the RMIO-11C?
A: The RMIO-11C supports RS-485 and Modbus RTU communication protocols. -
Q: What is the operating temperature range for the RMIO-11C?
A: The RMIO-11C can operate in temperatures ranging from –20°C to +60°C. -
Q: How many digital inputs and outputs does the RMIO-11C have?
A: The RMIO-11C has 6 isolated digital inputs and 4 relay digital outputs. -
Q: What is the weight of the RMIO-11C?
A: The RMIO-11C weighs 0.25 kg. -
Q: What are the dimensions of the RMIO-11C control board?
A: The RMIO-11C measures 50 x 120 x 290 mm. -
Q: Can the RMIO-11C be used in HVAC systems?
A: Yes, the RMIO-11C is ideal for controlling motors in HVAC applications. -
Q: Does the RMIO-11C support analog inputs and outputs?
A: Yes, it has 2 analog inputs (0-10V) and 2 analog outputs (0-10V). -
Q: What type of protection does the RMIO-11C have?
A: The RMIO-11C has an IP20 protection class.
