Product Overview

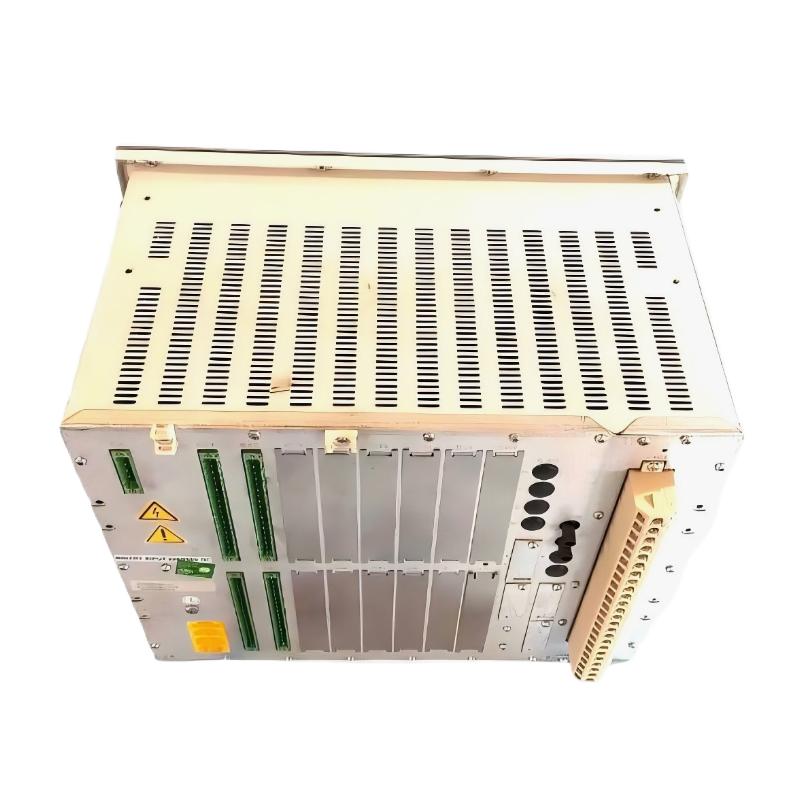

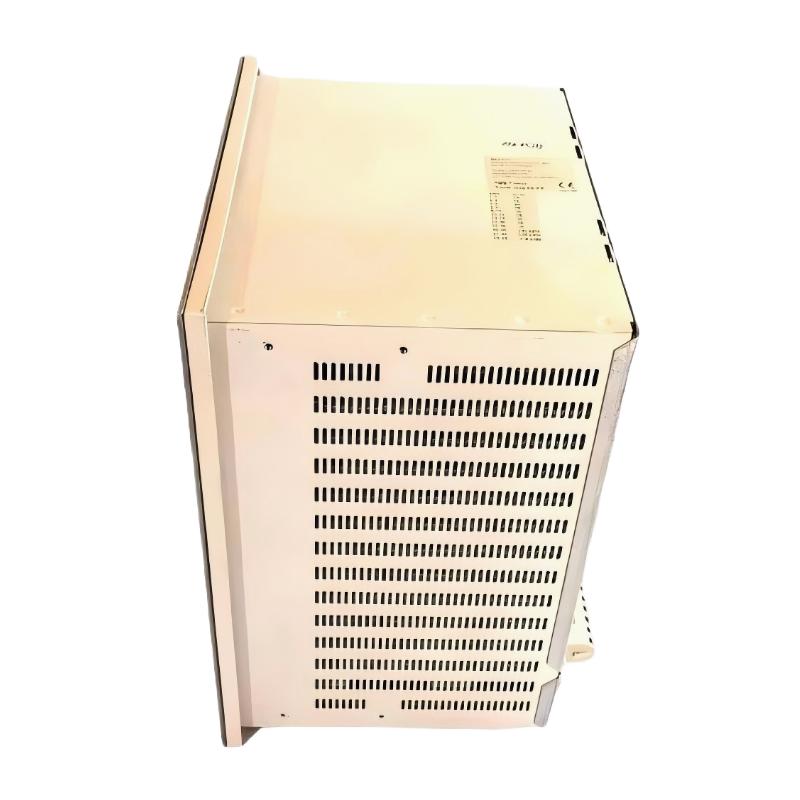

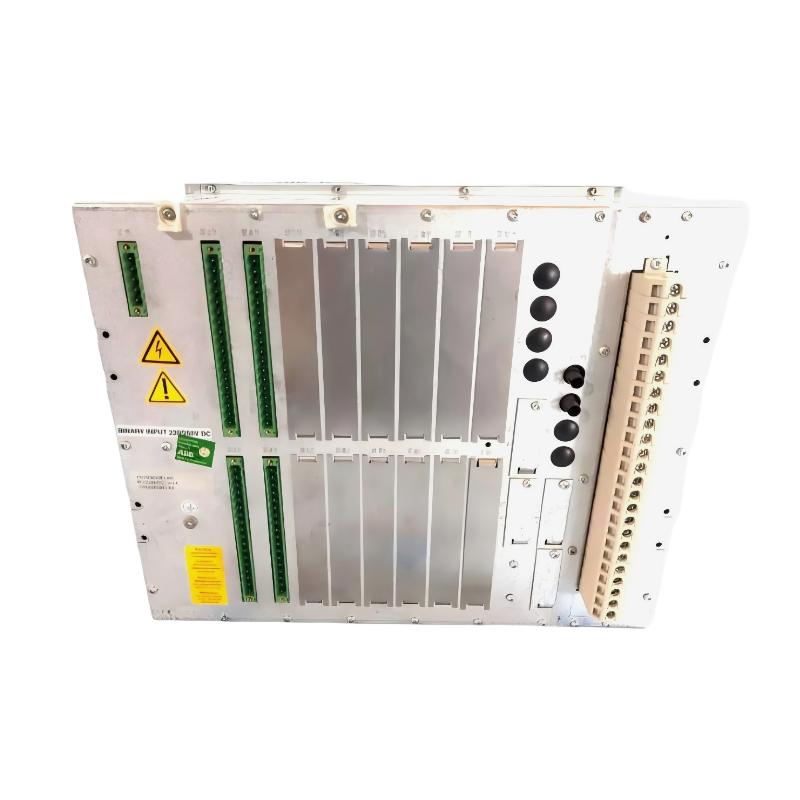

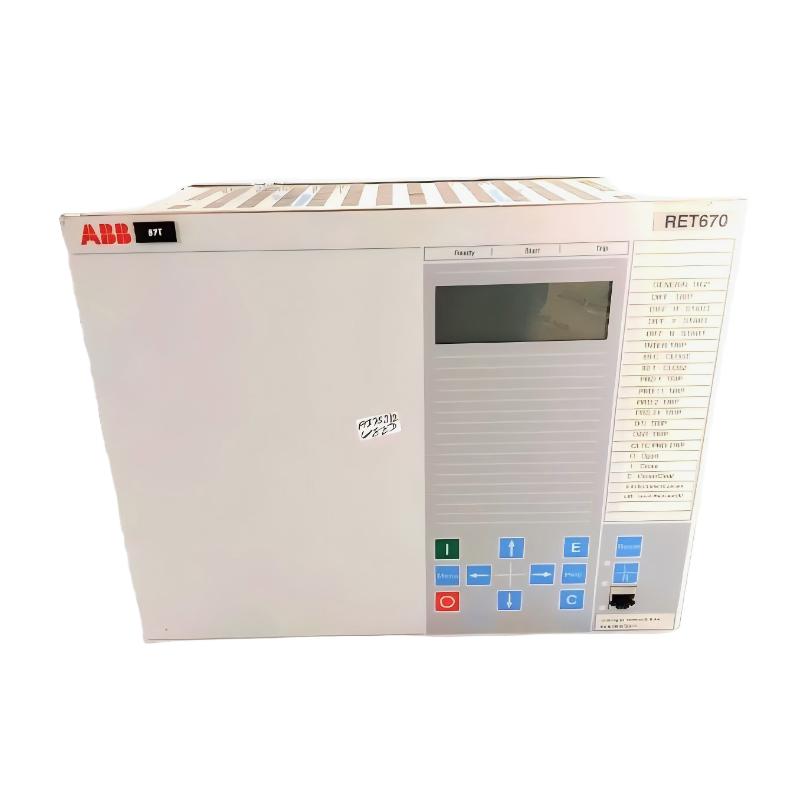

The ABB RET670 1MRK002816-AA Transformer Protection Relay is a high-performance intelligent electronic device designed for advanced transformer protection, control, monitoring, and measurement applications in power systems and industrial electrical networks.
The ABB RET670 is part of the ABB Relion 670 series and is engineered for protecting critical transformer installations, including power transformers, generator transformers, and industrial transformer systems. It provides fast and selective protection functions to improve transformer reliability, reduce equipment damage, and maintain stable electrical system operation.
The relay combines advanced protection algorithms with measurement, control, event recording, and communication capabilities. It continuously monitors transformer operating conditions and responds quickly to abnormal electrical situations such as internal faults, differential current changes, earth faults, and overload conditions.
The ABB RET670 1MRK002816-AA configuration includes:
- Product Type: Transformer Protection Relay
- Model: RET670
- Order Number: 1MRK002816-AA
- Application: Transformer Protection and Control
- Dimensions: 265.9 x 223.7 x 242.1 mm
- Weight: 10 kg
The ABB RET670 1MRK002816-AA is widely used in substations, industrial power systems, and large transformer protection applications requiring high reliability and accurate fault detection.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | RET670 |
| Order Number | 1MRK002816-AA |
| Product Type | Transformer Protection Relay |
| Product Series | Relion 670 Series |
| Application | Transformer Protection and Control |
| Protection Technology | Digital Transformer Protection |
| Installation Type | Panel Mount |
| Dimensions | 265.9 x 223.7 x 242.1 mm |
| Weight | 10 kg |
| Main Function | Transformer Monitoring, Protection and Control |
| System Application | Power Systems and Industrial Networks |
Function and Working Principle
The ABB RET670 1MRK002816-AA operates by continuously monitoring transformer electrical parameters through connected current and voltage measurement circuits.
The relay collects real-time electrical data from transformer inputs and processes the information using advanced digital protection algorithms. When abnormal operating conditions are detected, the relay generates alarms or trip signals to isolate the affected equipment and protect the transformer.
The working process includes:
- Receiving current and voltage measurement signals.
- Monitoring transformer operating conditions.
- Performing digital protection calculations.
- Detecting abnormal electrical conditions.
- Sending control commands or alarm signals.
The ABB RET670 provides protection against:
- Transformer internal faults
- Differential current faults
- Earth faults
- Phase faults
- Overcurrent conditions
- Thermal overload
- Abnormal transformer operating conditions
- Winding-related electrical problems
These functions help improve transformer safety and reduce the risk of major electrical failures.
Protection Functions
The ABB RET670 Transformer Protection Relay provides comprehensive protection functions.
| Protection Function | Description |
|---|---|
| Transformer Differential Protection | Detects internal transformer faults quickly |
| Earth Fault Protection | Provides grounding fault protection |
| Overcurrent Protection | Protects against excessive current conditions |
| Voltage Protection | Monitors abnormal voltage conditions |
| Thermal Protection | Prevents overheating damage |
| Fault Recording | Stores fault and event information |
| Disturbance Recording | Supports fault analysis |
| Control Functions | Provides transformer operation control |
The integrated protection features allow the RET670 to provide fast and reliable protection for critical transformer equipment.
Industrial Applications
The ABB RET670 1MRK002816-AA Transformer Protection Relay is commonly used in high-value electrical installations.
| Industry | Application |
|---|---|
| Power Generation | Generator transformer protection |
| Electrical Utilities | Substation transformer protection |
| Oil and Gas | Industrial power transformer monitoring |
| Petrochemical | Electrical distribution protection |
| Manufacturing | Factory transformer systems |
| Mining Industry | Heavy-duty power systems |
| Renewable Energy | Transformer protection in energy systems |
| Infrastructure Projects | Electrical network protection |
Typical applications include:
- Power transformers
- Generator transformers
- Step-up transformers
- Industrial transformers
- Substation transformer systems
Installation Guide
Installation Preparation
Before installing the ABB RET670:
- Confirm panel mounting requirements
- Verify auxiliary power supply
- Prepare current transformer connections
- Check voltage input wiring
- Confirm communication requirements
- Review transformer protection settings
Hardware Installation
Installation steps:
- Install the relay into the protection cabinet.
- Secure the relay mounting position.
- Connect current measurement inputs.
- Connect voltage measurement circuits.
- Connect digital input and output terminals.
- Connect communication interfaces.
Configuration and Commissioning
After installation:
- Configure transformer parameters
- Set differential protection values
- Configure protection thresholds
- Test measurement inputs
- Verify output signals
- Perform relay function testing
Proper commissioning ensures accurate protection operation and reliable transformer performance.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Relay Cannot Power On | Auxiliary supply failure | Check power connections |
| False Trip Operation | Incorrect settings | Review protection parameters |
| Differential Alarm | Transformer fault or CT issue | Check transformer and CT wiring |
| Communication Failure | Network configuration problem | Verify communication settings |
| Incorrect Measurement Values | Wiring error | Check input connections |
| Protection Function Not Active | Configuration problem | Enable required functions |
Maintenance Recommendations
To ensure reliable operation:
- Check relay status indicators regularly
- Inspect wiring terminals
- Review fault records
- Verify protection settings
- Perform periodic relay testing
- Check communication connections
Regular maintenance helps maintain transformer protection reliability and improves electrical system availability.
System Integration
The ABB RET670 can be integrated into modern electrical automation environments.
| System | Application |
|---|---|
| Substation Automation System | Transformer protection management |
| PLC System | Industrial control integration |
| DCS System | Process monitoring |
| SCADA System | Remote supervision |
| Power Management System | Electrical network monitoring |
The relay provides reliable communication between transformer protection equipment and higher-level automation systems.
Key Advantages
- Advanced transformer protection capability
- High-speed fault detection
- Reliable differential protection functions
- Integrated monitoring and control
- Supports complex transformer applications
- Suitable for industrial and utility systems
- Improves electrical system stability
- Reduces transformer failure risks
- Supports modern automation environments
Technical FAQs
What is the ABB RET670 1MRK002816-AA used for?
The ABB RET670 1MRK002816-AA is used for transformer protection, monitoring, and control applications in power systems and industrial electrical networks.
What type of equipment can use the RET670?
It is suitable for power transformers, generator transformers, industrial transformers, and substation transformer systems.
What protection functions does the RET670 provide?
It provides transformer differential protection, earth fault protection, overcurrent protection, thermal protection, monitoring, and control functions.
What are the dimensions of the ABB RET670 1MRK002816-AA?
The dimensions are 265.9 x 223.7 x 242.1 mm.
What is the weight of the ABB RET670 1MRK002816-AA?
The weight is 10 kg.
Can the ABB RET670 be integrated into automation systems?
Yes. The RET670 can be integrated into industrial automation, substation automation, SCADA, and power management systems.
Conclusion
The ABB RET670 1MRK002816-AA Transformer Protection Relay is a reliable and advanced protection solution designed for critical transformer applications.
With powerful digital protection functions, accurate monitoring capability, integrated control features, and robust industrial performance, the ABB RET670 helps protect valuable transformer assets and improve electrical system reliability.
It is an ideal choice for power utilities, industrial plants, and automation professionals requiring dependable transformer protection and control performance.
