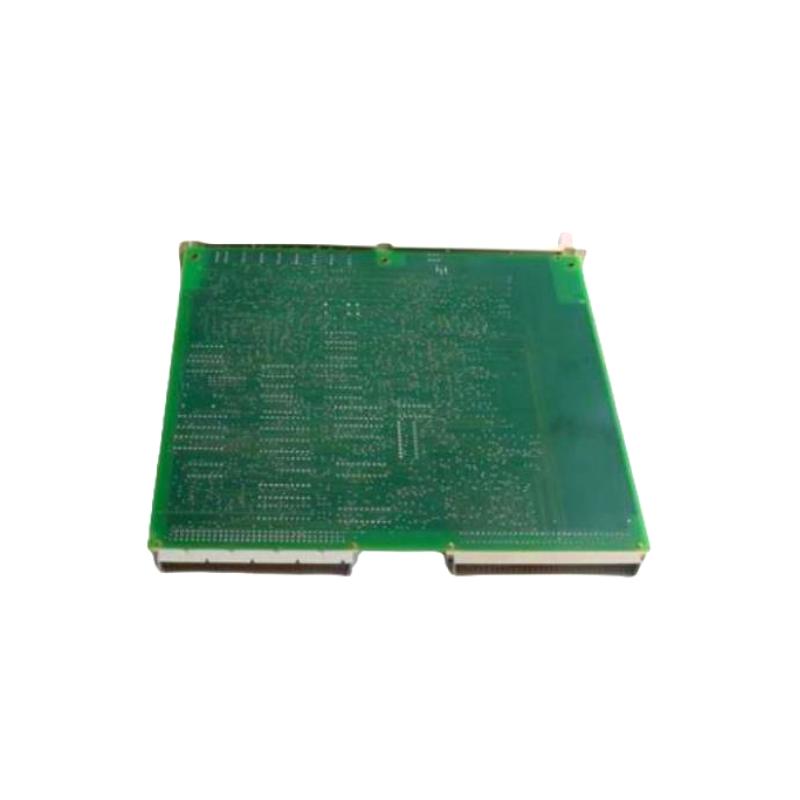

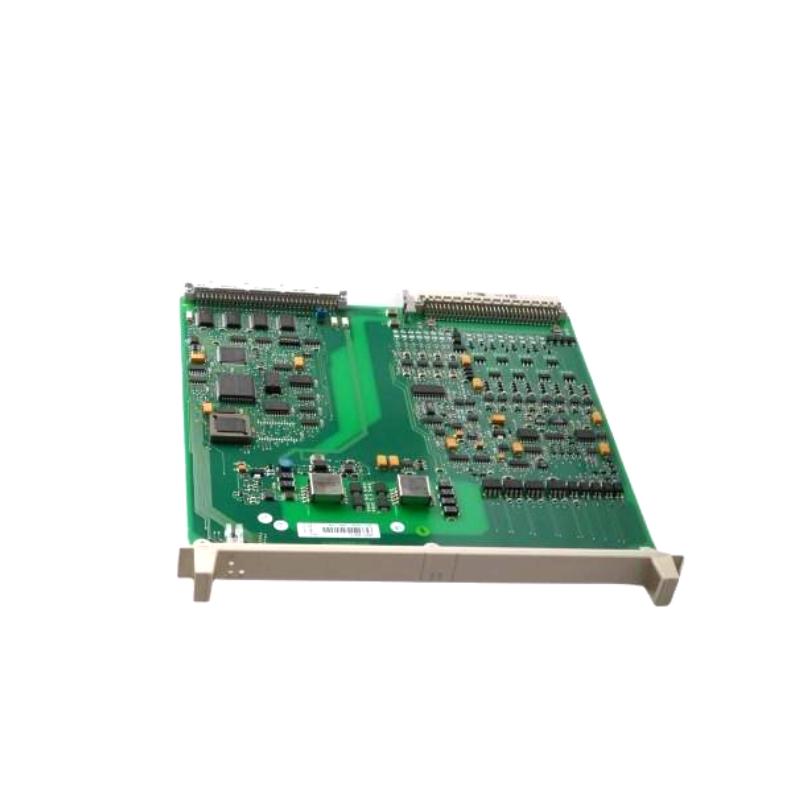

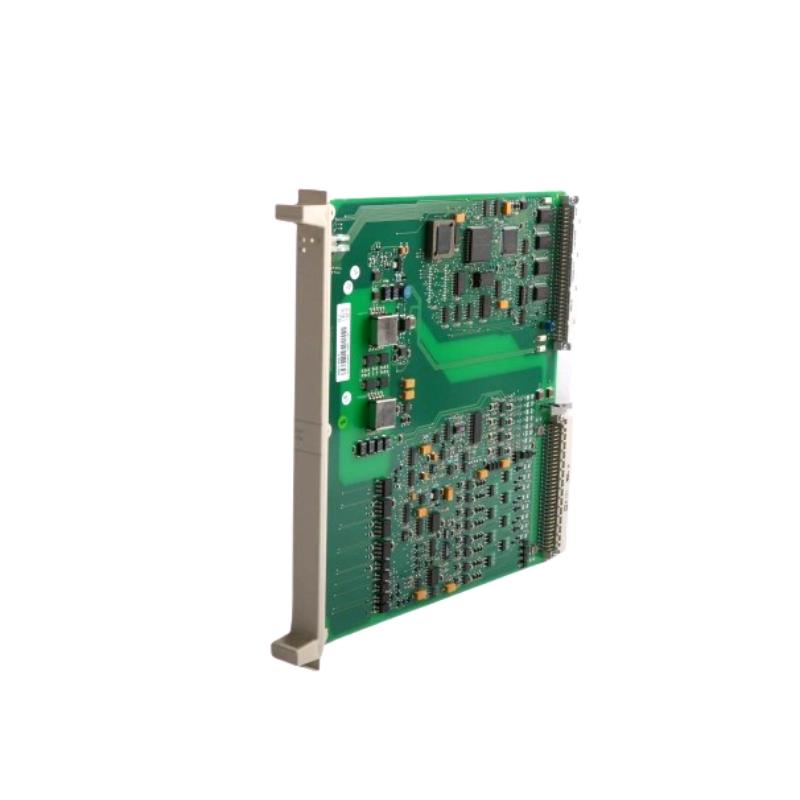

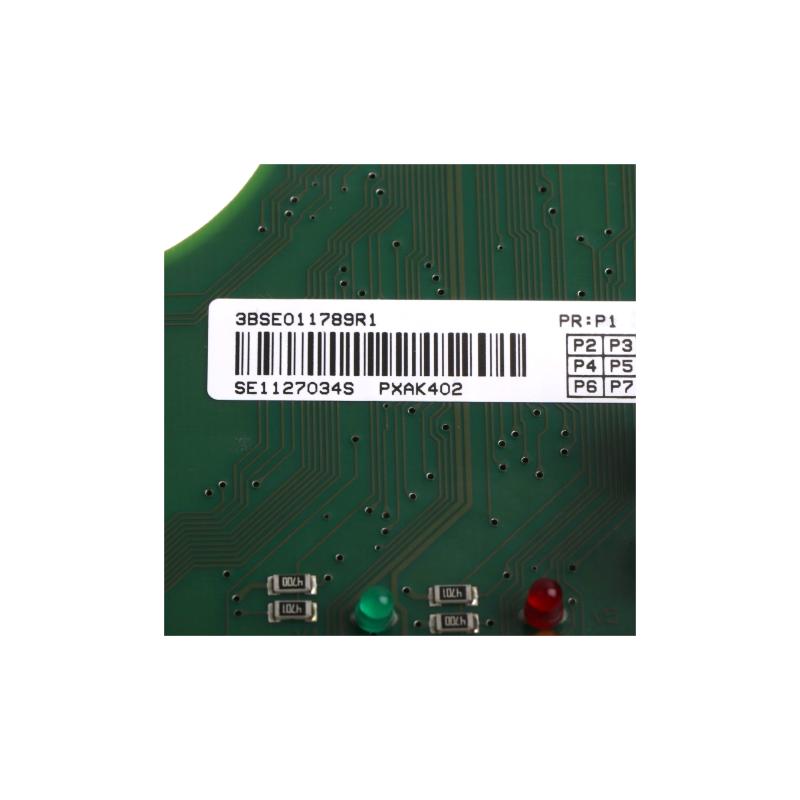

ABB PXAK 402 (3BSE011789R1) – Product Overview
Product Introduction
The PXAK 402 is a high-performance analog signal module designed for industrial automation applications. Part of ABB’s PX series, this module provides precise analog input and output processing, making it suitable for complex process control systems.
The PXAK 402 supports multiple voltage and current signal types with high accuracy and stability. Its robust design ensures reliable operation in industrial environments with electrical noise and temperature fluctuations. The modular configuration allows easy integration into PX series racks, enabling flexible system expansion.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PXAK 402 |
| Part Number | 3BSE011789R1 |
| Function | Analog Input/Output Module |
| Input Type | Analog Input (Voltage/Current) |
| Output Type | Analog Output (Voltage/Current) |
| Voltage Rating | 0–10 V DC / 0–20 mA |
| Maximum Current per Channel | 20 mA |
| Number of Input Channels | 8 |
| Number of Output Channels | 8 |
| Accuracy | ±0.1% |
| Isolation | Galvanic isolation |
| Operating Temperature | -20°C to 60°C |
| Protection Class | IP20 |
| Dimensions (WxHxD) | 120 × 100 × 110 mm |
| Weight | 1.25 kg |
| Mounting | DIN Rail / Panel |
| Certifications | CE, UL |
Product Applications
The PXAK 402 module is ideal for precise analog process management in a variety of industrial sectors:
-
Chemical, pharmaceutical, and food processing industries requiring accurate measurement and control.
-
Industrial machinery and automated production lines needing reliable analog inputs and outputs.
-
Energy and utilities systems for monitoring voltage, current, pressure, flow, and temperature signals.
-
Robotics and material handling requiring precise analog feedback.
-
Integration into modular PLC systems for scalable process control.
-
Industrial monitoring and control applications where high signal accuracy is critical.
Product Advantages
-
High Accuracy: ±0.1% ensures precise process control and signal measurement.
-
Balanced I/O Channels: 8 analog inputs and 8 outputs in a single module.
-
Electrical Isolation: Galvanic isolation protects against electrical interference.
-
Reliable Industrial Operation: Operates in harsh environments from -20°C to 60°C.
-
Modular Integration: Seamlessly integrates with PX series racks for scalable automation.
-
Compact Design: Optimized size allows space-efficient mounting in industrial racks.
-
Long-Term Durability: Designed for continuous operation in industrial conditions.
-
Safety Certified: CE and UL certification ensures compliance with industrial safety standards.
Brand and Series Information
-
Brand: ABB
-
Series: PX Series (Analog Input/Output Modules)
Related Models – Same Series or Similar Functionality
| Model | Voltage | Max Current per Channel | Input Channels | Output Channels | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|---|---|
| PXAK 401 | 0–10 V / 0–20 mA | 20 mA | 8 | 8 | 120 × 100 × 110 | 1.2 | Standard I/O module |
| PXAK 403 | 0–10 V / 0–20 mA | 20 mA | 16 | 8 | 130 × 100 × 110 | 1.35 | High input density |
| PXAK 404 | 0–10 V / 0–20 mA | 20 mA | 16 | 16 | 140 × 110 × 120 | 1.5 | Maximum I/O capacity |
| PXAK 405 | 0–10 V / 0–20 mA | 20 mA | 4 | 4 | 100 × 90 × 100 | 1.1 | Compact low-channel module |
| PXAK 406 | 0–10 V / 0–20 mA | 20 mA | 12 | 12 | 125 × 100 × 115 | 1.4 | Balanced analog configuration |
Popular Models – Same Brand
| Model | Voltage | Channels | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|
| AC500 PM573 | 24 V DC | N/A | 75 × 130 × 115 | 0.95 | Flexible modular automation |
| AC500 PM575 | 24 V DC | N/A | 80 × 140 × 120 | 1.05 | Multi-protocol communication |
| AC500 PM577 | 24 V DC | N/A | 85 × 145 × 125 | 1.10 | High-speed industrial CPU |
| AC500 PM578 | 24 V DC | N/A | 85 × 145 × 125 | 1.15 | Advanced safety integration |
| AC500 PM590 | 24 V DC | N/A | 80 × 135 × 120 | 1.0 | Compact, energy-efficient CPU |
FAQ – PXAK 402
Q1: How many input channels does this module have?
A1: It provides 8 analog input channels.
Q2: How many output channels are included?
A2: It provides 8 analog output channels.
Q3: What types of signals are supported?
A3: Both voltage (0–10 V DC) and current (0–20 mA) signals.
Q4: Does the module provide electrical isolation?
A4: Yes, galvanic isolation is included.
Q5: What is the module’s accuracy?
A5: ±0.1%.
Q6: What is the operating temperature range?
A6: -20°C to 60°C.
Q7: Can this module be mounted on a DIN rail?
A7: Yes, DIN rail and panel mounting are supported.
Q8: What are the module’s dimensions and weight?
A8: Dimensions: 120 × 100 × 110 mm, Weight: 1.25 kg.
Q9: Is the module suitable for industrial automation?
A9: Yes, it is designed for reliable industrial process control.
Q10: Is the module certified for industrial safety standards?
A10: Yes, it is CE and UL certified.
