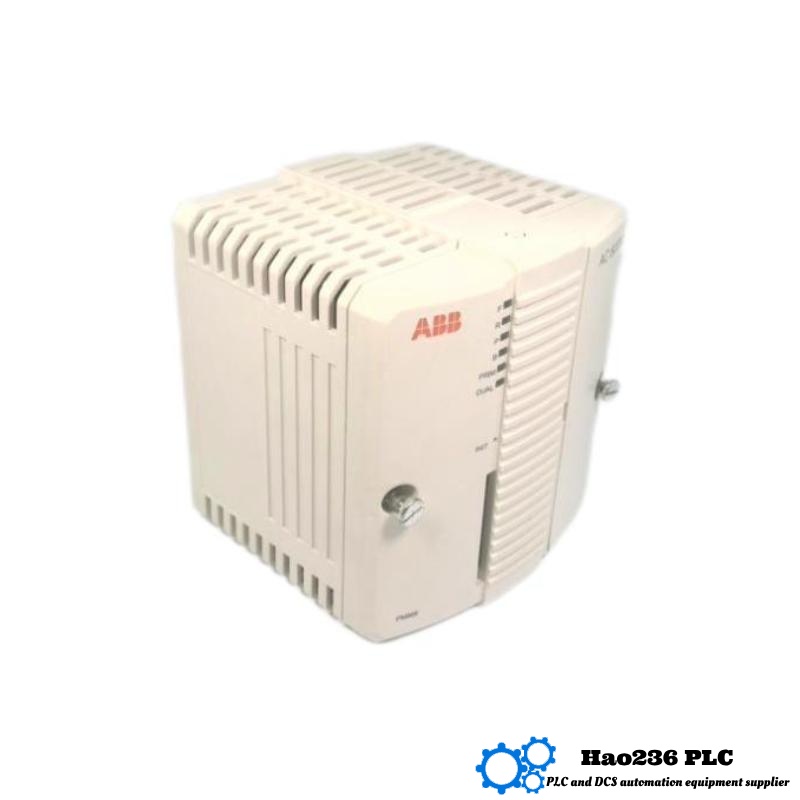

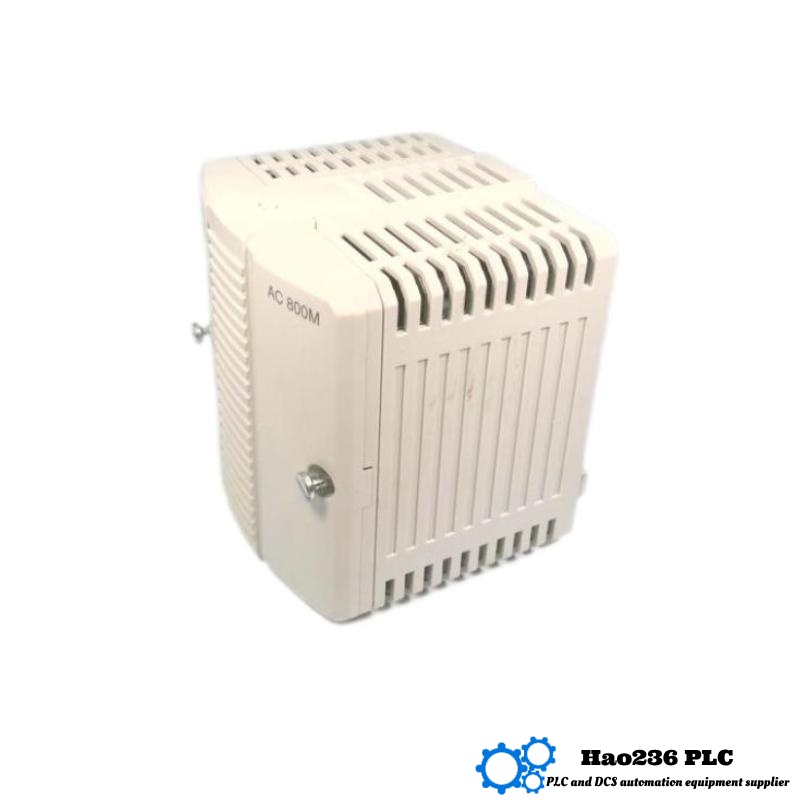

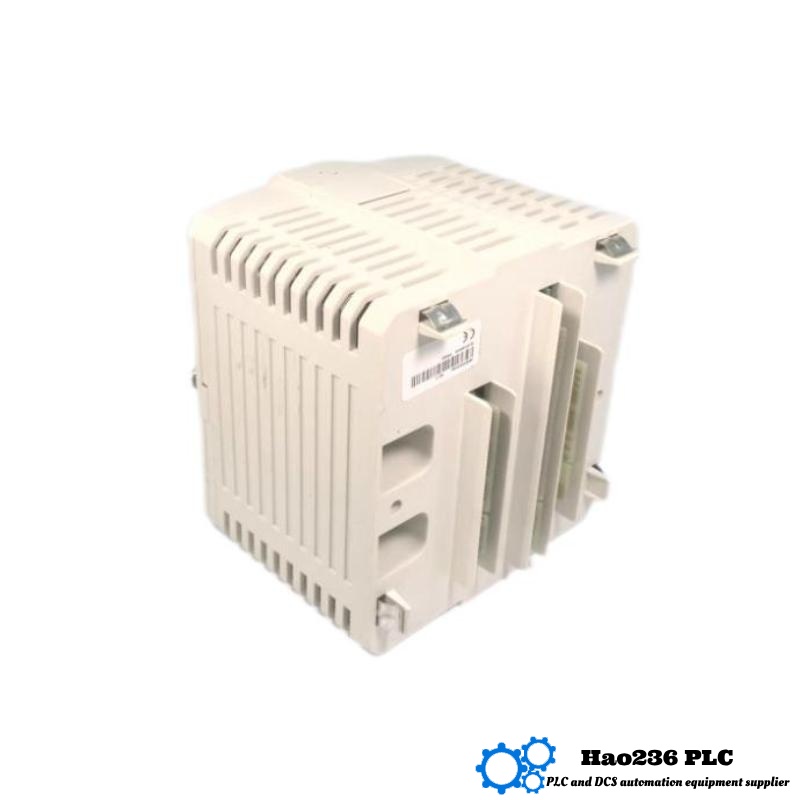

ABB PM866 (3BSE050200R1) — Product Overview
Brand: ABB
Series: AC 800M / 800xA (Industrial Automation platform)
Product Introduction
The ABB PM866 (3BSE050200R1) is a high-performance, redundant controller module at the heart of ABB’s AC 800M and 800xA systems. Designed for fault-tolerant operation, it combines powerful processing, dual-core architecture, and hot-standby redundancy to deliver unmatched availability. It orchestrates control logic, manages I/O communication, handles alarms, and integrates seamlessly with supervisory systems like SCADA.
Product Parameters
| Parameter | Specification |
|---|---|
| CPU Architecture | Dual-core processor (control + communication) |
| Processor Speed | Approx. 133 MHz (MPC866) |
| RAM / Flash Memory | 64 MB RAM (≈ 51 MB available for applications), 4 MB Flash |
| Redundancy Support | Yes — CPU + CEX-bus + communication + I/O redundancy; switchover < 10 ms |
| Ethernet Ports | 2 × 10 Mbit/s RJ45 (control network) |
| Serial Ports | 2 × RS‑232C (1 for general use, 1 isolated for configuration tool) |
| Power Supply | 24 V DC (19.2–30 V), typical power 5.1 W, max 8.6 W |
| Backup Battery | Yes — for memory backup |
| Clock Drift | ~100 ppm (≈ 1 hour/year) |
| I/O Capacity | Non-redundant: up to 96 I/O modules; redundant: up to 84 I/O modules |
| Max. CEX‑bus Modules | Up to 12 connected via CEX-bus |
| Program/Task Support | Up to 32 applications, 64 per application; 32 tasks; min cycle time 1 ms |
| Operating Temperature | +5 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Protection Rating | IP20 (IEC 60529) |
| Mounting Method | DIN-rail or rack with slide‑and‑lock mechanism |
| Dimensions (W × D × H) | 190 × 230 × 80 mm or 263 × 58 × 28 mm (varies by configuration) |
| Weight | Approx. 1 kg (53 × 1 cm); packaged versions noted as ~3–5 kg |
| Certifications | ISA Secure, EMC-certified; runs IEC 61131‑3; safety: IEC 61508 / TUV (High Integrity designs) |
Product Applications
-
Power generation & distribution: turbine management, boiler controls, synchronization
-
Oil, gas & petrochemicals: refinery automation, skid control, safety interlocks
-
Chemical & pulp & paper: batch control, reactor sequencing, quality loops
-
Water & wastewater: pumping station automation, filtration, SCADA integration
-
Manufacturing lines & infrastructure: conveyors, HVAC, building automation systems
Product Advantages
-
Enterprise-class reliability: Hot-standby redundancy with switchover < 10 ms keeps operations running no matter what.
-
Powerful control in a compact form: Dual-core 133 MHz CPU + robust memory offers fast, real-time logic for complex systems.
-
Wide connectivity: Dual Ethernet, serial tools, and redundancy interfaces enable configuration flexibility.
-
Scalable & modular: Handles up to 96 I/O modules; compatible with system modules via CEX‑bus.
-
User-friendly diagnostics & maintenance: Slide‑and‑lock mounting and visual LEDs let technicians service it fast.
Related Models (Same Series / Family)
| Model | Type | Key Feature | Notes |
|---|---|---|---|
| PM866 (this) | Redundant CPU Module | High availability with CPU redundancy | Featured above |
| PM861A / PM864A | Controller Modules | Varied performance tiers, lesser redundancy support | Same platform |
| PM865 | High-Integrity CPU | Certified to IEC 61508 / TUV standards | For safety-critical applications |
| PM851 / PM856 | Lower-performance CPUs | Cost-effective, simpler setups | Good small system fit |
| PM891 | High-speed CPU | Faster clock & larger memory | Handles larger I/O loads |
Popular ABB Models (Same Brand)
| Model | Function | Highlight |
|---|---|---|
| PM861AK01 | Excitation Controller | High precision for turbine/generator control |
| PM866K01 | Processor Unit | Essentially the same but OEM variant with expanded memory |
| AI830 | Analog Input Module | Interfaces with RTD sensors, high resolution analog inputs |
| AO810V2 | Analog Output Module | Versatile voltage / current analog outputs |
| DO840 | Digital Output Module | Robust relay output for actuators |
FAQ — ABB PM866
Q1: What redundancy is supported by PM866?
A1: It supports CPU, communication, CEX‑bus, and I/O redundancy with hot-swappable modules and sub‑10 ms failover.
Q2: What memory and speed does it have?
A2: It runs a 133 MHz dual-core processor with 64 MB RAM (≈ 51 MB usable) and 4 MB flash.
Q3: How many I/O modules can I connect?
A3: Up to 96 non‑redundant or 84 in redundant configurations; expanded via CEX‑bus modules.
Q4: Tell me about communication interfaces.
A4: Two Ethernet ports for control networks, two RS‑232C ports (one isolated), and supports MMS, IAC, PROFIBUS, PROFINET, Modbus TCP.
Q5: What dimensions and weight should I expect?
A5: Form factor is about 190 × 230 × 80 mm (or alternate 263 × 58 × 28 mm), weighing ~1 kg.
Q6: What is the operating temperature range?
A6: +5 °C to +55 °C for operation; –40 °C to +70 °C in storage.
Q7: Is programming easy?
A7: Yes, supported by 800xA Control Builder software with rich diagnostic tools and memory backup via battery.
Q8: What is the power consumption like?
A8: Typical draw is around 5.1 W, with a max of 8.6 W; powered via 24 V DC nominal.
Q9: In which industries is it widely used?
A9: Common in power, oil & gas, chemical, pulp & paper, water, infrastructure—any high‑availability setting.
Q10: What certifications does it carry?
A10: Complies with ISA Secure, IEC 61131‑3, EMC standards, and optional IEC 61508 High Integrity ratings.
