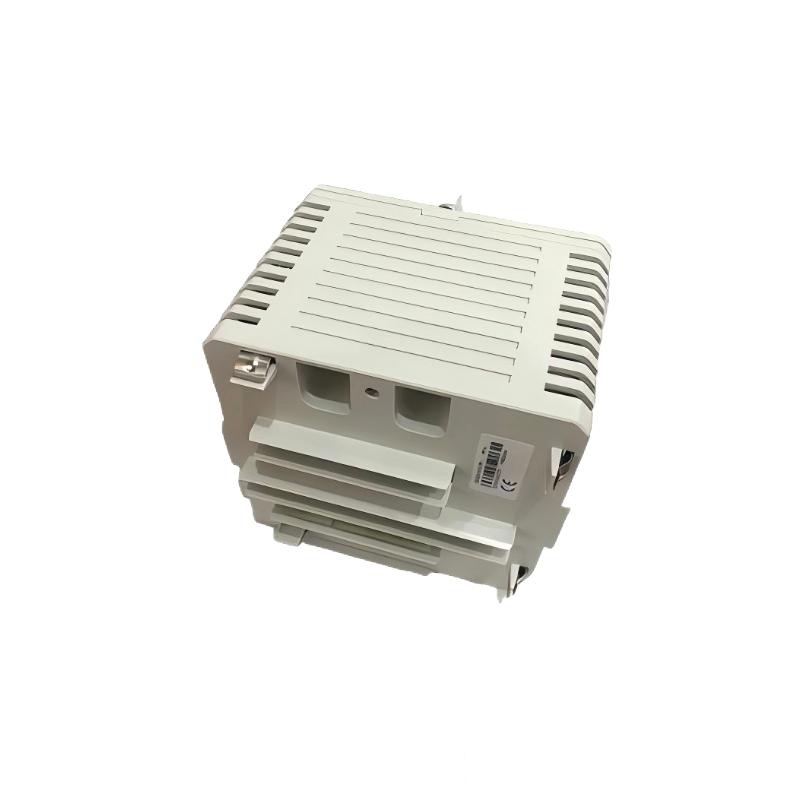

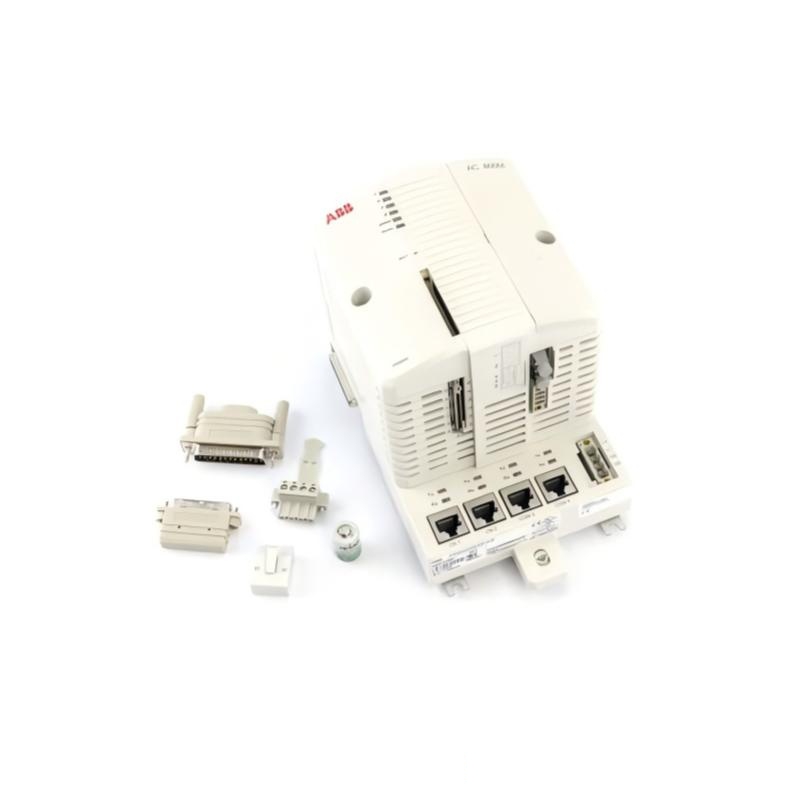

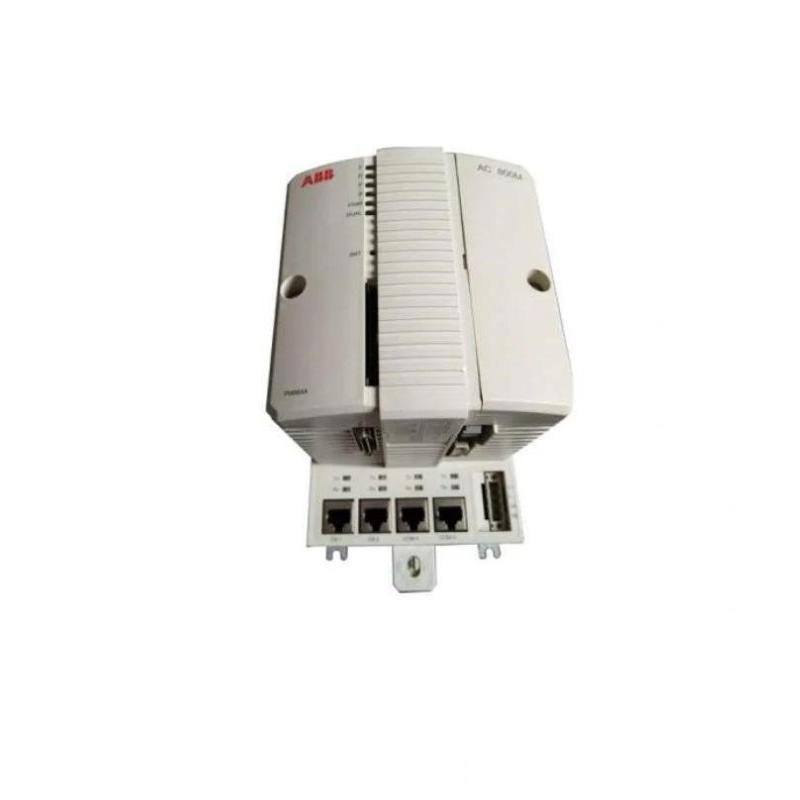

ABB PM864K01 3BSE018150R1 CPU Controller Unit
Product Overview:
The ABB PM864K01 3BSE018150R1 is a high-performance CPU Controller Unit designed for demanding industrial automation systems. As a part of ABB’s renowned AC 800M series, the PM864K01 offers superior processing power, modularity, and flexible communication options for controlling complex processes. This unit is specifically tailored for industrial applications that require high availability, scalability, and real-time processing.
With its advanced redundancy options, wide range of supported communication protocols, and compatibility with ABB’s extensive I/O modules, the PM864K01 is suitable for use in a variety of industries, including energy, water treatment, oil and gas, and manufacturing. Its compact design and ease of integration make it a versatile solution for any automation environment.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | PM864K01 3BSE018150R1 |
| Dimensions | 112.5 × 108 × 99 mm |
| Weight | 1.1 kg |
| Processor | High-speed 32-bit RISC processor |
| Memory | 4 MB user program memory, 8 MB flash memory |
| Power Supply | 24 V DC |
| Power Consumption | Approx. 12 W |
| Operating Temp | -5°C to +60°C |
| Redundancy | Yes (supports CPU redundancy) |
| Communication Ports | 1 × Ethernet, 1 × RS-232, 1 × PROFIBUS-DP |
| I/O Support | Up to 1,000 I/O points with S800/S900 I/O modules |
| Cooling Method | Natural convection |
| Certifications | CE, UL |
Product Applications:
The PM864K01 is ideal for various industrial sectors, ensuring optimal control and automation for a wide range of applications:
-
Power Generation: Controls the automation processes in power plants, including turbines, generators, and auxiliary systems, ensuring reliable power generation and distribution.
-
Oil & Gas: Widely used in upstream, midstream, and downstream oil & gas operations, including pipeline automation, SCADA systems, and offshore platform control.
-
Water and Wastewater Treatment: Provides real-time control of pumps, valves, and monitoring systems to ensure efficient water distribution and treatment.
-
Manufacturing and Process Industries: Ensures precise control in manufacturing environments, including robotics, production lines, and complex process control.
-
Building Automation: Used for HVAC, lighting, and energy management systems to enhance building efficiency and sustainability.
Product Advantages:
-
High Performance: The PM864K01 is equipped with a powerful 32-bit processor, providing fast real-time control for complex automation systems.
-
Compact Design: Its small size (112.5 × 108 × 99 mm) makes it ideal for space-constrained environments, while still delivering robust performance.
-
Redundancy Support: Fully supports CPU redundancy for high-availability applications, ensuring zero-downtime for critical operations.
-
Scalable I/O Integration: Compatible with ABB’s S800 and S900 I/O systems, allowing for seamless scalability from small to large control systems.
-
Wide Communication Support: Equipped with Ethernet, RS-232, and PROFIBUS-DP interfaces, ensuring compatibility with various industrial networks and systems.
-
Engineering-Friendly: Fully compatible with ABB’s Control Builder and other automation software, simplifying system configuration, diagnostics, and maintenance.
Brand and Series:
-
Brand: ABB
-
Series: AC 800M
-
Product Line: PM864K01 is part of ABB’s AC 800M series of Programmable Logic Controllers (PLCs), designed for industrial process automation across a range of industries.
Related Models in the Same Series:
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| PM861K01 | Entry-level CPU with basic redundancy | 112.5 × 108 × 99 mm | 1.1 kg |
| PM862K01 | Mid-range performance with additional I/O options | 135 × 186 × 119 mm | 1.3 kg |
| PM865K01 | High-performance CPU with extended memory | 135 × 186 × 119 mm | 1.4 kg |
| PM867K01 | Compact CPU with enhanced diagnostics | 135 × 186 × 119 mm | 1.6 kg |
| PM868K01 | Fully redundant CPU with high scalability | 135 × 186 × 119 mm | 1.8 kg |
Other Popular ABB Models:
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| PM866AK01 | High-end CPU with built-in redundancy and extended diagnostics | 160 × 220 × 150 | 1.8 |
| PM866AK02 | Enhanced version with greater memory and faster processing | 165 × 225 × 155 | 1.85 |
| PM866K01 | Powerful processor for complex automation systems | 158 × 218 × 148 | 1.7 |
| PM866K02 | Optimized for critical process control with robust redundancy | 170 × 230 × 160 | 1.9 |
| PM866AK03 | Advanced model with multi-network and I/O expansion support | 168 × 228 × 158 | 1.88 |
FAQ for ABB PM864K01 3BSE018150R1:
Q1: What processor does the PM864K01 use?
A1: The PM864K01 features a high-speed 32-bit RISC processor that provides fast processing for real-time automation.
Q2: Can the PM864K01 be configured for redundancy?
A2: Yes, the PM864K01 supports CPU redundancy, ensuring high availability for mission-critical applications.
Q3: How many I/O points can the PM864K01 support?
A3: The PM864K01 can support up to 1,000 I/O points when used with ABB’s S800 or S900 I/O modules.
Q4: What communication interfaces are available?
A4: The PM864K01 has Ethernet, RS-232, and PROFIBUS-DP communication interfaces, providing flexible connectivity options.
Q5: What is the size and weight of the PM864K01?
A5: The PM864K01 measures 112.5 × 108 × 99 mm and weighs 1.1 kg, making it compact and easy to install in tight spaces.
Q6: What is the operating temperature range of the PM864K01?
A6: The PM864K01 operates within a temperature range of -5°C to +60°C.
Q7: Does the PM864K01 support wireless communication?
A7: No, it does not support wireless communication but integrates well with wired Ethernet and fieldbus networks.
Q8: How much power does the PM864K01 consume?
A8: The PM864K01 has a power consumption of approximately 12 W.
Q9: Can the PM864K01 be used in hazardous environments?
A9: The PM864K01 is designed for general industrial use. For hazardous environments, additional protective measures may be required.
Q10: What software is used for programming the PM864K01?
A10: The PM864K01 is programmed using ABB’s Control Builder and other automation tools for configuration and diagnostics.
