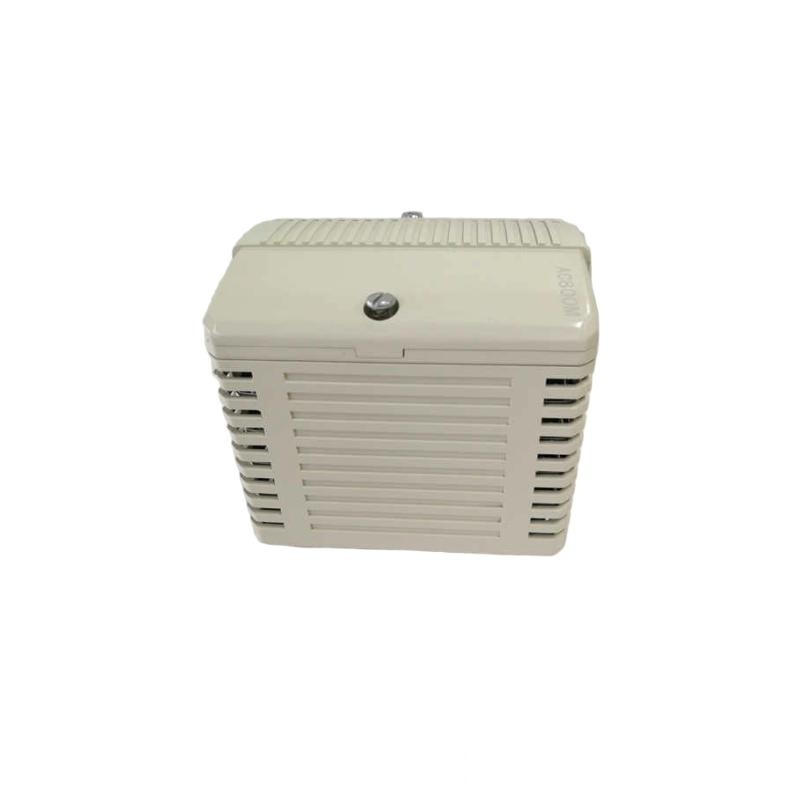

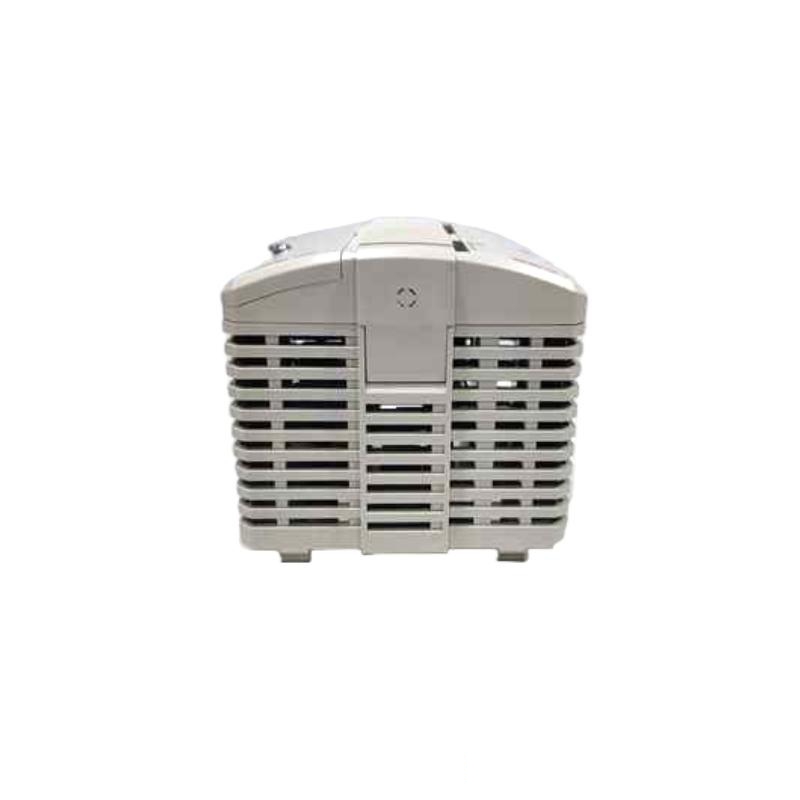

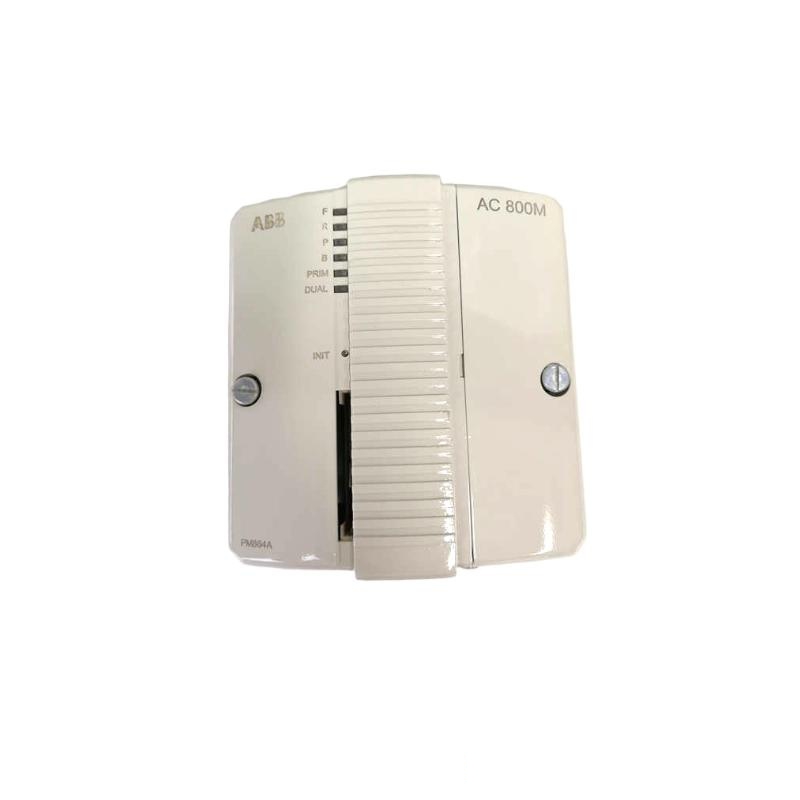

ABB PM864A 3BSE018162R1 CPU Controller Unit
Product Overview:
The ABB PM864A 3BSE018162R1 is a powerful and reliable CPU Controller Unit in the AC 800M series, purpose-built for large-scale and high-demand industrial automation environments. Designed for high availability and real-time control, the PM864A is optimized for applications that demand stable operation, modular architecture, and extensive connectivity.
This unit supports advanced functions such as redundancy, multiple communication protocols, and flexible I/O interfacing, making it a core component for centralized and distributed control systems. With its rugged design and robust performance, PM864A is ideal for critical industries such as energy, oil and gas, water utilities, and manufacturing.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | PM864A |
| Order Code | 3BSE018162R1 |
| Dimensions | 135 × 186 × 238 mm |
| Weight | 2.5 kg |
| Processor | High-speed 32-bit RISC processor |
| Memory | 8 MB user program memory, 16 MB flash memory |
| Power Supply | 24 V DC |
| Power Consumption | Approx. 20 W |
| Operating Temperature | -5°C to +60°C |
| Redundancy | Yes (CPU redundancy supported) |
| Communication Ports | 2 × Ethernet, 1 × RS-232, 1 × PROFIBUS-DP |
| I/O Support | Up to 1,000 I/O points with S800 or S900 modules |
| Certifications | CE, UL, ATEX (when used with certified modules) |
| Cooling Method | Natural convection |
Product Applications:
-
Power Utilities: Deployed in thermal, hydro, and nuclear power plants for core process and safety automation, ensuring uninterrupted operations and system-wide diagnostics.
-
Oil & Gas: Used in upstream, midstream, and downstream facilities. Ideal for pipeline SCADA systems, refinery DCS, and offshore platform control environments.
-
Water and Wastewater: Integrated into water distribution, sewage treatment, and desalination systems, ensuring efficient flow, chemical dosing, and monitoring.
-
Heavy Manufacturing: Controls complex assembly lines, robotic systems, and furnaces in industries such as steel, cement, and automotive.
-
Pharmaceutical & Chemical: Facilitates precision control in batch processing, recipe management, and safety interlocks to meet strict industry compliance.
Product Advantages:
-
High Reliability: Designed for 24/7 industrial operation with robust hardware that withstands demanding environments.
-
Redundant Capability: Full CPU redundancy support guarantees zero-downtime operations in mission-critical applications.
-
Advanced Communication: Built-in dual Ethernet and fieldbus interfaces make integration seamless with a variety of industrial networks.
-
Modular Expandability: Easily expandable with ABB’s I/O modules (S800, S900), allowing scalable deployment from mid-size to large systems.
-
Secure & Certified: Complies with international certifications, and includes integrated security measures for safe and secure automation.
-
Engineering Friendly: Fully compatible with ABB’s Control Builder and automation suite, simplifying engineering, diagnostics, and maintenance.
Brand and Series:
-
Brand: ABB
-
Series: AC 800M
-
Product Family: PM860/PM864 series within the ABB 800xA control platform
Related Models in the Same Series:
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| PM861A | Entry-level CPU with basic redundancy | 135 × 186 × 119 mm | 1.1 kg |
| PM862 | Mid-range performance with more communication ports | 135 × 186 × 119 mm | 1.3 kg |
| PM865 | High-speed CPU with full redundancy and diagnostics | 135 × 186 × 119 mm | 1.4 kg |
| PM866 | Extended memory version for larger projects | 135 × 186 × 119 mm | 1.6 kg |
| PM867 | Industrial-grade CPU for large-scale process plants | 135 × 186 × 119 mm | 1.9 kg |
Other Popular ABB Models:
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| PM862K01 | High-performance CPU with advanced control capabilities | 145 × 200 × 130 | 1.5 |
| PM862K02 | Upgraded version of PM862K01 with more I/O support | 150 × 205 × 135 | 1.6 |
| PM863K01 | Dual CPU system for increased reliability and safety | 160 × 215 × 145 | 1.7 |
| PM863K02 | Enhanced redundancy and communication features | 165 × 220 × 150 | 1.8 |
| PM862K03 | Balanced model with performance and compact design | 140 × 195 × 125 | 1.4 |
FAQ for ABB PM864A 3BSE018162R1:
Q1: What processor is used in the PM864A?
A1: The PM864A is equipped with a high-speed 32-bit RISC processor for real-time industrial automation.
Q2: Can PM864A be used in redundant configurations?
A2: Yes, it fully supports CPU redundancy for high-availability applications.
Q3: What type of I/O modules are compatible?
A3: PM864A supports ABB’s S800 and S900 I/O systems, enabling up to 1,000 I/O points.
Q4: What communication interfaces does the controller offer?
A4: It includes Ethernet, RS-232, and PROFIBUS-DP interfaces, along with support for Modbus and other protocols.
Q5: What is the weight and size of the PM864A?
A5: It measures 135 × 186 × 238 mm and weighs 2.5 kg.
Q6: What is the operating temperature range?
A6: The operating temperature is -5°C to +60°C, suitable for most industrial conditions.
Q7: Is the unit compliant with industrial standards?
A7: Yes, it meets CE, UL, and optional ATEX standards for industrial automation environments.
Q8: What software is used for programming and diagnostics?
A8: ABB’s Control Builder M and 800xA system suite are used for programming, monitoring, and diagnostics.
Q9: Can it be integrated into an existing DCS or SCADA system?
A9: Yes, it supports seamless integration into both ABB and third-party SCADA/DCS environments.
Q10: Is the PM864A suitable for batch processing?
A10: Absolutely. It’s widely used in pharmaceutical, chemical, and food industries for batch control and complex logic operations.
