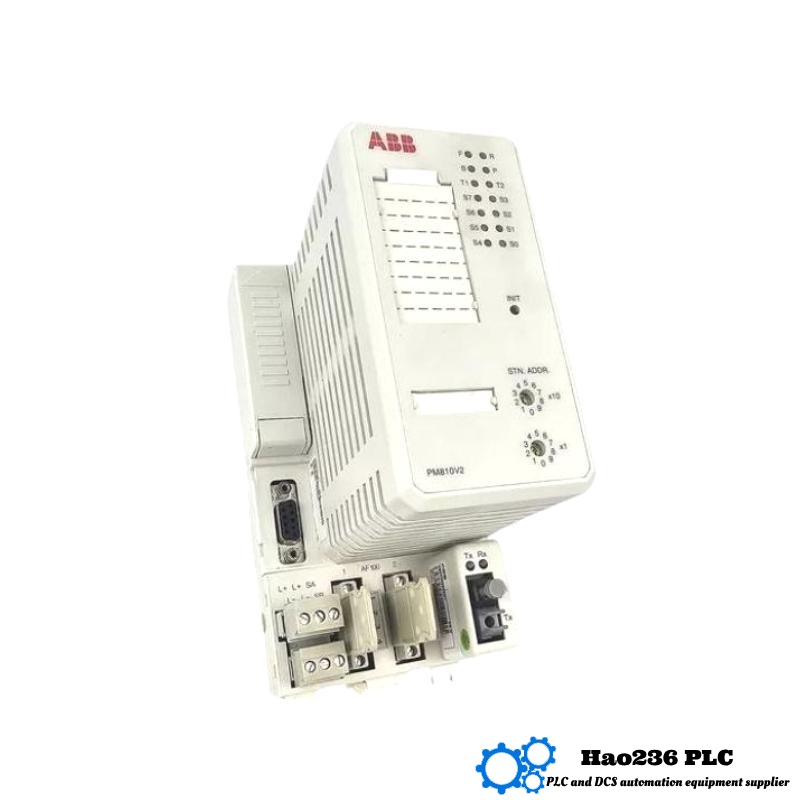

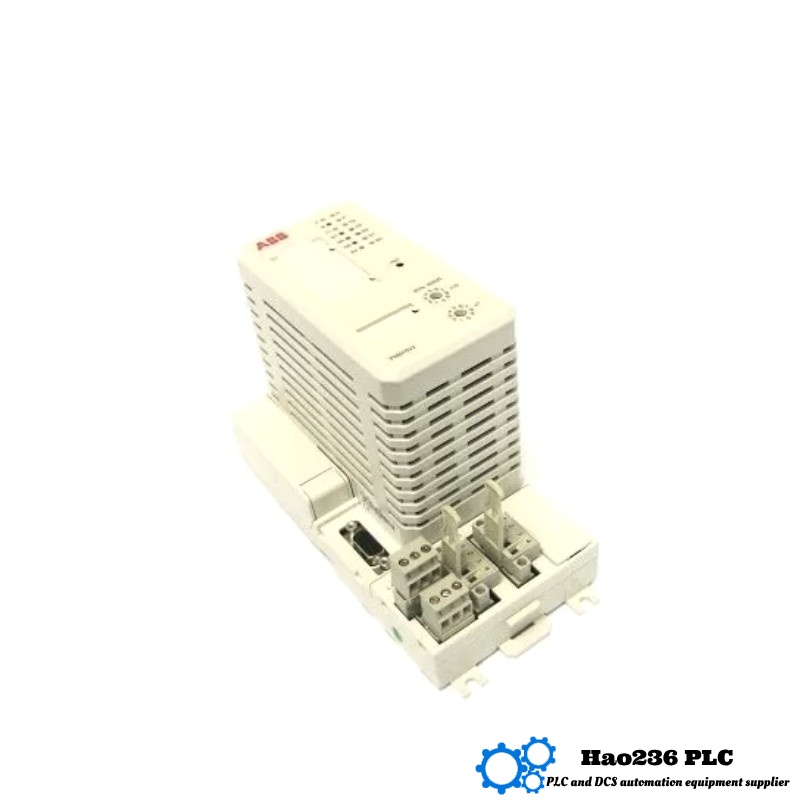

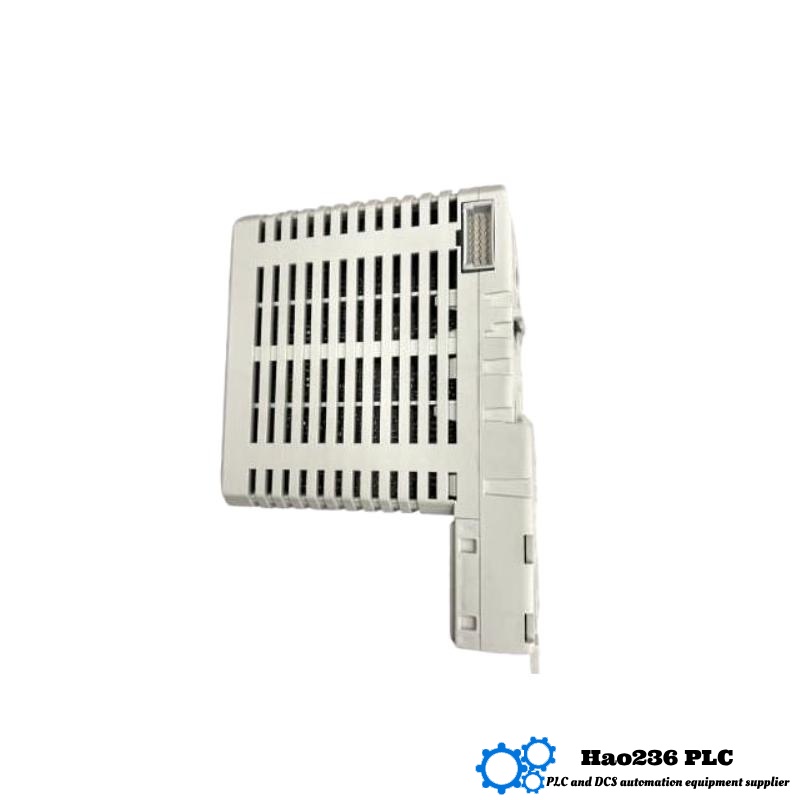

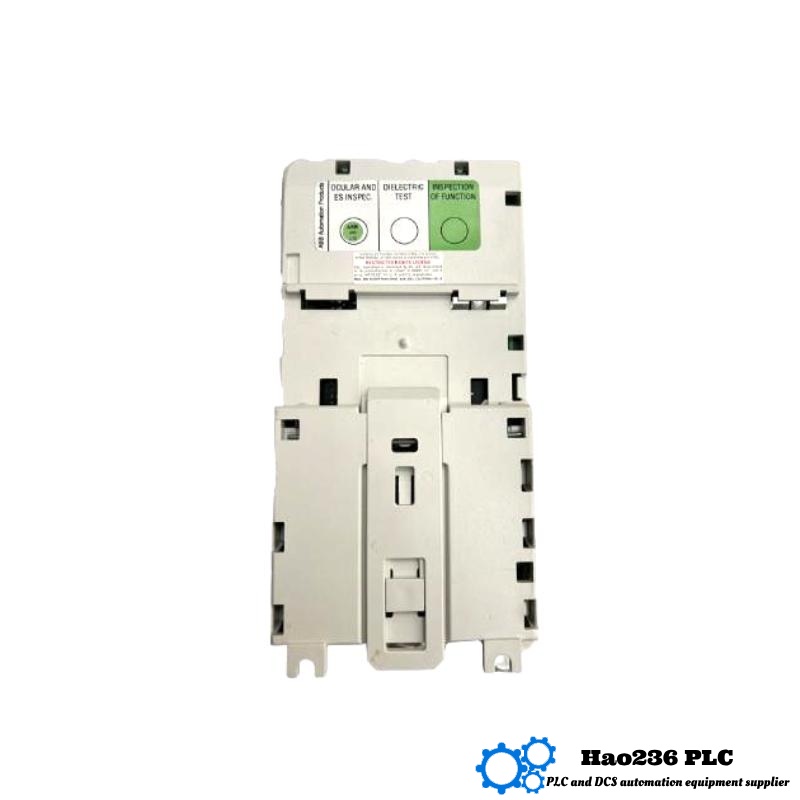

Product Details: PM810V2 (3BSE013220R1)
Brand
Series
S800 I/O System – Advanced Processor Module (compatible with AC70/AC100 architecture)
Product Introduction
The PM810V2 is a high-performance processor module optimized for the S800 I/O platform within ABB’s industrial automation ecosystem. It is engineered for demanding control applications, ensuring reliable operation, smooth communication, and backward compatibility with AC70 programmable controllers.
Applications
This module is commonly used in:
-
Distributed process control systems in manufacturing plants, oil‑&‑gas facilities, and utilities
-
Real‑time data acquisition, processing, and logic execution tasks
-
Legacy system upgrades or replacements in S800 environments
-
Machine monitoring and automation in energy, petrochemical, or laboratory setups
-
Key computational hub for modular I/O systems in harsh industrial conditions
Advantages
-
Strong and stable processing power, built for complex automation tasks
-
Dual redundant power input (9–36 V DC), with isolation and reverse‑polarity protection
-
Broad compatibility with AC70/AC100 master systems and seamless exchange form‑factor replacement for older CPUs
-
Compact and reasonably lightweight, simplifying retrofits and system maintenance
-
Rugged enough for industrial environments and supports both IP20 and higher protection variants
Technical Parameters
| Parameter | Specification |
|---|---|
| Device Type | Processor Module (S800 System) |
| Model / Part Number | PM810V2 (3BSE013220R1) |
| Compatibility | S800 I/O systems, AC70/AC100 controller modules |
| Power Input Range | 9–36 V DC (redundant, isolated, reverse‑protected) |
| Dimensions (mm) | Depth 210 × Height 160 × Width 90 |
| Weight (kg) | 0.6 kg |
| Mounting Options | Supports IP20; variants may allow IP67/IP69K |
Related Models (Same Series or Close Family)
Here are five models closely related in design or function within ABB’s processor lineup:
| Model | Key Highlights / Specs |
|---|---|
| PM810V2 (3BSE013220R1) | S800 Processor Module; 9–36 V DC; 210×160×90 mm; 0.6 kg |
| PM810V1 (3BSE008580R1) | Earlier S800 exchange CPU; 24 V DC; ~200×100×50 mm; ~0.53 kg |
| PM510V08 (3BSE008373R1) | S800-compatible CPU with PCMCIA; 297×176×36 mm; ~0.8 kg |
| PM856K01 | AC800M processor with Profinet/Ethernet; compact form; ~0.6 kg |
| PM511V08 | Voltage regulation control CPU for distributed I/O applications |
Popular ABB Models (Same Brand)
Here are five widely used ABB control modules from similar automation families:
| Model | Key Highlights / Specs |
|---|---|
| PM810V2 (3BSE013220R1) | As described—versatile S800 processor |
| PM810V1 (3BSE008580R1) | Compatible exchange processor module |
| PM510V08 (3BSE008373R1) | High‑memory processor with modern I/O handling |
| PM856K01 | AC800M series high-capability CPU |
| PM511V08 | Specialized voltage regulation processor module |
FAQs (Q&A Format)
Q1: What is the compatible voltage range for this module?
A1: It supports 9–36 V DC, featuring redundant inputs, isolation, and reverse-polarity protection.
Q2: What does this module replace?
A2: It directly replaces legacy AC70/AC100 master CPU modules in S800 systems.
Q3: What are its physical dimensions and weight?
A3: It measures 210 mm (depth) × 160 mm (height) × 90 mm (width), and weighs approximately 0.6 kg.
Q4: Which environments is it designed for?
A4: Suited for industrial settings; IP20 standard, with variants potentially offering higher protection.
Q5: What role does the module play?
A5: It acts as the main processing unit, managing I/O logic and communication for S800 architectures.
Q6: Why choose this version over its predecessor?
A6: Offers enhanced processing reliability, backward compatibility, and improved power input flexibility.
Q7: Is it easy to integrate into existing equipment racks?
A7: Yes—its design allows drop‑in replacement without rewiring in S800 racks.
Q8: Does it support redundant power?
A8: Yes—includes dual 9–36 V DC power input with high-voltage isolation features.
Q9: Can it handle harsh industrial conditions?
A9: Yes—built for rugged environments; form factor and connectors are industrial‑grade.
Q10: Is this module still available and supported?
A10: It’s used extensively in legacy and retrofit applications and remains supported through those channels.
