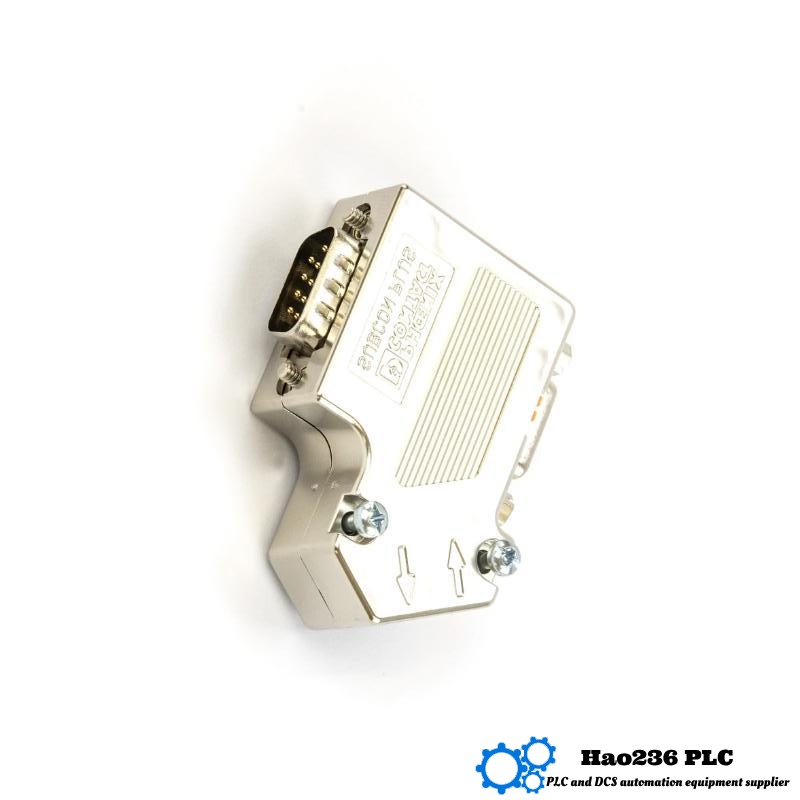

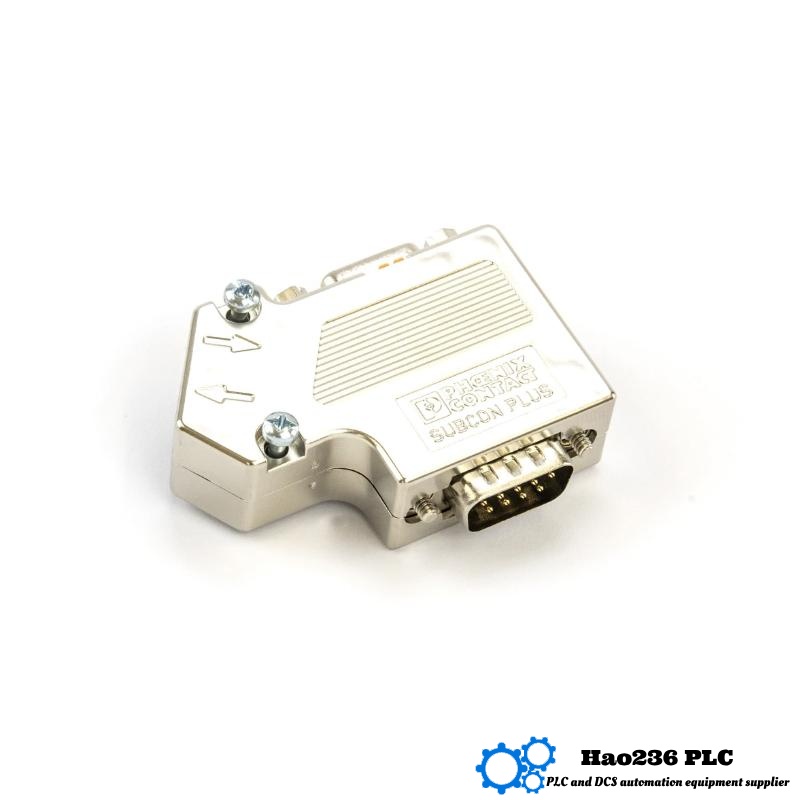

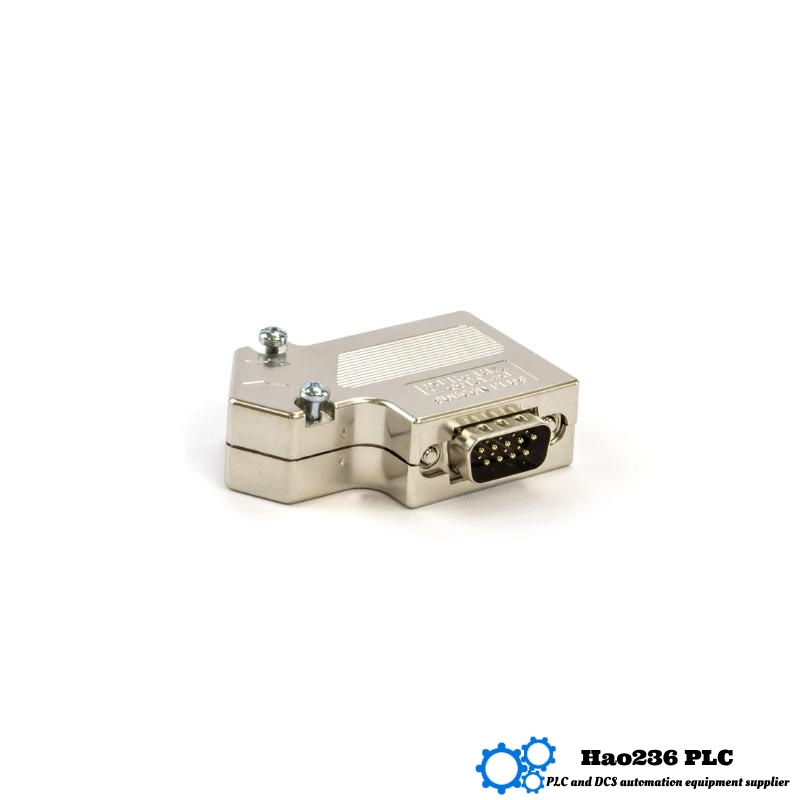

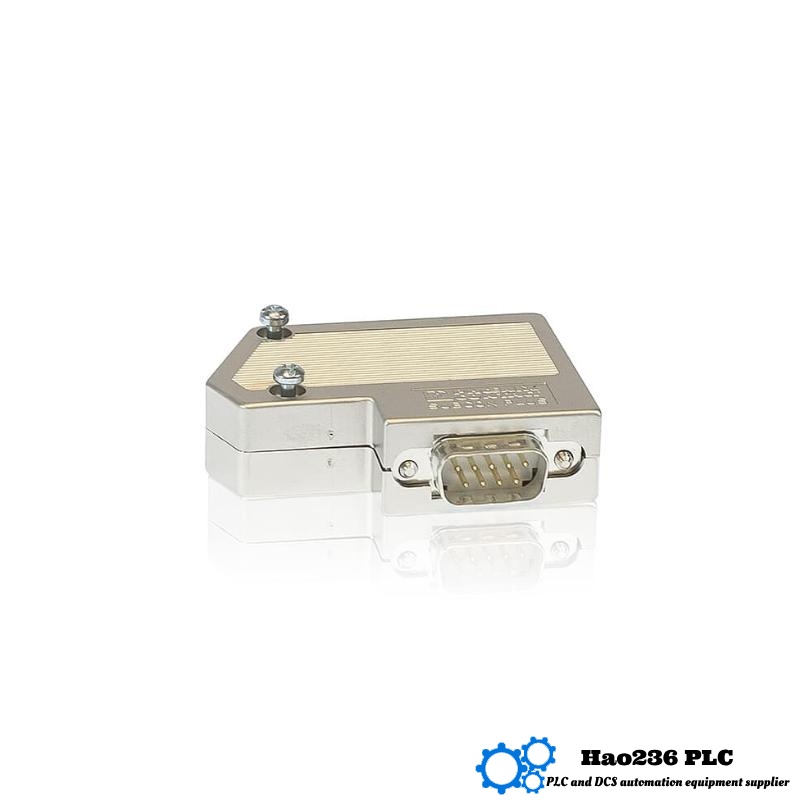

ABB PCO 011 3BDZ000370R1 PROFIBUS DP Connector with Terminal Resistor
Product Introduction
The ABB PCO 011 3BDZ000370R1 is a PROFIBUS DP connector designed to ensure reliable data transmission in PROFIBUS DP networks, particularly for industrial automation systems. This connector comes equipped with an integrated terminal resistor to ensure proper signal termination, thereby preventing signal reflection and maintaining data integrity within the network.
The PCO 011 is built to meet the rigorous standards of industrial communication systems, enabling robust connectivity between PROFIBUS devices in systems such as PLC controllers, HMI (Human Machine Interface), and other field devices. It plays a crucial role in data transmission stability, preventing communication errors caused by improper signal termination.
With a compact design, 82.8 × 34.2 × 58.5 mm, and weighing only 0.6 kg, the PCO 011 is engineered for efficient installation, even in constrained spaces, ensuring that PROFIBUS networks operate optimally in industrial applications, such as automated factories, power plants, process control systems, and robotics.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | PCO 011 3BDZ000370R1 |
| Type | PROFIBUS DP Connector with Terminal Resistor |
| Dimensions | 82.8 × 34.2 × 58.5 mm |
| Weight | 0.6 kg |
| Operating Temperature | -20°C to +60°C |
| Connector Type | 9-pin male connector |
| Signal Termination | Integrated terminal resistor |
| Protection Rating | IP20 |
| Mounting Type | Panel Mounting |
| Connector Cable Type | Suitable for PROFIBUS DP networks |
| Max. Cable Length | Up to 1000 meters (depending on network configuration) |
| Compliance | CE, UL, FM |
| Material | High-quality industrial-grade materials |
Product Applications
The ABB PCO 011 PROFIBUS DP connector is ideal for applications requiring reliable communication in industrial automation systems, including:
-
Factory Automation
Used in industrial automation systems for data transmission between PLC systems, robotic arms, and other control devices, enabling precise control and monitoring in automated production lines. -
Process Control Systems
Ensures stable communication in process industries like chemical, pharmaceutical, and food and beverage, where data accuracy and network integrity are essential. -
Power Plants
Employed in power generation systems for monitoring and controlling generators, turbines, and auxiliary equipment, facilitating real-time data exchange. -
Building Automation
Integrated into building management systems for HVAC, security, and lighting control, ensuring seamless communication between devices. -
Industrial Robotics
Provides reliable data transmission in robotic automation systems, ensuring precise and coordinated movements and operations.
Product Advantages
-
Integrated Terminal Resistor
The built-in terminal resistor eliminates the need for separate resistor installations, reducing complexity and ensuring optimal performance in the PROFIBUS DP network. -
Compact Design
With dimensions of 82.8 × 34.2 × 58.5 mm and a weight of 0.6 kg, the PCO 011 is compact and ideal for space-constrained installations. -
Wide Temperature Range
Operates in -20°C to +60°C, making it suitable for use in harsh industrial environments. -
Reliable Signal Transmission
The integrated terminal resistor ensures proper signal termination, minimizing communication errors and maintaining data integrity over long distances. -
Easy Installation
The PCO 011 connector is easy to mount and fits perfectly in a variety of industrial panels, allowing quick installation and simple maintenance. -
Durable and Safe
Certified with CE, UL, and FM standards, ensuring that it meets high safety and quality standards for use in critical industrial applications. -
Cost-Effective Solution
The combination of reliable communication and integrated signal termination offers a cost-effective solution to optimize PROFIBUS DP network performance.
Brand Information
ABB is a global leader in electrification and industrial automation technologies. Known for its commitment to innovation, safety, and efficiency, ABB designs products and solutions that improve productivity, reliability, and sustainability in a wide range of industries. The PCO 011 is a part of ABB’s extensive portfolio of industrial automation solutions, specifically engineered for seamless communication in PROFIBUS DP networks.
Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| PCO 010 | PROFIBUS DP Connector without terminal resistor | 80 × 35 × 58 | 0.55 |
| PCO 012 | PROFIBUS DP Connector with extended cable length | 82 × 36 × 60 | 0.65 |
| PCO 014 | PROFIBUS DP Connector with double terminal resistors | 85 × 38 × 62 | 0.7 |
| PCO 015 | PROFIBUS DP Connector with enhanced shielding | 84 × 37 × 61 | 0.68 |
| PCO 020 | PROFIBUS DP Connector for high-speed networks | 82 × 34 × 59 | 0.6 |
Popular ABB Models
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| PD D163 A01 | Digital I/O module for industrial control | 120 × 100 × 60 | 0.50 | 16 inputs/outputs, real-time data, isolated channels |
| PD D163 A02 | Digital I/O module with enhanced filtering | 120 × 100 × 60 | 0.55 | Improved noise immunity, LED diagnostics, low power |
| PD D200 A101 | Advanced signal processing module | 150 × 120 × 70 | 0.70 | High-speed analog to digital conversion, temperature compensation |
| PD D164 A01 | Analog I/O module for signal acquisition | 125 × 105 × 65 | 0.60 | 12-bit resolution, extended temperature range, fault detection |
| PD D201 A102 | Signal isolation and conditioning module | 150 × 110 × 75 | 0.75 | Isolation for safety, adjustable gain, wide input voltage range |
FAQs
Q1: What is the purpose of the terminal resistor in the PCO 011?
A1: The terminal resistor ensures proper signal termination, preventing data loss and reflections in the PROFIBUS DP network.
Q2: What is the maximum cable length supported by the PCO 011?
A2: The PCO 011 supports cable lengths up to 1000 meters, depending on the network configuration.
Q3: Is this connector suitable for hazardous environments?
A3: No, the PCO 011 is not specifically designed for hazardous environments, but it is suitable for general industrial applications.
Q4: What are the operating temperature ranges of the PCO 011?
A4: The PCO 011 operates in temperatures ranging from -20°C to +60°C.
Q5: What is the protection rating of the PCO 011?
A5: The PCO 011 has an IP20 protection rating, meaning it is protected from solid objects larger than 12mm but is not water-resistant.
Q6: Can I use this connector for non-PROFIBUS networks?
A6: No, the PCO 011 is designed for use specifically in PROFIBUS DP networks.
Q7: How is the PCO 011 mounted?
A7: The PCO 011 is designed for panel mounting, making it easy to install in control panels.
Q8: What certification does the PCO 011 have?
A8: The PCO 011 is certified with CE, UL, and FM.
Q9: Is this connector easy to install?
A9: Yes, the PCO 011 is easy to install with straightforward panel mounting and a user-friendly design.
Q10: What is the weight of the PCO 011?
A10: The PCO 011 weighs 0.6 kg.
