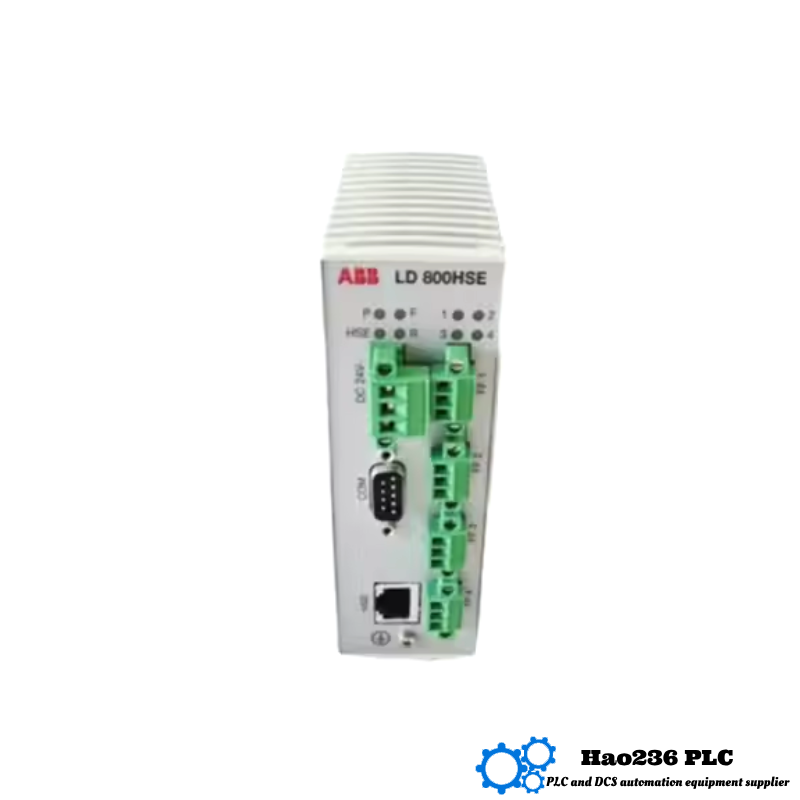

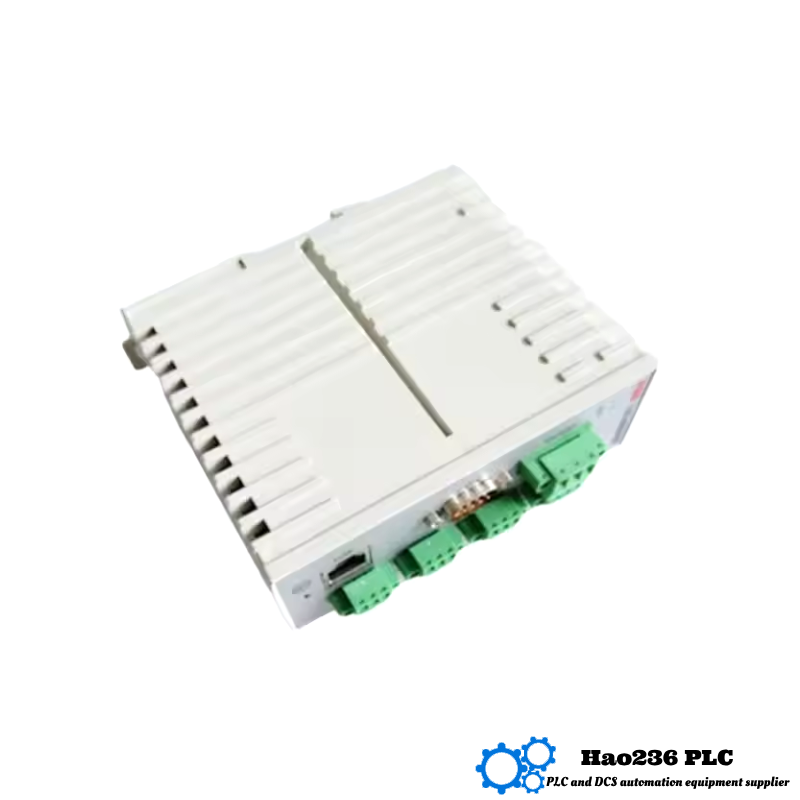

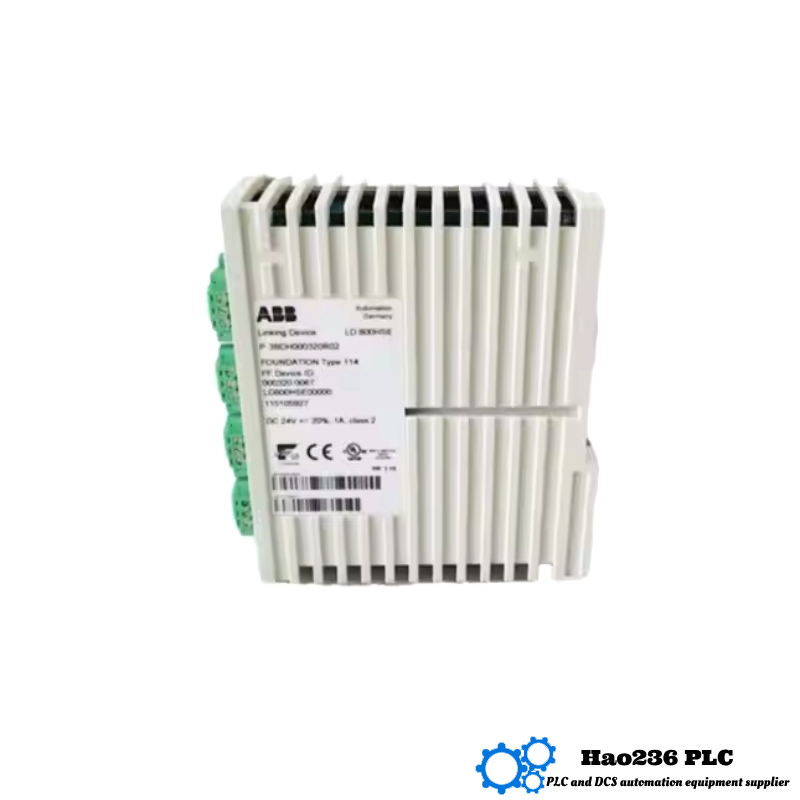

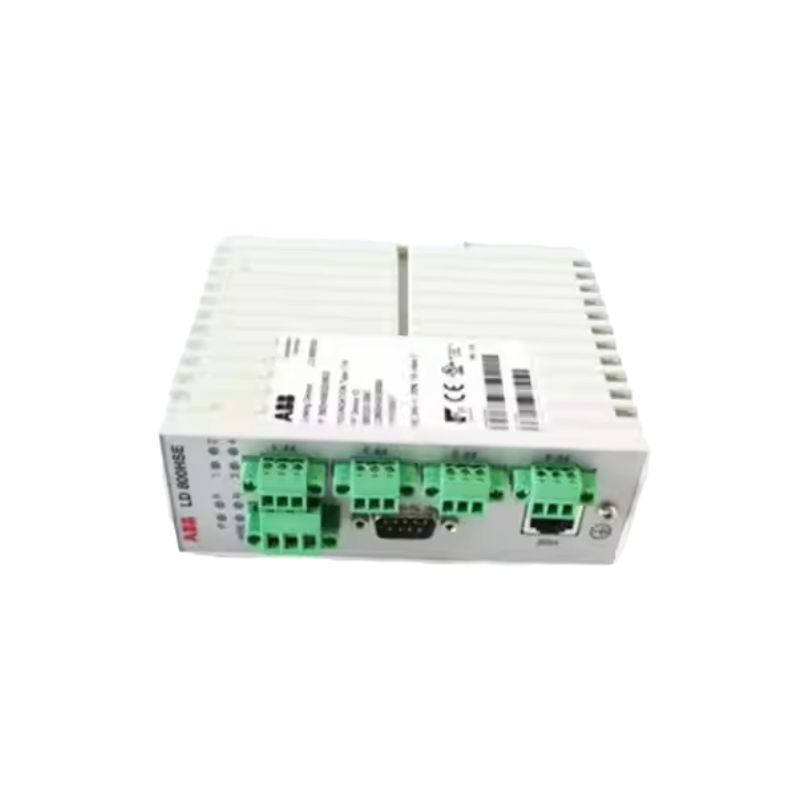

ABB LD 810HSE EX 3BSE091722R1 Link Device (LD)
Product Introduction
The ABB LD 810HSE EX 3BSE091722R1 is a specialized Link Device (LD) designed for hazardous environments, supporting seamless communication between field devices and the ABB automation system. This device acts as a gateway to link fieldbus segments, facilitating the transmission of data between field devices and the control system in compliance with strict safety standards.
The LD 810HSE EX model is built with explosion-proof certification, making it suitable for use in environments where flammable gases, vapors, or dust are present. It supports high-performance data communication and is compatible with ABB’s 800xA distributed control system as well as other industrial automation platforms.
Its compact design, robust construction, and intrinsic safety certification make it an indispensable component in modern industrial automation, particularly in oil and gas, petrochemical, and chemical industries where safety and reliability are paramount.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | LD 810HSE EX 3BSE091722R1 |
| Type | Link Device (LD) for hazardous environments |
| Dimensions | 105 × 100 × 35 mm |
| Weight | 0.25 kg |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | Ex d IIC T6 (Explosion-proof) |
| Power Supply | 24 V DC nominal |
| Communication Protocol | FOUNDATION™ Fieldbus, Profibus DP |
| Mounting Type | DIN Rail |
| Max. Number of Segments | Up to 2 fieldbus segments |
| Intrinsic Safety | Certified for hazardous locations |
| Signal Isolation | Galvanic isolation |
| Certifications | ATEX, IECEx, FM, CSA |
| Compliance | IEC 60079 standards |
Product Applications
The LD 810HSE EX Link Device is specially designed for hazardous environments where safety and compliance with explosion-proof standards are critical. Its typical applications include:
-
Oil and Gas Industry
Facilitates safe communication between field instruments and control systems in explosive atmospheres such as offshore platforms and refineries. -
Chemical and Petrochemical Plants
Provides reliable and intrinsically safe data transmission for process control in hazardous zones. -
Power Generation
Used in power plants with combustible gases to ensure safe and continuous monitoring of critical parameters. -
Pharmaceutical Industry
Enables safe and compliant process automation in potentially explosive environments. -
Mining and Metallurgy
Ensures robust communication and intrinsic safety in dust-laden or gas-rich mining environments.
Product Advantages
-
Explosion-Proof Certified
Designed and certified for use in hazardous locations, meeting the highest standards for intrinsic safety (Ex d IIC T6). -
Reliable Fieldbus Link
Enables seamless and stable communication between field devices and control systems, supporting multiple fieldbus segments. -
Compact and Lightweight
Dimensions of 105 × 100 × 35 mm and a weight of 0.25 kg allow for easy installation in confined spaces. -
Wide Operating Temperature Range
Operates efficiently within -20°C to +60°C, suitable for harsh industrial environments. -
Dual Protocol Support
Compatible with both FOUNDATION™ Fieldbus and Profibus DP, enhancing integration flexibility. -
Galvanic Isolation
Provides protection against electrical noise and interference for stable communication. -
Compliance with Global Safety Standards
Certified under ATEX, IECEx, FM, and CSA, ensuring safe deployment worldwide.
Brand Information
ABB is a global pioneer in electrification and automation technology. The company’s solutions are recognized for innovation, quality, and safety across numerous industries. The LD 810HSE EX Link Device is part of ABB’s commitment to delivering intrinsically safe and reliable communication products tailored for hazardous industrial environments.
Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| LD 810HSE 3BSE091721R1 | Link Device for hazardous areas | 105 × 100 × 35 | 0.25 |
| LD 810HS 3BSE091720R1 | Standard Link Device for non-hazardous | 105 × 100 × 35 | 0.23 |
| LD 820HSE 3BSE091723R1 | Link Device with enhanced features | 120 × 110 × 40 | 0.3 |
| LD 830HSE 3BSE091724R1 | Multi-protocol Link Device | 125 × 120 × 38 | 0.28 |
| LD 840HSE 3BSE091725R1 | High-density Link Device for hazardous | 130 × 125 × 45 | 0.35 |
Popular ABB Models
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| KV C758 A124 | High precision control valve actuator | 300 × 200 × 180 | 15.0 | Fast response, high torque, corrosion-resistant body |
| LAA424 C01 | Explosion-proof limit switch | 220 × 160 × 120 | 8.5 | ATEX certified, weatherproof, adjustable set points |
| LD 800HSE EX | Hazardous area flame detector | 400 × 250 × 200 | 12.0 | Infrared sensing, explosion-proof enclosure |
| KV C760 B130 | Pneumatic valve actuator | 310 × 210 × 190 | 16.0 | Double-acting, manual override, low air consumption |
| LAA426 C02 | Limit switch with position feedback | 225 × 165 × 125 | 9.0 | IP67 rated, adjustable cams, visual position indicator |
FAQs
Q1: What is the ABB LD 810HSE EX used for?
A1: It is a link device designed for hazardous environments to connect fieldbus segments safely and reliably.
Q2: What communication protocols does it support?
A2: It supports FOUNDATION™ Fieldbus and Profibus DP.
Q3: Is the device explosion-proof?
A3: Yes, it has Ex d IIC T6 certification, suitable for explosive atmospheres.
Q4: What are the dimensions and weight of the device?
A4: It measures 105 × 100 × 35 mm and weighs 0.25 kg.
Q5: What is the operating temperature range?
A5: The device operates from -20°C to +60°C.
Q6: How many fieldbus segments can it connect?
A6: It supports up to 2 fieldbus segments.
Q7: What kind of mounting does the device support?
A7: It is designed for DIN rail mounting.
Q8: Is it compatible with ABB’s 800xA system?
A8: Yes, it integrates seamlessly with the 800xA automation platform.
Q9: What certifications does the device hold?
A9: It holds ATEX, IECEx, FM, and CSA certifications.
Q10: Can it be used in both hazardous and non-hazardous environments?
A10: While designed for hazardous locations, it can also be used in non-hazardous environments requiring reliable link devices.
