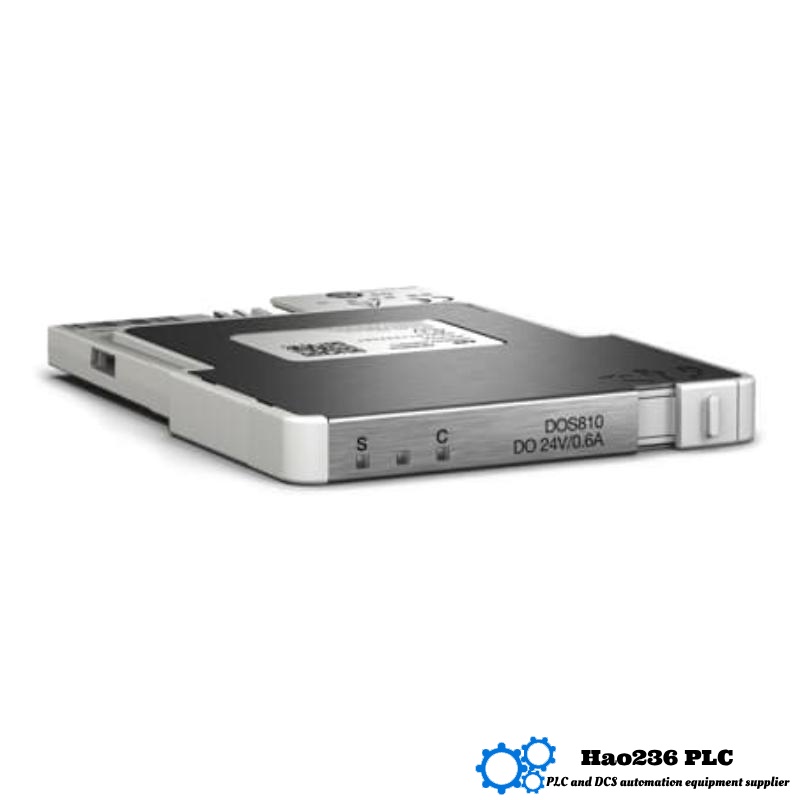

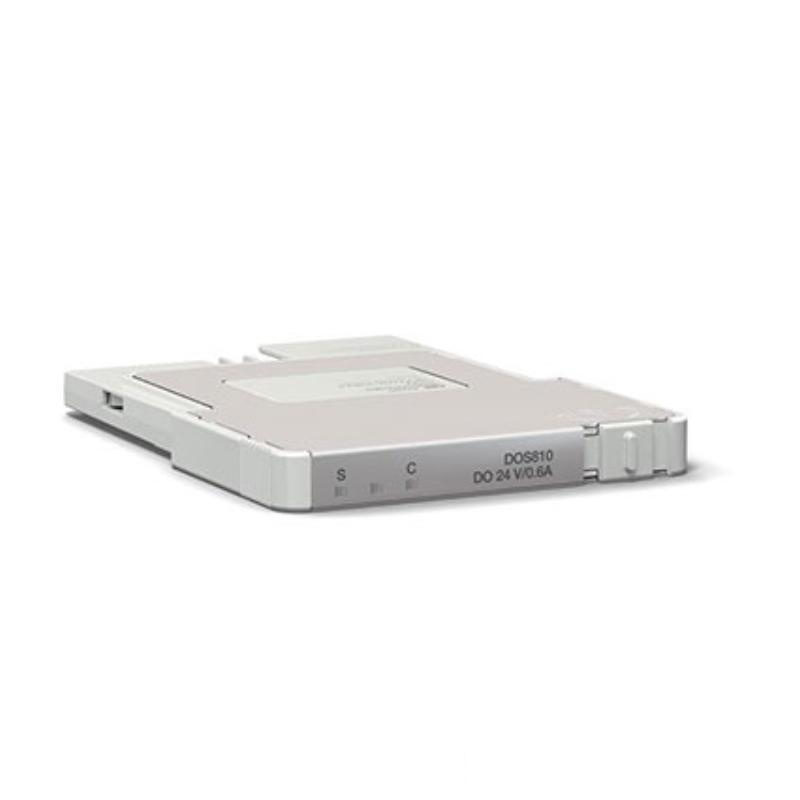

ABB DOS810 3BSE078768R1 Digital Output Module

Product Overview

The ABB DOS810 3BSE078768R1 Digital Output Module is designed for high-performance digital output control in industrial automation systems. Compact and highly reliable, the module allows for the efficient management of digital signals to field devices such as relays, actuators, and other output devices. The module features a sleek, space-saving design that ensures easy integration in tight spaces and offers superior performance with minimal energy consumption.

With its modular architecture, the DOS810 is easily scalable, allowing it to fit seamlessly into larger control systems for a wide range of applications. Whether you’re in manufacturing, energy, or process control, this module provides flexibility, reliability, and high-speed performance to ensure that systems operate smoothly.

Key Features

• Compact and Lightweight: With a size of 77.9 × 105 × 9.8 mm and weighing only 0.075 kg, the DOS810 is highly compact and easy to install in space-constrained environments.

• Quick Response Time: The module is designed for fast signal processing to control various field devices promptly.

• High Reliability: Built for industrial environments, it ensures stable and dependable performance even in harsh conditions.

• Low Energy Consumption: The module operates efficiently with minimal power usage, making it an energy-saving solution.

• Easy Integration: It easily integrates into ABB’s larger automation systems, offering seamless communication with other ABB modules and devices.

• Flexible Output Channels: Provides multiple digital output channels to control several devices simultaneously.

Product Specifications

Applications

The ABB DOS810 3BSE078768R1 Digital Output Module is versatile and can be used in various industrial applications, including:

1. Industrial Automation: Controls relays, actuators, and valves in manufacturing lines, robotics, and other automated processes.

2. Power Generation: Used in power plants for controlling switches, circuit breakers, and other devices critical to plant operations.

3. Energy Management: Ideal for energy control systems in substations and grids to manage and control digital outputs.

4. Process Control: In chemical, pharmaceutical, and food processing plants, it ensures reliable control of output devices and machinery.

5. Building Automation: Applied in HVAC systems, lighting control, and security systems in buildings and facilities.

Advantages

1. Space-Efficient Design: The module’s compact size (77.9 × 105 × 9.8 mm) makes it ideal for installations where space is limited.

2. Fast Response Time: The DOS810 provides quick control over devices with a response time of less than 10 ms.

3. Reliability in Harsh Environments: With an IP20 protection class, it’s suitable for industrial environments where reliability is essential.

4. Low Power Consumption: The module is energy-efficient, reducing operational costs while maintaining high performance.

5. Seamless Integration: Easily integrates into ABB’s larger automation systems, making it a flexible solution for any industrial control system.

6. High Channel Density: The 8 output channels provide the flexibility to control multiple devices simultaneously.

Brand: ABB

ABB is a leading global technology company specializing in automation, electrification, and robotics. With a rich history of innovation, ABB provides advanced solutions that improve productivity, energy efficiency, and safety across industries. The DOS810 3BSE078768R1 is a product of ABB’s commitment to providing high-quality, reliable, and scalable automation solutions.
