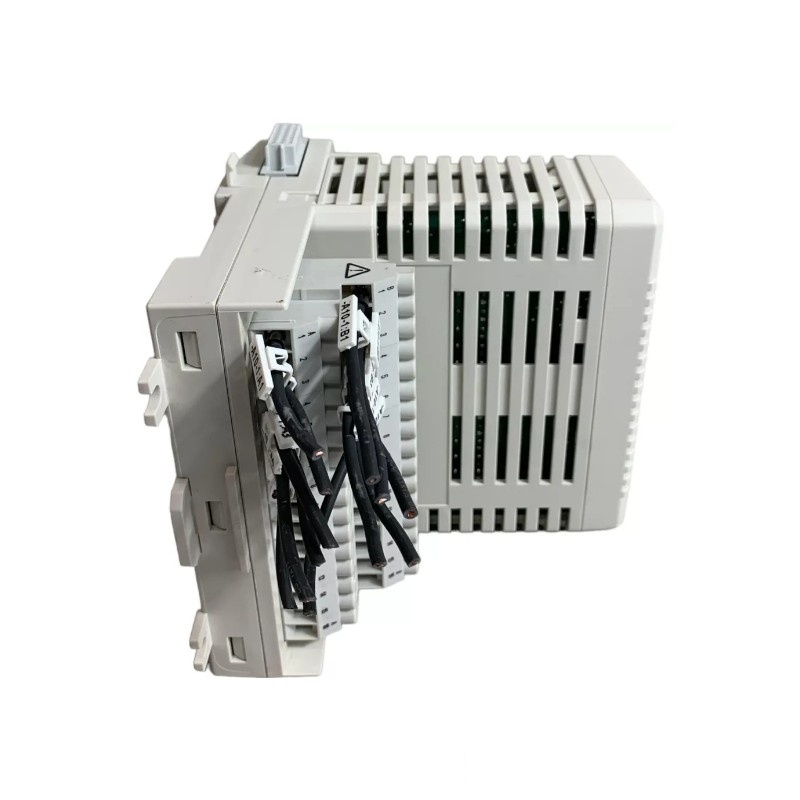

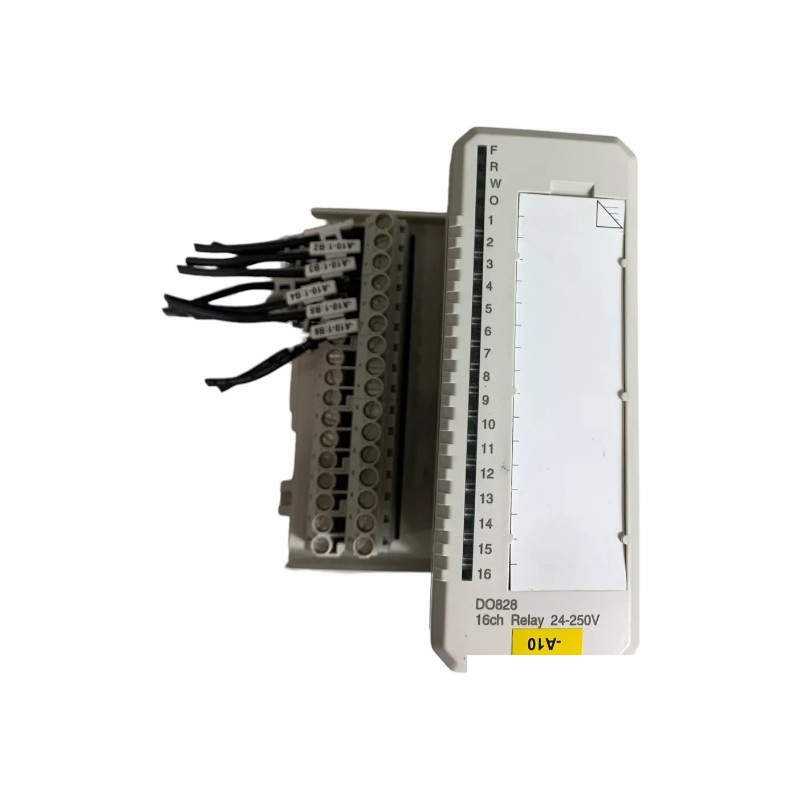

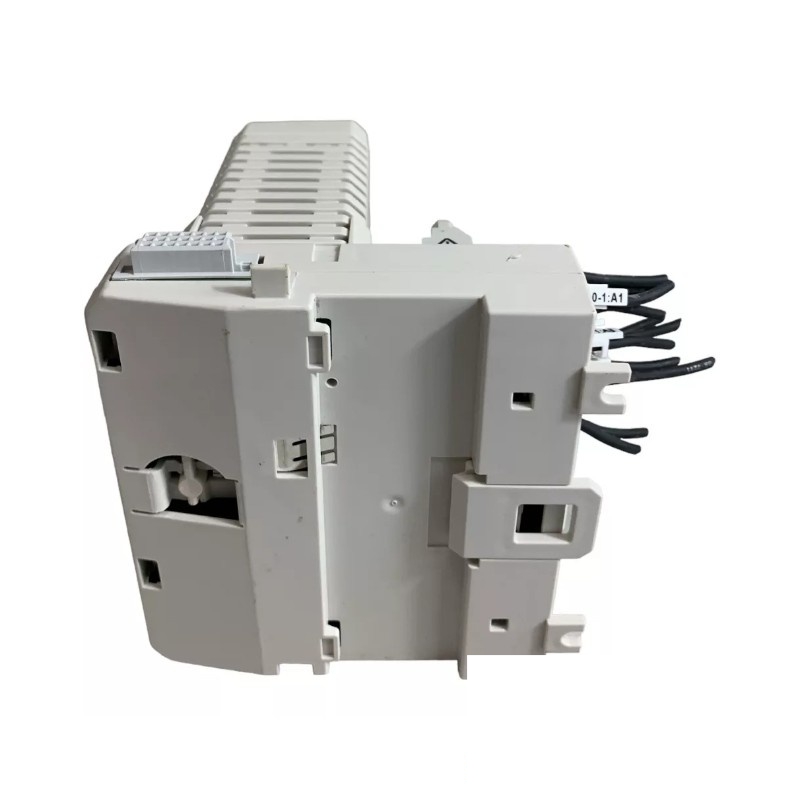

ABB DO828 3BSE069055R1 Digital Output Module
Product Overview
The ABB DO828 3BSE069055R1 is a digital output module designed to provide reliable switching control for various industrial applications. Part of ABB’s renowned S800 I/O family, the DO828 module integrates seamlessly into ABB’s AC 800M distributed control systems. This module offers 8 channels of transistor-based digital output, providing high-speed switching for a range of automation tasks. The module is compact, designed for efficient space usage, and provides excellent isolation, making it ideal for use in harsh industrial environments.
The DO828 is specifically suited for controlling devices such as solenoids, relays, and other electronic actuators that require reliable, high-speed switching capabilities. This versatile module supports DC voltage output, with both high-speed performance and robust protection to meet demanding operational requirements in various sectors.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DO828 |
| Order Code | 3BSE069055R1 |
| Module Type | Digital Output Module |
| Channels | 8 |
| Output Type | Transistor (24 VDC) |
| Nominal Output Voltage | 24 V DC |
| Max Output Current per Channel | 0.5 A per channel |
| Max Switching Power | 12 W per channel |
| Channel Isolation | Yes (channel-to-bus isolation) |
| Mounting | DIN Rail |
| Dimensions (mm) | 45 x 102 x 119 |
| Weight | 0.18 kg |
| Operating Temperature Range | –25°C to +70°C |
| Protection | Short circuit, overload protection |
| Certifications | CE, UL, RoHS |
Applications
-
Industrial Automation: The DO828 is ideal for controlling solenoids, actuators, and valves in various industrial automation systems, providing fast and reliable switching.
-
Control Systems: Widely used in control panels for switching loads like contactors and relays, the module is suitable for both simple and complex control system configurations.
-
Safety Systems: Often deployed in safety-related applications, such as emergency shutdown systems, where reliable output switching is critical.
-
Material Handling Systems: In conveyor systems, the DO828 can manage actuators and switches, ensuring smooth, automated operations in manufacturing environments.
-
HVAC Systems: The module can control fans, pumps, and other HVAC components, making it an essential part of modern building management systems.
Advantages
-
Compact Design: The module’s small form factor ensures that it fits seamlessly into tight control panels without sacrificing performance.
-
High-Speed Switching: The transistor output enables fast and efficient switching, making the DO828 ideal for high-speed control applications.
-
Reliability and Safety: The module offers robust protection, including short circuit and overload protection, ensuring high operational safety and reliability in challenging environments.
-
Low Power Consumption: The transistor-based design is energy-efficient, reducing the overall power consumption of the control system.
-
Versatile Output Voltage Range: The module supports 24 V DC, making it compatible with a wide range of industrial actuators and components.
-
Easy Integration: The DO828 integrates seamlessly with ABB’s AC 800M control system, ensuring smooth communication and control within the larger automation system.
Brand
Series
S800 I/O – AC 800M Control System
Recommended Models (Same Series or Related)
| Model | Channels | Output Type | Dimensions (mm) | Weight | Application |
|---|---|---|---|---|---|
| DO820 | 8 | Transistor (24 VDC) | 45 x 102 x 119 | 0.23 kg | High-speed digital output module |
| DO814 | 16 | Transistor (24 VDC) | 45 x 102 x 119 | 0.26 kg | High-density, compact output module |
| DO810 | 8 | Relay Output | 45 x 102 x 119 | 0.24 kg | Relay-based switching for high-power loads |
| DO825 | 8 | Solid-State (24 VDC) | 45 x 102 x 119 | 0.22 kg | Advanced solid-state switching capabilities |
| DO830 | 8 | Transistor (24 VDC) | 45 x 102 x 119 | 0.25 kg | Designed for higher output current handling |
Recommended Models (Popular ABB Products)
| Model | Function | Dimensions (mm) | Weight | Application |
|---|---|---|---|---|
| DI820 | Digital Input (8 channels) | 45 x 102 x 119 | 0.23 kg | Collects high-speed digital input data |
| AI810 | Analog Input (8 channels) | 45 x 102 x 119 | 0.24 kg | Analog signal acquisition for control systems |
| AO810 | Analog Output (8 channels) | 45 x 102 x 119 | 0.22 kg | Outputs analog control signals for actuators |
| PM864AK01 | CPU Module | 142 x 186 x 186 | 1.1 kg | Core processing module for AC 800M systems |
| DO841 | Digital Output (8 channels) | 45 x 102 x 119 | 0.25 kg | High-speed output switching in industrial systems |
FAQs
Q1: What output type does the DO828 module provide?
A: The DO828 offers transistor-based digital output for 24 V DC applications.
Q2: How many channels does the DO828 module have?
A: The module provides 8 channels of output.
Q3: What is the maximum current per output channel?
A: The maximum current per channel is 0.5 A.
Q4: Can the DO828 be used in both AC and DC systems?
A: No, the DO828 is specifically designed for 24 V DC output applications.
Q5: Is the DO828 module protected from overload?
A: Yes, the DO828 is equipped with overload and short-circuit protection for safe operation.
Q6: What is the operating temperature range for the DO828?
A: The module operates within a temperature range of –25°C to +70°C.
Q7: Is this module compatible with other S800 series modules?
A: Yes, the DO828 is fully compatible with other S800 I/O modules, integrated into the AC 800M system.
Q8: What is the mounting style of the DO828 module?
A: The module is designed for easy DIN rail mounting.
Q9: Does the DO828 feature status indicators for each channel?
A: Yes, each channel has a status LED for monitoring and diagnostics.
Q10: What is the weight of the DO828 module?
A: The DO828 weighs 0.18 kg.
