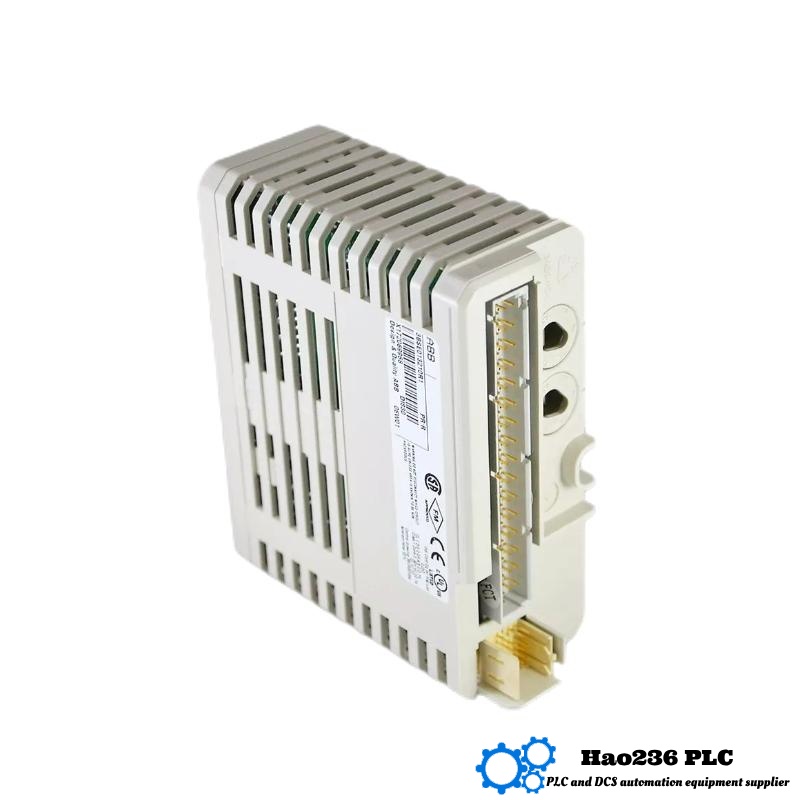

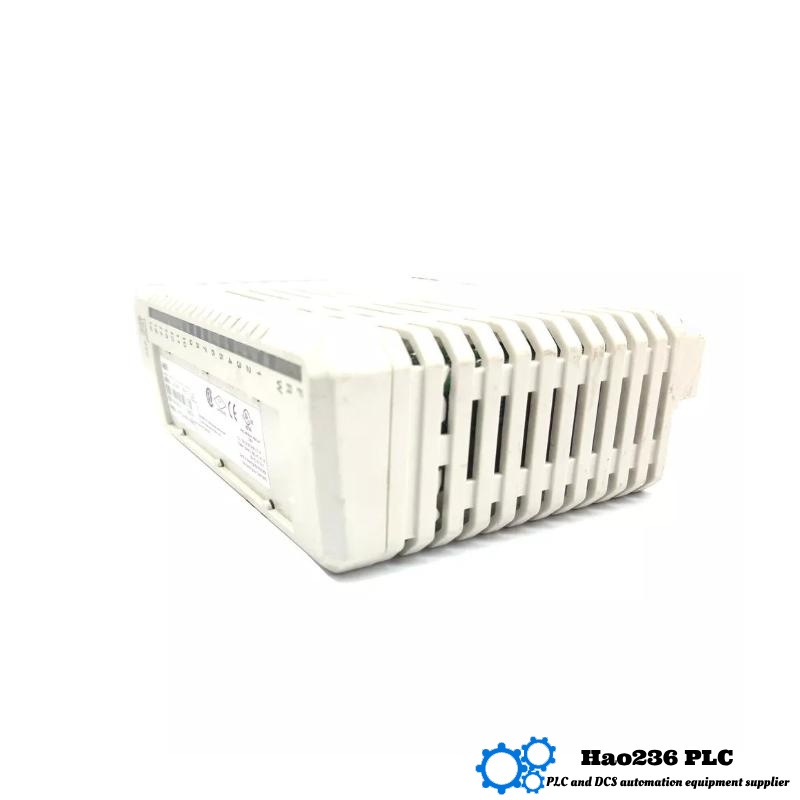

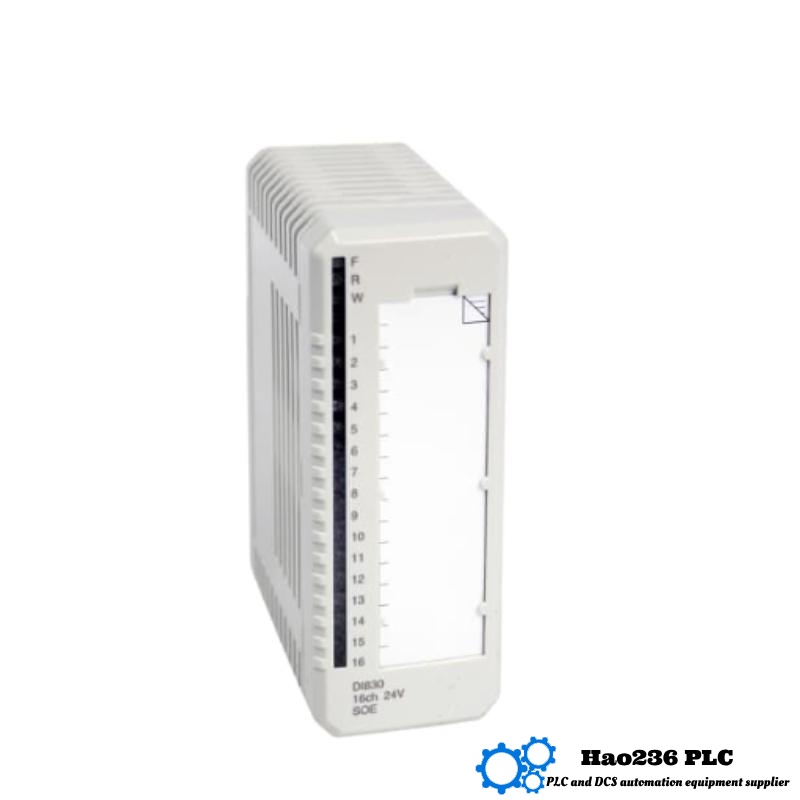

ABB DI830 (3BSE013210R1) Digital Input Module
Product Description
The ABB DI830 (3BSE013210R1) is a robust digital input module designed for seamless integration into ABB’s AC500 automation platform. It offers 24 isolated channels in a single compact housing, ensuring high-density signal acquisition for complex control and monitoring projects. Built for industrial environments, the module combines precise input detection with reliable performance under electrical noise, temperature extremes and mechanical vibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | DI830 (3BSE013210R1) |
| Module Type | Digital Input Module |
| Number of Inputs | 24 channels |
| Input Voltage Range | 24 V DC |
| Input Signal Type | Digital |
| Isolation | Optical isolation per channel |
| Response Time | ≤ 10 ms |
| Dimensions (WxHxD) | 45 x 102 x 119 mm |
| Weight | 0.22 kg |
| Operating Temperature | –25 °C to +60 °C |
| Mounting | DIN rail |
| Communication Interface | ABB Fieldbus Systems |
| Series | AC500 Series |
| Brand | ABB |
Product Applications
The DI830 is used to collect status and control signals from proximity switches, pushbuttons, level sensors and safety interlocks in manufacturing, process and infrastructure automation.
It supports machine control systems, material handling equipment and assembly lines where mid-density digital input capacity is required.
Integration into HVAC, water treatment and building management systems for remote monitoring of alarms, door sensors and fault indicators.
Deployment in safety and interlock circuits to ensure rapid response to emergency stops, door breaches and equipment faults.
Retrofit projects where existing PLC cabinets require additional digital inputs without major rewiring or expansion losses.
Product Advantages
-
High Channel Count
24 inputs per module minimize rack footprint and wiring complexity for mid-range I/O requirements. -
Reliable Isolation
Optical isolation on each channel prevents ground loops and protects against voltage spikes. -
Compact Design
Slim 45 mm width and DIN-rail mounting save cabinet space and allow dense module installation. -
Fast Response
≤ 10 ms switching time ensures real-time control and immediate fault detection. -
Wide Temperature Range
Operates reliably from –25 °C to +60 °C in harsh industrial conditions. -
Seamless Compatibility
Plug-and-play with ABB AC500 CPUs and communication modules for flexible system expansion.
Brand
ABB
Series
AC500 Series
Recommended AC500 Series or Related Models
| Model Number | Description | Number of Inputs | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|
| DI810 (3BSE008511R1) | Digital Input Module | 8 channels | 45 x 102 x 80 | 0.12 kg | Compact low-density I/O |
| DI820 (3BSE008512R1) | Digital Input Module | 16 channels | 45 x 102 x 119 | 0.18 kg | Standard mid-density I/O |
| DI830 (3BSE013210R1) | Digital Input Module | 24 channels | 45 x 102 x 119 | 0.22 kg | Current module |
| DI821 (3BSE008550R1) | Digital Input Module | 32 channels | 45 x 102 x 119 | 0.18 kg | High-density I/O |
| DO830 (3BSE013211R1) | Digital Output Module | 24 channels | 45 x 102 x 119 | 0.24 kg | Matched output counterpart |
Recommended Popular ABB Models
| Model Number | Description | Key Parameters | Weight |
|---|---|---|---|
| AI810 (3BSE018501R1) | Analog Input Module | 8 channels, 4–20 mA | 0.20 kg |
| AO810 (3BSE018503R1) | Analog Output Module | 8 channels, 0–10 V | 0.22 kg |
| DI840 (3BSE008514R1) | Digital Input Module | 32 channels, wide range | 0.36 kg |
| DO820 (3BSE008516R1) | Digital Output Module | 16 channels, relay | 0.20 kg |
| CPU412-2PN (3BSE050449R1) | AC500 PLC CPU Unit | Dual Ethernet ports | 0.60 kg |
Frequently Asked Questions (FAQ)
Q1: How many digital inputs does the DI830 module support?
A1: The DI830 supports 24 digital input channels.
Q2: What are the dimensions of the DI830?
A2: The module measures 45 x 102 x 119 mm.
Q3: How much does the DI830 weigh?
A3: It weighs approximately 0.22 kg.
Q4: What voltage is required on each input channel?
A4: Each input accepts a 24 V DC digital signal.
Q5: What type of isolation is provided?
A5: Each channel is optically isolated to protect against electrical noise.
Q6: What is the response time of the module?
A6: The DI830 has a response time of ≤ 10 ms.
Q7: Can the DI830 operate in extreme temperatures?
A7: Yes, it operates from –25 °C up to +60 °C.
Q8: How is the module mounted?
A8: It mounts on standard DIN rails for secure installation.
Q9: Is the DI830 compatible with ABB’s AC500 platform?
A9: Yes, it integrates seamlessly with AC500 CPUs and communication interfaces.
Q10: Can the DI830 be used in safety circuits?
A10: While suitable for general automation, it should be paired with certified safety modules for safety-critical tasks.
