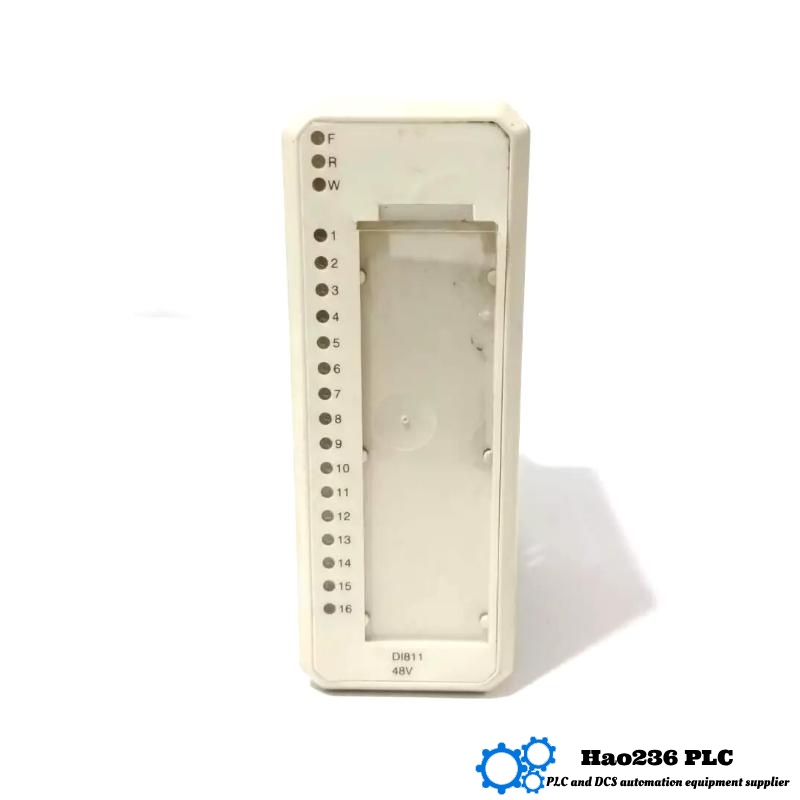

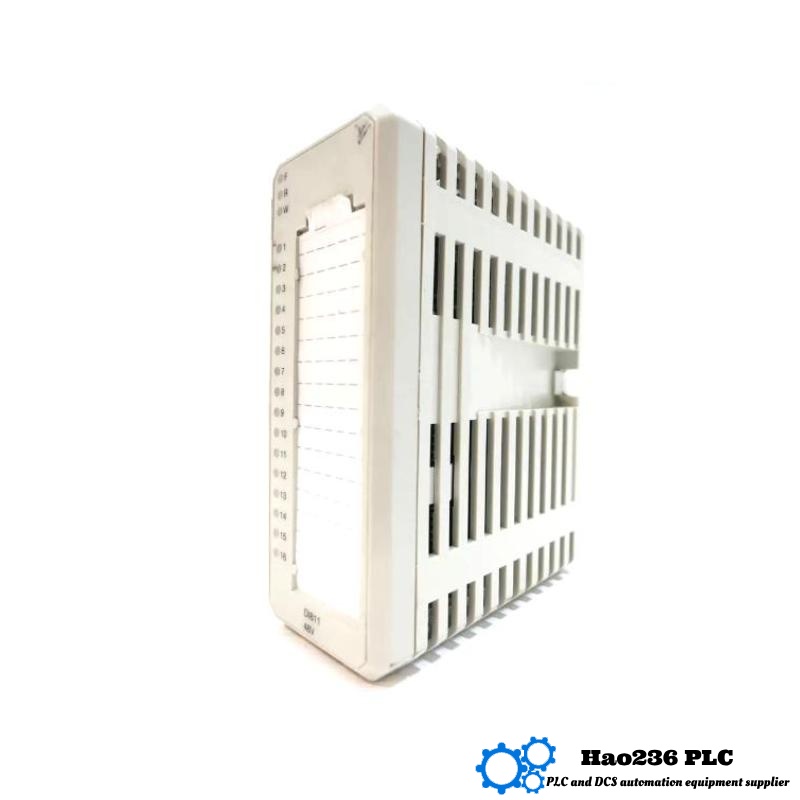

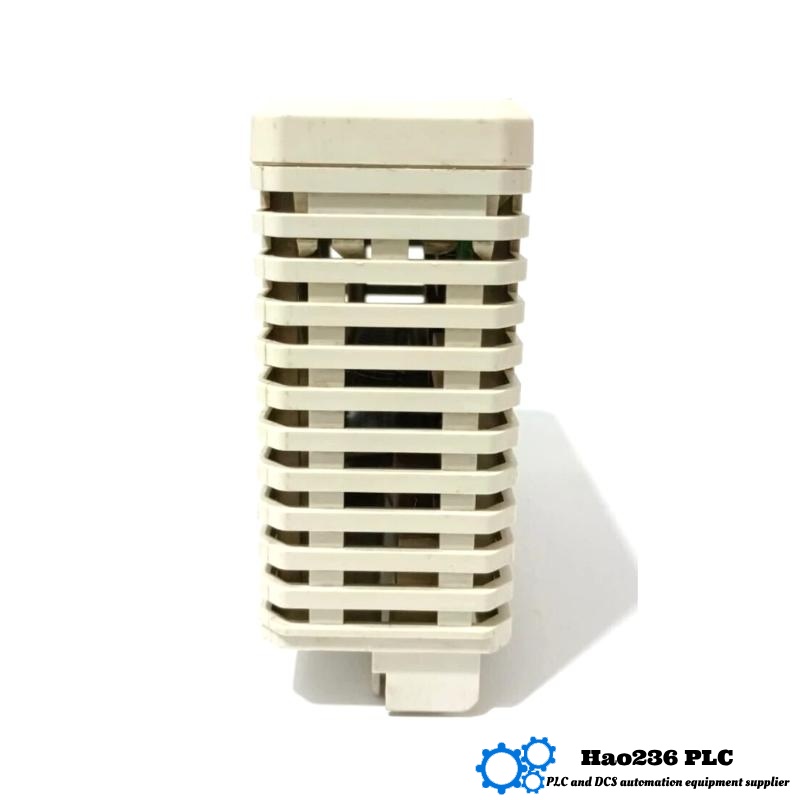

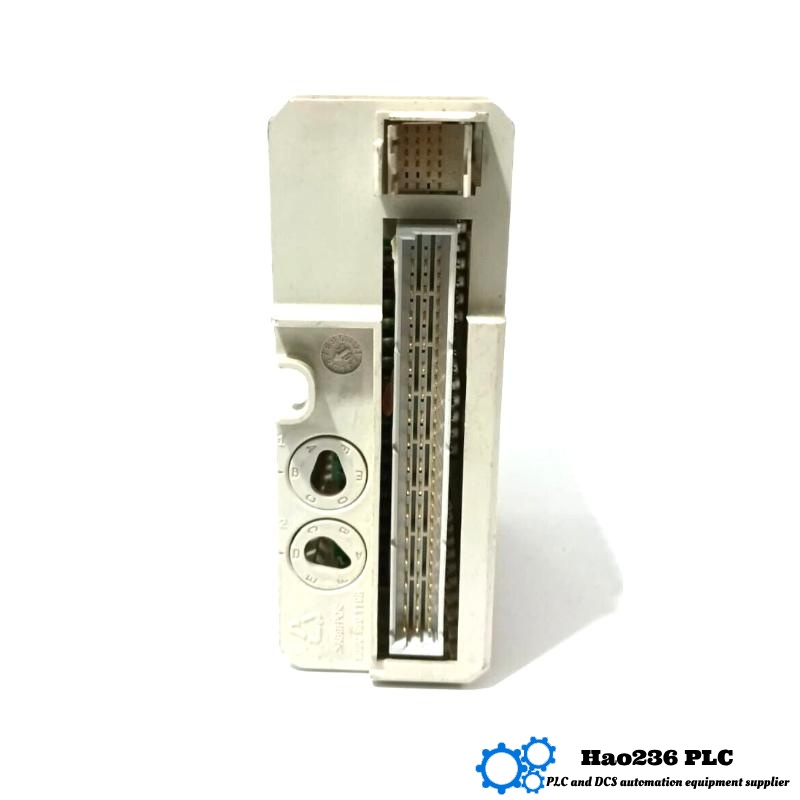

ABB DI811 3BSE008552R1 Digital Input Module
Product Introduction
The ABB DI811 3BSE008552R1 is a compact, high-performance digital input module designed for use in industrial control and automation systems. This module allows for the monitoring of digital signals from various field devices, such as sensors, switches, and relays. It is part of ABB’s renowned S800 I/O module series, which is specifically designed for integration with ABB’s automation systems, providing seamless and reliable signal processing for a wide range of industrial applications.
The DI811 module is ideal for environments where space is limited but where high-speed, reliable digital input processing is essential. With its robust design and ease of integration, the DI811 ensures that automation systems can accurately respond to input signals in real time.
This module is particularly useful in industries such as manufacturing, energy, and infrastructure, where precise monitoring of digital inputs plays a crucial role in optimizing processes and enhancing system performance.
Product Parameters
| Parameter | Value |
|---|---|
| Product Name | Digital Input Module |
| Model Number | DI811 3BSE008552R1 |
| Brand | ABB |
| Module Type | Digital Input |
| Input Channels | 8 Channels |
| Signal Type | Digital (On/Off) |
| Input Voltage | 24 V DC ± 20% |
| Input Current | 10 mA per channel |
| Module Width | 45 mm |
| Module Height | 102 mm |
| Module Depth | 119 mm |
| Weight | 0.15 kg |
| Operating Temperature | -20°C to +60°C |
| Protection | Overcurrent, Short-circuit, Surge Protection |
| Mounting Type | DIN Rail Mounting |
| Status Indicators | LED Indicators (for each channel) |
| Compliance | CE, UL |
Product Applications
The ABB DI811 digital input module is designed for use in a variety of industrial applications where the monitoring of digital signals is required. Its primary uses include:
-
Manufacturing Automation: It can be used in automated production lines, monitoring the status of machinery, sensors, and other field devices.
-
Power Distribution: Ideal for systems that require monitoring of on/off signals for switches, relays, and other equipment in power distribution networks.
-
Process Control: The DI811 is suitable for industries such as chemicals, food processing, and pharmaceuticals, where precise monitoring of digital signals is critical for safety and efficiency.
-
Building Automation: Often used in HVAC and lighting control systems to interface with digital switches, occupancy sensors, and other control devices.
-
Infrastructure: Common in water treatment plants, waste management systems, and other critical infrastructure applications requiring robust signal monitoring.
Product Advantages
-
Compact Design: The DI811 module features a compact size (45 x 102 x 119 mm) and a lightweight build (0.15 kg), making it an ideal solution for installations with limited space.
-
High-Speed Signal Processing: It is designed to handle digital input signals quickly and reliably, ensuring real-time response in control systems.
-
Flexible Integration: Compatible with ABB’s S800 I/O systems, making it easy to integrate into existing control architectures.
-
Robust Protection: The module offers overcurrent, short-circuit, and surge protection, enhancing the durability of your automation system.
-
LED Status Indicators: The built-in LED indicators provide clear feedback for each channel, making diagnostics and troubleshooting easier.
-
Wide Temperature Range: With an operating temperature range of -20°C to +60°C, the DI811 is well-suited for demanding industrial environments.
-
Easy Installation: The DI811 can be mounted easily on a DIN rail, simplifying installation in various industrial control panels.
Brand Information
-
Brand: ABB
-
Series: S800 I/O Modules
-
ABB is a global leader in industrial automation and control solutions, providing innovative, reliable, and high-quality products for a wide range of industries. The DI811 is part of the S800 series, which offers flexible, modular I/O systems for industrial automation and control systems.
Related Models from the Same Series
| Model | Description | Number of Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| DI811A 3BSE008555R1 | Digital Input Module | 8 Channels | 45 x 102 x 119 | 0.15 |
| DI812 3BSE008560R1 | Digital Input Module | 16 Channels | 45 x 102 x 119 | 0.20 |
| DI820 3BSE008561R1 | Digital Input Module | 16 Channels | 45 x 102 x 119 | 0.20 |
| DI835 3BSE008565R1 | High-Speed Digital Input Module | 8 Channels | 45 x 102 x 119 | 0.18 |
| DI800 3BSE008553R1 | Digital Input Module | 8 Channels | 45 x 102 x 119 | 0.15 |
Popular ABB Models
| Model | Description | Application Area | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AI810 3BSE008550R1 | Analog Input Module | Industrial Automation | 45 x 102 x 119 | 0.25 |
| AO815 3BSE008564R1 | Analog Output Module | Power Generation | 45 x 102 x 119 | 0.30 |
| DO820 3BSE008562R1 | Digital Output Module | Process Control | 45 x 102 x 119 | 0.30 |
| DO850 3BSE008563R1 | Digital Output Module | Manufacturing Automation | 45 x 102 x 119 | 0.28 |
| AI830 3BSE008556R1 | Advanced Analog Input Module | Energy Management | 45 x 102 x 119 | 0.25 |
FAQ – Frequently Asked Questions
Q1: What does the ABB DI811 3BSE008552R1 module do?
A1: The DI811 is a digital input module designed to monitor the status of digital signals from devices like sensors, switches, and relays in industrial control systems.
Q2: How many channels are available on the DI811?
A2: The DI811 module offers 8 digital input channels.
Q3: What is the input voltage range for the DI811 module?
A3: The module operates at a 24 V DC input with a tolerance of ± 20%.
Q4: Can the DI811 be mounted in a control panel?
A4: Yes, the DI811 can be easily mounted on a DIN rail in industrial control panels.
Q5: What is the operating temperature range of the DI811?
A5: The DI811 can operate in temperatures ranging from -20°C to +60°C.
Q6: What is the protection feature of the DI811 module?
A6: The module is equipped with overcurrent, short-circuit, and surge protection for enhanced durability and safety.
Q7: How does the DI811 handle high-speed digital input signals?
A7: The DI811 provides fast and reliable signal processing, ensuring that input signals are accurately captured and processed in real-time.
Q8: Is the DI811 compatible with other ABB automation systems?
A8: Yes, the DI811 is compatible with ABB’s S800 I/O systems and integrates seamlessly with ABB control systems.
Q9: How can I monitor the status of the input channels?
A9: Each input channel on the DI811 module has a dedicated LED indicator to show its status (On/Off), providing clear feedback during operation.
Q10: What are the physical dimensions and weight of the DI811 module?
A10: The DI811 has dimensions of 45 x 102 x 119 mm and weighs 0.15 kg.
