Product Overview

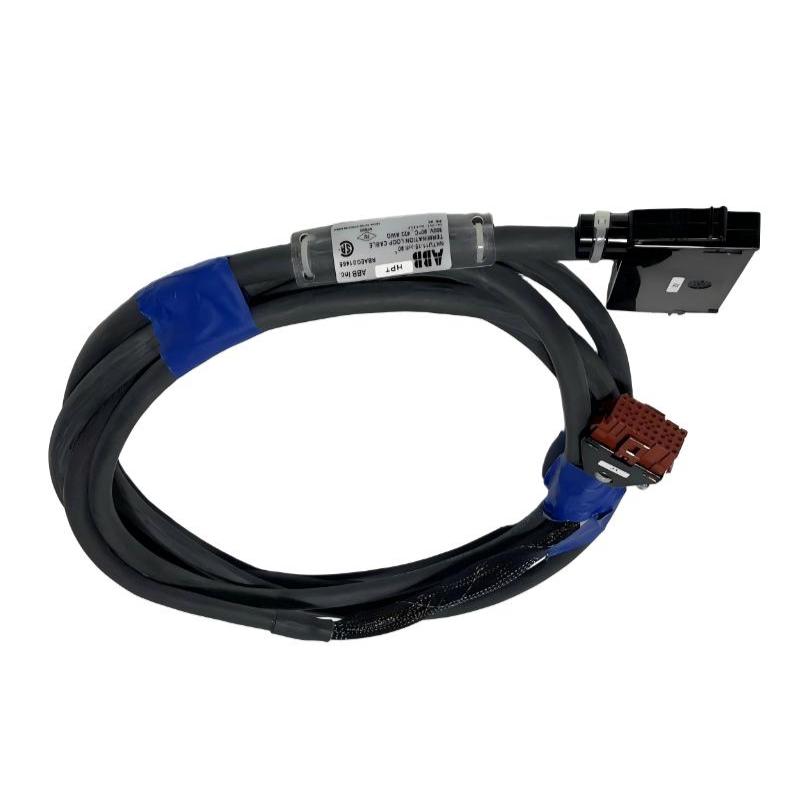

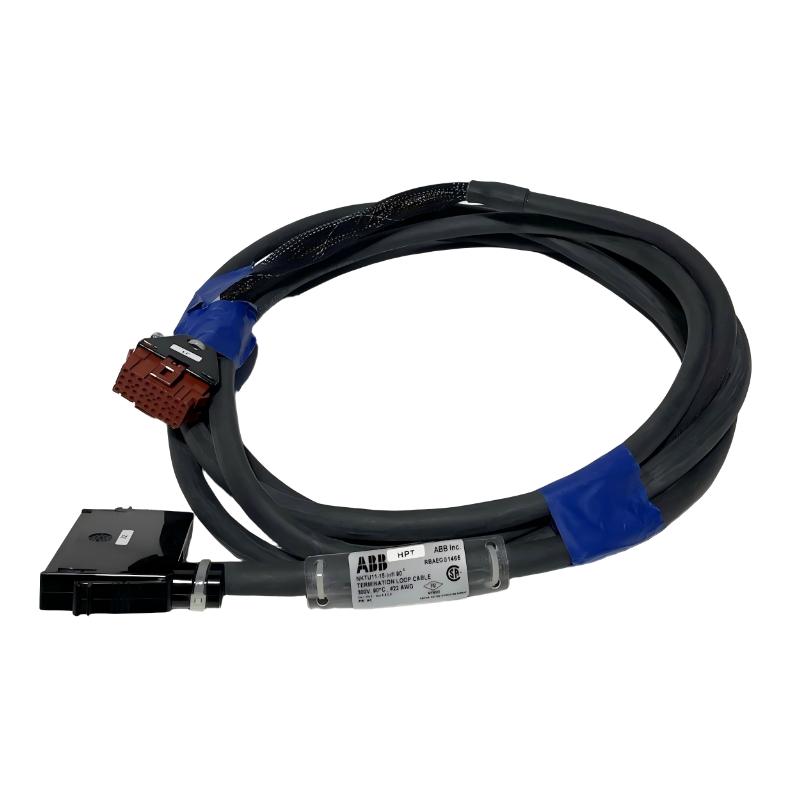

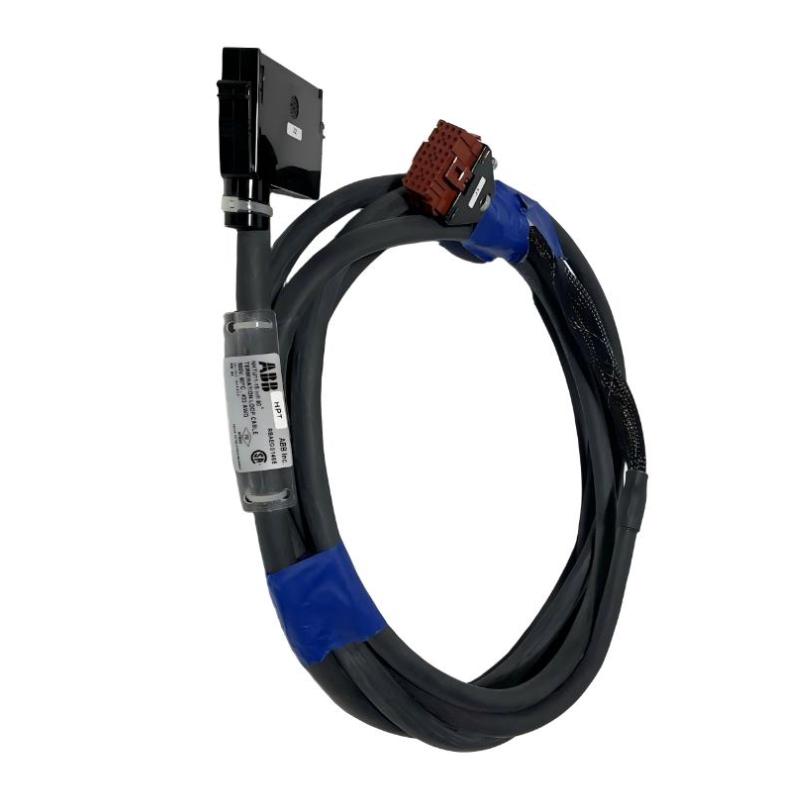

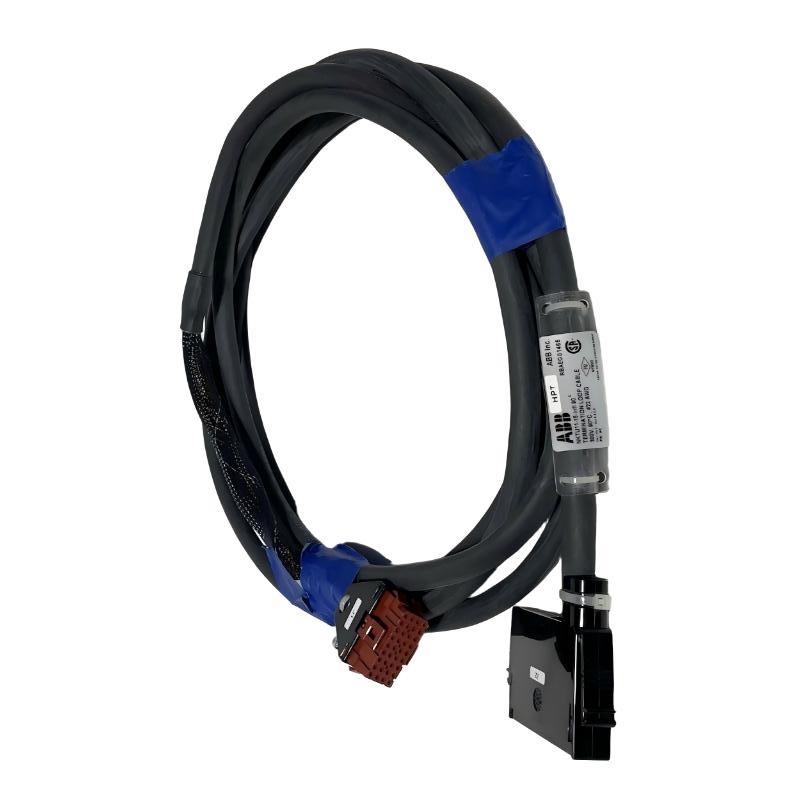

The ABB Bailey NKSD11-15 is an INFI 90 Digital Control Station Cable used to interconnect compatible digital control station equipment within an ABB Bailey INFI 90 control system. It serves as a dedicated cable assembly for carrying the required electrical connections between digital control station hardware and associated system components.
In an INFI 90 installation, digital control stations work with the control-system architecture to handle discrete control functions, status information, and operator or system commands. The NKSD11-15 provides the physical connection required for the associated digital control station interface, helping maintain the established wiring arrangement of the control cabinet.
This type of cable is particularly relevant when maintaining or replacing components in an existing Bailey control system. Correct connector compatibility and connection-point identification should be confirmed before installation.
Technical Specifications
| ParameterSpecification | Value |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NKSD11-15 |
| Product Family | INFI 90 |
| Product Type | Digital Control Station Cable |
| Application | Digital control station interconnection |
| System | INFI 90 |
| Cable Length | 5 feet |
| Shipping Weight | 3 kg |
Product Features
- Intended for compatible ABB Bailey INFI 90 digital control station applications.
- Provides a dedicated electrical connection between digital control station equipment and associated system hardware.
- Supports discrete control and status signal interconnection within the control architecture.
- Suitable for maintenance and replacement work on established INFI 90 installations.
- Helps preserve the original cabinet wiring arrangement.
- Provides a direct cable-based interface without adding active signal-processing functions.
Working Principle
The NKSD11-15 is a passive interconnection cable. It provides the electrical path required between compatible digital control station equipment and the corresponding INFI 90 system hardware.
Digital control signals can include discrete commands, equipment status, interlocks, and other binary information used by the control system. The cable carries the associated connections between the control station and the connected system interface so that these signals can reach the appropriate control-system circuitry.
The cable itself does not execute control logic or convert digital signals. Its performance depends on correct pin-to-pin connections, secure connectors, proper cable routing, and compatibility with the connected INFI 90 equipment.
Role in a INFI 90 Digital Control Architecture
| System ElementFunction | |
|---|---|
| Digital Control Station | Provides digital control and status interface functions within the INFI 90 system |
| NKSD11-15 Cable | Carries the required electrical connections between compatible control station and system hardware |
| Digital I/O Interface | Handles discrete input and output signals associated with field equipment |
| INFI 90 Controller | Processes control logic, status information, and system commands |
| Field Devices | Provide discrete operating states, alarms, commands, and equipment feedback |
| Operator Interface | Displays system status and allows authorized operators to issue control commands |
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Process Control | Interconnection of digital control station equipment in distributed control systems |
| Power Generation | Digital status and control signal routing within plant control cabinets |
| Oil and Gas | Maintaining discrete control interfaces in INFI 90 installations |
| Chemical Processing | Connection of digital control-system components for process equipment |
| Water and Wastewater | Digital equipment status and control signal integration |
| Legacy DCS Maintenance | Replacement of existing Bailey digital control station cables |
Installation and Maintenance
- System Compatibility — Confirm that the NKSD11-15 matches the intended INFI 90 digital control station and associated system hardware.
- Cable Identification — Verify the cable model and connection points against the cabinet wiring documentation before removal or installation.
- Power Isolation — Follow the plant’s approved electrical isolation procedure before disconnecting control-system wiring.
- Connector Verification — Check both cable ends for correct connector configuration and compatibility with the mating hardware.
- Pin Inspection — Examine connector contacts for bent pins, contamination, corrosion, or physical damage.
- Cable Routing — Follow the existing cabinet routing path and avoid unnecessary proximity to high-noise power conductors.
- Connector Seating — Ensure each connector is completely seated and mechanically secured after installation.
- Cable Condition — Inspect the insulation and outer jacket for cuts, abrasion, crushing, or other signs of mechanical damage.
- Bend Protection — Avoid excessive bending or pulling forces that could damage internal conductors or connector terminations.
- Signal Verification — After installation, verify the associated digital control and status signals from the control station through the connected system interface.
- Fault Diagnosis — If digital signals are missing or intermittent, check the cable and connectors before replacing the associated control or I/O hardware.
- Maintenance Records — Record the cable model, connection points, and associated control station hardware after replacement to simplify future troubleshooting.
Related Components
| ComponentFunction | |
|---|---|
| ABB Bailey INFI 90 Digital Control Stations | Provide digital control and status interface functions |
| INFI 90 Digital I/O Modules | Process discrete field inputs and outputs |
| INFI 90 Controller Modules | Execute control logic and coordinate system operation |
| Bailey System Cables | Provide interconnections between control-system hardware |
| INFI 90 Cabinet Hardware | Provides mounting and wiring infrastructure for system components |
Recommended Related Models
| Model / Product FamilyProduct Type | Typical Application |
|---|---|
| ABB Bailey NKSD11 Series | Digital control station cable applications |
| ABB Bailey NKAS11 Series | Analog slave termination cable applications |
| ABB Bailey INFI 90 Digital I/O | Discrete process signal acquisition and control |
| ABB Bailey INFI 90 Controllers | Process-control logic and system coordination |
| ABB Bailey INFI 90 System Cables | Interconnection between control-system components |
Key Advantages
- Supports digital control station interconnection in INFI 90 systems.
- Maintains the established Bailey control-system wiring architecture.
- Suitable for replacement and maintenance applications.
- Provides a dedicated connection for digital control and status signals.
- Helps simplify troubleshooting of digital control-system connections.
Technical FAQs
What is the ABB Bailey NKSD11-15 used for?
The NKSD11-15 is an INFI 90 Digital Control Station Cable used to connect compatible digital control station equipment with associated system hardware.
Is the NKSD11-15 an active control module?
No. The NKSD11-15 is a passive cable assembly. It does not execute control logic or perform digital signal processing; those functions are handled by the connected control-system equipment.
What should be checked before replacing an NKSD11-15?
Verify the exact cable model, connector configuration, cable length, mating equipment, and wiring documentation. The replacement cable should match the existing digital control station architecture.
What problems can a damaged NKSD11-15 cause?
A damaged cable or poorly seated connector can result in missing, intermittent, or incorrect digital control and status signals. Checking connector condition and cable continuity is appropriate when troubleshooting these symptoms.
