Product Overview

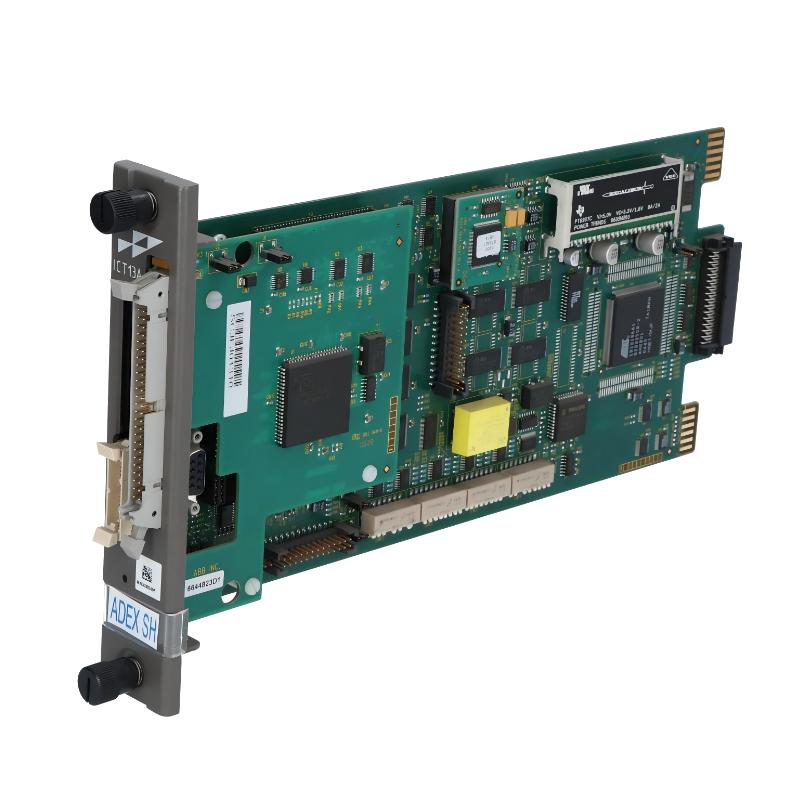

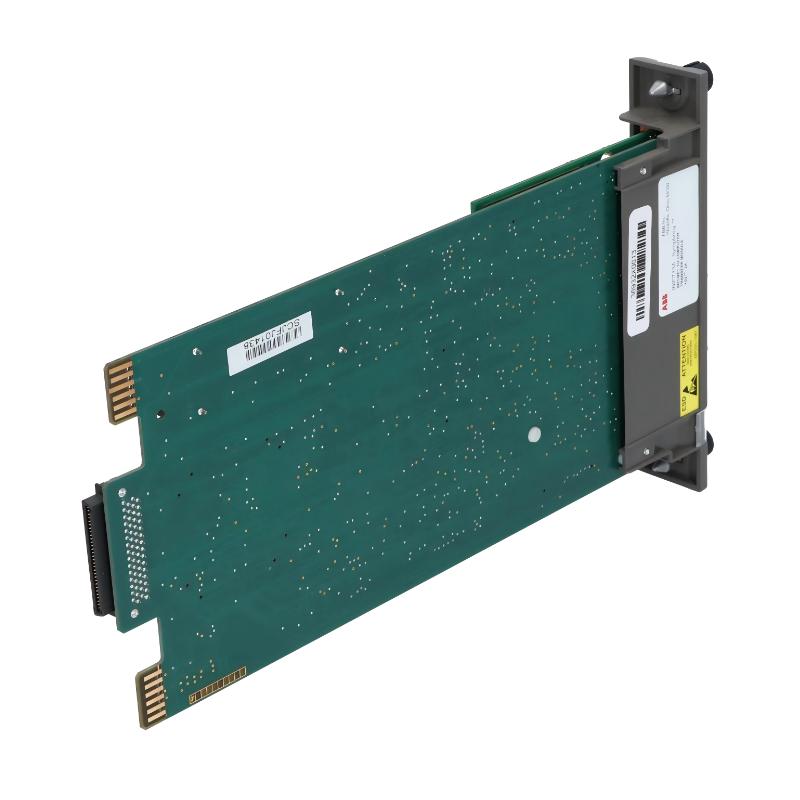

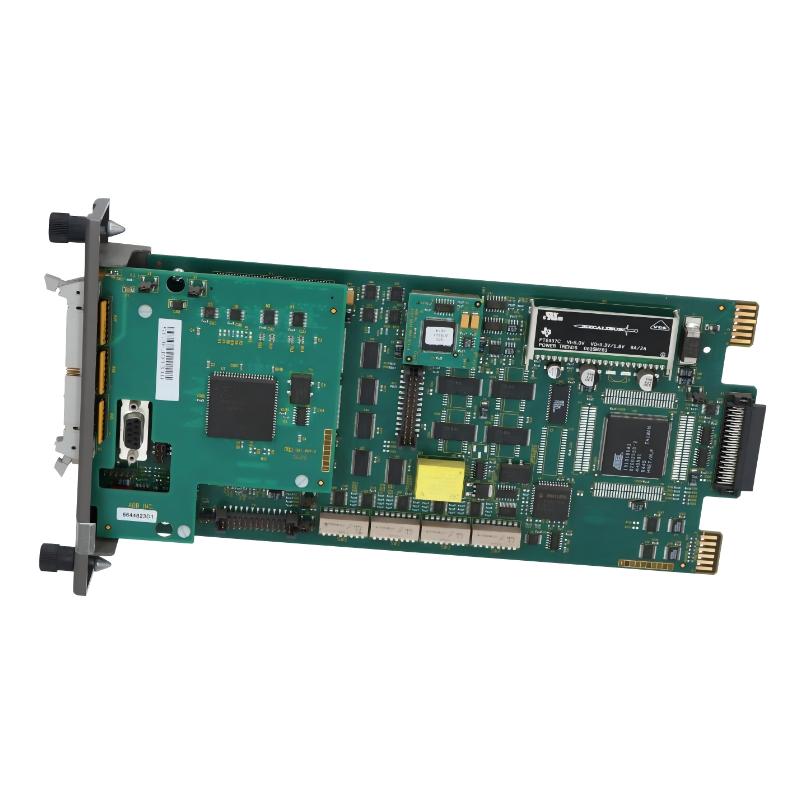

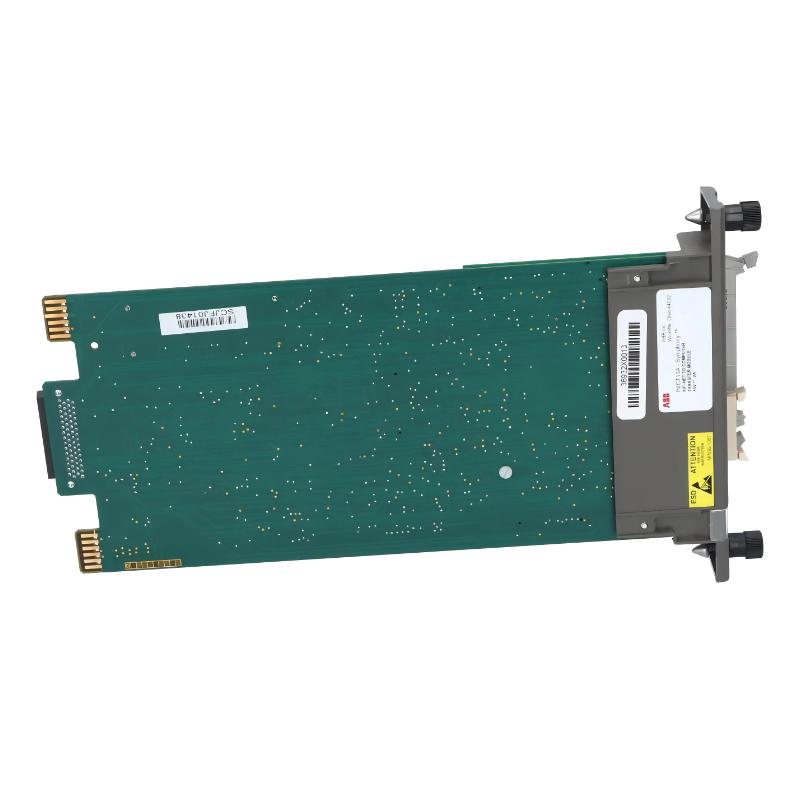

The ABB Bailey INICT13A is an INFI 90 INFI-NET to Computer Transfer Module used to transfer control-system information between the INFI-NET network and compatible computer-based systems. It serves as part of the communication infrastructure in an INFI 90 installation where computer equipment needs access to process and system information.
In a typical Bailey control environment, computer systems may support supervisory monitoring, engineering, data collection, or other higher-level functions. The INICT13A provides the communication path between these computer-based functions and the INFI-NET network, allowing relevant information from the distributed control system to be exchanged with the connected computer environment.
The module is intended for integration into compatible INFI 90 architectures. Its installation should take into account the existing network configuration, computer interface, communication parameters, and associated Bailey system hardware.
Technical Specifications
| ParameterSpecification | Value |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INICT13A |
| Product Family | INFI 90 |
| Product Type | INFI-NET to Computer Transfer Module |
| Network | INFI-NET |
| Application | Computer and control-system data transfer |
| System | INFI 90 |
| Module Function | INFI-NET to computer data transfer |
| Dimensions | 360.7 × 73.7 × 269.2 mm |
| Weight | 0.658 kg |
Product Features
- Provides a computer-side communication interface for an INFI 90 control system.
- Transfers applicable system information between INFI-NET and compatible computer equipment.
- Supports supervisory, engineering, and computer-based monitoring applications.
- Integrates with the communication architecture of established Bailey INFI 90 systems.
- Operates as a system-level communication module rather than a direct field I/O interface.
- Suitable for replacement and maintenance of compatible INFI 90 communication hardware.
Working Principle
The INICT13A operates as a transfer point between the INFI-NET network and an external computer environment. Data available through the INFI-NET architecture is exchanged through the module so that connected computer equipment can access the information required by its configured applications.
Within the control system, field I/O modules acquire process signals and controllers execute configured control strategies. Process values, alarms, status information, and other system data are communicated through INFI-NET. The INICT13A provides the interface through which applicable information can be transferred to the computer side for supervisory or engineering purposes.
The module does not directly perform field signal conditioning or control-loop execution. Its operation relies on correct network connections, computer-side configuration, communication parameters, and compatibility with the surrounding INFI 90 hardware.
Role in a INFI 90 INFI-NET Control Architecture
| System ElementFunction | |
|---|---|
| INICT13A Transfer Module | Transfers information between the INFI-NET network and connected computer systems |
| INFI-NET Network | Provides system-level communication between INFI 90 components |
| INFI 90 Controllers | Execute process-control strategies and coordinate control functions |
| I/O Modules | Interface with field instruments and process equipment |
| Computer System | Provides supervisory, engineering, monitoring, or data-processing functions |
| Operator Interface | Presents process values, alarms, trends, and system status |
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Process Control | Provides computer access to information from INFI 90 control systems |
| Power Generation | Transfers plant process and control information to computer systems |
| Oil and Gas | Supports supervisory computer connectivity in Bailey DCS installations |
| Chemical Processing | Provides higher-level access to process and system information |
| Industrial Utilities | Connects computer-based monitoring functions with the control network |
| Legacy DCS Integration | Maintains computer communication with established INFI 90 architectures |
Installation and Maintenance
- System Compatibility — Confirm that the INICT13A matches the existing INFI 90 and INFI-NET architecture before installation.
- Module Identification — Verify the model designation and intended installation position against the existing system documentation.
- Power Isolation — Follow the plant’s approved electrical isolation procedure before removing or installing the module.
- Network Connection — Inspect the INFI-NET connection and associated cables for secure attachment and physical damage.
- Computer Interface — Verify the connection between the transfer module and the associated computer equipment.
- Configuration Backup — Preserve existing network and computer-interface configuration before replacing the module.
- Communication Parameters — Check applicable addressing and communication parameters against the established system configuration.
- Connector Inspection — Examine connectors for contamination, corrosion, bent contacts, or loose connections.
- Module Installation — Ensure the INICT13A is correctly positioned and securely connected to the associated system interface.
- Diagnostic Checks — Review available system and network diagnostics if the computer cannot exchange information with INFI-NET.
- Data Transfer Test — Verify that the required process and system information can be transferred between the INFI-NET network and the computer after installation.
- Maintenance Records — Record the module model, connected equipment, configuration information, and replacement date for future maintenance.
Related Components
| ComponentFunction | |
|---|---|
| ABB Bailey INFI-NET Network Components | Provide communication infrastructure for the INFI 90 system |
| INFI 90 Controller Modules | Execute control strategies and coordinate process functions |
| INFI 90 I/O Modules | Acquire field signals and control process equipment |
| INFI 90 Communication Modules | Support data exchange between distributed control-system components |
| Engineering Computers | Provide system configuration, diagnostics, and maintenance functions |
| Supervisory Computer Systems | Use INFI 90 data for monitoring and higher-level applications |
Recommended Related Models
| Model / Product FamilyProduct Type | Typical Application |
|---|---|
| ABB Bailey INICT13A | INFI-NET to computer data transfer |
| ABB Bailey INICT12 | INFI-NET to computer transfer applications |
| ABB Bailey INICT03A | INFI-NET to computer transfer applications |
| ABB Bailey INICI03 | INFI-NET to computer interface applications |
| ABB Bailey INFI-NET Components | Network communication within INFI 90 systems |
Key Advantages
- Provides computer connectivity within an INFI-NET control architecture.
- Supports transfer of INFI 90 process and system information.
- Integrates with established Bailey communication infrastructure.
- Supports supervisory and engineering computer applications.
- Suitable for maintenance and continued operation of legacy INFI 90 systems.
Technical FAQs
What is the ABB Bailey INICT13A used for?
The INICT13A is an INFI-NET to Computer Transfer Module used to transfer information between the INFI-NET network and compatible computer systems within an ABB Bailey INFI 90 architecture.
Is the INICT13A responsible for process control?
No. The INICT13A provides a communication and data-transfer function. Process control is handled by the appropriate INFI 90 controller and I/O hardware, while the transfer module provides the connection to computer-based systems.
What should be checked before replacing an INICT13A?
Verify the INFI-NET connection, computer-side interface, module position, network configuration, communication parameters, and existing system documentation. The replacement should match the communication role of the original module.
What can cause an INICT13A communication failure?
Incorrect network parameters, connection faults, damaged cables or connectors, addressing problems, and configuration mismatches can interrupt data transfer. The INICT13A and its complete communication path should be checked before replacing unrelated controller or I/O hardware.
