Product Overview

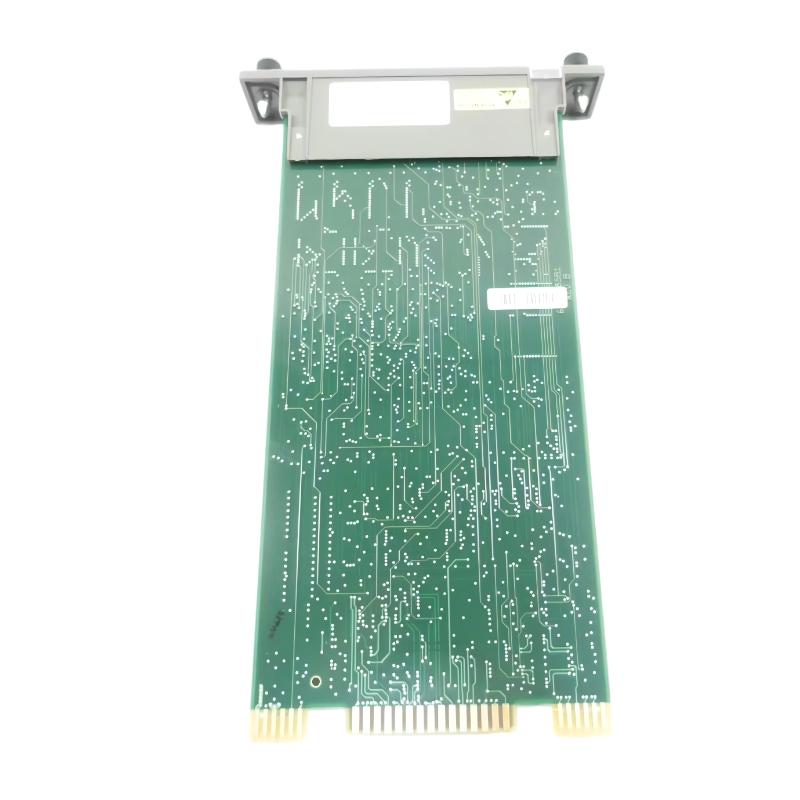

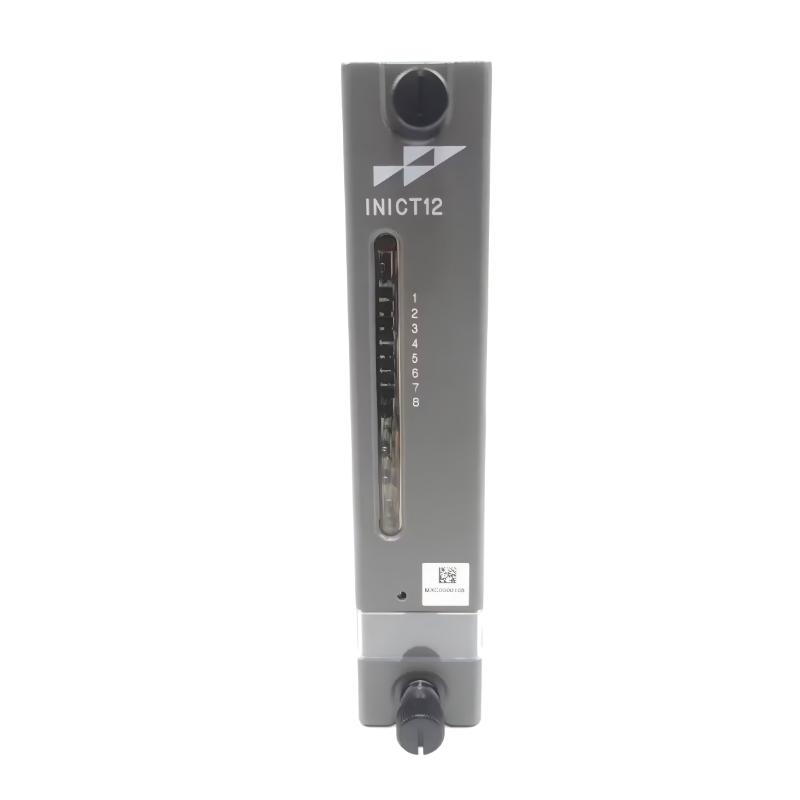

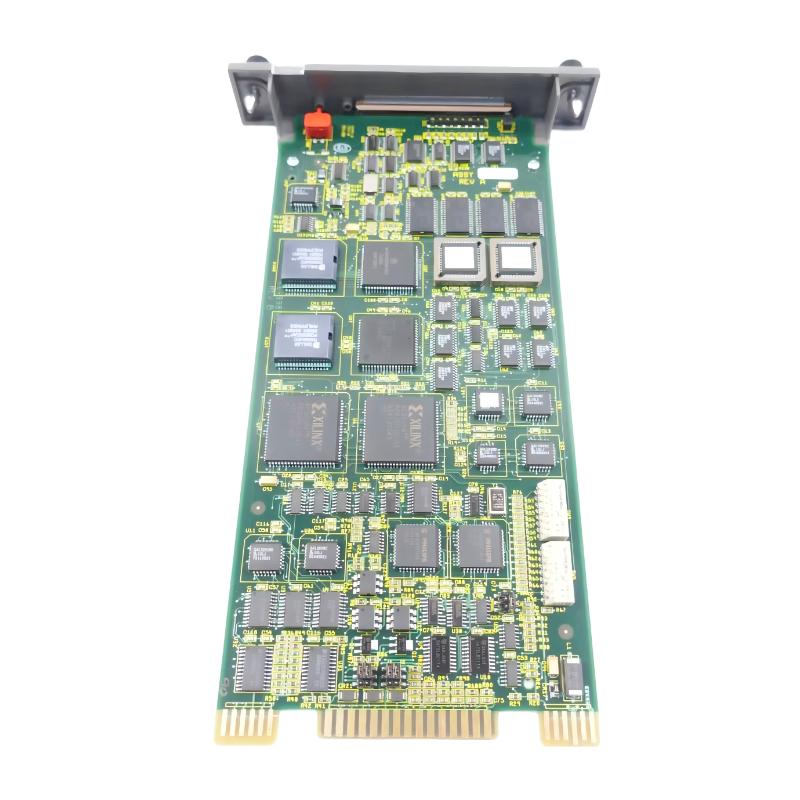

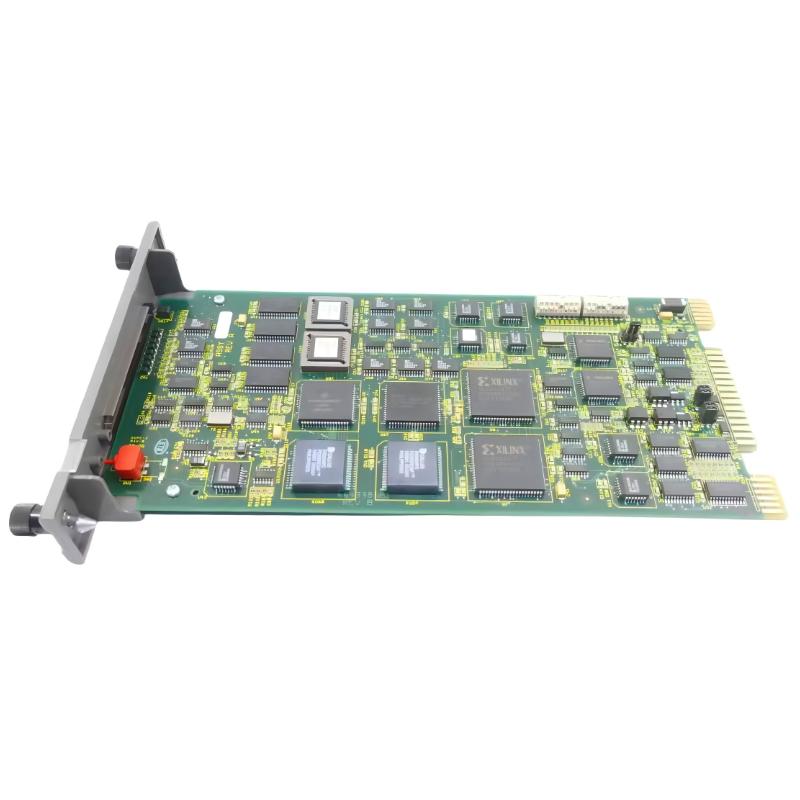

The ABB Bailey INICT12 is an INFI 90 INFI-NET to Computer Transfer Module used to transfer information between the INFI-NET control network and compatible computer-based systems. It belongs to the communication layer of the INFI 90 architecture and supports the exchange of control-system data with external computer environments.
In an operating Bailey system, computer-based equipment may be used for supervisory monitoring, engineering, data collection, or other higher-level functions. The INICT12 provides the transfer path between these computer functions and the INFI-NET network, allowing relevant process and system information to move between the two environments.
The module is used as part of an established INFI 90 communication architecture rather than as a direct field I/O device. Correct network configuration, computer-side connections, and compatibility with the surrounding Bailey hardware should be confirmed during installation or replacement.
Technical Specifications
| ParameterSpecification | Value |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INICT12 |
| Product Family | INFI 90 |
| Product Type | INFI-NET to Computer Transfer Module |
| Network | INFI-NET |
| Application | Computer and control-system data transfer |
| System | INFI 90 |
| Module Function | INFI-NET to computer data transfer |
| Dimensions | 280 × 30 × 150 mm |
| Weight | 0.59 kg |
Product Features
- Provides computer connectivity within an ABB Bailey INFI 90 architecture.
- Transfers control-system information between the INFI-NET network and compatible computer equipment.
- Supports supervisory and higher-level computer applications.
- Works as part of the INFI 90 communication infrastructure rather than as a field I/O module.
- Suitable for maintaining existing Bailey control-system installations.
- Provides a dedicated transfer path for communication between the control network and computer environment.
Working Principle
The INICT12 functions as a communication transfer point between the INFI-NET network and a connected computer system. Data available within the INFI-NET environment is transferred through the module so that the computer side can exchange information with the INFI 90 control architecture.
Within the overall system, field I/O modules acquire process signals while INFI 90 controllers execute control strategies. Process values, controller information, alarms, and other system data can then be communicated through INFI-NET. The INICT12 handles the transfer of applicable information toward the connected computer environment for supervisory or system-level use.
The module does not perform the same function as a process controller or field I/O module. Its operation depends on the correct INFI-NET connection, computer interface configuration, addressing, and compatibility with the installed INFI 90 architecture.
Role in a INFI 90 INFI-NET Control Architecture
| System ElementFunction | |
|---|---|
| INICT12 Transfer Module | Transfers data between the INFI-NET network and connected computer systems |
| INFI-NET Network | Provides communication between distributed INFI 90 system components |
| INFI 90 Controllers | Execute configured process-control strategies |
| I/O Modules | Interface between field devices and the control system |
| Computer System | Provides supervisory, engineering, monitoring, or data-processing functions |
| Operator Interface | Displays process values, alarms, trends, and system information |
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Process Control | Provides computer access to information from INFI 90 control systems |
| Power Generation | Transfers plant control information to supervisory computer systems |
| Oil and Gas | Supports computer connectivity in established Bailey DCS installations |
| Chemical Processing | Provides higher-level access to process and system information |
| Industrial Utilities | Transfers control-system data to computer-based monitoring systems |
| Legacy DCS Integration | Maintains computer communication with existing INFI 90 architectures |
Installation and Maintenance
- System Compatibility — Confirm that the INICT12 is compatible with the existing INFI 90 and INFI-NET architecture before installation.
- Module Identification — Verify the exact model and intended system position against the existing control-system documentation.
- Power Isolation — Follow the plant’s approved electrical isolation procedure before removing or installing the module.
- Network Connection — Inspect the INFI-NET connection and associated cabling for secure attachment and physical damage.
- Computer Connection — Verify the connection between the INICT12 and the associated computer equipment.
- Configuration Backup — Preserve existing network and computer-interface configuration before replacing the module.
- Communication Parameters — Check applicable network addresses and communication parameters against the established system configuration.
- Connector Inspection — Examine connectors for contamination, corrosion, bent contacts, or loose connections.
- Module Seating — Make sure the INICT12 is correctly installed and securely connected to the associated system interface.
- Diagnostic Checks — Review available network and module diagnostics if communication with the connected computer is interrupted.
- Data Transfer Test — Verify that required process and system information can be exchanged between INFI-NET and the computer system after installation.
- Maintenance Records — Record the module model, connected equipment, relevant configuration information, and replacement date for future troubleshooting.
Related Components
| ComponentFunction | |
|---|---|
| ABB Bailey INFI-NET Network Components | Provide communication infrastructure for the INFI 90 system |
| INFI 90 Controller Modules | Execute process-control strategies and coordinate system functions |
| INFI 90 I/O Modules | Acquire field measurements and control field equipment |
| INFI 90 Communication Modules | Support communication between distributed system components |
| Engineering Computers | Provide configuration, diagnostics, and maintenance functions |
| Supervisory Computer Systems | Use INFI 90 data for monitoring and higher-level applications |
Recommended Related Models
| Model / Product FamilyProduct Type | Typical Application |
|---|---|
| ABB Bailey INICT12 | INFI-NET to computer data transfer |
| ABB Bailey INICT03A | INFI-NET to computer transfer applications |
| ABB Bailey INICI03 | INFI-NET to computer interface applications |
| ABB Bailey INFI-NET Components | Network communication within INFI 90 systems |
| ABB Bailey INFI 90 Communication Modules | Control-system data exchange |
Key Advantages
- Provides computer connectivity within an INFI-NET architecture.
- Supports transfer of INFI 90 process and system information.
- Integrates with established Bailey communication infrastructure.
- Supports supervisory and computer-based system functions.
- Suitable for maintenance and continued operation of legacy INFI 90 systems.
Technical FAQs
What is the ABB Bailey INICT12 used for?
The INICT12 is an INFI-NET to Computer Transfer Module used to transfer information between the INFI-NET network and compatible computer systems within an ABB Bailey INFI 90 architecture.
Is the INICT12 a field I/O module?
No. The INICT12 is a communication transfer module. Field signal acquisition and output functions are handled by the appropriate INFI 90 I/O modules, while control strategies are executed by the relevant controller hardware.
What should be checked before replacing an INICT12?
Verify the INFI-NET connection, computer-side interface, network configuration, communication parameters, module position, and existing system documentation. The replacement should match the communication function of the original module.
What can cause communication problems with an INICT12?
Communication problems can result from incorrect configuration, network connection faults, damaged cables or connectors, addressing errors, or incompatibility with the surrounding INFI 90 architecture. The module and its associated communication path should be checked before replacing unrelated system hardware.
