Product Overview

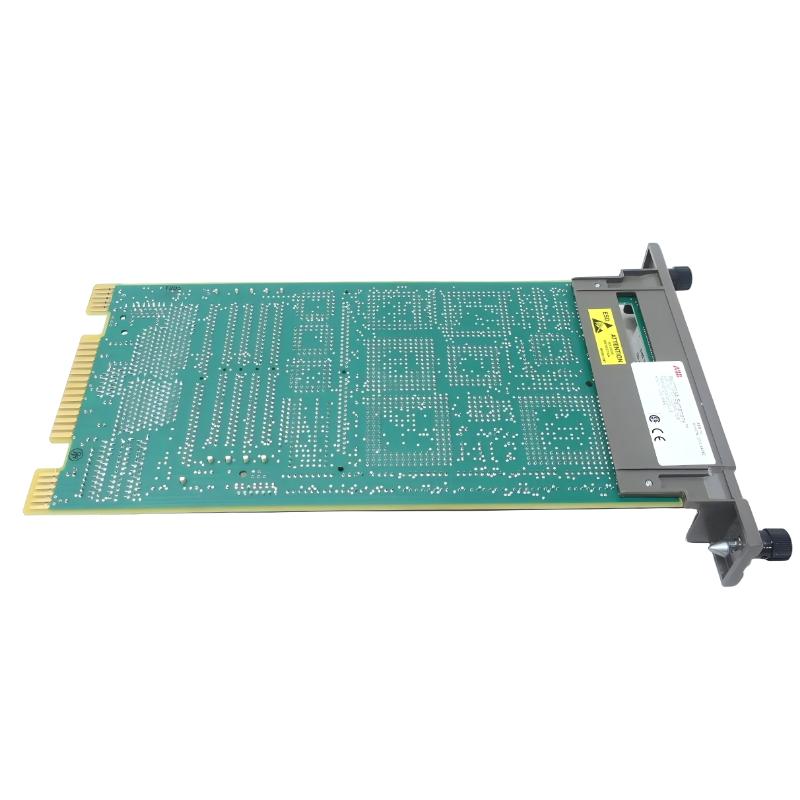

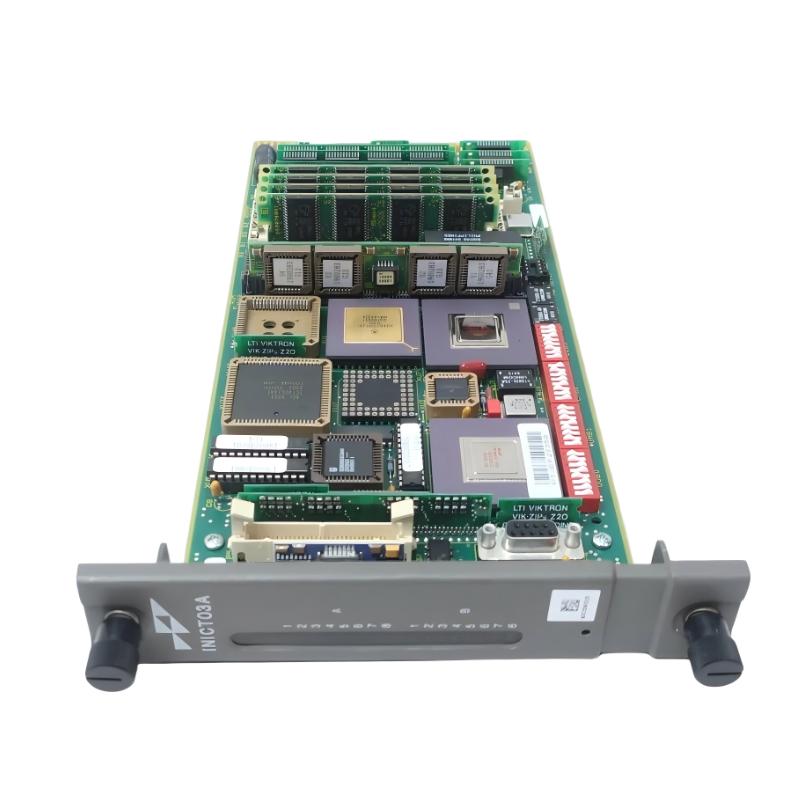

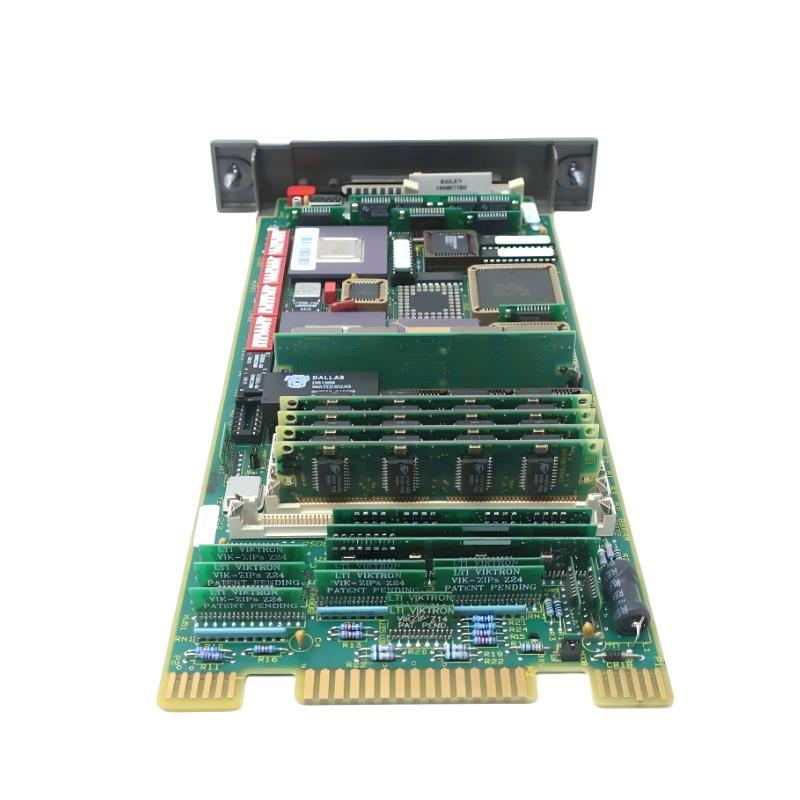

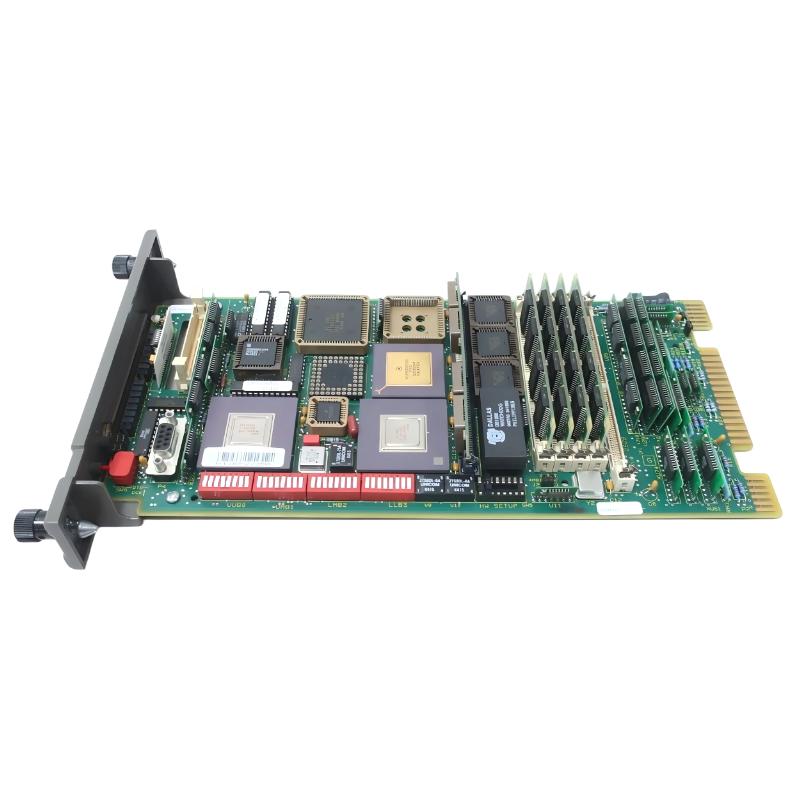

The ABB Bailey INICT03A is an INFI 90 INFI-NET to Computer Transfer Module used to transfer control-system information between the INFI-NET network and computer-based systems. It belongs to the communication layer of the INFI 90 architecture, where computer systems need access to process, control, and system data.
In a typical installation, the INICT03A can sit between the INFI-NET control network and a connected computer environment used for supervisory monitoring, engineering, data collection, or other higher-level functions. It helps keep computer communication separate from direct field I/O connections while maintaining access to information generated by the distributed control system.
The module is intended for integration with compatible Bailey INFI 90 equipment. Network configuration, connected computer hardware, and the communication architecture should be checked when installing or replacing the module.
Technical Specifications
| ParameterSpecification | Value |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INICT03A |
| Product Family | INFI 90 |
| Product Type | INFI-NET to Computer Transfer Module |
| Network | INFI-NET |
| Application | Computer and control-system data transfer |
| System | INFI 90 |
| Module Function | INFI-NET to computer data transfer |
| Dimensions | 280 × 30 × 150 mm |
| Weight | 0.91 kg |
Product Features
- Provides a computer interface within the ABB Bailey INFI 90 architecture.
- Transfers system information between the INFI-NET network and compatible computer equipment.
- Supports supervisory and higher-level computer applications connected to the control system.
- Works as part of the INFI 90 communication infrastructure rather than as a field I/O module.
- Suitable for maintaining established Bailey control-system installations.
- Provides a dedicated transfer path between the INFI-NET environment and computer-based equipment.
Working Principle
The INICT03A operates as a transfer point between the INFI-NET control network and a computer system. Data available on the INFI-NET side is passed through the module to the connected computer environment, allowing external applications to access relevant control-system information.
Within the control architecture, field I/O modules acquire process signals and controllers execute the configured control strategies. The resulting process and system data is communicated across INFI-NET. The INICT03A handles the transfer of this information toward the computer side, where it can be used for supervisory monitoring, engineering activities, data processing, or other configured applications.
The module itself does not replace the controller or field I/O functions. Its operation depends on correct INFI-NET connectivity, computer-side communication configuration, and compatibility with the surrounding INFI 90 system.
Role in a INFI 90 INFI-NET Control Architecture
| System ElementFunction | |
|---|---|
| INICT03A Transfer Module | Transfers data between the INFI-NET network and connected computer systems |
| INFI-NET Network | Provides system-level communication throughout the INFI 90 architecture |
| INFI 90 Controllers | Execute process-control strategies and manage control functions |
| I/O Modules | Interface with field instruments and equipment |
| Computer System | Provides supervisory, engineering, monitoring, or data-processing functions |
| Operator Interface | Presents process values, alarms, trends, and system status |
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Process Control | Computer-based access to data from INFI 90 control systems |
| Power Generation | Transfer of plant control information to supervisory computers |
| Oil and Gas | Computer connectivity for established Bailey DCS installations |
| Chemical Processing | Higher-level access to process and control-system information |
| Industrial Utilities | Supervisory data transfer between control networks and computers |
| Legacy DCS Integration | Maintaining computer communication with existing INFI 90 systems |
Installation and Maintenance
- System Compatibility — Verify that the INICT03A is compatible with the existing INFI 90 and INFI-NET architecture before installation.
- Module Identification — Confirm the exact model designation and intended system position against the control-system documentation.
- Power Isolation — Follow the approved plant shutdown and electrical isolation procedure before accessing the module.
- Network Connection — Inspect the INFI-NET connection and associated cabling for secure attachment and physical damage.
- Computer Connection — Verify the computer-side connection and make sure the connected equipment matches the existing communication arrangement.
- Configuration Backup — Preserve relevant network and computer-interface configuration before replacing the transfer module.
- Communication Parameters — Check applicable addressing and communication settings against the established INFI 90 configuration.
- Connector Inspection — Inspect connectors for bent contacts, contamination, corrosion, or loose connections.
- Module Seating — Ensure the INICT03A is correctly positioned and securely connected to the associated system interface.
- Diagnostic Checks — Review available network and module diagnostics if the computer cannot exchange information with the INFI-NET system.
- Data Transfer Test — Verify that required process and system data can be transferred between the INFI-NET network and the connected computer.
- Maintenance Records — Record the module model, connected computer equipment, configuration information, and replacement date for future maintenance.
Related Components
| ComponentFunction | |
|---|---|
| ABB Bailey INFI-NET Network Components | Provide the communication infrastructure used by the INFI 90 system |
| INFI 90 Controller Modules | Execute control strategies and manage process functions |
| INFI 90 I/O Modules | Acquire field measurements and control field equipment |
| INFI 90 Communication Modules | Support data exchange between distributed system components |
| Engineering Computers | Provide configuration, diagnostics, and system maintenance functions |
| Supervisory Computer Systems | Use INFI 90 data for monitoring and higher-level applications |
Recommended Related Models
| Model / Product FamilyProduct Type | Typical Application |
|---|---|
| ABB Bailey INICT03A | INFI-NET to computer data transfer |
| ABB Bailey INICI03 | INFI-NET to computer interface applications |
| ABB Bailey INFI-NET Components | Network communication within INFI 90 systems |
| ABB Bailey INFI 90 Controller Modules | Distributed process control and system processing |
| ABB Bailey INFI 90 Communication Modules | Control-system data exchange |
Key Advantages
- Provides computer connectivity within an INFI-NET control architecture.
- Supports transfer of INFI 90 system information to computer-based applications.
- Integrates with established Bailey communication infrastructure.
- Separates computer data transfer from direct field I/O functions.
- Suitable for maintenance and continued operation of legacy INFI 90 systems.
Technical FAQs
What is the ABB Bailey INICT03A used for?
The INICT03A is an INFI-NET to Computer Transfer Module used to transfer information between the INFI-NET network and compatible computer systems within an ABB Bailey INFI 90 architecture.
Is the INICT03A a controller or I/O module?
No. It is a communication and data-transfer module. Control logic remains the responsibility of the appropriate INFI 90 controller hardware, while field signal processing is handled by the relevant I/O modules.
What should be checked before replacing an INICT03A?
Check the existing INFI-NET configuration, computer connection, module position, communication parameters, and system documentation. The replacement should match the communication role and configuration of the original module.
Why might a connected computer fail to receive INFI 90 data?
Incorrect communication parameters, network connection faults, damaged cabling, connector problems, addressing issues, or configuration mismatches can interrupt data transfer. The INICT03A and its associated INFI-NET connections should be checked before troubleshooting unrelated I/O or controller modules.
