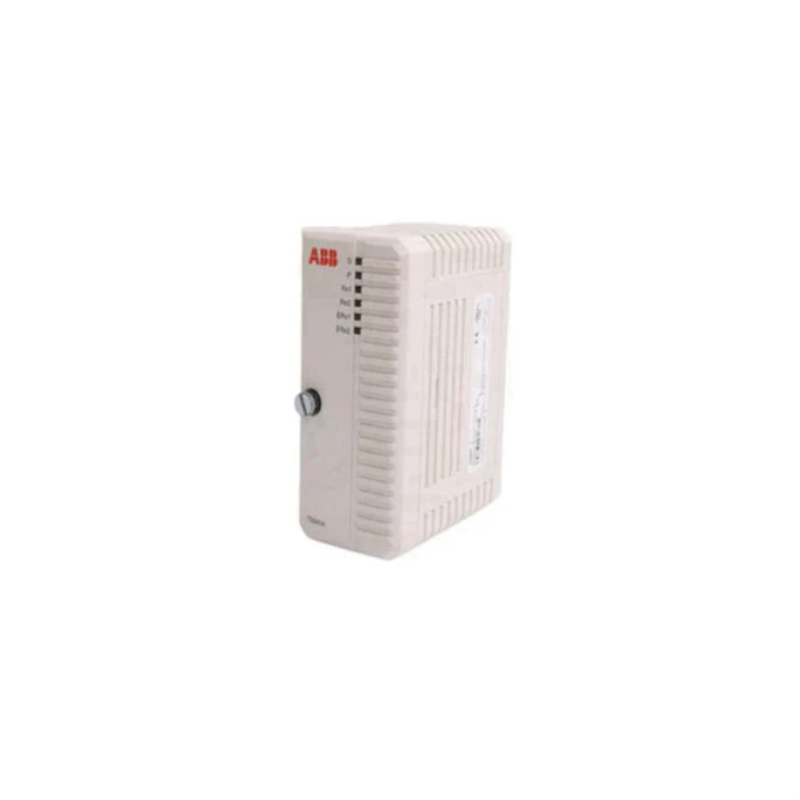

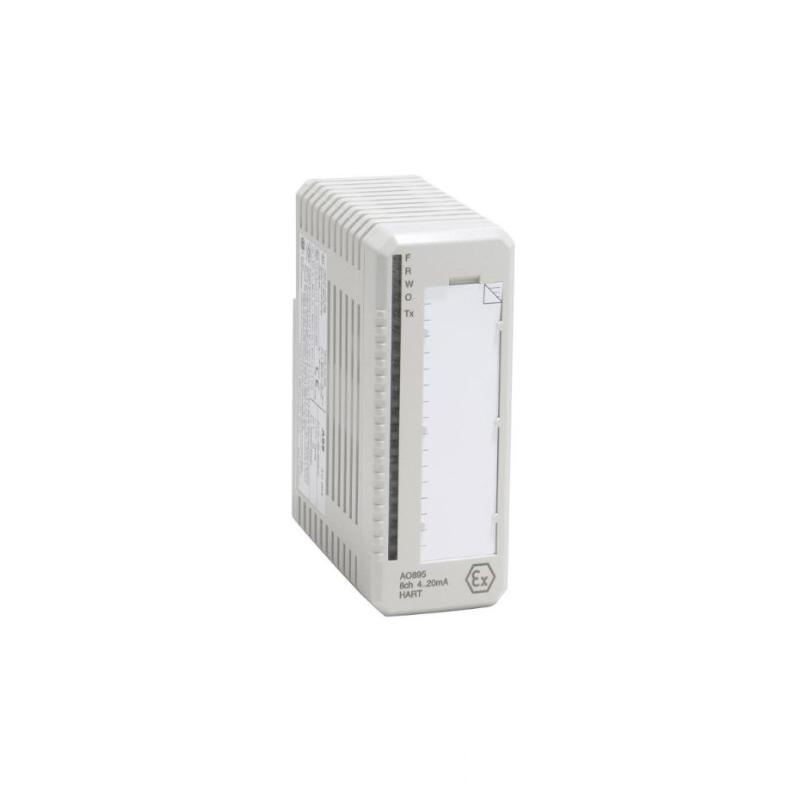

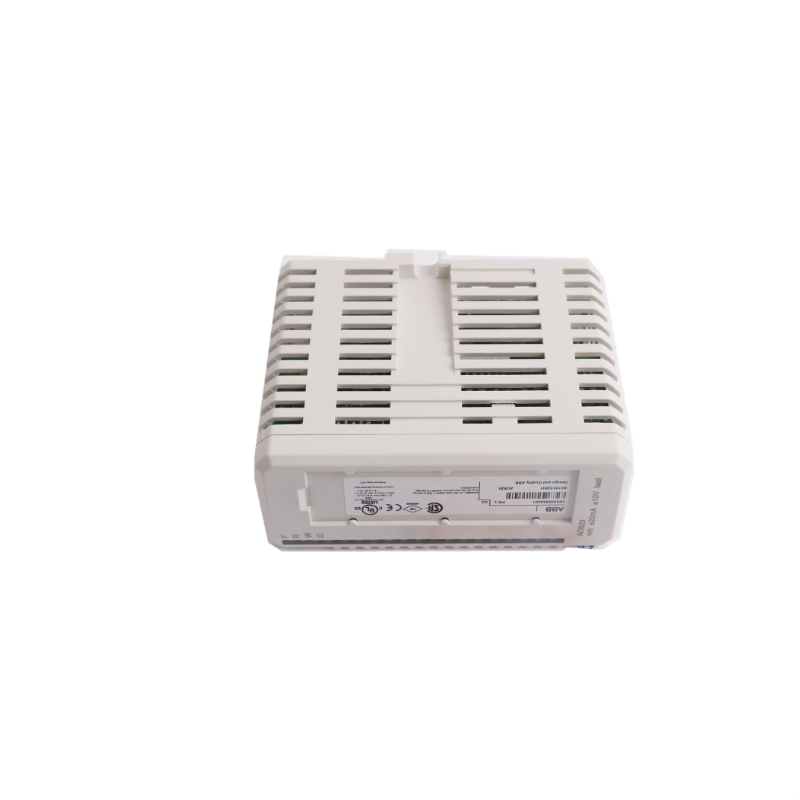

ABB AO895 3BSC690087R1 Analog Output Module
Product Overview:
The ABB AO895 3BSC690087R1 is a high-performance analog output module designed for use with ABB control systems, specifically the S800 I/O series. It provides precise control and monitoring capabilities for a wide range of industrial processes, by converting digital control signals into analog output signals for controlling field devices like actuators, valves, and variable speed drives. This module is engineered for use in process automation, manufacturing, and power generation environments, where reliable analog output is essential for controlling process variables such as temperature, pressure, flow, and level.
With compact dimensions of 45 x 102 x 119 mm and a lightweight build of 0.2 kg, the AO895 is easy to install in space-constrained control panels. It offers a wide operating temperature range from -20°C to 60°C, making it suitable for various industrial environments, including those with extreme temperatures. The module supports 16 output channels, which provide 4-20mA analog signals, ensuring compatibility with most industrial control systems.
Product Specifications:
| Parameter | Value |
|---|---|
| Model | ABB AO895 3BSC690087R1 |
| Dimensions | 45 x 102 x 119 mm |
| Weight | 0.2 kg |
| Output Channels | 16 Channels |
| Signal Type | 4-20mA Analog Output |
| Power Supply | 24V DC |
| Communication Protocol | Profibus DP, Modbus RTU |
| Operating Temperature | -20°C to 60°C |
| Mounting Type | DIN Rail |
| Signal Resolution | 16-bit |
| Response Time | < 5 ms |
| Protection Class | IP20 |
| Status Indication | LED Indicators |
Product Application:
The ABB AO895 3BSC690087R1 analog output module is primarily used in process control systems for industries that require reliable analog signals to interface with field devices. Its main applications include:
-
Process Automation: In applications where precise control of process variables is essential, such as temperature, pressure, flow, and level control, the AO895 module provides the necessary output signals for actuators and control valves.
-
Power Generation: Used in power plants, it helps regulate power generation systems by controlling parameters such as generator speed and turbine load.
-
Manufacturing: In manufacturing systems, it interfaces with pneumatic actuators or electric actuators to adjust the speed or position of production machinery.
-
Water Treatment: In water treatment facilities, it manages chemical dosing pumps and flow control systems to maintain optimal water quality.
-
Oil and Gas: In the oil and gas industry, it provides accurate control over pressure relief valves and flow controllers, ensuring safe and efficient operation of pipelines and processing units.
Advantages:
-
High Channel Density: With 16 output channels, the AO895 allows for efficient use of space in control panels, reducing the number of modules required.
-
Compact and Lightweight: The compact dimensions (45 x 102 x 119 mm) and lightweight design (0.2 kg) make installation in space-constrained environments easy and convenient.
-
Precise Signal Control: The module supports 4-20mA analog outputs, providing reliable and precise control over field devices, which is crucial for maintaining process stability.
-
Fast Response Time: With a response time of less than 5 ms, the AO895 ensures quick and accurate adjustments in real-time control systems.
-
Wide Temperature Range: The module operates efficiently within a temperature range of -20°C to 60°C, making it suitable for both standard and extreme industrial environments.
-
LED Status Indicators: The module features LED indicators for quick troubleshooting and system status monitoring, helping to maintain system uptime.
-
Robust Protection: With an IP20 protection class, the AO895 is designed to be durable in industrial environments, providing long-lasting performance.
Brand and Series:
-
Brand: ABB (A global leader in industrial automation and process control systems)
-
Series: S800 I/O Series (A modular I/O system designed for process automation and control applications)
Recommended Models in the Same Series:
| Model | Description | Key Features |
|---|---|---|
| AO880 | Analog Input Module | Provides 16 analog input channels for process monitoring |
| DI810 | Digital Input Module | Offers 32 digital inputs for control systems |
| DO810 | Digital Output Module | Supports 32 digital outputs for controlling field devices |
| AI865 | High-Speed Analog Input Module | High-resolution analog input module with fast sampling rate |
| AO870 | High-Resolution Analog Output Module | Provides high-accuracy analog outputs for critical applications |
Popular ABB Models:
| Model | Description | Key Specifications |
|---|---|---|
| AX521 | Industrial controller for automation and control systems, offering high reliability. | Compact design, flexible, supports various I/O modules. |
| AX522 | Advanced controller designed for complex industrial applications. | High performance, modular, supports extensive connectivity. |
| AX561 | High-speed controller designed for demanding industrial automation tasks. | Enhanced processing power, high I/O capacity, scalable. |
| AX523 | Controller with upgraded features for enhanced connectivity and control. | Modular, supports Ethernet communication, flexible. |
| AX562 | Advanced controller with real-time processing capabilities for large-scale systems. | High-speed processing, modular design, integrated safety functions. |
FAQ (Frequently Asked Questions):
Q1: What is the main function of the ABB AO895?
A1: The ABB AO895 is an analog output module that converts digital control signals into 4-20mA analog output signals for controlling field devices like actuators and valves.
Q2: How many output channels does the ABB AO895 have?
A2: The ABB AO895 supports 16 output channels for 4-20mA analog outputs.
Q3: What communication protocols does the ABB AO895 support?
A3: The module supports Profibus DP and Modbus RTU communication protocols for seamless integration into control systems.
Q4: What is the power supply requirement for the ABB AO895?
A4: The module operates on a 24V DC power supply.
Q5: What is the temperature range for the ABB AO895?
A5: The ABB AO895 operates within a temperature range of -20°C to 60°C, suitable for industrial applications in various environments.
Q6: How is the ABB AO895 mounted?
A6: The module is designed for DIN rail mounting, making it easy to integrate into control panels.
Q7: What is the response time of the ABB AO895?
A7: The response time of the AO895 is less than 5 ms, ensuring fast and accurate output adjustments.
Q8: Is the ABB AO895 suitable for use in harsh environments?
A8: Yes, the module has an IP20 protection class and is built to withstand industrial environments.
Q9: Can the ABB AO895 be used in both analog and digital control systems?
A9: The module is designed for analog control systems, providing precise 4-20mA analog outputs.
Q10: Does the ABB AO895 have any diagnostic features?
A10: Yes, the module includes LED status indicators for easy diagnostics and system monitoring.
