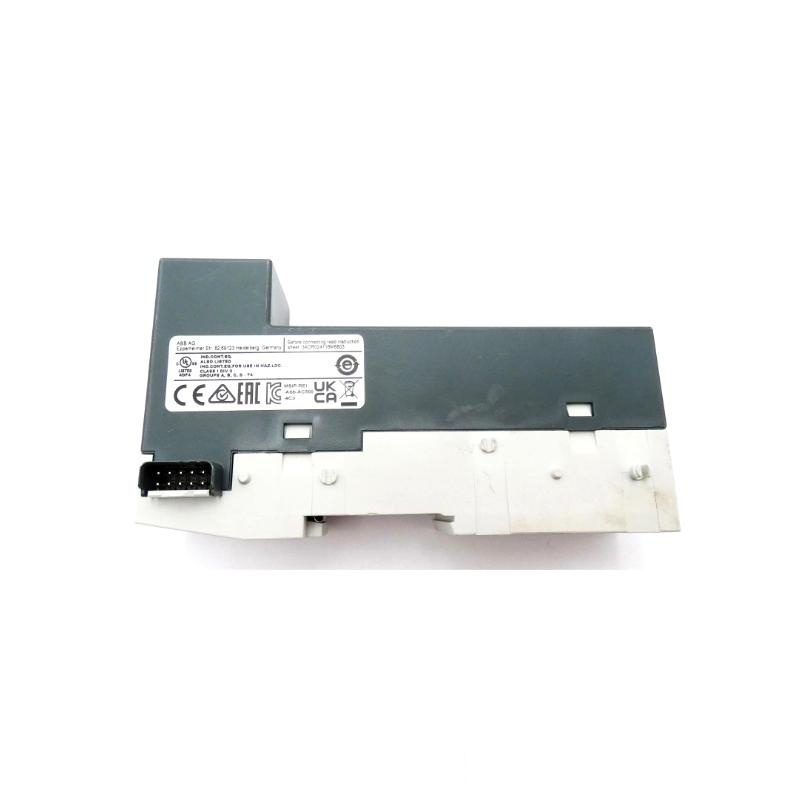

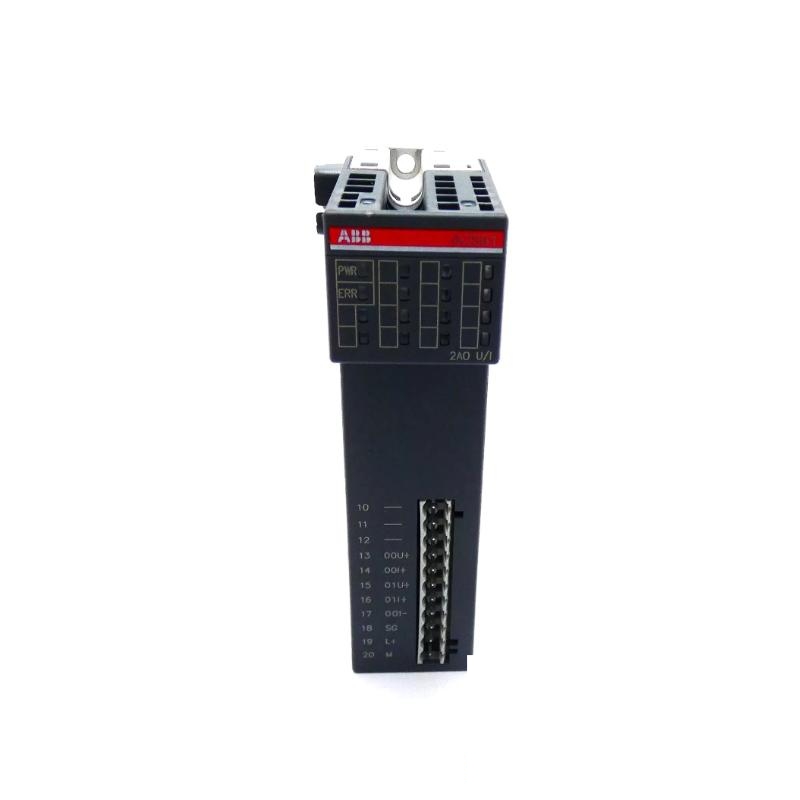

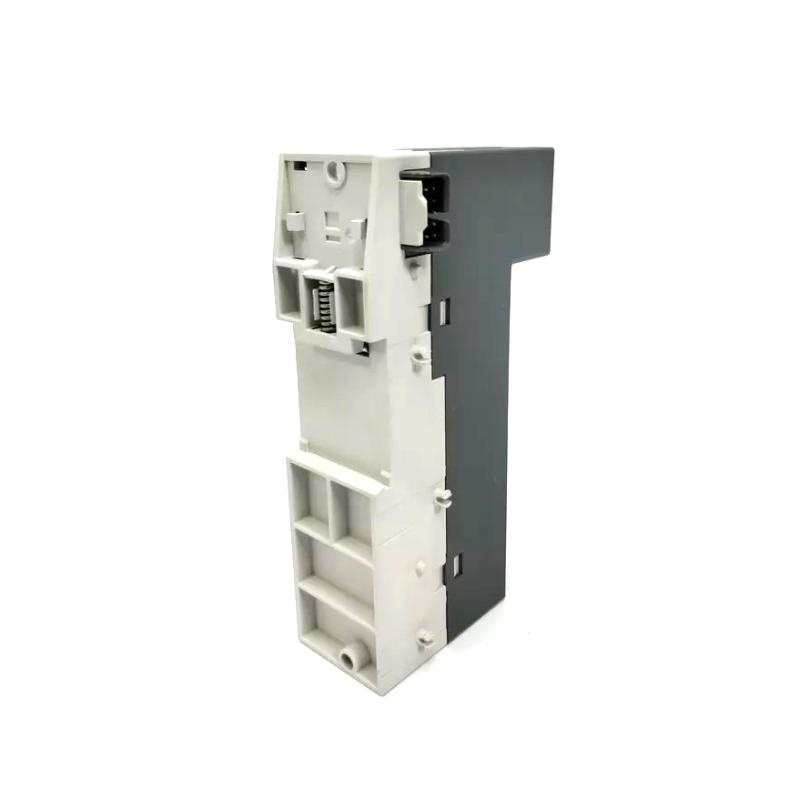

ABB AO561 1TNE968902R1201 Analog Output Module
Product Description
The ABB AO561 (1TNE968902R1201) is a modular, high-performance analog output module designed for process and factory automation applications. It is part of ABB’s renowned 800xA control system architecture, offering reliable and precise analog signal output for critical industrial control processes.
Key Features:
-
Supports 8 analog output channels, configurable for 4–20 mA or 0–10 V signals.
-
Integrated with 16-bit resolution for high precision in analog control systems.
-
Designed with compact housing for space-saving DIN rail installation.
-
Seamless communication and control within ABB’s 800xA DCS (Distributed Control System) environment.
-
Rugged, industrial-grade build quality suitable for harsh environmental conditions.
This module enables users to control actuators, valve positions, motor drives, and other analog-controlled devices accurately and efficiently. It plays a vital role in maintaining the stability and responsiveness of process control systems.
Product Specifications
| Specification | Value |
|---|---|
| Dimensions | 135 x 74 x 34 mm |
| Weight | 0.118 kg |
| Output Type | Analog Output (4-20 mA, 0-10 V) |
| Number of Channels | 8 Channels |
| Resolution | 16-bit |
| Power Consumption | 2.5 W |
| Temperature Range | -25°C to 60°C |
| Input Voltage | 24 V DC |
| Mounting | DIN Rail |
Applications
-
Industrial Process Control: Regulates devices such as actuators and control valves, providing highly accurate analog outputs for efficient system management.
-
Automation Systems: Ideal for factory automation environments, ensuring precise control of machinery and processes.
-
SCADA and DCS Systems: Essential in supervisory control and data acquisition systems for real-time monitoring and adjustments.
Product Advantages
-
High Accuracy and Signal Stability:
With a 16-bit resolution, this module provides precise and stable analog outputs that are critical for maintaining system efficiency and safety. -
Compact Form Factor:
The AO561’s small size of 135 x 74 x 34 mm allows it to fit into space-constrained control panels, saving valuable panel space without compromising performance. -
Full Compatibility with ABB Systems:
Designed to integrate seamlessly with ABB’s 800xA control platform, the AO561 ensures easy configuration and reliable communication with other ABB modules, minimizing system integration efforts. -
Industrial-Grade Durability:
Built to withstand extreme environments, the AO561 operates across a wide temperature range of -25°C to 60°C and is ideal for use in rugged industrial settings.
Brand
ABB
ABB (Asea Brown Boveri) is a global leader in power and automation technologies.
-
The company provides a broad portfolio of products and services in industrial automation, electrification, and robotics.
-
ABB is known for driving innovation, digital transformation, and sustainability in various industries.
-
With over 100 years of expertise, ABB ensures high-quality products that deliver reliable and efficient performance in demanding environments.
Recommended Models in the Same or Related Series
| Model | Description | Output Type | Channels | Power Consumption | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AO560 | Analog Output Module | 4-20 mA | 4 | 2.0 W | 135 x 74 x 34 | 0.118 |
| AO563 | High-Precision Analog Output Module | 0-10 V | 8 | 3.0 W | 135 x 74 x 34 | 0.118 |
| AO564 | Multi-Channel Analog Output | 4-20 mA, 0-10 V | 16 | 4.0 W | 135 x 74 x 34 | 0.125 |
| AO562 | Dual-Channel Output Module | 4-20 mA | 2 | 2.5 W | 135 x 74 x 34 | 0.118 |
| AO561C | Compact Analog Output Module | 0-10 V | 8 | 2.5 W | 135 x 74 x 34 | 0.118 |
Recommended Popular Models from the Same Brand
| Model | Description | Output Type | Channels | Power Consumption | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| PM862K | Processor Module | Digital Output | – | 15 W | 100 x 100 x 35 | 0.5 |
| PM866AK01 | Processor Module | Digital Output | – | 10 W | 110 x 100 x 40 | 0.45 |
| PM864C | Processor Module | Digital Output | – | 12 W | 120 x 110 x 45 | 0.52 |
| CM5731 | Communication Module | – | – | 8 W | 150 x 80 x 45 | 0.4 |
| CP465 | Communication Processor | Digital Output | – | 14 W | 120 x 90 x 45 | 0.5 |
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of analog output channels available on AO561?
A1: The AO561 offers 8 independent analog output channels.
Q2: What voltage levels does AO561 support for output?
A2: The AO561 supports both 0-10 V and 4-20 mA analog output signal ranges.
Q3: Can I use the AO561 in outdoor or harsh environments?
A3: Yes, it is industrial-grade and supports a wide operating temperature range of -25°C to 60°C.
Q4: Does this module support DIN rail mounting?
A4: Yes, the AO561 is designed for easy DIN rail installation.
Q5: Is this module compatible with non-ABB systems?
A5: While optimized for ABB’s 800xA system, integration with non-ABB systems is possible via standard analog outputs.
Q6: What is the signal resolution provided by the AO561?
A6: The AO561 provides a high-accuracy 16-bit output resolution.
Q7: What kind of maintenance does the AO561 require?
A7: Minimal maintenance is needed—just routine inspections for terminal integrity and cleaning for dust buildup.
Q8: Can I mix current and voltage output on different channels?
A8: No, all channels are typically configured for the same output type per module instance.
Q9: What’s the primary benefit of using AO561 in control systems?
A9: Its precise and stable analog output improves process control accuracy and system efficiency.
Q10: Is firmware upgrade required for AO561 module operations?
A10: Firmware is preloaded, and updates are rarely needed unless system upgrades are made.
