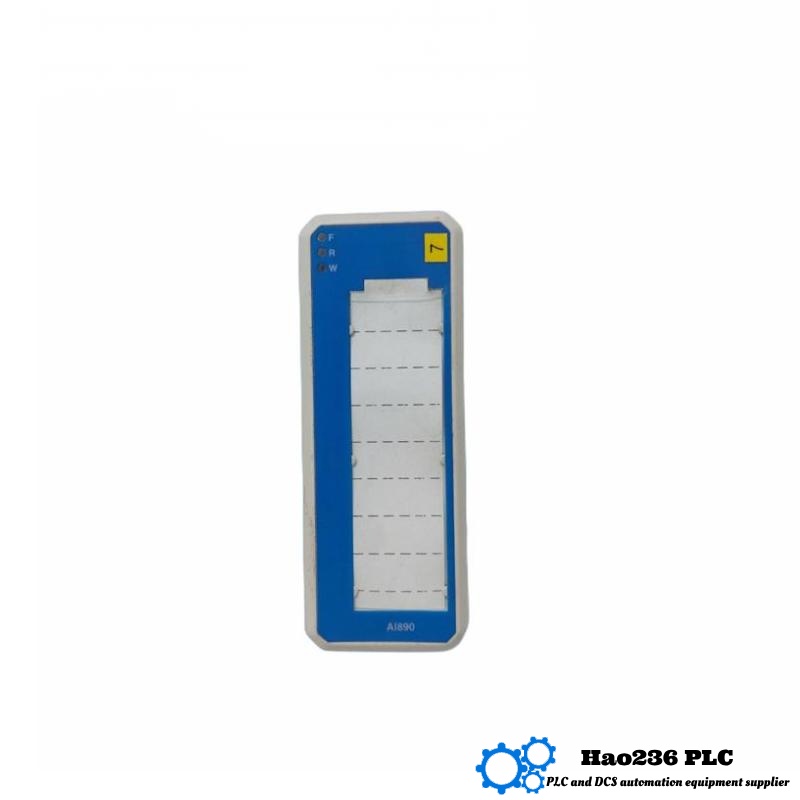

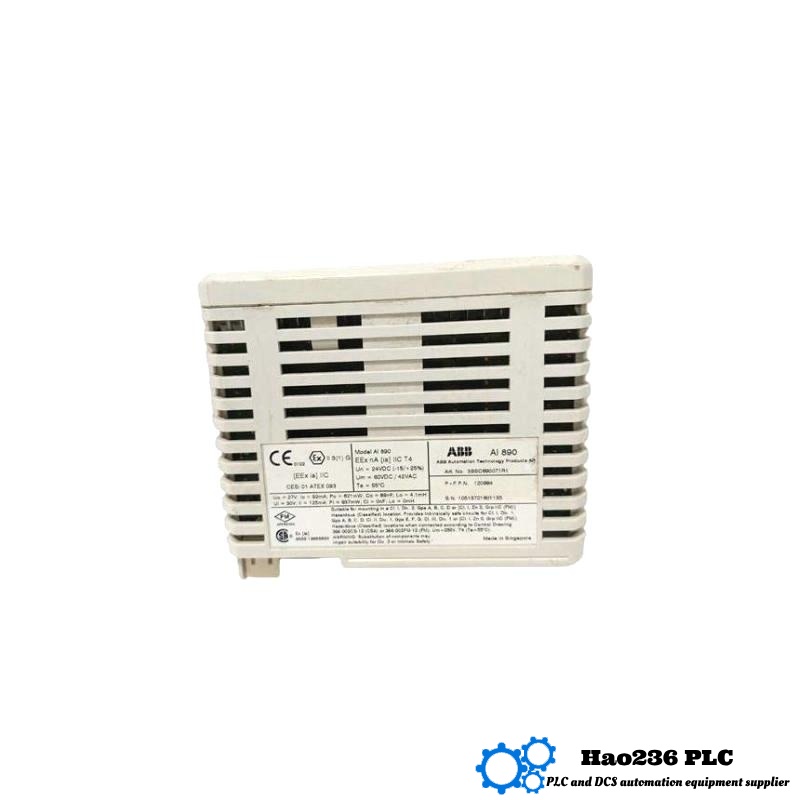

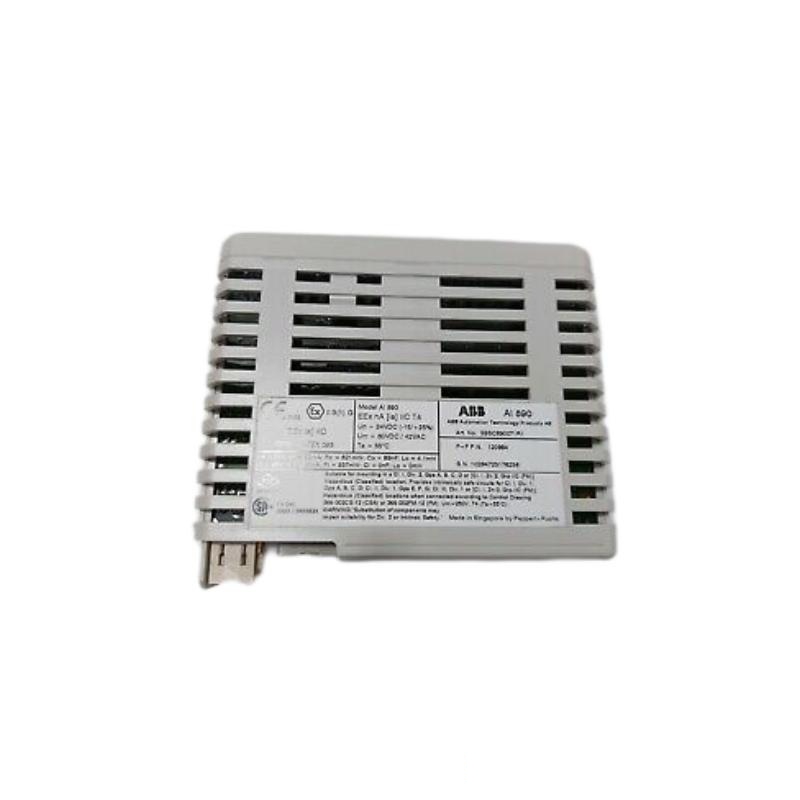

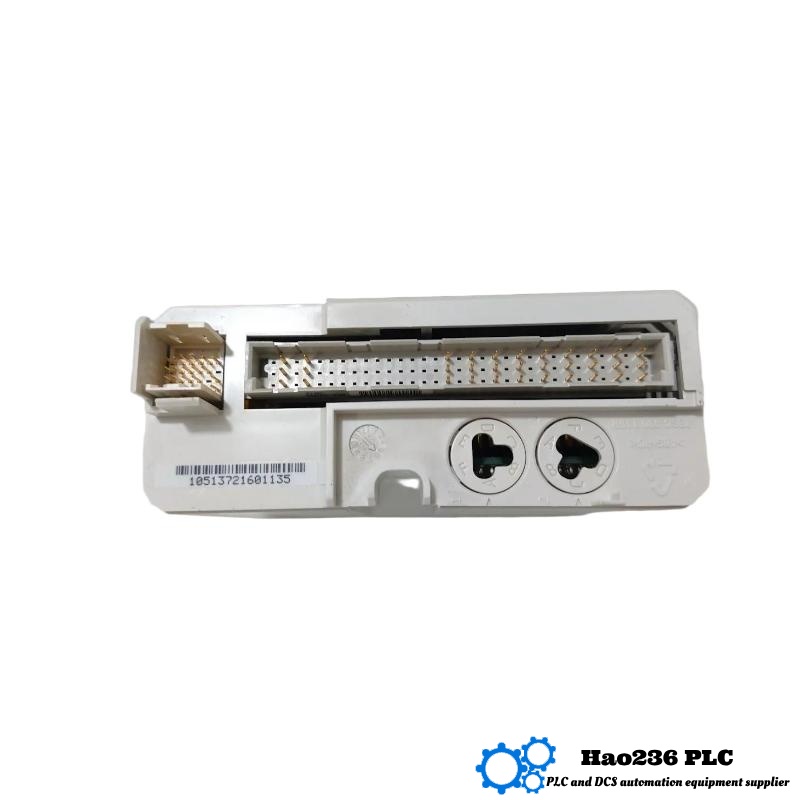

ABB AI890 3BSC690071R1 Analog Input Module Detailed Overview
Product Introduction
The ABB AI890 3BSC690071R1 is an analog input module designed for use with ABB’s industrial automation systems. As part of the S800 I/O series, this module is engineered to provide high-performance, precision, and reliability in measuring analog signals in industrial environments. It supports various types of analog input signals, including 4-20 mA and 0-10 V, and is well-suited for applications where accurate monitoring and control of industrial processes are required.
The AI890 module stands out due to its compact design (measuring 45 x 102 x 119 mm) and lightweight construction (0.2 kg). Despite its small size, it offers powerful functionality and high-precision measurement, making it a versatile choice for a wide range of industrial automation applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model | AI890 3BSC690071R1 |
| Brand | ABB |
| Type | Analog Input Module |
| Dimensions (WxHxD) | 45 x 102 x 119 mm |
| Weight | 0.2 kg |
| Input Types | 4-20 mA, 0-10 V |
| Input Channels | 8 channels |
| Power Supply | 24 V DC |
| Accuracy | ±0.1% of full scale |
| Input Resolution | 16-bit |
| Response Time | < 10 ms |
| Operating Temperature Range | -20°C to +60°C |
| Mounting | Panel-mountable, DIN rail |
| Communication Protocol | MODBUS, HART |
Product Applications
The ABB AI890 3BSC690071R1 analog input module is designed for a wide range of industrial applications where precise monitoring and control of physical parameters are required. Some common applications include:
-
Industrial Automation: The AI890 module is used to connect various sensors, providing accurate readings of temperature, pressure, and flow in automated manufacturing and production environments.
-
Process Control: In industries like chemical, petrochemical, and pharmaceuticals, the AI890 module helps monitor and control critical parameters such as temperature and pressure, ensuring smooth and efficient operations.
-
Energy Management: The AI890 module is ideal for energy monitoring applications, helping industries track energy usage, optimize consumption, and improve efficiency in large manufacturing facilities.
-
Predictive Maintenance: By providing accurate real-time measurements from sensors installed on equipment, the AI890 module is instrumental in predictive maintenance programs. It allows for early detection of potential failures, reducing downtime and improving equipment reliability.
-
Building Automation: The AI890 module can be used in HVAC systems and building energy management systems to monitor environmental factors such as temperature and humidity, contributing to better energy efficiency and comfort for occupants.
Product Advantages
-
High Accuracy and Precision: The AI890 module offers an accuracy of ±0.1% of the full scale and 16-bit resolution, ensuring that it delivers highly precise analog signal measurements.
-
Fast Response Time: The module is designed for fast data processing with a response time of less than 10 ms, making it suitable for applications requiring real-time monitoring.
-
Compact and Lightweight: Despite its powerful functionality, the AI890 module is compact, measuring only 45 x 102 x 119 mm and weighing just 0.2 kg, which makes it easy to install even in confined spaces.
-
Wide Temperature Range: The AI890 can operate in a wide temperature range of -20°C to +60°C, making it versatile and suitable for use in a variety of industrial environments.
-
Easy Integration: Supporting MODBUS and HART communication protocols, the AI890 module can easily be integrated into existing industrial control systems, enhancing the flexibility and scalability of automation solutions.
-
Multiple Input Options: The AI890 module supports both 4-20 mA and 0-10 V input signals, making it compatible with a wide range of field devices and sensors.
-
Reliable Power Supply: Powered by a 24 V DC supply, the AI890 ensures consistent and stable operation across a range of industrial applications, minimizing the risk of downtime.
Brand Information
-
Brand: ABB
-
Product Type: Analog Input Module
-
Series: S800 I/O Series
-
Industry Focus: Industrial Automation, Process Control, Energy Management, Predictive Maintenance, Building Automation
Recommended Models: ABB S800 I/O Series and Related Models
| Model | Input Types | Weight | Dimensions (WxHxD) | Channels |
|---|---|---|---|---|
| AI800 3BSE008500R1 | 4-20 mA, 0-10 V | 0.18 kg | 45 x 102 x 119 mm | 8 |
| AI810 3BSE008516R1 | 4-20 mA, 0-10 V | 0.20 kg | 45 x 102 x 119 mm | 8 |
| AI820 3BSE008518R1 | 4-20 mA, 0-10 V | 0.22 kg | 45 x 102 x 119 mm | 8 |
| AI830 3BSE008519R1 | 4-20 mA, 0-10 V | 0.24 kg | 45 x 102 x 119 mm | 8 |
| AI840 3BSE008520R1 | 4-20 mA, 0-10 V | 0.26 kg | 45 x 102 x 119 mm | 8 |
Top 5 Popular ABB Models (Other Series)
| Model | Input Types | Weight | Dimensions (WxHxD) | Channels |
|---|---|---|---|---|
| AI510 3BHT300000R1 | 0-20 mA, 4-20 mA | 1.10 kg | 200 x 200 x 50 mm | 4 |
| AI520 3BHT300000R1 | 0-20 mA, 4-20 mA, 0-10 V | 1.15 kg | 200 x 200 x 50 mm | 4 |
| AI530 3BHT300000R1 | 0-20 mA, 4-20 mA | 1.25 kg | 200 x 200 x 50 mm | 6 |
| AI540 3BHT300000R1 | 0-20 mA, 4-20 mA, 0-10 V | 1.30 kg | 200 x 200 x 50 mm | 6 |
| AI550 3BHT300000R1 | 0-20 mA, 4-20 mA, 0-10 V | 1.35 kg | 200 x 200 x 50 mm | 6 |
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the AI890 3BSC690071R1 module support?
A1: The AI890 module supports 4-20 mA and 0-10 V input signals.
Q2: How many input channels does the AI890 module have?
A2: The AI890 module provides 8 input channels.
Q3: What is the accuracy of the AI890 module?
A3: The AI890 module offers an accuracy of ±0.1% of full scale.
Q4: What is the weight of the AI890 module?
A4: The AI890 module weighs 0.2 kg.
Q5: What is the power supply requirement for the AI890 module?
A5: The AI890 module operates with a 24 V DC power supply.
Q6: What is the response time of the AI890 module?
A6: The AI890 module has a fast response time of <10 ms.
Q7: What is the operating temperature range of the AI890 module?
A7: The AI890 module operates in the temperature range of -20°C to +60°C.
Q8: Can the AI890 module be used in hazardous environments?
A8: Yes, the AI890 module can be used in a variety of industrial environments, including hazardous areas, with the appropriate housing and safety measures.
Q9: Does the AI890 module support communication protocols?
A9: Yes, the AI890 module supports MODBUS and HART communication protocols.
Q10: How is the AI890 module installed?
A10: The AI890 module can be mounted on a DIN rail or directly onto panels for easy installation.
