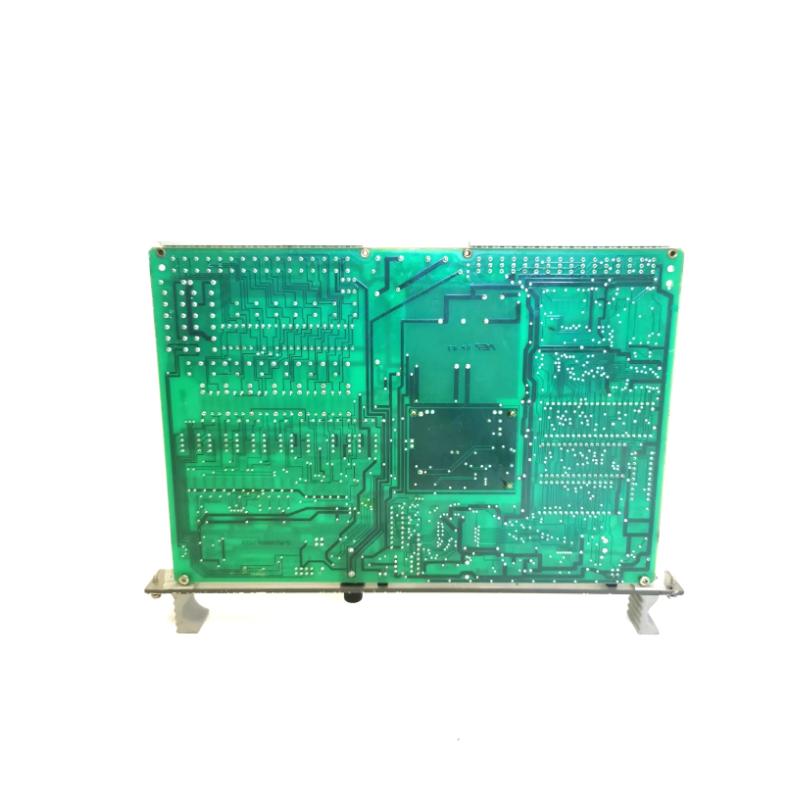

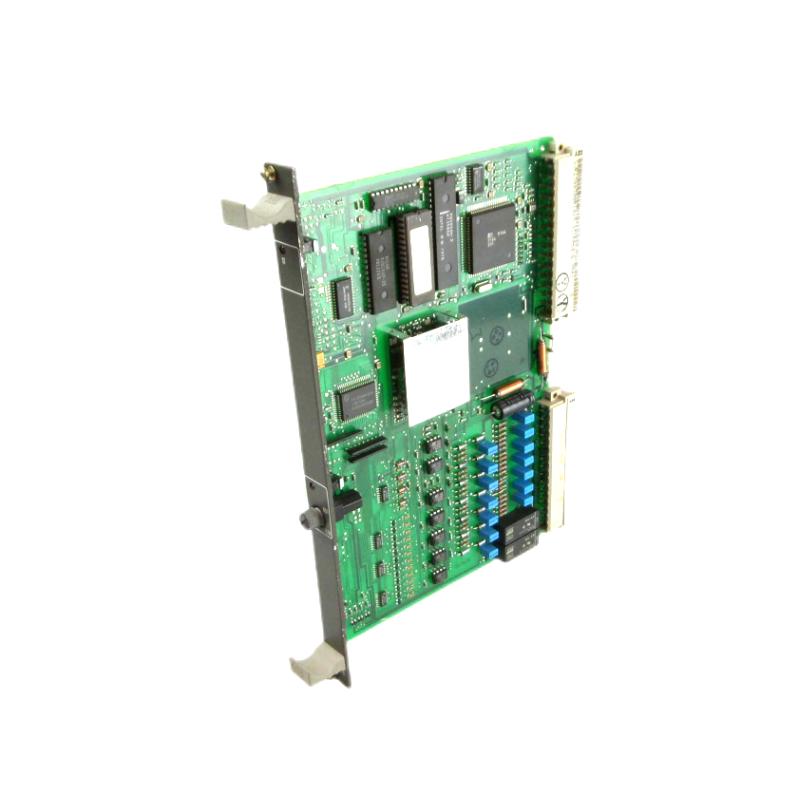

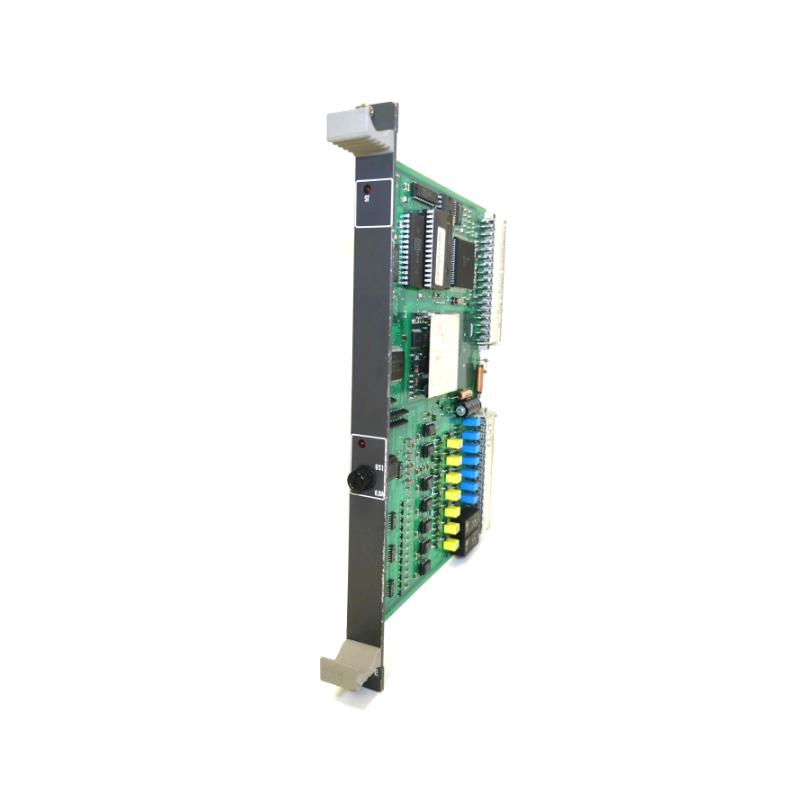

Product Overview for ABB 83SR06B-E (GJR2388300R1010)
The ABB 83SR06B-E surge protection relay is part of ABB’s renowned 83SR Series, designed to offer exceptional surge protection for sensitive electrical systems. With its 20 kA surge capacity, this relay ensures the safety of your equipment from harmful voltage transients caused by lightning, switching operations, or other electrical disturbances.
The ABB 83SR06B-E relay is ideal for low-voltage applications, offering reliable protection for industrial, commercial, and residential systems. The device features Type 3 surge protection, which is specifically designed to protect against moderate surge events in low-voltage systems. Its fast response time of less than 25 nanoseconds ensures that it reacts instantly to voltage spikes, preventing any damage to connected equipment.
Additionally, the relay is built for easy installation with DIN rail mounting, making it an excellent choice for panel installations in control rooms, power distribution units, industrial machinery, and telecommunication equipment.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | 83SR06B-E |
| Surge Protection Capacity | 20 kA (8/20μs waveform) |
| Response Time | < 25ns |
| Nominal Voltage | 230V AC |
| Dimensions | 90mm x 90mm x 70mm |
| Weight | 0.60 kg |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | DIN Rail |
| Protection Level | Type 3 (Low Voltage Protection) |
| Enclosure Type | IP20 |
Product Introduction
The ABB 83SR06B-E surge protection relay is designed to provide high-performance surge protection for low-voltage electrical systems. Featuring a 20 kA surge protection capacity, it effectively absorbs high-energy voltage transients that could damage sensitive equipment. This makes it ideal for use in industrial automation, telecommunication systems, and residential electrical installations.
The ABB 83SR06B-E relay boasts a fast response time of less than 25 nanoseconds, ensuring that voltage spikes are blocked almost instantly, preventing any risk of damage to sensitive electronic devices. With its DIN rail mounting system, the device is easy to install in control panels, power distribution units, and other compact spaces. This design allows for quick and secure installation, reducing downtime and improving operational efficiency.
This surge protection relay is rated for use in temperatures ranging from -20°C to +60°C, making it versatile enough to be used in diverse environments. Additionally, its IP20 rating provides protection against dust and accidental contact, ensuring durability and reliability over time.
Product Applications
The ABB 83SR06B-E surge protection relay is designed to protect electrical systems across various sectors. Its key applications include:
-
Industrial Automation: Protects PLC systems, industrial drives, and robotic machinery from power surges.
-
Telecommunication Equipment: Provides surge protection for data centers, communication networks, and telecom towers.
-
Power Distribution Systems: Safeguards distribution panels, control systems, and substations from voltage spikes.
-
Residential Use: Ideal for protecting home appliances, home automation systems, and electronic devices from transient surges.
-
Energy Generation and Distribution: Protects solar panels, wind turbines, and other energy systems that are sensitive to power fluctuations.
Product Advantages
-
High Surge Protection Capacity: With 20 kA surge protection, the ABB 83SR06B-E provides powerful defense against large voltage spikes, safeguarding sensitive equipment.
-
Fast Response Time: The relay responds in less than 25 nanoseconds, ensuring quick protection and minimizing the risk of damage.
-
Compact and Easy to Install: Its DIN rail mounting design makes installation straightforward, especially in industrial and commercial settings where space is often limited.
-
Versatile Temperature Range: The -20°C to +60°C operating temperature range ensures the relay can function effectively in both harsh and moderate environments.
-
Reliable Protection: With IP20 protection, the relay prevents dust and accidental contact, ensuring safe operation in various conditions.
-
Type 3 Protection: Designed for low-voltage electrical systems, this relay provides effective protection against moderate surge events and transients.
-
Durability: The ABB 83SR06B-E is built to last, offering long-term protection for electrical systems with minimal maintenance required.
Brand and Series Information
-
Brand: ABB
-
Series: 83SR Series
The 83SR Series from ABB is known for its high-quality surge protection devices designed to protect low-voltage electrical systems from harmful transients and voltage spikes. The ABB 83SR06B-E is a part of this series, offering a 20 kA surge protection capacity and a fast response time of <25ns. These relays are perfect for use in industrial automation, residential installations, and telecommunication systems.
Recommended Related Models (Same Series or Close Variants)
| Model | Specifications |
|---|---|
| 83SR03A-E (GJR2342800R1100) | 230V AC, 10kA surge protection, 25ns response time, 90mm x 90mm x 55mm, 0.45 kg |
| 83SR04A-E (GJR2342800R1120) | 230V AC, 12kA surge protection, 20ns response time, 90mm x 90mm x 60mm, 0.50 kg |
| 83SR05A-E (GJR2360100R1100) | 230V AC, 16kA surge protection, 25ns response time, 90mm x 90mm x 60mm, 0.55 kg |
| 83SR07A-E (GJR2395200R1100) | 230V AC, 25kA surge protection, 15ns response time, 95mm x 95mm x 75mm, 0.65 kg |
| 83SR08A-E (GJR2395300R1200) | 230V AC, 30kA surge protection, 15ns response time, 95mm x 95mm x 75mm, 0.70 kg |
Recommended Popular Models (Same Brand – ABB)
| Model | Specifications |
|---|---|
| REJ610 (GJR2384700R3101) | 230V AC, 16A current, 15W power, -20°C to +60°C, 90mm x 90mm x 50mm, 0.65 kg |
| REJ611 (GJR2384700R3111) | 220V-240V AC, 10A current, 12W power, -10°C to +50°C, 95mm x 90mm x 55mm, 0.60 kg |
| ACR550 (GJR1232500R2101) | 230V AC, 5A current, 10W power, -20°C to +70°C, 60mm x 60mm x 40mm, 0.35 kg |
| DS2020 (GJR2393400R1202) | 230V AC, Double-Pole Relay, 16A current, 20W power, -20°C to +60°C, 90mm x 90mm x 60mm |
| DGR100 (GJR2393700R2101) | 120V AC, Relay, 5A current, 8W power, -20°C to +60°C, 85mm x 85mm x 45mm, 0.40 kg |
Frequently Asked Questions (FAQ)
Q1: What is the surge protection capacity of the ABB 83SR06B-E relay?
A1: The ABB 83SR06B-E relay provides 20 kA surge protection, offering robust defense against large voltage spikes.
Q2: What is the nominal voltage of the ABB 83SR06B-E relay?
A2: The ABB 83SR06B-E relay operates at 230V AC, which is standard for many low-voltage electrical systems.
Q3: How fast is the response time of the ABB 83SR06B-E relay?
A3: The relay has an incredibly fast response time of less than 25 nanoseconds, offering immediate protection.
Q4: What are the dimensions of the ABB 83SR06B-E relay?
A4: The ABB 83SR06B-E relay measures 90mm x 90mm x 70mm, allowing it to fit into a variety of installations with limited space.
Q5: How much does the ABB 83SR06B-E relay weigh?
A5: The relay weighs 0.60 kg, making it easy to handle and install.
Q6: Can the ABB 83SR06B-E relay be used outdoors?
A6: The ABB 83SR06B-E is designed for indoor use with an IP20 enclosure rating. For outdoor use, protective enclosures are recommended.
Q7: How is the ABB 83SR06B-E relay mounted?
A7: The relay is designed for DIN rail mounting, ensuring easy and secure installation in control panels.
Q8: What applications is the ABB 83SR06B-E relay suitable for?
A8: The relay is suitable for protecting industrial automation systems, telecommunication equipment, residential electrical installations, and more.
Q9: What is the operating temperature range for the ABB 83SR06B-E relay?
A9: The ABB 83SR06B-E relay operates in temperatures ranging from -20°C to +60°C, making it suitable for a wide range of environments.
Q10: What protection level does the ABB 83SR06B-E offer?
A10: The relay offers Type 3 surge protection, ideal for low-voltage systems and provides reliable protection against moderate surge events.
