- ABB
- 3HAC14550-4/09A
- Single Servo Drive Unit
- Sweden (SE)
- 148 x 155 x 130 mm
- 1.78 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Overview

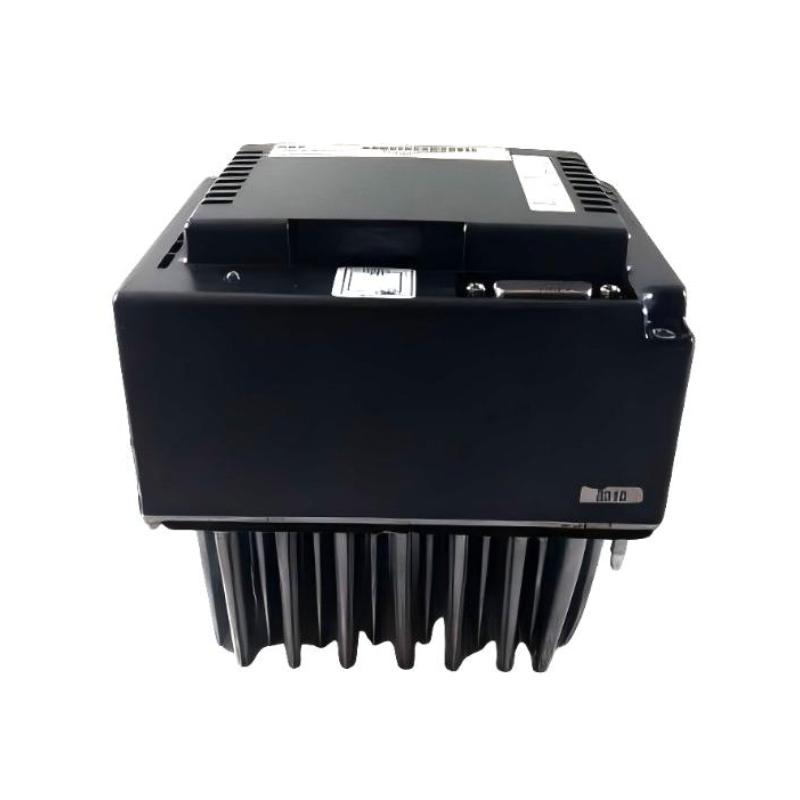

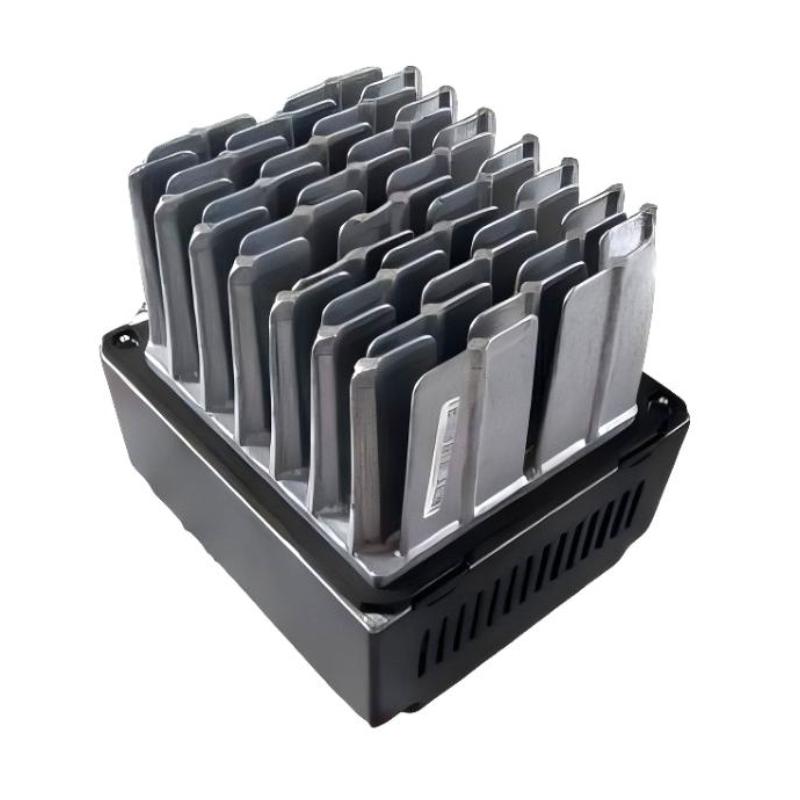

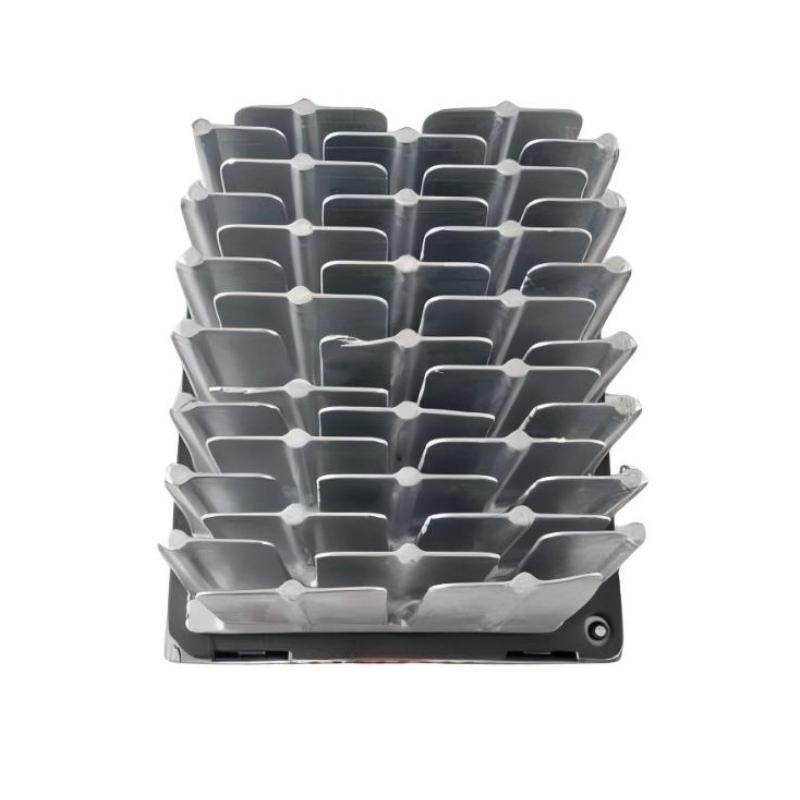

The ABB 3HAC14550-4/09A is a Single Servo Drive Unit designed for ABB robotic systems and industrial motion control applications. It is responsible for controlling the operation of individual servo motors by regulating motor current, speed, and position according to commands from the robot controller.
As a key motion control component, the servo drive unit works together with ABB robot controllers, drive systems, and feedback devices to achieve accurate axis movement and stable operation. It is commonly used in industrial robots, automated production lines, and motion-controlled equipment where high positioning accuracy and repeatability are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | 3HAC14550-4/09A |
| Product Type | Single Servo Drive Unit |
| Dimensions | 148 × 155 × 130 mm |
| Weight | 1.78 kg |
| Application | Robot Motion Control |
| Main Function | Servo Motor Control and Drive Regulation |
| Installation Type | Controller / Drive System Mounted |
| Control Function | Speed, Torque, and Position Control |
| Typical Equipment | ABB Industrial Robots and Automation Systems |
Applications
Industrial Robots
The servo drive unit is widely used in ABB robotic systems to control individual robot axes with accurate speed and position regulation.
Automotive Manufacturing
In automotive production lines, the unit supports robotic applications such as welding, assembly, painting, and material handling where precise motion control is essential.
Automated Assembly Systems
The drive unit provides stable servo control for assembly equipment requiring accurate positioning and repeatable movement.
Machine Tending
For robot-based CNC loading and unloading applications, the servo drive helps maintain consistent axis movement and operational reliability.
Production Automation
The unit can be applied in automated manufacturing environments where multiple servo-controlled movements are required for efficient production.
How It Works
The ABB 3HAC14550-4/09A operates as a servo motor control component within an industrial robot or motion control system.
The drive receives movement commands from the controller and converts electrical power into controlled motor operation. It regulates the motor torque, speed, and position based on feedback signals from encoders or other measurement devices.
A typical motion control structure is:
Robot Controller → Servo Drive Unit → Servo Motor → Mechanical Axis → Feedback System
The servo drive continuously compares the commanded position with actual motor feedback information and adjusts the output to maintain accurate movement.
This closed-loop control method allows ABB robotic systems to achieve smooth operation, precise positioning, and high repeatability.
Key Benefits
| Feature | Benefit |
|---|---|
| Servo Motion Control | Provides accurate control of robot axis movement. |
| Closed-Loop Operation | Supports precise position and speed regulation. |
| Compact Design | Fits into ABB robotic control system configurations. |
| Reliable Motor Control | Helps maintain stable machine operation. |
| Industrial Application | Suitable for continuous production environments. |
| High Positioning Accuracy | Supports repeatable robot movement and automation performance. |
Related Components
| Component | Function |
|---|---|
| 3HAC14550-4/09A Servo Drive Unit | Controls servo motor operation. |
| ABB Robot Controller | Provides motion commands and system management. |
| Servo Motor | Converts electrical energy into mechanical movement. |
| Encoder Feedback Device | Provides motor position and speed feedback. |
| Power Supply Module | Supplies required electrical power to the drive system. |
| Robot Mechanical Unit | Performs physical axis movement. |
Installation
The ABB 3HAC14550-4/09A should be installed in a compatible ABB robot or motion control system by qualified technicians.
Before installation, verify:
- Correct servo drive model
- System compatibility
- Power supply requirements
- Motor connection configuration
- Feedback cable connection
- Communication interface
During installation, all electrical connections should be checked carefully to avoid incorrect wiring or communication faults. After installation, the drive system should be configured and tested to confirm correct motor operation.
Proper setup is important because incorrect drive parameters may cause positioning errors, motor faults, or unstable robot movement.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Servo Drive Alarm | Internal fault or incorrect configuration | Check drive status and controller diagnostics. |
| Motor Cannot Move | Power supply or communication issue | Verify power connection and control signals. |
| Positioning Error | Feedback signal problem | Check encoder connection and calibration data. |
| Abnormal Motor Noise | Incorrect parameters or mechanical issue | Inspect drive settings and mechanical system. |
| Intermittent Operation | Loose connection or unstable communication | Check cables and electrical connections. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| 3HAC14550-4/09A | Single Servo Drive Unit | ABB robot axis motion control |
| 3HAC14550-4 | Single Servo Drive Unit | Industrial robot servo applications |
| 3HAC020536-001 | Servo Drive Module | ABB robot motion control |
| DSQC Series Drive Modules | Robot Drive Components | ABB controller systems |
| IRC5 Controller | Robot Control System | Industrial robot operation |
| ABB Servo Motor Series | Robot Motor Component | Axis movement control |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| ABB Servo Drive Units | Motion Control Module | Servo motor operation |
| ABB IRC5 Series | Robot Controller Platform | Robot motion management |
| ABB DSQC Series | Robot Control Hardware | Drive and control functions |
| ABB Servo Motors | Motion Component | Mechanical axis movement |
| Encoder Feedback Devices | Position Sensor | Motion feedback |
| ABB Industrial Robots | Automation Equipment | Manufacturing applications |
Technical FAQs
1. What is the main function of the ABB 3HAC14550-4/09A?
The 3HAC14550-4/09A controls servo motor operation by regulating motor speed, torque, and position according to commands from the robot controller.
2. Is the 3HAC14550-4/09A a complete robot controller?
No. It is a servo drive component that works together with the robot controller, motor, and feedback system to control robot movement.
3. Why is a servo drive important for robot accuracy?
The servo drive provides precise motor control and uses feedback signals to maintain accurate axis positioning and repeatable movement.
4. What components work together with this servo drive unit?
A typical system includes an ABB controller, servo motor, encoder feedback device, power supply, and mechanical robot axis components.
5. What should be checked when replacing the servo drive unit?
The replacement process should verify model compatibility, motor specifications, wiring connections, drive parameters, feedback signals, and system configuration.
