Overview

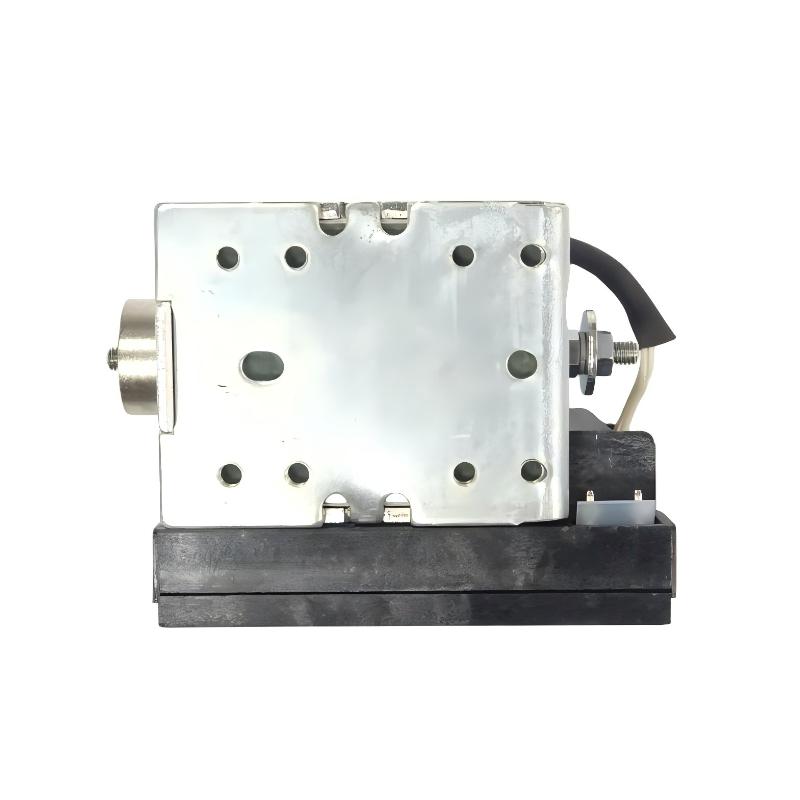

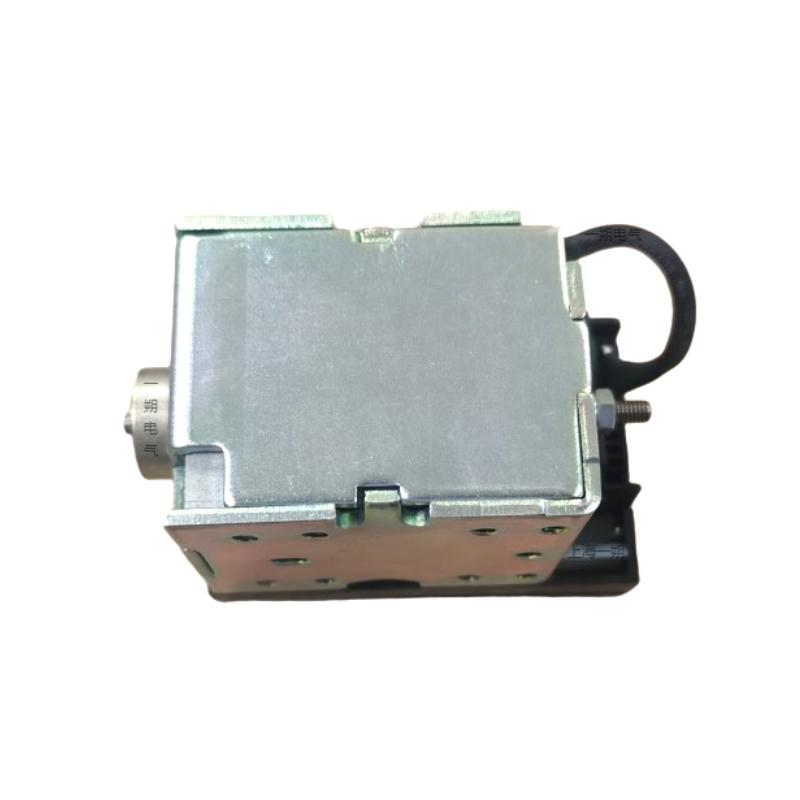

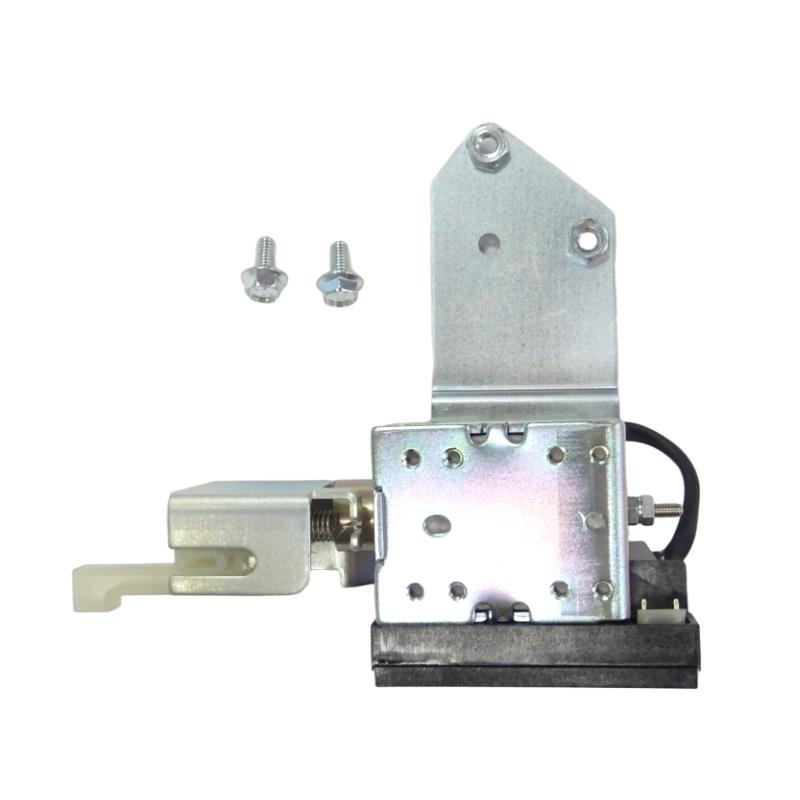

The ABB 1VCF339756S4918 is a Switch Spring Energy Storage Motor designed for ABB medium-voltage circuit breaker operating mechanisms. It is used to drive the spring charging mechanism, storing mechanical energy required for reliable circuit breaker closing operations.
The motor is an important part of the circuit breaker operating system. By charging the closing spring automatically, it ensures that the breaker can perform fast and reliable closing actions when required. It is commonly used in ABB VD4 and related medium-voltage switchgear applications where dependable switching performance is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | 1VCF339756S4918 |
| Product Type | Switch Spring Energy Storage Motor |
| Application | Medium Voltage Circuit Breaker Operating Mechanism |
| Dimensions | 120 × 105 × 85 mm |
| Weight | 2.1 kg |
| Main Function | Charging Circuit Breaker Closing Spring |
| Installation Type | Internal Circuit Breaker Mechanism Mounted |
| Typical Equipment | ABB VD4 Series Switchgear |
| System Function | Mechanical Energy Storage for Switching Operation |
Applications
Medium Voltage Circuit Breakers
The motor is mainly used in medium-voltage circuit breakers to automatically charge the closing spring mechanism and prepare the breaker for switching operations.
Power Distribution Systems
In electrical distribution networks, the motor helps maintain breaker readiness by ensuring stored mechanical energy is available when a closing command is received.
Substation Switchgear
The unit supports reliable operation of switchgear equipment used in substations by maintaining the energy storage system of the circuit breaker.
Industrial Power Systems
It is suitable for industrial electrical installations where circuit breakers require frequent and dependable operating cycles.
Electrical Protection Equipment
The motor supports protection systems by ensuring that switching devices can respond quickly during normal operation or fault conditions.
How It Works
The ABB 1VCF339756S4918 operates as an energy charging drive component inside a circuit breaker operating mechanism.
When the circuit breaker closing spring needs to be charged, the motor receives a control signal and rotates the charging mechanism. The mechanical movement compresses the spring, storing energy that will later be released during the breaker closing operation.
A typical operating structure is:
Control Circuit → Energy Storage Motor → Spring Charging Mechanism → Circuit Breaker Closing Mechanism
Once the spring reaches the fully charged position, an auxiliary switch or position mechanism stops the motor operation. The stored mechanical energy remains available until the breaker receives a closing command.
Key Benefits
| Feature | Benefit |
|---|---|
| Automatic Spring Charging | Maintains circuit breaker readiness without manual operation. |
| Reliable Mechanical Drive | Supports consistent energy storage performance. |
| Compact Structure | Fits within circuit breaker operating mechanisms. |
| Fast Switching Preparation | Allows rapid preparation for closing operations. |
| Industrial Durability | Designed for demanding electrical equipment environments. |
| ABB System Compatibility | Suitable for ABB medium-voltage switchgear applications. |
Related Components
| Component | Function |
|---|---|
| 1VCF339756S4918 Energy Storage Motor | Drives the spring charging mechanism. |
| Circuit Breaker Closing Spring | Stores mechanical energy for closing operation. |
| Auxiliary Switch | Detects spring charging status. |
| Circuit Breaker Operating Mechanism | Controls breaker opening and closing actions. |
| Control Coil | Receives electrical commands for switching operations. |
| VD4 Circuit Breaker | Performs medium-voltage switching functions. |
Installation
The ABB 1VCF339756S4918 should be installed inside a compatible ABB circuit breaker operating mechanism by qualified electrical technicians.
Before installation, verify:
- Correct motor model
- Circuit breaker compatibility
- Operating voltage requirements
- Mechanical mounting position
- Electrical connection condition
- Spring charging mechanism condition
During installation, ensure the motor is correctly aligned with the charging mechanism. Incorrect installation may cause incomplete spring charging, abnormal mechanical noise, or failure of the circuit breaker closing operation.
After installation, the charging function should be tested to confirm that the spring mechanism operates correctly and the breaker can complete normal switching cycles.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Spring Cannot Charge | Motor failure or power supply issue | Check motor voltage and electrical connections. |
| Motor Runs Continuously | Charging limit switch fault | Inspect auxiliary switch and charging position detection. |
| Slow Spring Charging | Mechanical resistance or motor wear | Check charging mechanism movement. |
| Abnormal Noise During Operation | Mechanical alignment problem | Inspect motor mounting and drive mechanism. |
| Circuit Breaker Cannot Close | Spring not fully charged | Check motor operation and energy storage status. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| 1VCF339756S4918 | Switch Spring Energy Storage Motor | ABB VD4 circuit breaker spring charging |
| 1VCF319501 Series | Circuit Breaker Charging Motor | Medium-voltage breaker operating mechanism |
| 1VCF339750 Series | Circuit Breaker Mechanism Components | VD4 breaker spare parts |
| ABB VD4 Series | Vacuum Circuit Breaker | Medium-voltage switching applications |
| ABB Auxiliary Switch Modules | Position Detection Components | Breaker status monitoring |
| ABB Operating Mechanism Parts | Mechanical Components | Circuit breaker maintenance |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| ABB VD4 Series | Vacuum Circuit Breaker | Medium-voltage power switching |
| ABB Circuit Breaker Accessories | Spare Components | Breaker maintenance and repair |
| Spring Charging Motors | Energy Storage Components | Automatic breaker preparation |
| Auxiliary Switches | Status Monitoring Components | Position indication |
| Operating Mechanisms | Mechanical Drive Systems | Breaker opening and closing |
| Medium Voltage Switchgear | Electrical Equipment | Power distribution and protection |
Technical FAQs
1. What is the main function of the ABB 1VCF339756S4918?
The ABB 1VCF339756S4918 charges the closing spring of a circuit breaker operating mechanism, storing mechanical energy required for breaker closing operations.
2. Is the 1VCF339756S4918 used for opening or closing the breaker?
The motor is mainly used for charging the closing spring. The stored spring energy is later released to perform the circuit breaker closing action.
3. Which components work together with this energy storage motor?
It typically works with the circuit breaker mechanism, closing spring, auxiliary switches, control circuits, and related mechanical transmission parts.
4. What happens if the spring charging motor fails?
If the motor fails, the closing spring may not charge correctly, which can prevent the circuit breaker from completing a normal closing operation.
5. What should be checked when replacing this motor?
The replacement should verify motor compatibility, operating voltage, mechanical connection, wiring configuration, and proper spring charging operation after installation.
