- Yokogawa

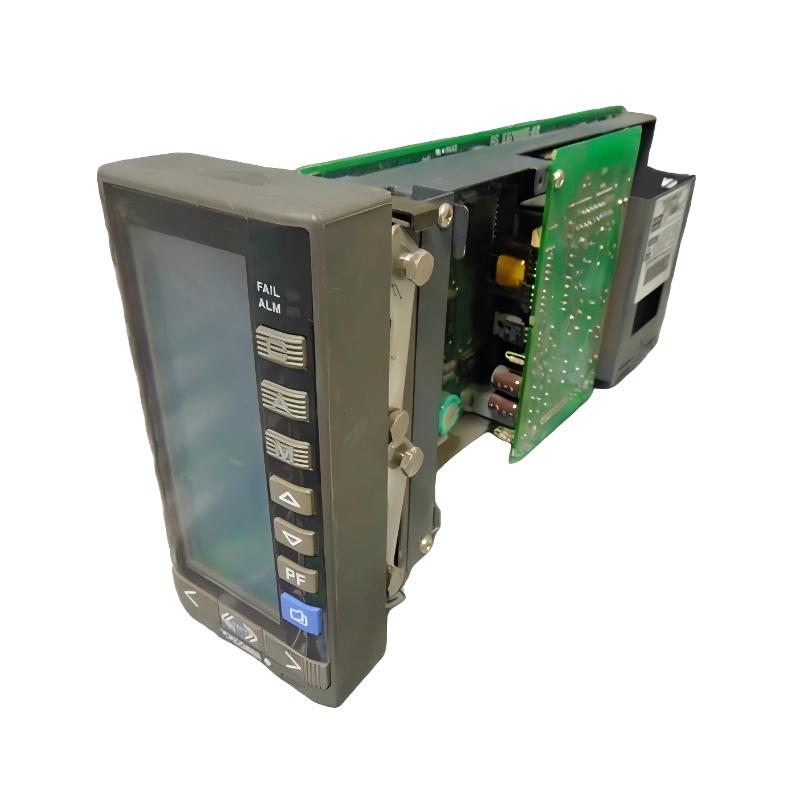

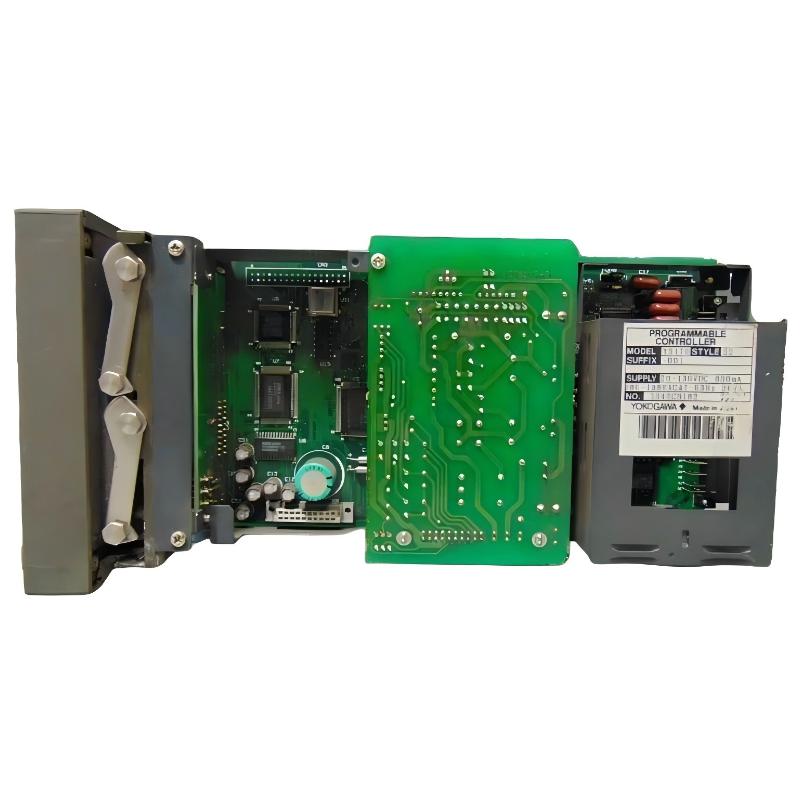

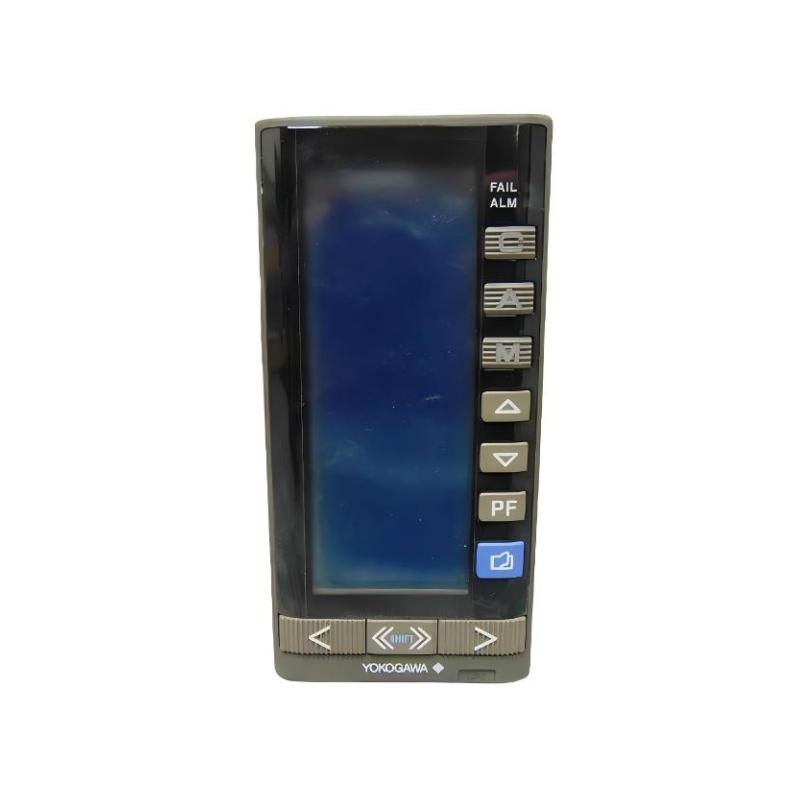

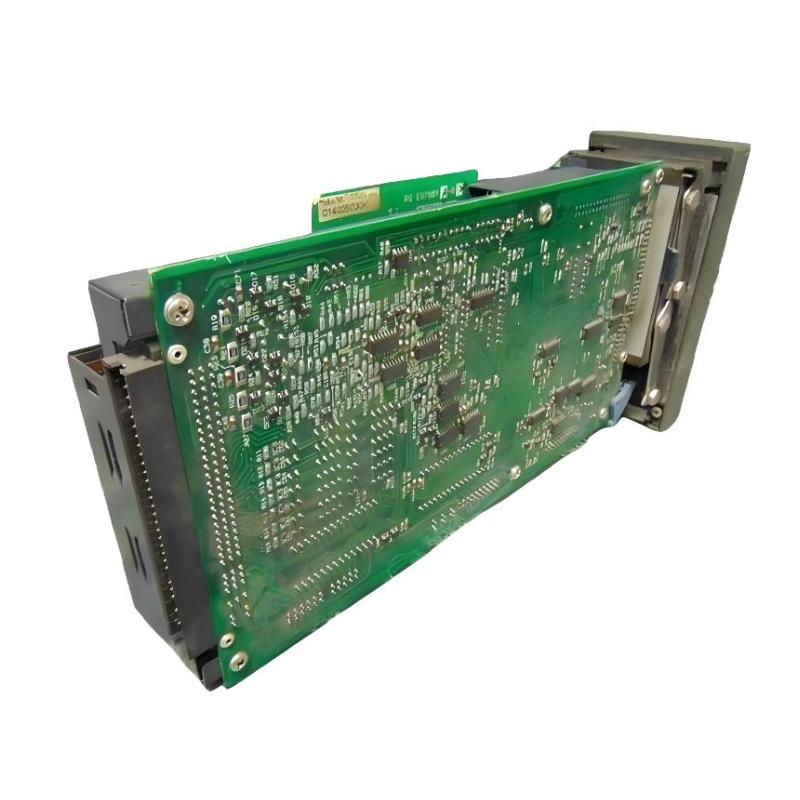

- YS150-012
- Single-Loop Multi-Function Controller
- Japan
- 330 x 50 x 232 mm
- 1.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Yokogawa YHC4150X-01 is a portable full-featured HART communicator used for commissioning, configuration, diagnostics, and maintenance of HART-enabled field instruments in industrial automation systems.
It allows direct interaction with smart devices such as:
- Pressure transmitters
- Temperature transmitters
- Flow transmitters
- Level transmitters
The device communicates using the HART protocol over a 4–20 mA current loop, enabling full field access to device parameters.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | YHC4150X-01 |
| Product Type | Portable HART Communicator |
| Communication Protocol | HART (over 4–20 mA loop) |
| Function | Configuration, calibration, diagnostics |
| Supported Commands | Universal / Common Practice / Device-specific |
| Power Supply | Battery-powered (field portable) |
| Interface | HART loop connection |
Physical Specifications
| Parameter | Details |
|---|---|
| Dimensions | 130 × 25 × 85 mm |
| Weight | 0.6 kg |
Function and Working Principle
The device works by superimposing a digital HART signal over the analog 4–20 mA loop.
Working Process
- Connects in parallel with a live field instrument loop
- Sends digital communication commands to the device
- Reads process variables and diagnostics
- Updates configuration parameters
- Performs calibration and trimming operations
Key Functions
- Field instrument configuration
- Reading process variables (PV, SV, TV, FV)
- Calibration and sensor trimming
- Device diagnostics and fault detection
- Uploading and downloading device configurations
- Commissioning and maintenance support
System Role
In a typical process control system:
- Field transmitter outputs 4–20 mA signal
- HART digital signal is layered on the same loop
- Communicator connects across loop terminals
- Device parameters are read or modified
- Instrument continues normal operation
Industrial Applications
- Oil and gas plants
- Petrochemical industries
- Power generation systems
- Chemical processing plants
- Water treatment facilities
- Industrial maintenance operations
Key Features
- Full HART protocol support
- Portable handheld design
- Supports multi-vendor field instruments
- Fast field connection and operation
- Suitable for commissioning and maintenance tasks
- Field-ready industrial construction
Advantages
- Fast troubleshooting in the field
- Reduces maintenance downtime
- Compatible with standard HART devices
- Improves commissioning efficiency
- Portable and easy to operate
Installation / Usage Notes
- Connects across a live 4–20 mA loop
- Requires proper loop resistance (typically 250 Ω)
- Used during commissioning or maintenance only
- Not permanently installed in control systems
- Must be used with correct field wiring practices
FAQ
Q: What is YHC4150X-01 used for?
It is used to configure and maintain HART field instruments.
Q: What communication method does it use?
HART protocol over a 4–20 mA analog loop.
Q: Is it portable?
Yes, it is a handheld field communicator.
Q: What devices does it support?
HART-compatible smart transmitters and field instruments.
Conclusion
The Yokogawa YHC4150X-01 Portable HART Communicator is a field maintenance and configuration tool used in industrial automation systems.
It provides reliable access to HART-enabled devices for diagnostics, calibration, and parameter adjustment, making it essential for field instrumentation commissioning and maintenance workflows.
