Product Overview

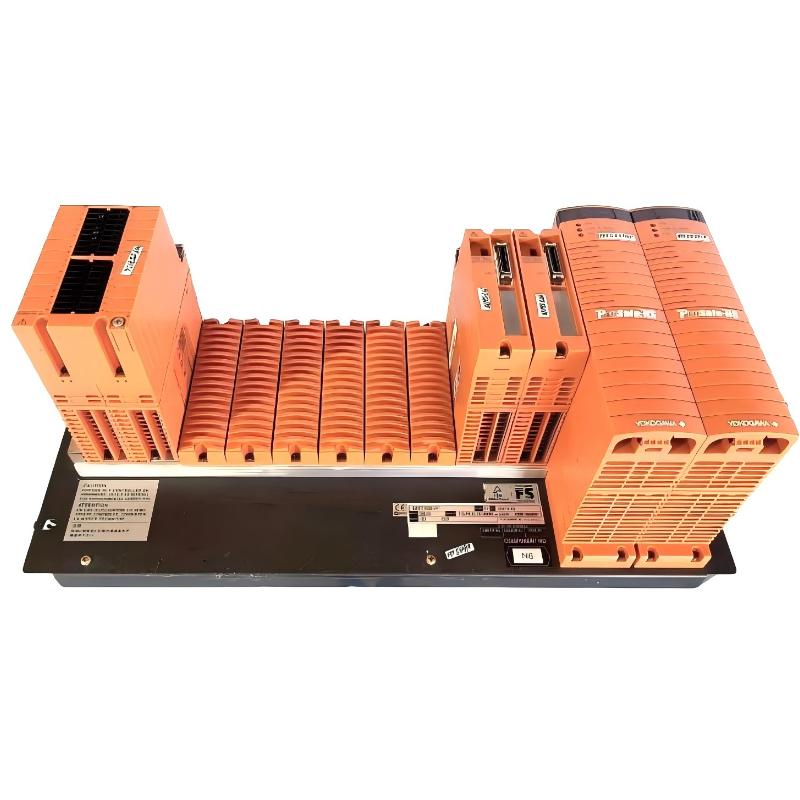

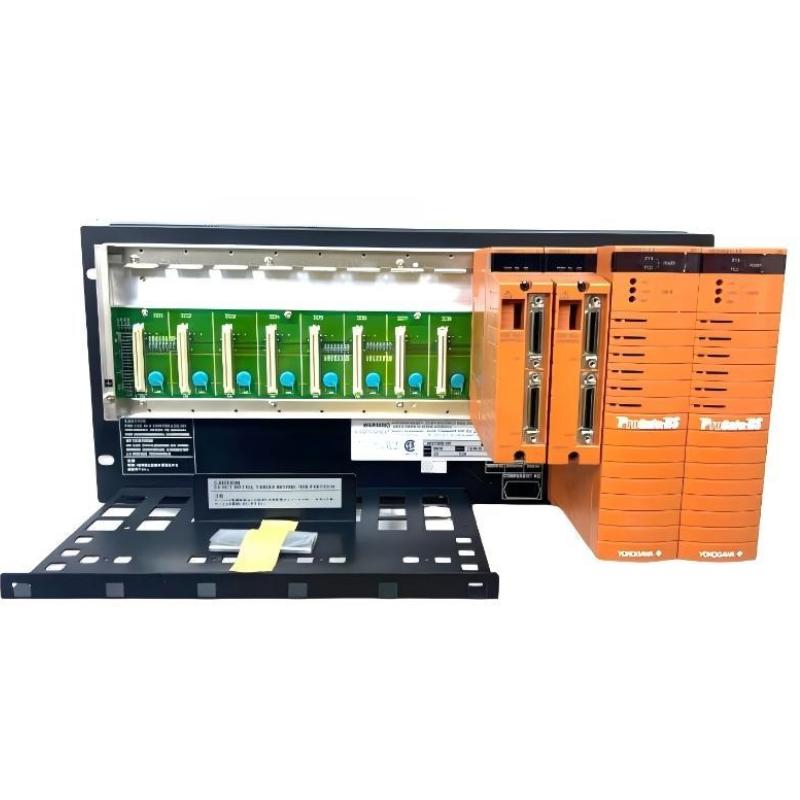

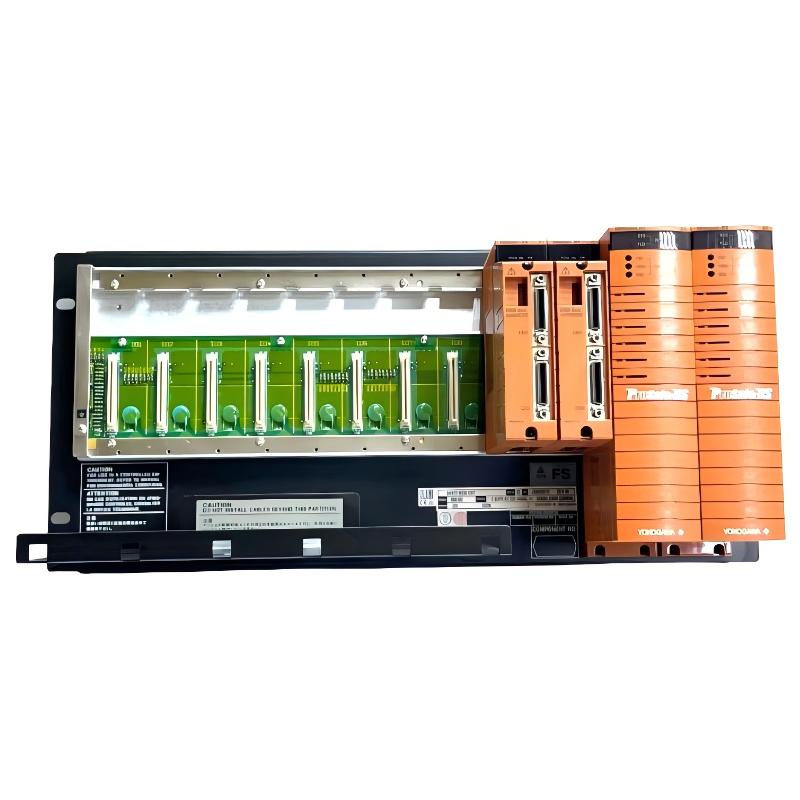

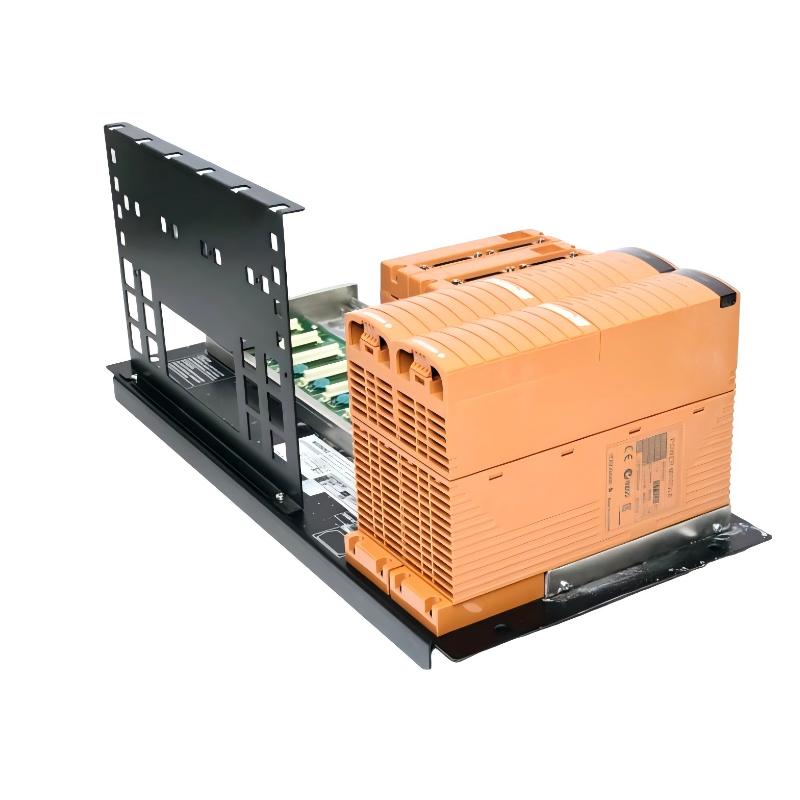

The Yokogawa SNB10D-415/CU2T Safety Node Unit is a key component in Yokogawa’s ProSafe-RS Safety Instrumented System (SIS) architecture. It is designed as a distributed safety I/O node, responsible for handling field signal acquisition, ESB bus communication, and power distribution for connected safety modules.
The /CU2T configuration indicates a connector unit with ESB termination support, which improves signal stability and integrity at the end of the bus line in redundant safety network topologies.
This module is widely used in high-integrity industrial environments where continuous operation, fault tolerance, and SIL compliance are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | SNB10D-415/CU2T |
| Product Type | Safety Node Unit |
| System Platform | ProSafe-RS SIS |
| Function | Safety I/O node, ESB communication, power distribution |
| Communication Protocol | ESB Bus |
| Installation Type | 19-inch rack mounted |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 5.9 kg |
| Redundancy Support | Dual-redundant architecture supported |
| Environmental Use | Industrial safety & automation systems |
| Installation Location | Control cabinet / SIS rack system |
Function and Working Principle
The SNB10D-415/CU2T functions as a distributed safety interface node within a Yokogawa ProSafe-RS system.
Its main functions include:
- Collecting analog and digital field signals from safety I/O modules
- Providing power distribution to connected modules
- Transmitting safety data via ESB bus communication
- Supporting redundant and fault-tolerant system operation
- Maintaining stable ESB bus termination integrity (/CU2T feature)
System Data Flow
Field Devices → Safety I/O Modules → SNB10D Node Unit → ESB Bus Network → Safety Control Unit (SCU)
This architecture ensures deterministic communication and high reliability, which is essential for safety-critical operations such as emergency shutdown and process protection systems.
Role in Industrial Control Systems
Within ProSafe-RS SIS architecture, the SNB10D-415/CU2T acts as a local I/O hub, enabling decentralized field integration while maintaining centralized safety logic execution.
It typically interfaces with:
- Emergency Shutdown Systems (ESD)
- Fire & Gas Detection Systems (F&G)
- Process interlock systems
- Safety transmitters (pressure, temperature, flow, level)
- Digital safety switches and contact inputs
- Remote I/O expansion subsystems
By distributing I/O processing closer to field equipment, it reduces wiring complexity and improves system scalability.
Industrial Applications
The SNB10D-415/CU2T is commonly deployed in:
- Oil & gas upstream and downstream facilities
- Petrochemical processing plants
- Refinery safety systems
- Offshore platforms and FPSO units
- Power generation plants
- Chemical manufacturing industries
- Large-scale industrial automation systems
- Safety Instrumented Systems (SIS / SIL environments)
It is particularly suited for environments requiring high availability and continuous operation under harsh conditions.
Installation and System Integration
Proper installation is critical for system performance:
- Install in standard 19-inch industrial racks
- Ensure correct ESB bus wiring and termination configuration (/CU2T)
- Maintain grounding and shielding for signal integrity
- Follow redundancy design rules defined by system architecture
- Avoid mechanical stress on connectors and backplane interfaces
- Perform full system validation during commissioning
Correct configuration ensures stable communication and long-term operational reliability.
Compatible System Components
The SNB10D-415/CU2T works with:
- Yokogawa ProSafe-RS safety controllers
- ESB bus coupler modules (SEC401 / SEC402 series)
- Safety analog input/output modules
- Digital safety I/O modules
- Terminal boards (SEA / SED / SBD series)
- System power supply modules
- Engineering and maintenance stations
Together, these components form a complete SIL-rated distributed safety automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| SNB10D-415/CU2T | Safety Node Unit | ESB termination connector configuration | SIS / ESD systems |
| SNB10D-415/CU2N | Safety Node Unit | Standard connector variant | General safety nodes |
| SNB10D-225/CU2T | Safety Node Unit | Higher system level variant | Advanced SIS systems |
| SNB10D-223/CU2N | Safety Node Unit | Standard configuration | General applications |
| SNB10D-243/C2UT | Safety Node Unit | Alternative ESB termination design | Safety network endpoints |
Key Advantages
- SIL3-oriented safety system architecture
- High reliability ESB communication backbone
- Stable bus termination design for signal integrity
- Supports redundant system configuration
- Distributed I/O architecture reduces wiring complexity
- Strong diagnostics and fault detection capability
- Designed for continuous 24/7 operation
- Proven performance in harsh industrial environments
- Scalable for large SIS deployments
Technical FAQs
What is SNB10D-415/CU2T used for?
It is used as a safety node unit in Yokogawa ProSafe-RS systems for field signal acquisition and ESB-based communication.
Is it a controller or CPU?
No. It is a distributed I/O and communication node, not a control processor.
What does /CU2T mean?
It indicates a connector unit configuration with ESB termination support for improved bus stability at the network endpoint.
What industries use this module?
It is widely used in oil & gas, petrochemical, power generation, and chemical processing industries.
Conclusion
The Yokogawa SNB10D-415/CU2T Safety Node Unit is a critical component in modern industrial safety systems. It provides reliable field signal handling, ESB communication, and power distribution within ProSafe-RS architectures. With its termination-optimized connector design and redundant system support, it ensures stable, safe, and continuous operation in demanding industrial environments where system integrity is essential.
