- Yokogawa
- SED2D-01
- Digital Terminal Board
- Japan
- 482.6 x 177 x 85 mm
- 2.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

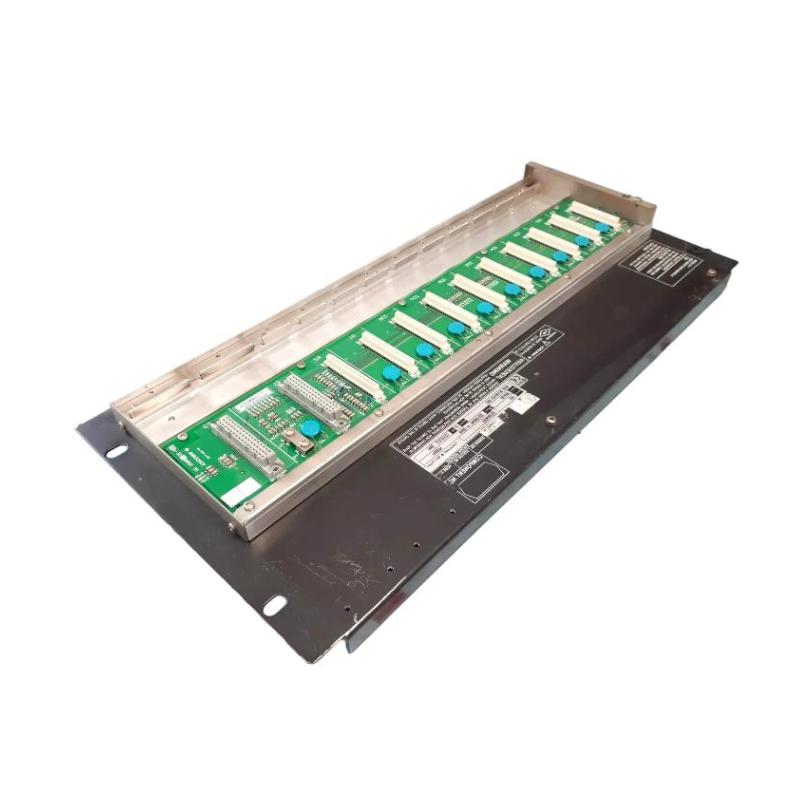

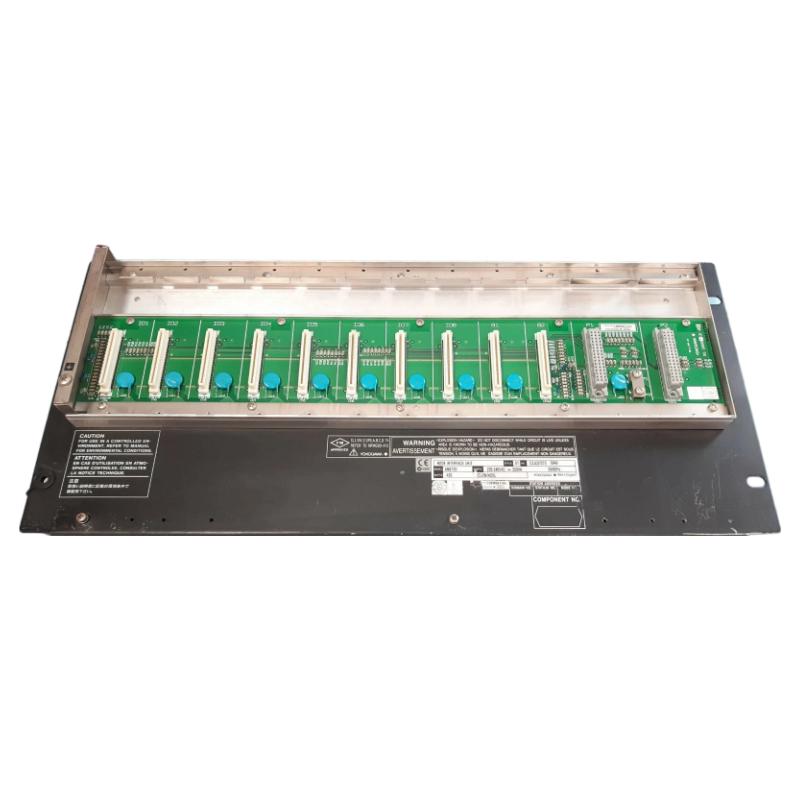

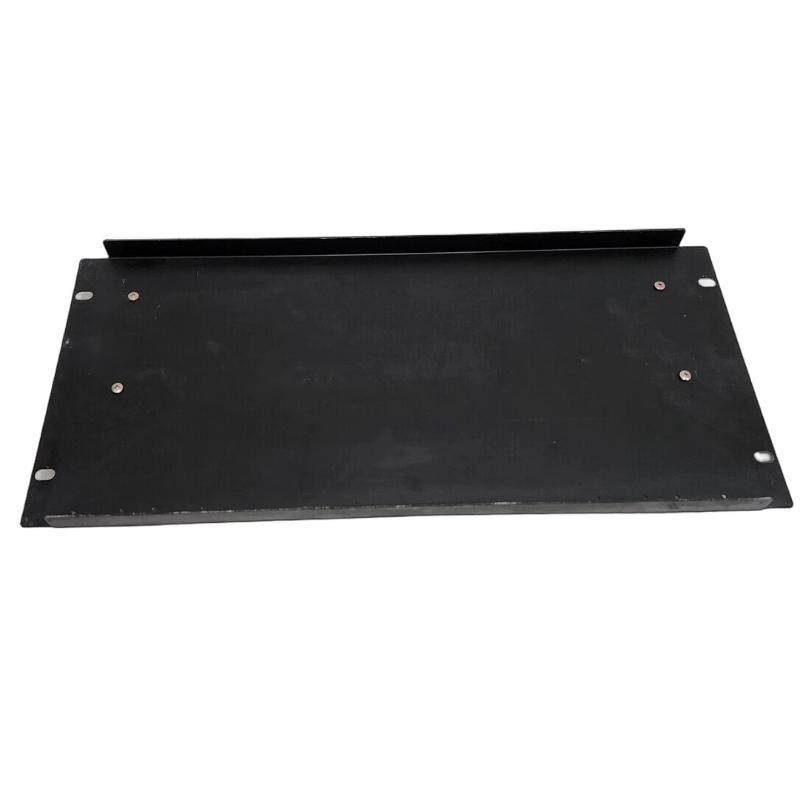

The Yokogawa SED2D-01 Digital Terminal Board is an industrial signal termination module used in Yokogawa Distributed Control Systems (DCS) and ProSafe-RS safety systems. It is designed to provide a reliable and organized interface between field digital devices and DCS/SIS input/output modules, ensuring stable signal transmission and simplified control cabinet wiring.
This module is widely used in process automation and safety-critical environments, including oil & gas, petrochemical plants, power generation stations, and large-scale industrial facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | SED2D-01 |
| Product Type | Digital Terminal Board |
| Function | Digital Signal Termination / Field Wiring Interface |
| System Compatibility | Yokogawa CENTUM / ProSafe-RS / DCS & SIS systems |
| Channel Capacity | Typically 4 channels × 4 configuration (system dependent) |
| Mounting Type | 19-inch rack / control cabinet installation |
| Installation Location | Marshalling panel / control cabinet |
| Dimensions | 482.6 × 177 × 85 mm |
| Weight | 2.3 kg |
| Terminal Type | Screw terminal (industrial-grade wiring interface) |
| Signal Type | Digital input/output signals (24 VDC typical system usage) |
| Operating Temperature | -20°C to +60°C |
| Insulation Withstand Voltage | Up to 2000 V AC (system dependent design) |
| Country of Manufacture | Japan |
Function and Working Principle
The SED2D-01 operates as a passive wiring interface module, meaning it does not process signals but instead provides secure termination and routing for field wiring.
Its core functions include:
- Providing termination points for digital field wiring
- Connecting field switches, sensors, and actuators to DCS/SIS modules
- Organizing high-density wiring inside control cabinets
- Reducing wiring errors during installation and maintenance
- Supporting stable and noise-resistant signal transmission
Signals from field devices pass through the terminal board and are routed directly to Yokogawa digital I/O modules for processing.
Role in Industrial Control Systems
Within Yokogawa automation architecture, the SED2D-01 acts as a wiring and signal distribution layer, connecting:
- Field digital sensors (switches, limit switches, contacts)
- Digital input/output modules
- Field Control Units (FCU)
- Safety Instrumented Systems (SIS / ProSafe-RS)
- Control cabinet marshalling systems
It improves system reliability by separating field wiring from sensitive control electronics and simplifying maintenance operations.
Industrial Applications
The Yokogawa SED2D-01 is widely used in:
- Distributed Control Systems (DCS)
- Safety Instrumented Systems (SIS)
- Emergency Shutdown Systems (ESD)
- Oil and gas production facilities
- Petrochemical and refining plants
- Power generation stations
- Water and wastewater treatment systems
- Industrial automation control cabinets
It is especially important in environments requiring structured and reliable digital signal wiring management.
Installation and System Integration
Proper installation ensures stable signal performance and maintainability.
Recommended practices include:
- Install in standard 19-inch control cabinet racks
- Ensure correct channel labeling and wiring documentation
- Use shielded cables where required for noise reduction
- Maintain proper grounding for system stability
- Verify wiring continuity before system commissioning
- Follow Yokogawa wiring standards and engineering guidelines
Correct installation reduces troubleshooting time and improves long-term system reliability.
Compatible System Components
The SED2D-01 is commonly used with:
- Yokogawa digital input/output modules
- Field Control Units (FCU)
- CENTUM DCS systems
- ProSafe-RS safety systems
- Field switches and discrete sensors
- Junction boxes and marshalling panels
- System cable assemblies
These components together form a complete and reliable digital signal acquisition system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| SED2D-01 | Digital Terminal Board | Standard digital termination | DCS/SIS systems |
| SED4D-01 | Digital Terminal Board | Higher channel density | Safety-critical systems |
| SED2D-11 | Digital Terminal Board | Updated variant design | Modern DCS systems |
| SBD4D-06 | Digital Terminal Board | Digital I/O termination board | Field wiring systems |
| SEA4D-01 | Analog Terminal Board | Analog signal termination | Process control systems |
Key Advantages
- Reliable digital signal termination for field wiring
- Improves wiring organization in control cabinets
- Strong compatibility with Yokogawa DCS and SIS systems
- Reduces installation and maintenance complexity
- Industrial-grade rack-mounted design
- Supports stable signal transmission in noisy environments
- Enhances long-term system maintainability
- Suitable for continuous 24/7 operation
- Proven reliability in critical industrial applications
Technical FAQs
What is the main function of SED2D-01?
It provides termination and organized wiring connections for digital field signals in Yokogawa control systems.
Is SED2D-01 an active module?
No. It is a passive terminal board and does not process or control signals.
Where is it used?
It is used in Yokogawa DCS and ProSafe-RS systems for digital signal wiring and distribution.
Does it amplify signals?
No. It only provides physical connection and routing between field devices and control modules.
Conclusion
The Yokogawa SED2D-01 Digital Terminal Board is a key infrastructure component in Yokogawa Distributed Control Systems. It ensures safe, organized, and reliable termination of digital field wiring, improving system maintainability and reducing installation complexity. With its robust industrial design and strong integration with DCS and safety systems, it plays an essential role in modern industrial automation architectures.
