Product Overview

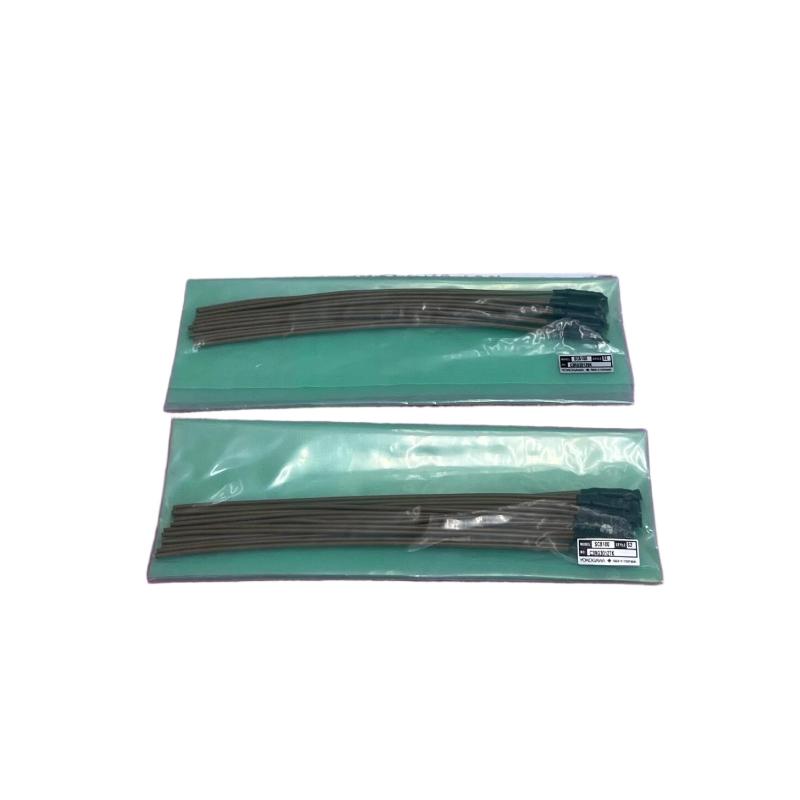

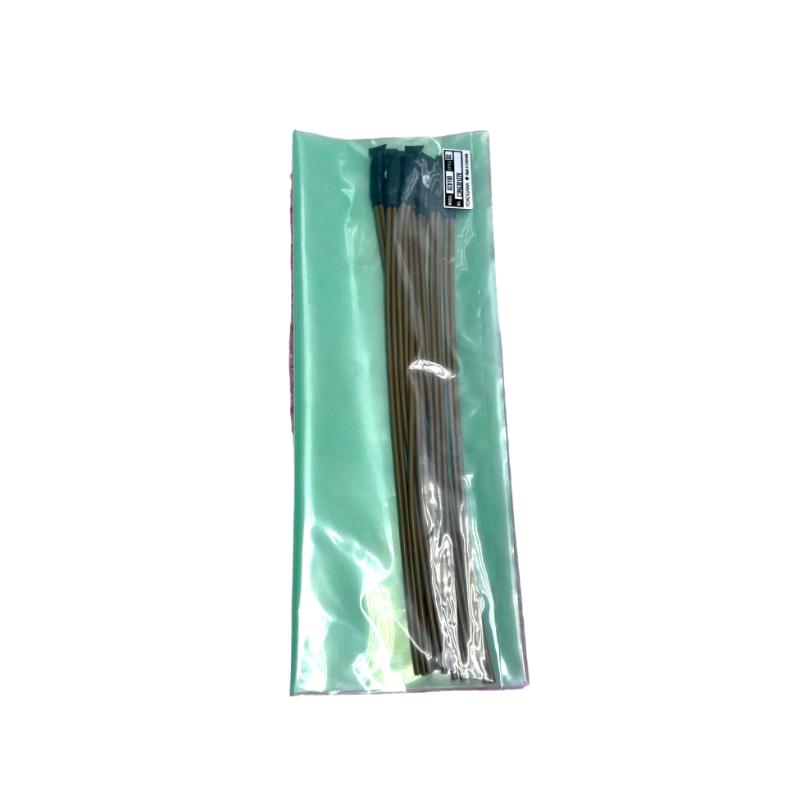

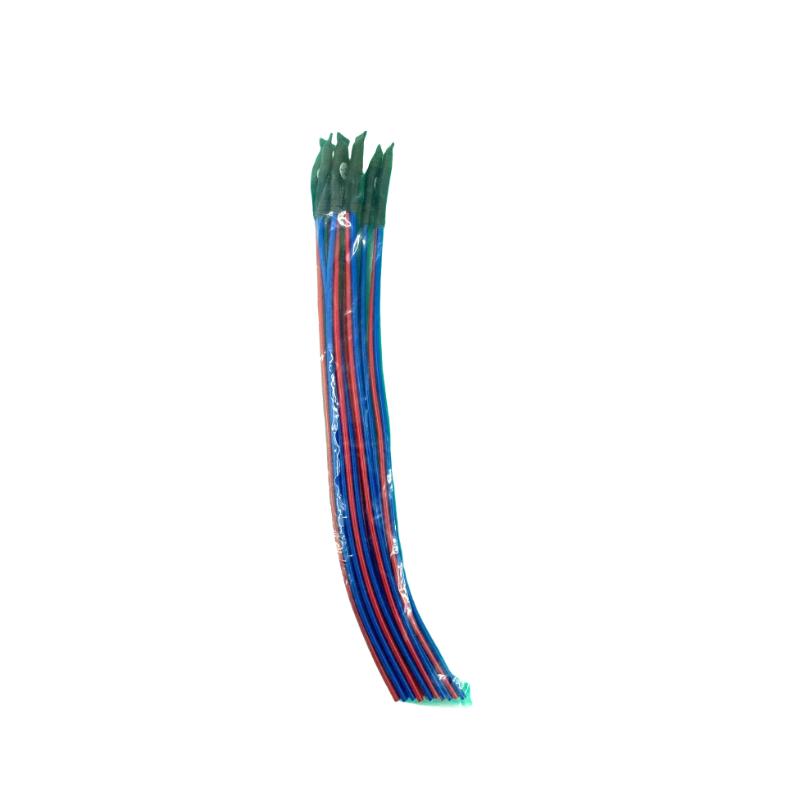

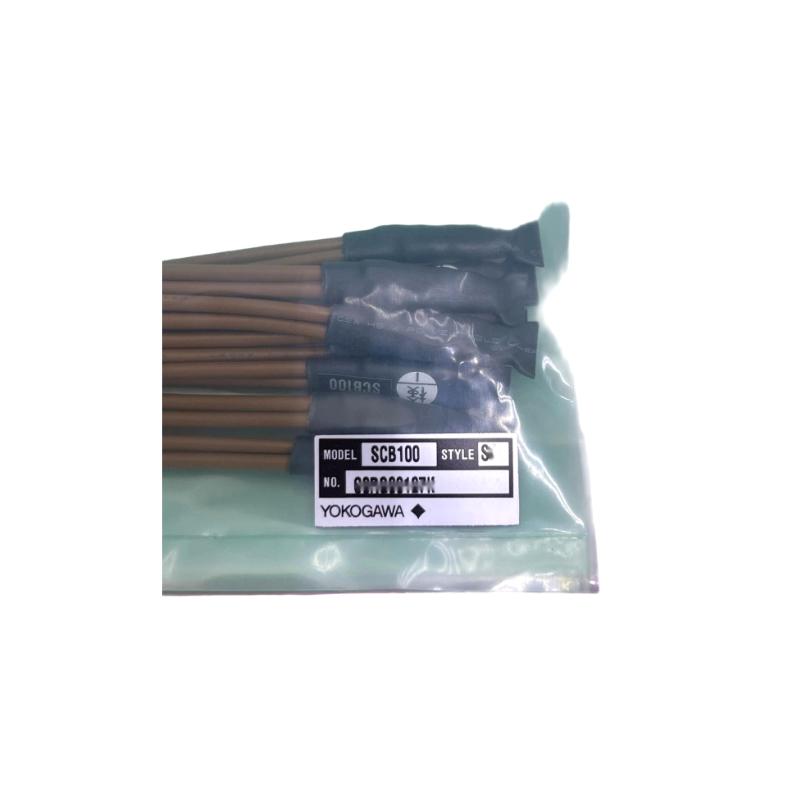

The Yokogawa SCB100-S0 Digital Input Wiring Check Adapter is an industrial diagnostic interface used in Yokogawa Distributed Control Systems (DCS). It is designed to verify and monitor the integrity of digital input wiring, helping detect issues such as open circuits, short circuits, or wiring faults in field signal loops.
This module is widely used in mission-critical automation environments where reliable digital signal validation is essential for system safety and operational stability, such as oil & gas, petrochemical, and power generation plants.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | SCB100-S0 |
| Product Type | Digital Input Wiring Check Adapter |
| Function | Digital Input Loop Diagnostic / Wiring Integrity Check |
| System Compatibility | Yokogawa DCS / CENTUM VP / FIO systems |
| Channel Capacity | Typically up to 32 channels (system dependent) |
| Signal Type | 24 VDC digital input loops |
| Installation | Control cabinet / terminal board inline mounting |
| Dimensions | 250 × 5 × 10 mm |
| Weight | 0.3 kg |
| Operating Temperature | -20°C to +60°C |
| Function Type | Passive diagnostic adapter |
| Country of Manufacture | Japan |
Function and Working Principle
The SCB100-S0 operates as a passive diagnostic monitoring adapter inserted into digital input signal loops. It does not process control logic but continuously checks the electrical condition of wiring.
Its core functions include:
- Detecting open-circuit wiring failures
- Identifying short-circuit conditions
- Differentiating true OFF signals from wiring faults
- Monitoring loop integrity in real time
- Improving reliability of digital input systems
It works by monitoring current/voltage behavior in the digital input loop and ensuring that the system can distinguish between a valid OFF state and a wiring failure.
Role in Industrial Control Systems
Within Yokogawa DCS architectures, the SCB100-S0 acts as a signal integrity assurance layer, connecting:
- Field digital switches and sensors
- Digital input modules
- Terminal boards and wiring systems
- Field Control Units (FCU)
- Safety and interlock systems
It improves diagnostic visibility and helps prevent false process status signals caused by wiring issues.
Industrial Applications
The Yokogawa SCB100-S0 is widely used in:
- Distributed Control Systems (DCS)
- Safety Instrumented Systems (SIS)
- Oil and gas production facilities
- Petrochemical processing plants
- Power generation stations
- Chemical manufacturing industries
- Water and wastewater treatment systems
- Industrial automation control systems
It is especially valuable in high-availability safety loops, where wiring faults must be detected immediately.
Installation and System Integration
Proper installation is essential for accurate diagnostics.
Recommended practices include:
- Install inline with digital input wiring circuits
- Ensure correct polarity and channel mapping
- Use shielded cables to reduce noise interference
- Maintain proper grounding and loop integrity
- Verify loop operation after installation
- Follow Yokogawa wiring and commissioning standards
Correct installation ensures accurate fault detection and stable system operation.
Compatible System Components
The SCB100-S0 is commonly used with:
- Yokogawa digital input modules
- Field Control Units (FCU)
- CENTUM VP control systems
- FIO (Field Input/Output) systems
- Terminal boards (digital I/O boards)
- Field switches and contact sensors
- Safety interlock systems
These components work together to ensure reliable digital signal acquisition and diagnostics.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| SCB100-S0 | Digital Input Wiring Check Adapter | Loop diagnostics & fault detection | DCS systems |
| SBD4D-06 | Digital Terminal Board | Standard digital termination | I/O wiring |
| SBA4D-06 | Analog Terminal Board | Analog signal termination | Process control |
| S9981DE-0 | Interface Unit | System integration bridge | Communication layer |
| SB401-11 | Bus Interface Slave Module | ESB communication node | Distributed control |
Key Advantages
- Detects wiring faults in real time
- Improves digital input signal reliability
- Enhances safety in critical control systems
- Helps distinguish real OFF signals from wiring failures
- Passive design (no external power required)
- Strong compatibility with Yokogawa DCS systems
- Suitable for harsh industrial environments
- Reduces maintenance and troubleshooting time
- Improves overall system diagnostic capability
Technical FAQs
What is the main function of SCB100-S0?
It checks the integrity of digital input wiring and detects faults such as open or short circuits.
Is it an active module?
No. It is a passive diagnostic adapter that does not process control logic.
Where is it used?
It is used in Yokogawa DCS and safety systems for digital input loop monitoring.
Does it affect signal processing?
No. It only monitors wiring conditions without altering control signals.
Conclusion
The Yokogawa SCB100-S0 Digital Input Wiring Check Adapter is an important diagnostic component in Yokogawa Distributed Control Systems. It ensures reliable detection of wiring faults in digital input loops, improving system safety, accuracy, and maintainability. With its compact design, passive operation, and strong compatibility with industrial automation systems, it plays a key role in maintaining trustworthy signal integrity in critical process environments.
