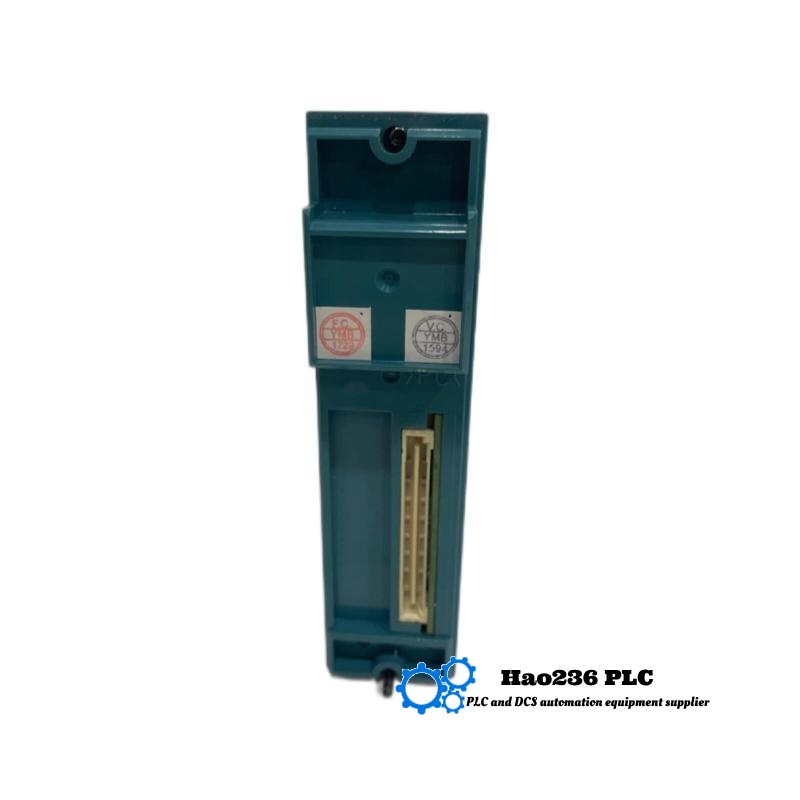

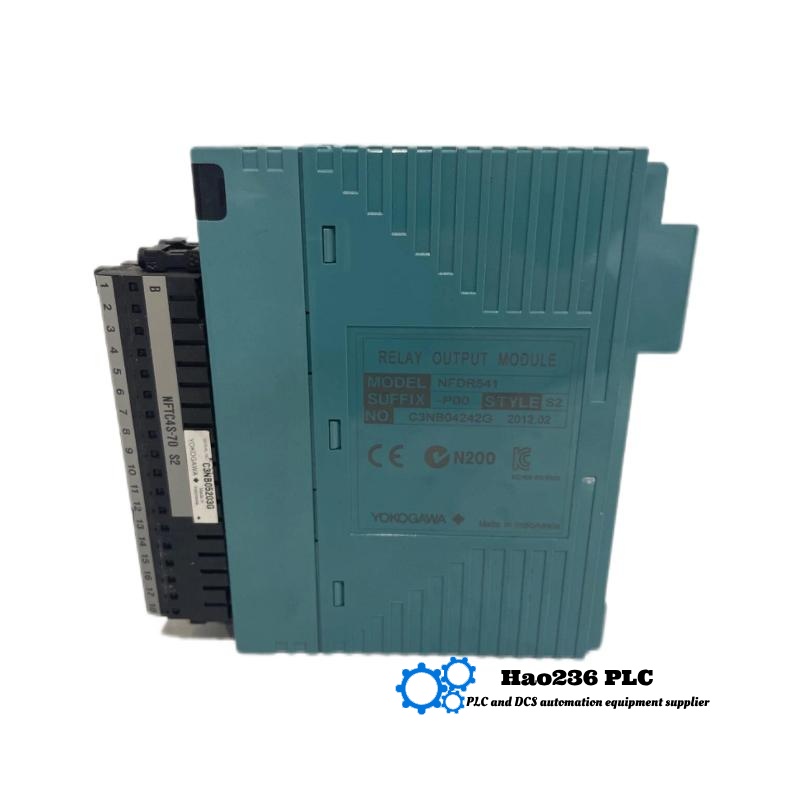

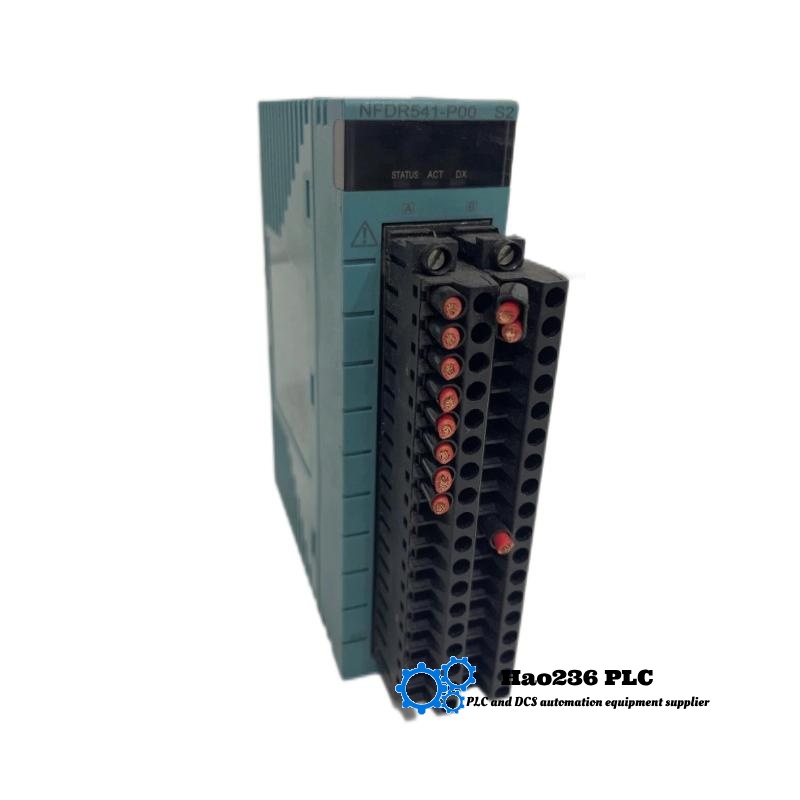

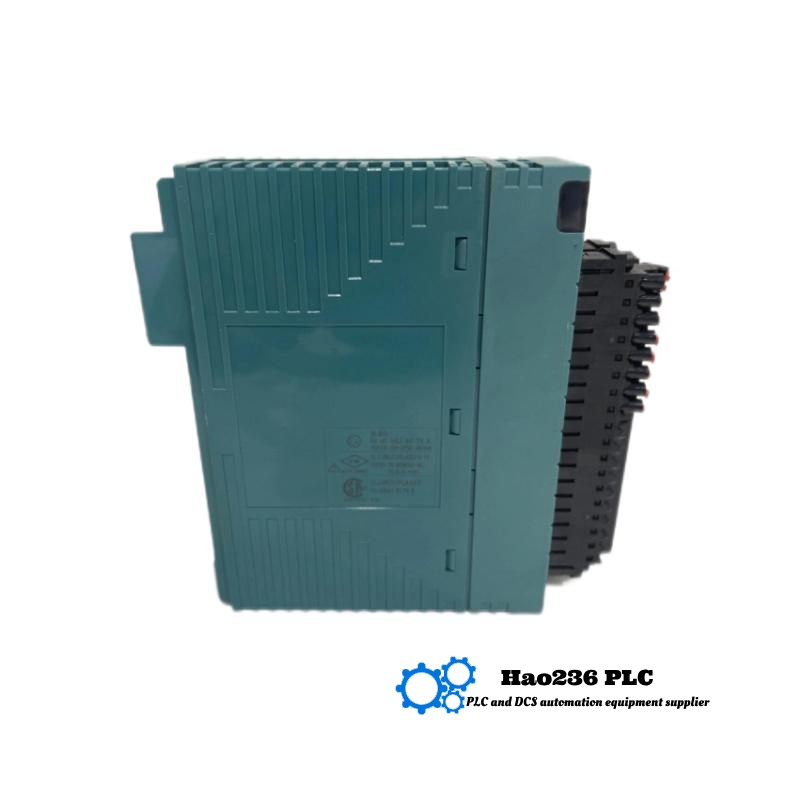

Yokogawa NFDR541-P00 Relay Output Module
Product Introduction:
The Yokogawa NFDR541-P00 is a versatile relay output module designed for use in industrial control systems. It offers reliable and high-performance relay outputs that help automate processes and improve efficiency in various industrial applications. This module is part of Yokogawa’s high-quality product range, providing seamless integration with their DCS and PLC systems. The NFDR541-P00 is engineered for both robustness and flexibility, making it ideal for environments that require reliable signal switching, safety interlocks, or alarm output functions.
Key Features:
-
Designed for flexibility in industrial control applications.
-
High reliability and durability in harsh environments.
-
Seamless integration with Yokogawa control systems.
-
Designed for quick and easy installation in control cabinets.
-
Low maintenance, reducing system downtime.
Technical Specifications:
| Parameter | Description |
|---|---|
| Model Number | NFDR541-P00 |
| Type | Relay Output Module |
| Dimensions (L x W x H) | 130 x 111.5 x 32.8 mm |
| Weight | 0.3 kg |
| Input/Output | 16 relay outputs |
| Rated Voltage | 24 V DC |
| Switching Capacity | 250V AC, 5A (resistive load) |
| Operating Temperature | –20°C to +60°C |
| Mounting Type | DIN rail mountable |
| Protection Class | IP20 |
| Connection Type | Screw terminal connection |
| Isolation Voltage | 2,000 V AC (input to output) |
Applications:
The Yokogawa NFDR541-P00 relay output module is designed for a variety of industrial control applications. Here are some common uses:
-
Automation Systems: Used to control machines, processes, and other automated equipment through relay output signals, making it perfect for industries like manufacturing and assembly lines.
-
Alarm and Safety Systems: The relay outputs are ideal for triggering alarms and safety interlocks, ensuring operational safety in hazardous environments such as chemical plants and oil refineries.
-
Power and Electrical Control: This module is used in power stations to control electrical relays, switches, and breakers, enhancing power management systems.
-
Process Control: In industries like food and beverage, pharmaceuticals, and chemicals, it can be used to control pumps, valves, and other process equipment.
-
Building Management Systems (BMS): The relay module can be used to control HVAC systems, lighting, and security systems in large buildings and complexes.
Advantages:
-
High Reliability: The relay output module is known for its reliability and longevity, ensuring minimal downtime and maintenance.
-
Wide Temperature Range: With an operating range from –20°C to +60°C, it performs well in both extreme cold and hot conditions, making it versatile for various environments.
-
Easy Integration: The module is fully compatible with Yokogawa’s other control systems, offering seamless integration without complicated configurations.
-
Space-Saving Design: Compact and lightweight, it offers easy installation on DIN rails, saving space in control cabinets while maintaining a high level of performance.
-
Versatile Applications: Suitable for various industries including manufacturing, power generation, chemical processing, and more, the NFDR541-P00 can handle a wide array of control tasks.
Brand Information:
Yokogawa is a global leader in automation, process control, and measurement technology. With over 100 years of experience, the company is known for its innovative and reliable products, including DCS systems, SCADA, PLCs, and industrial instrumentation. Yokogawa’s commitment to quality and technological advancement has made it one of the most trusted brands in the industry.
Recommended Related Models:
| Model | Description | Key Features |
|---|---|---|
| Yokogawa NFDR541-P01 | 16 relay output module with enhanced capacity | High switching capacity, better for heavy load applications |
| Yokogawa NFDR542-P00 | 8-channel relay output module | Compact design, for smaller systems |
| Yokogawa NFDR543-P00 | Dual relay output module | Suitable for safety systems with dual control outputs |
| Yokogawa NFDR541-P02 | 16 relay output module with auxiliary functions | Ideal for complex systems requiring additional control features |
| Yokogawa NFDR541-P03 | 16-channel relay module with advanced diagnostics | Includes diagnostic features for monitoring relay health |
Popular Yokogawa Models:
| Model | Description | Key Features |
|---|---|---|
| Yokogawa NFDV160 | 16-channel digital output module | High-speed switching for large systems |
| Yokogawa NFDV162 | 8-channel digital output module | Compact and efficient for smaller setups |
| Yokogawa NFDV163 | 16-channel digital output module with diagnostics | Includes diagnostic features for output health monitoring |
| Yokogawa NFDV164 | Dual-output digital module | Best for controlling redundant systems |
| Yokogawa NFDV165 | 16 digital output module with enhanced isolation | Perfect for high-voltage switching tasks |
FAQs:
Q1: What is the rated voltage of the Yokogawa NFDR541-P00 relay output module?
A1: The rated voltage for this module is 24 V DC.
Q2: Can the NFDR541-P00 be used in hazardous environments?
A2: Yes, it can be used in hazardous environments, especially for safety-related applications like alarm triggering or process interlocking.
Q3: How many relay outputs does this module have?
A3: The NFDR541-P00 offers 16 relay outputs.
Q4: What is the switching capacity of this relay output module?
A4: The module can handle 250V AC at 5A (resistive load).
Q5: What is the operating temperature range for the NFDR541-P00?
A5: The operating temperature range is –20°C to +60°C, suitable for various industrial environments.
Q6: How is the module mounted?
A6: It is designed for easy installation on DIN rails.
Q7: Can this module be integrated into Yokogawa DCS systems?
A7: Yes, it integrates seamlessly with Yokogawa’s control systems, such as DCS and PLCs.
Q8: Is the NFDR541-P00 module suitable for controlling high-power equipment?
A8: Yes, the module is designed to control high-power equipment using relay outputs with a high switching capacity.
Q9: How much does the NFDR541-P00 module weigh?
A9: The weight of the NFDR541-P00 module is 0.3 kg.
Q10: What type of connection is used for wiring?
A10: The module uses screw terminal connections for secure and reliable wiring.
