Product Overview

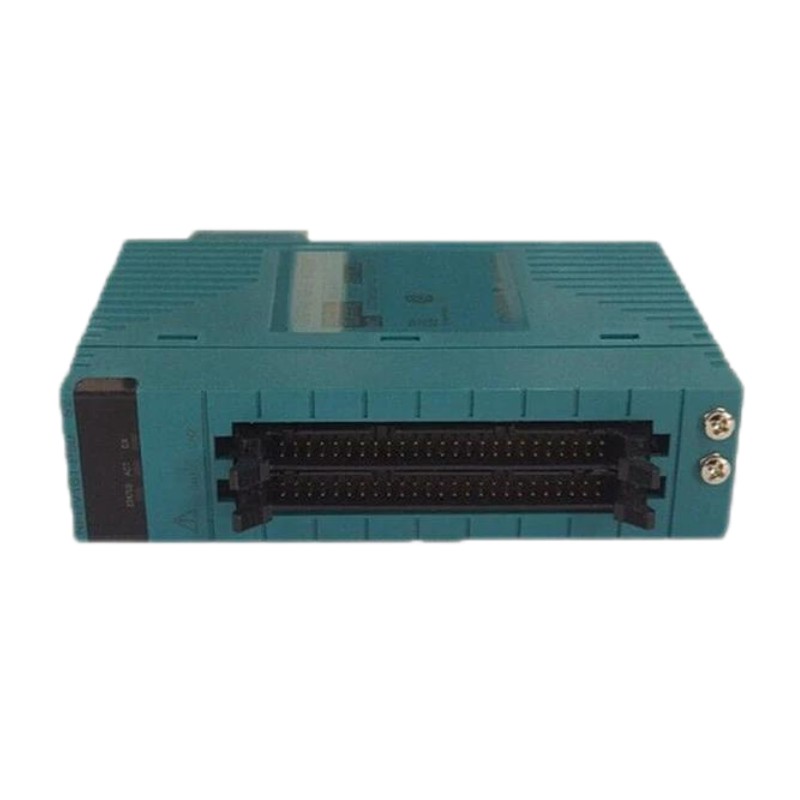

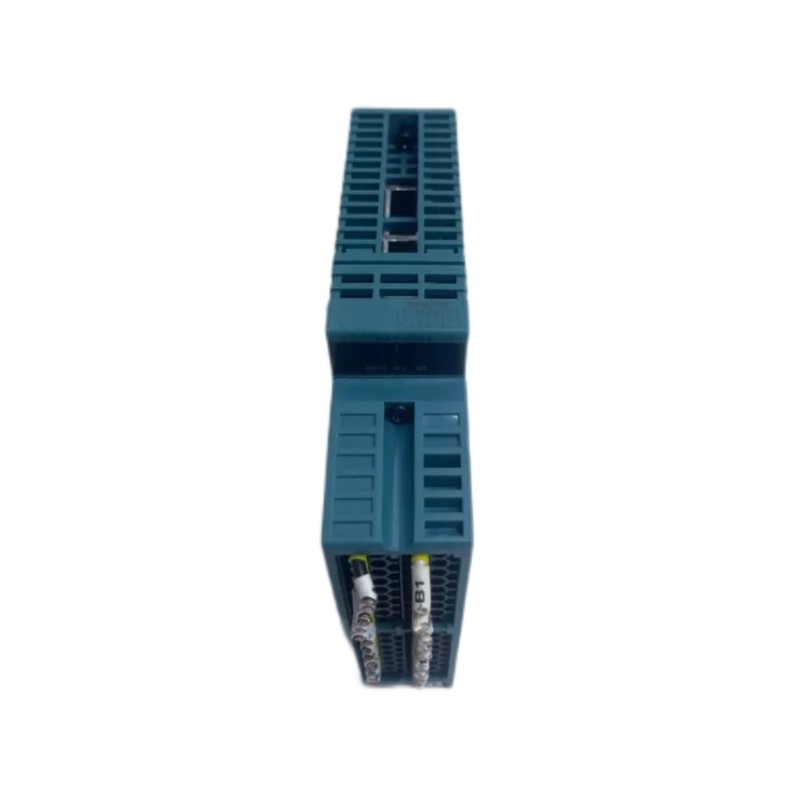

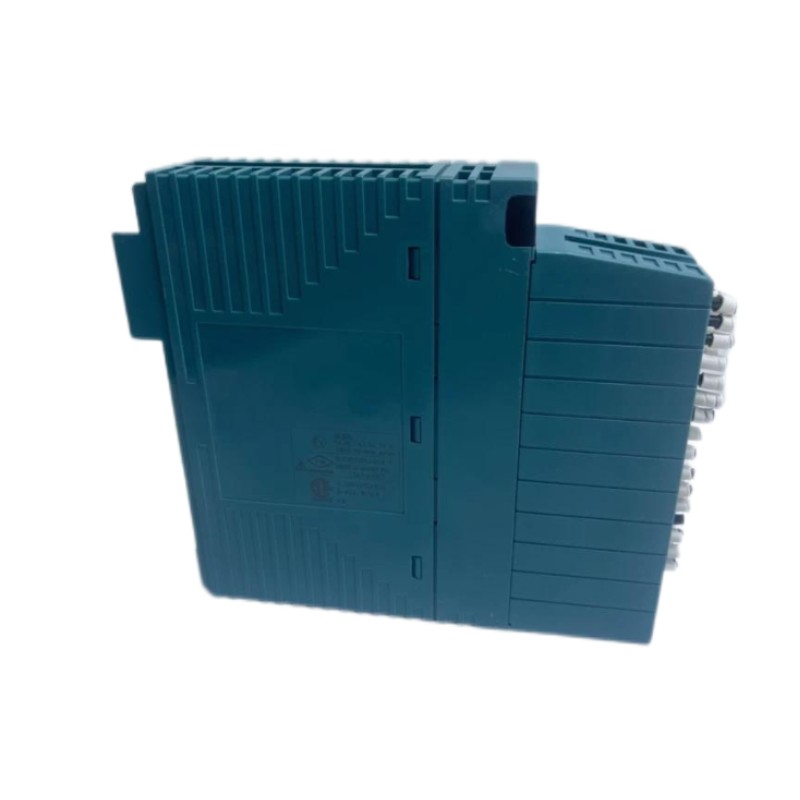

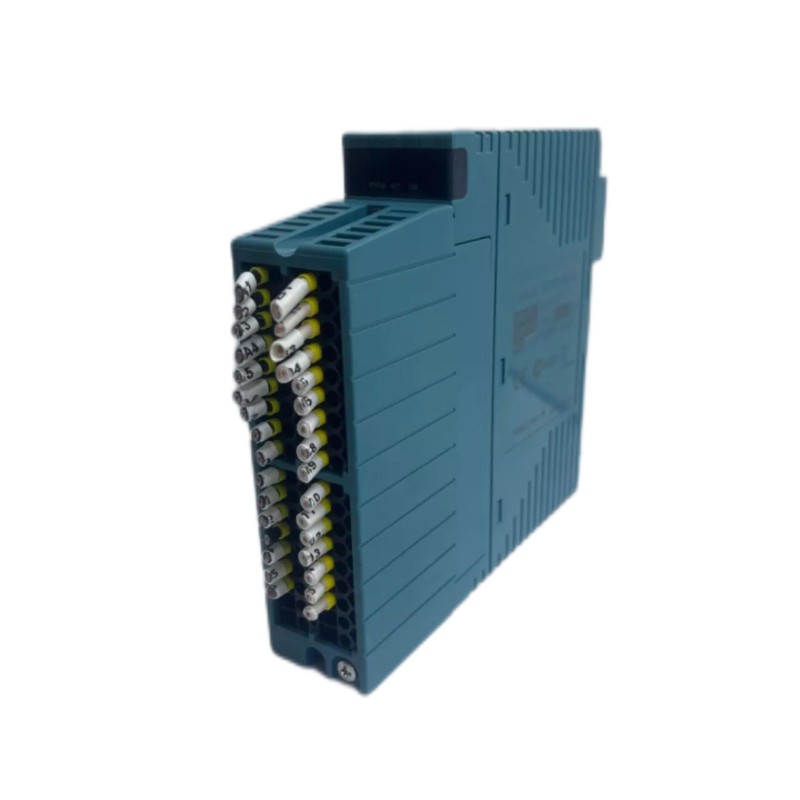

The Yokogawa NFAI543 is an Analog Output Module designed for Yokogawa industrial automation and distributed control systems. It converts digital control commands from the controller into precise analog output signals for driving field devices such as control valves, actuators, variable frequency drives (VFDs), and other process control equipment.
The module provides high-precision analog output, excellent electrical isolation, and reliable long-term performance, making it suitable for demanding industrial process applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | NFAI543 |
| Product Type | Analog Output Module |
| Number of Output Channels | 16 |
| Output Signal | 4–20 mA DC |
| Output Resolution | 16-bit |
| Output Accuracy | ±0.1% of Full Scale |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Load Resistance | Up to 600 Ω (typical) |
| Power Supply | 24 V DC |
| Connector Type | MIL 40-pin Connector |
| Mounting Method | Yokogawa controller base unit |
| Dimensions | 130 × 107.5 × 32.8 mm |
| Weight | 0.4 kg |
Function and Working Principle
The NFAI543 receives digital output commands from the controller and converts them into standardized analog current signals.
Each output channel operates independently, allowing multiple field devices to be controlled simultaneously. The generated 4–20 mA output signals provide precise control of process equipment while electrical isolation minimizes interference and improves system reliability.
Operating Sequence
- The controller generates a digital control command.
- The NFAI543 receives the command.
- Internal D/A converters convert the digital value into a 4–20 mA analog signal.
- The analog output is transmitted to the connected field device.
- The field device adjusts its operation according to the received control signal.
Key Features
- 16 analog output channels
- Standard 4–20 mA analog output
- High-resolution 16-bit D/A conversion
- High output accuracy
- Channel-to-channel electrical isolation
- Excellent noise immunity
- Stable long-term performance
- Compact modular design
System Role
The NFAI543 serves as the analog control output interface between the controller and field equipment.
Typical System Architecture
Controller → NFAI543 Analog Output Module → Control Valve / Actuator / VFD → Industrial Process
Industrial Applications
The NFAI543 is suitable for:
- Distributed Control Systems (DCS)
- Process automation
- Chemical processing plants
- Oil and gas production
- Power generation facilities
- Water and wastewater treatment
- Pharmaceutical manufacturing
- Industrial process control
- Manufacturing automation
Installation Guidelines
- Install the module in a compatible Yokogawa controller rack.
- Verify the power supply before installation.
- Connect field devices according to the wiring diagram.
- Route analog output wiring separately from high-voltage power cables.
- Ensure proper grounding to reduce electrical noise.
- Verify output configuration during system commissioning.
Compatible Components
The NFAI543 is compatible with:
- Yokogawa Controllers
- Control Valves
- Valve Positioners
- Variable Frequency Drives (VFDs)
- Analog Actuators
- Process Controllers
- Industrial Automation Systems
Alternative Models
| Model | Description |
|---|---|
| NFAI143 | Analog Input Module |
| NFAI135 | Pulse Input Module |
| AAI543 | Analog Output Module |
| ADV551 | Digital Output Module |
| ADV151 | Digital Input Module |
Advantages
- High-precision analog output control
- Reliable electrical isolation
- Stable long-term performance
- Excellent resistance to electromagnetic interference
- Easy integration with Yokogawa automation systems
- Compact and space-saving design
- Suitable for continuous industrial operation
Frequently Asked Questions
What is the NFAI543 used for?
It converts digital control commands into 4–20 mA analog output signals for controlling industrial field devices.
How many output channels does it provide?
The module provides 16 analog output channels.
What output signal does it support?
It supports the industry-standard 4–20 mA DC analog current output.
What devices can it control?
It can control valve positioners, control valves, actuators, variable frequency drives, and other analog-controlled industrial equipment.
Where is it commonly used?
It is widely used in industrial automation, process control, oil and gas, chemical processing, power generation, water treatment, and manufacturing facilities.
Conclusion
The Yokogawa NFAI543 Analog Output Module is a high-performance 16-channel analog output module designed for accurate and reliable conversion of digital control commands into 4–20 mA analog signals. Its high resolution, electrical isolation, and dependable industrial performance make it an ideal solution for precise process control in Yokogawa automation systems.
