Product Overview

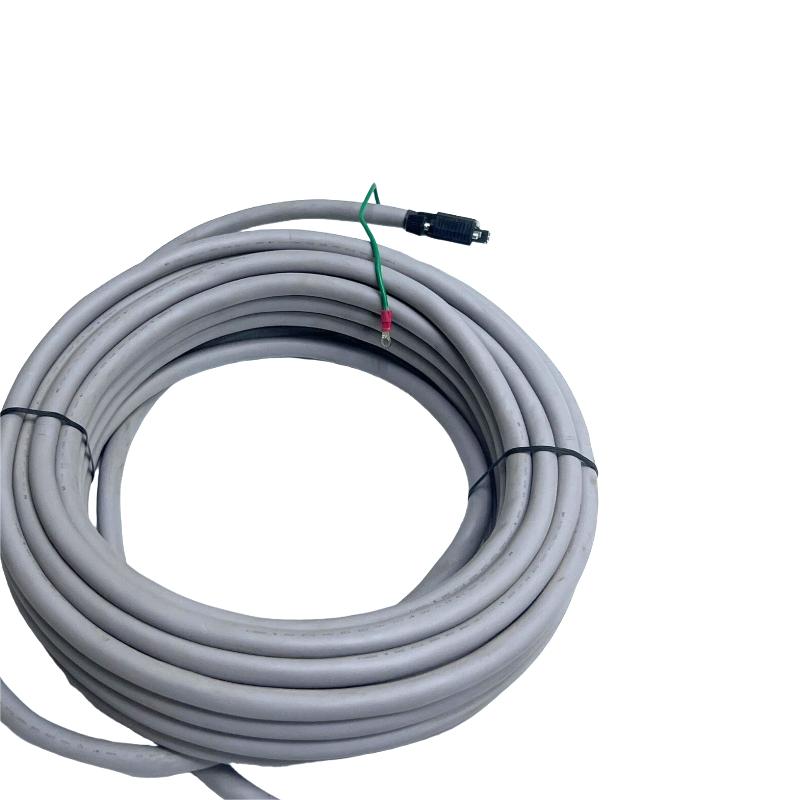

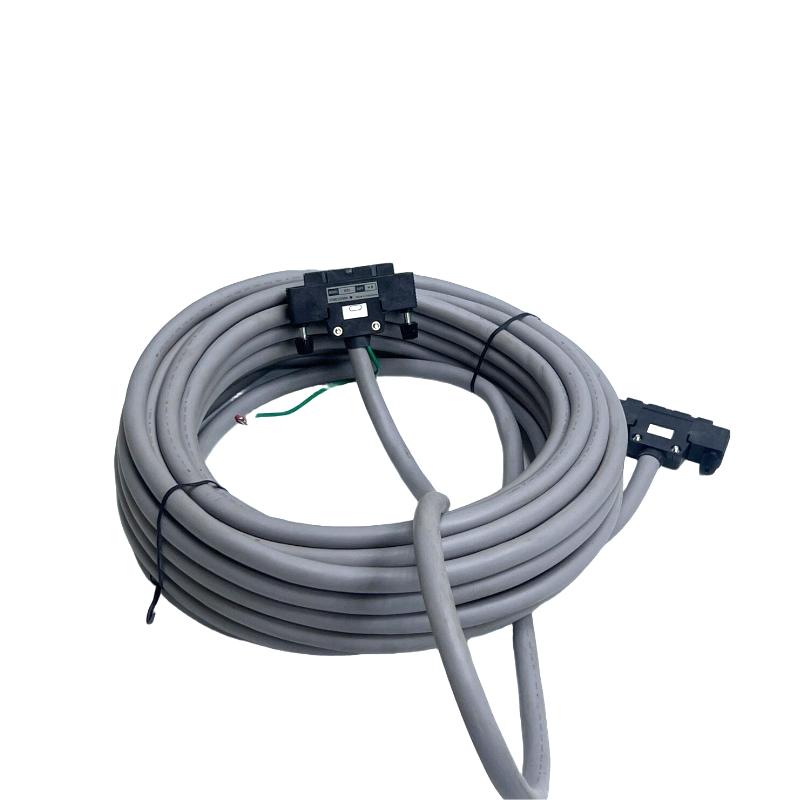

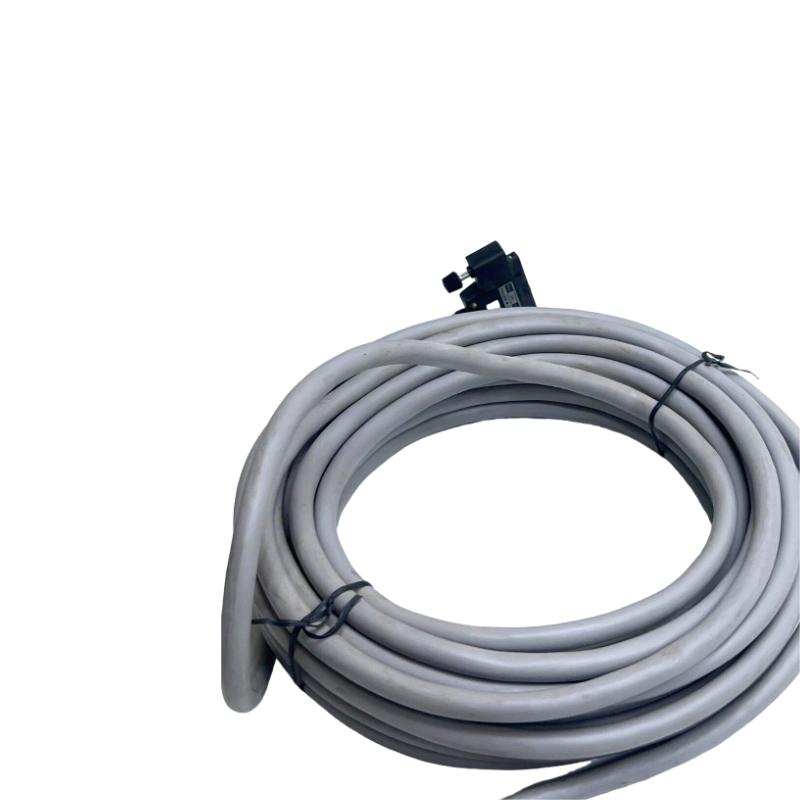

The Yokogawa KS1-20 is a signal cable designed for reliable signal transmission between Yokogawa field instruments, transmitters, controllers, and industrial automation equipment. With a 20-meter cable length, it provides stable electrical connections while minimizing signal loss and electromagnetic interference in industrial environments.
The KS1-20 is suitable for instrumentation, process control, and factory automation applications where dependable signal integrity is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | KS1-20 |
| Product Type | Signal Cable |
| Cable Length | 20 meters |
| Signal Type | Analog and low-voltage control signals |
| Conductor Material | Copper (industrial-grade) |
| Insulation Material | Industrial-grade PVC or equivalent |
| Shielding | Shielded construction (application dependent) |

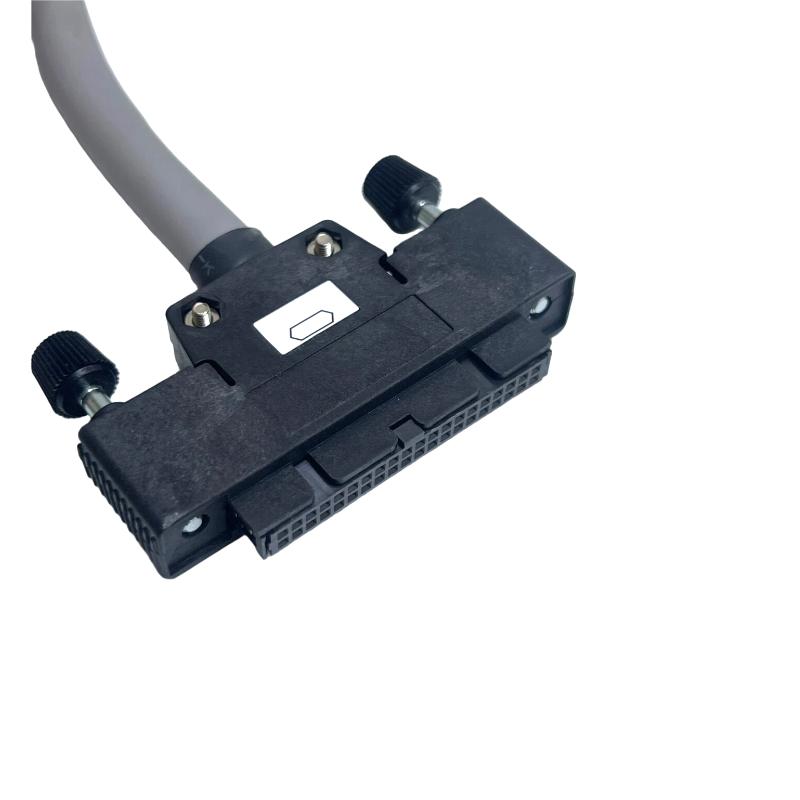

| Connector Type | Compatible with Yokogawa instrumentation (configuration dependent) |
| Installation | Fixed industrial wiring |
| Operating Environment | Industrial automation and process control |
| Shipping Weight | 3 kg |
Function and Working Principle
The KS1-20 Signal Cable transmits low-voltage electrical signals between field devices and control systems while maintaining signal quality.
The conductor carries the electrical signal, while the insulation prevents leakage between conductors. Where applicable, the cable shield helps reduce electromagnetic interference (EMI), ensuring accurate and stable signal transmission over the cable length.
Signal Transmission Process
- Field instrument generates an electrical signal.
- The signal travels through the cable conductors.
- Shielding minimizes external electrical interference.
- The signal reaches the receiving controller or monitoring device with minimal loss.
Key Features
- 20-meter cable length
- Stable signal transmission
- Industrial-grade insulation
- Durable cable construction
- Suitable for instrumentation and control systems
- Flexible for installation in industrial environments
- Designed for reliable long-term operation
System Role
The KS1-20 serves as the communication link between field devices and control equipment.
Typical System Architecture
Field Instrument → KS1-20 Signal Cable → PLC / DCS / Controller → Monitoring System
Industrial Applications
The KS1-20 is suitable for:
- Process automation systems
- Pressure transmitter wiring
- Temperature measurement systems
- Flow instrumentation
- PLC and DCS installations
- Industrial control panels
- Manufacturing automation
- Water treatment facilities
- Power generation plants
- Oil and gas process systems
Installation Guidelines
- Route the cable away from high-voltage power cables to minimize interference.
- Maintain the minimum bending radius during installation.
- Properly ground the cable shield where required.
- Avoid excessive mechanical stress or cable twisting.
- Inspect connectors and insulation before installation.
- Secure the cable to prevent vibration-related damage.
Compatible Components
The KS1-20 is compatible with:
- Yokogawa pressure transmitters
- Temperature transmitters
- Flow transmitters
- PLC systems
- DCS systems
- Industrial controllers
- Signal conditioning modules
Alternative Models
| Model | Description |
|---|---|
| KS1-05 | 5-meter Signal Cable |
| KS1-10 | 10-meter Signal Cable |
| KS1-30 | 30-meter Signal Cable |
| KS1-50 | 50-meter Signal Cable |
| KS2 Series | Industrial Instrument Signal Cable Series |
Advantages
- Reliable signal transmission
- Durable industrial construction
- Good resistance to electrical interference
- Easy installation
- Suitable for long-distance instrument wiring
- Supports stable process control communication
Frequently Asked Questions
What is the KS1-20 used for?
It is used to transmit electrical signals between Yokogawa field instruments and industrial control systems.
What is the cable length?
The cable has a 20-meter length.
Can it be used in industrial environments?
Yes. It is designed for industrial automation and process control applications.
Does it support analog signal transmission?
Yes. It is suitable for transmitting analog and low-voltage control signals.
What systems is it compatible with?
It can be used with Yokogawa instrumentation, PLCs, DCS systems, and other industrial control equipment.
Conclusion
The Yokogawa KS1-20 Signal Cable is a durable 20-meter industrial signal cable designed to provide stable, low-noise signal transmission for instrumentation and automation systems. Its robust construction and reliable performance make it well suited for connecting field devices to PLC, DCS, and process control systems in demanding industrial environments.
