Product Overview

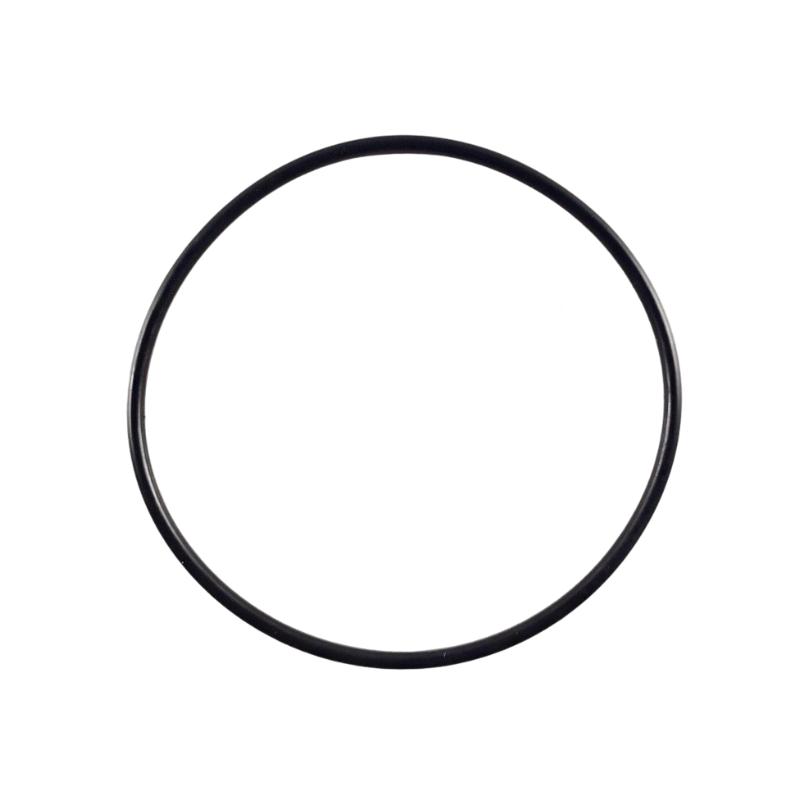

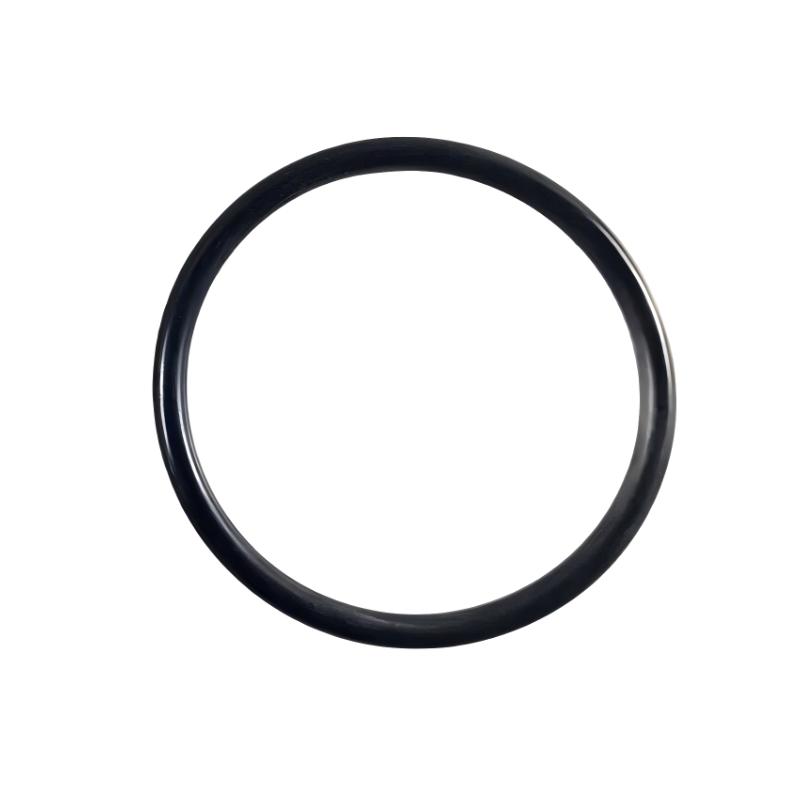

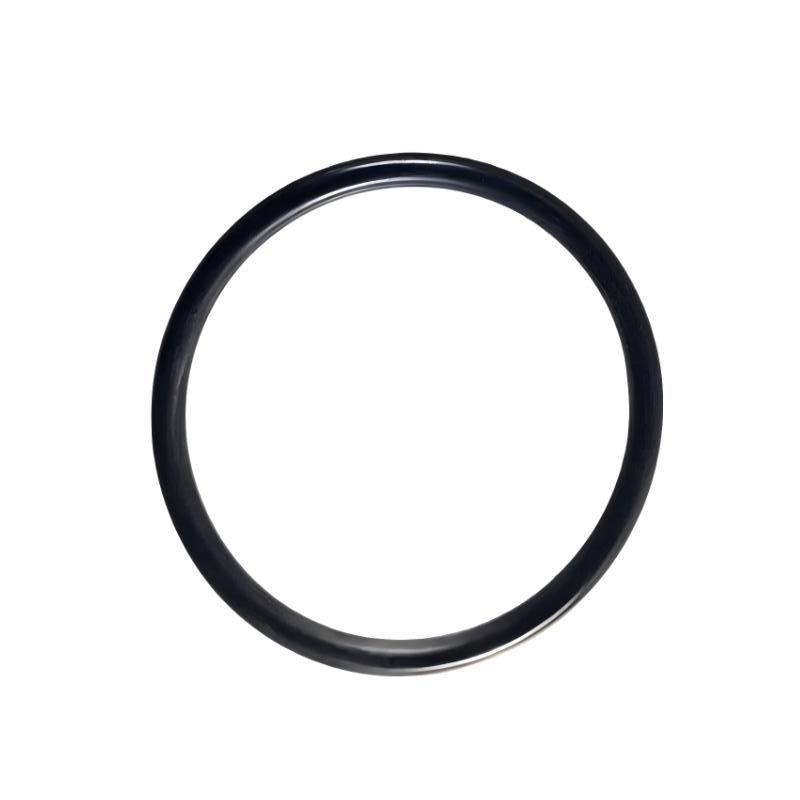

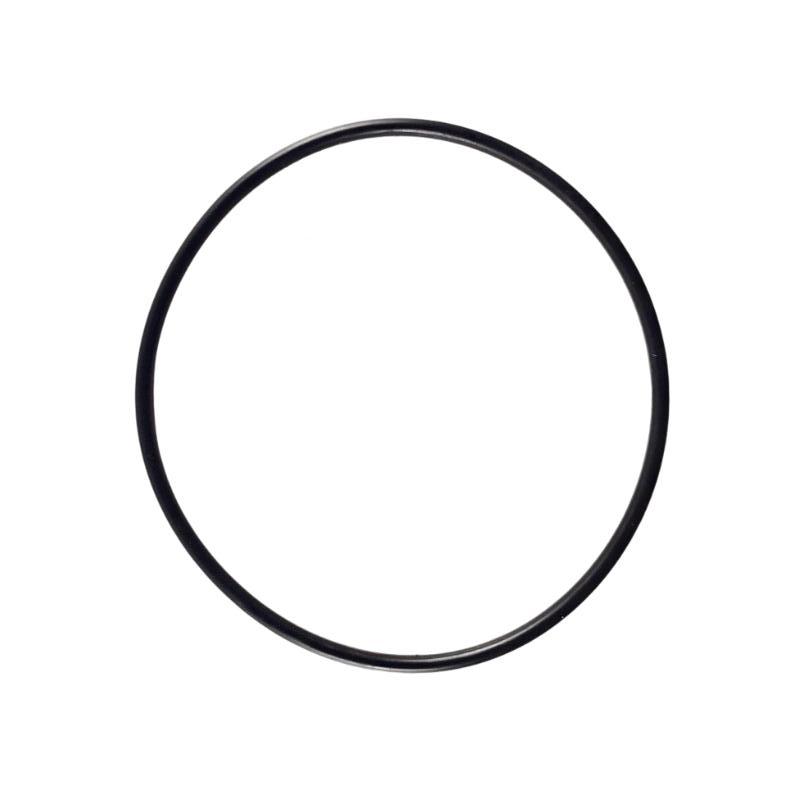

The Yokogawa F9341JP is an O-Ring sealing component designed for use in Yokogawa industrial instrumentation and process control equipment. It provides a reliable seal between mating surfaces, preventing the leakage of liquids or gases while maintaining the integrity of pressure transmitter and instrumentation assemblies.
The O-ring is manufactured from industrial-grade elastomer material to provide long-term sealing performance under demanding operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F9341JP |
| Product Type | O-Ring |
| Function | Static and dynamic sealing |
| Material | Industrial-grade elastomer (compound dependent on application) |
| Shape | Circular sealing ring |
| Installation Position | Flange, process connection, or instrument housing |
| Compatible Equipment | Yokogawa pressure transmitters and process instruments |
| Dimensions | 30 × 10 × 20 mm |
| Shipping Weight | 3 kg |
| Operating Environment | Industrial process applications |
Function and Working Principle
The F9341JP O-Ring creates a pressure-tight seal by being compressed between two mating surfaces.
When installed correctly, the elastomer deforms slightly under compression, filling any microscopic gaps and preventing the escape of process media. As system pressure increases, the pressure acting on the O-ring further enhances the sealing effect.
P=FAP=\frac{F}{A}
Where:
- P = Contact pressure
- F = Compression force
- A = Contact area
Key Features
- Reliable sealing performance
- Suitable for liquid and gas applications
- Industrial-grade elastomer construction
- Resistant to vibration and pressure fluctuations
- Easy installation and replacement
- Long service life under normal operating conditions
- Compatible with Yokogawa instrumentation assemblies
System Role
The F9341JP functions as a primary sealing component within industrial instrumentation assemblies.
Typical Installation Structure
Process Connection → F9341JP O-Ring → Instrument Housing → Pressure Transmitter
Industrial Applications
The F9341JP is suitable for use in:
- Pressure transmitter assemblies
- Differential pressure transmitters
- Process instrumentation
- Oil and gas facilities
- Chemical processing plants
- Power generation systems
- Water treatment plants
- Industrial automation equipment
Installation Guidelines
- Clean sealing surfaces before installation.
- Inspect the O-ring for cuts, cracks, or deformation.
- Apply compatible lubricant if specified by maintenance procedures.
- Avoid twisting or stretching during installation.
- Replace the O-ring whenever significant wear or damage is observed.
Compatible Components
The F9341JP can be used with:
- Yokogawa pressure transmitters
- Differential pressure transmitters
- Instrument flanges
- Process connection assemblies
- Industrial sealing systems
Alternative Components
| Model | Description |
|---|---|
| F9341JN | O-Ring |
| F9341JR | O-Ring |
| F9341JS | O-Ring |
| F9341JT | O-Ring |
| F9341JU | O-Ring |
Advantages
- Excellent sealing performance
- Reduces leakage risk
- Simple installation and replacement
- Durable elastomer construction
- Suitable for demanding industrial environments
- Supports reliable long-term equipment operation
Frequently Asked Questions
What is the purpose of the F9341JP O-Ring?
It provides a pressure-tight seal between mating components to prevent leakage of liquids or gases.
Is it an electrical component?
No. It is a mechanical sealing component.
Where is it installed?
It is typically installed in the sealing groove of pressure transmitters or other process instrumentation.
When should it be replaced?
The O-ring should be replaced if it shows signs of cracking, deformation, hardening, or wear during inspection.
What industries commonly use the F9341JP?
It is widely used in oil and gas, chemical processing, power generation, water treatment, and industrial automation applications.
Conclusion
The Yokogawa F9341JP O-Ring is a high-quality sealing component designed to ensure reliable leak prevention and long-term sealing performance in industrial instrumentation systems. Its durable construction and dependable sealing capability make it an essential part of Yokogawa pressure transmitter and process equipment assemblies.
