Product Overview

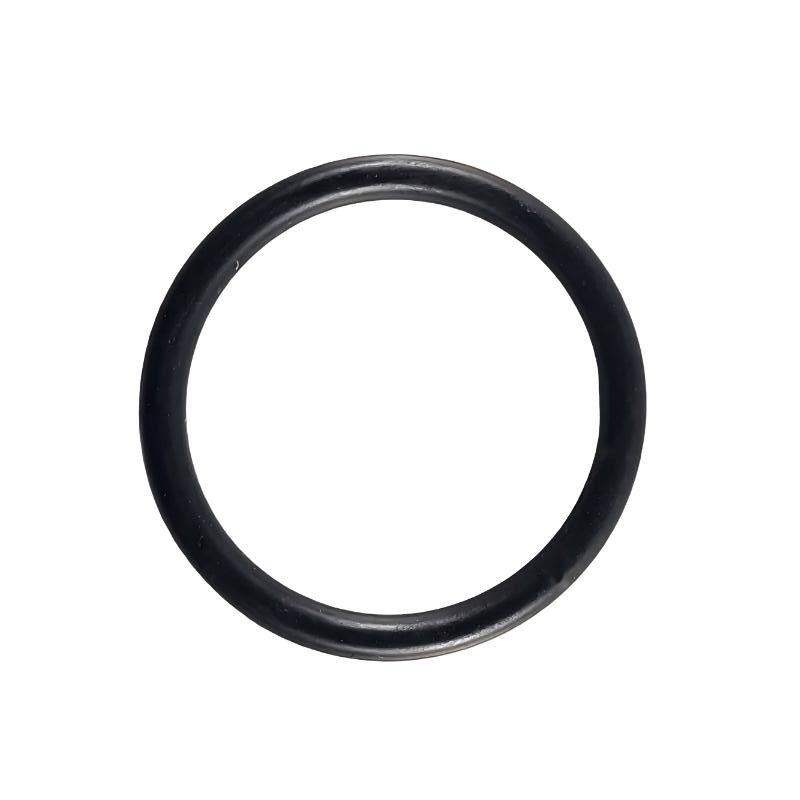

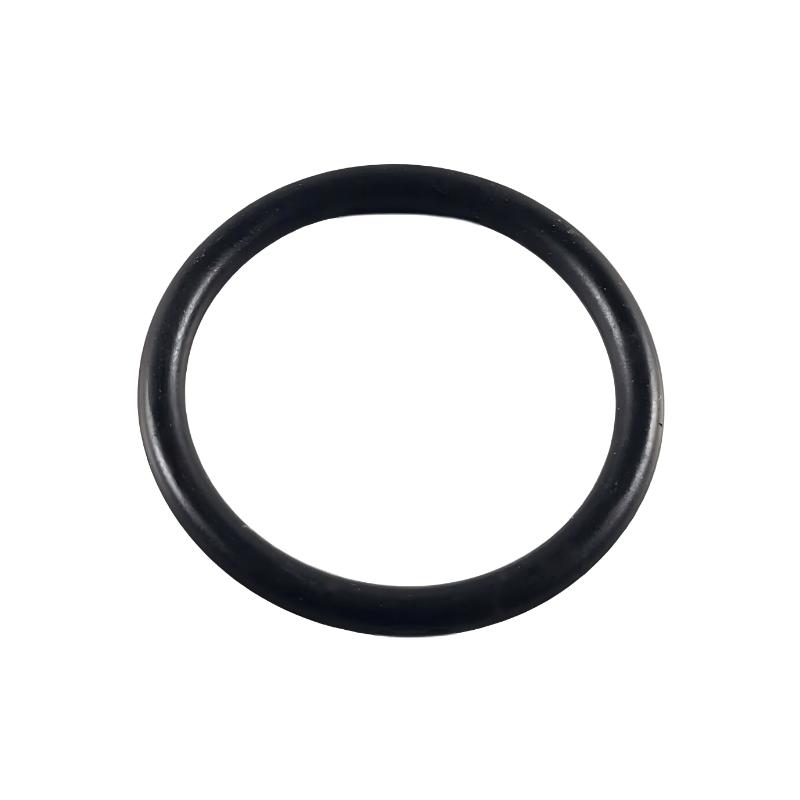

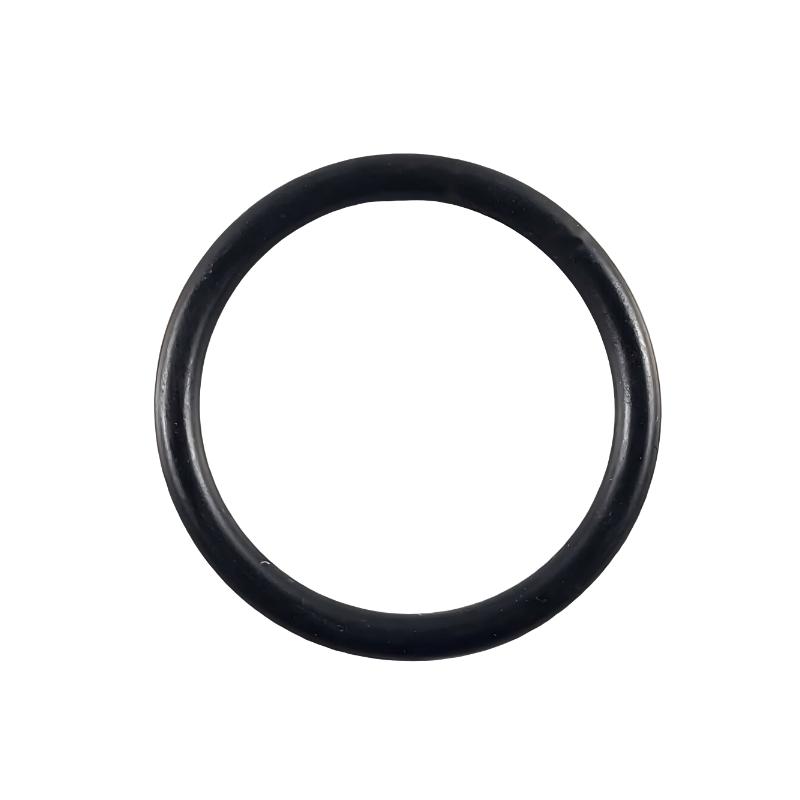

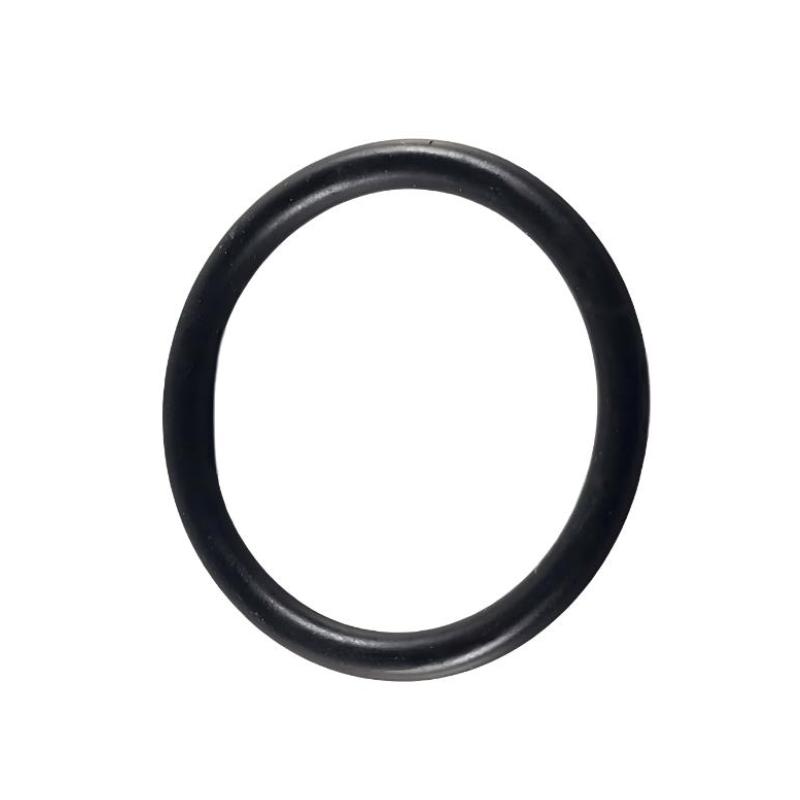

The Yokogawa F9340GF is a mechanical washer designed for use in Yokogawa industrial instrumentation assemblies. It serves as a fastening and sealing component, helping to maintain secure mechanical connections and reliable sealing performance in pressure transmitter and process instrument installations.
The washer is engineered to withstand industrial operating conditions and contributes to the stability and durability of instrument mounting systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F9340GF |
| Product Type | Washer |
| Function | Mechanical fastening and sealing support |
| Material | Industrial-grade metal (material variant dependent) |
| Application | Pressure transmitter and instrumentation assemblies |
| Installation Position | Flange, mounting joint, or fastening interface |
| Dimensions | 30 × 10 × 20 mm |
| Shipping Weight | 3 kg |
| Operating Environment | Industrial process applications |
Function and Working Principle
The F9340GF Washer is installed between mating mechanical surfaces to distribute clamping force evenly during assembly.
Its primary functions include:
- Providing uniform load distribution
- Improving sealing performance
- Reducing stress on fastening components
- Helping prevent loosening caused by vibration
- Protecting mounting surfaces from damage
When bolts or fasteners are tightened, the washer helps maintain consistent pressure across the sealing surface, improving the reliability of the instrument installation.
P=FAP=\frac{F}{A}
Where:
- P = Contact pressure
- F = Clamping force
- A = Contact area
Key Features
- Precision-machined mechanical washer
- Uniform load distribution
- Supports reliable sealing performance
- Suitable for industrial instrumentation
- Corrosion-resistant construction (depending on material)
- Easy installation and replacement
- Long service life under normal operating conditions
System Role
The F9340GF functions as a mechanical support component within an instrumentation assembly.
Typical Installation Structure
Fastener → F9340GF Washer → Instrument Flange → Process Connection
Industrial Applications
The F9340GF is suitable for use in:
- Pressure transmitter installations
- Differential pressure measurement systems
- Process instrumentation
- Oil and gas facilities
- Chemical processing plants
- Power generation systems
- Water treatment plants
- Industrial automation equipment
Installation Guidelines
- Install on clean, flat mounting surfaces.
- Verify the washer size matches the fastening hardware.
- Tighten bolts according to the recommended torque.
- Inspect for deformation or corrosion during maintenance.
- Replace the washer if excessive wear or damage is observed.
Compatible Components
The F9340GF can be used with:
- Yokogawa pressure transmitters
- Differential pressure transmitters
- Instrument mounting brackets
- Flange connection assemblies
- Process piping instrumentation
Alternative Components
| Model | Description |
|---|---|
| F9340GE | Washer |
| F9340GH | Washer |
| F9340GK | Washer |
| F9340GL | Washer |
| F9340GM | Washer |
Advantages
- Provides consistent clamping force
- Improves sealing reliability
- Helps reduce vibration-related loosening
- Protects mounting surfaces
- Easy to install and maintain
- Suitable for demanding industrial environments
Frequently Asked Questions
What is the function of the F9340GF Washer?
It distributes fastening force evenly while improving sealing and mechanical stability in instrumentation assemblies.
Is it an electrical component?
No. The F9340GF is a mechanical fastening accessory.
Where is it typically installed?
It is commonly installed between a fastener and the mounting surface of pressure transmitters or other industrial instruments.
Can it be reused?
If the washer shows no signs of deformation, corrosion, or damage after inspection, it may be reused according to maintenance procedures.
What industries commonly use this washer?
It is widely used in oil and gas, chemical processing, power generation, water treatment, and industrial automation systems.
Conclusion
The Yokogawa F9340GF Washer is a durable mechanical fastening component designed to improve the stability, sealing performance, and reliability of industrial instrumentation assemblies. Its robust construction and dependable performance make it an essential accessory for secure installation of pressure transmitters and other process control equipment.
