Product Overview

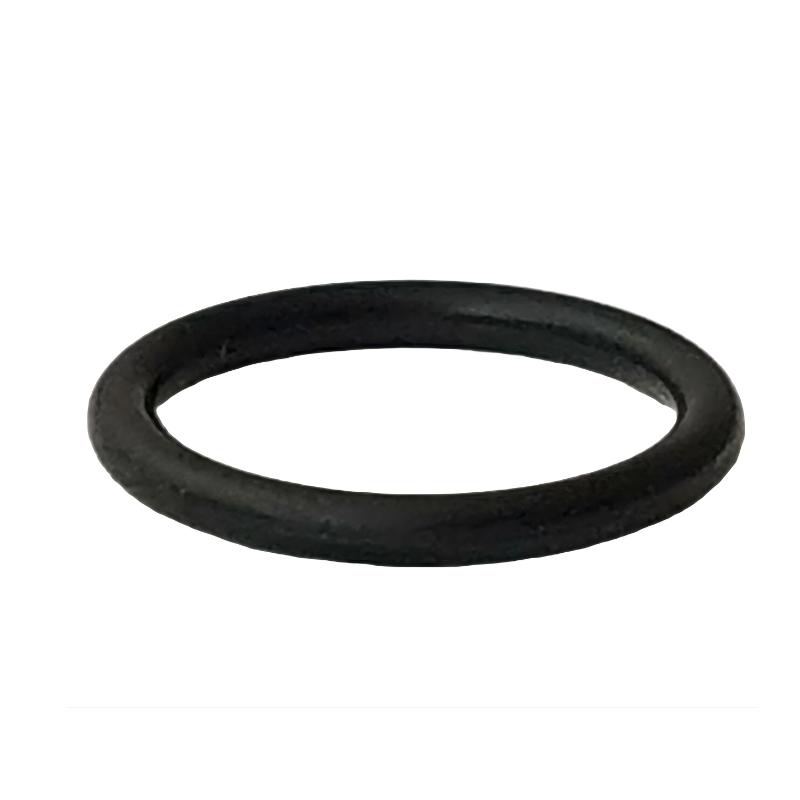

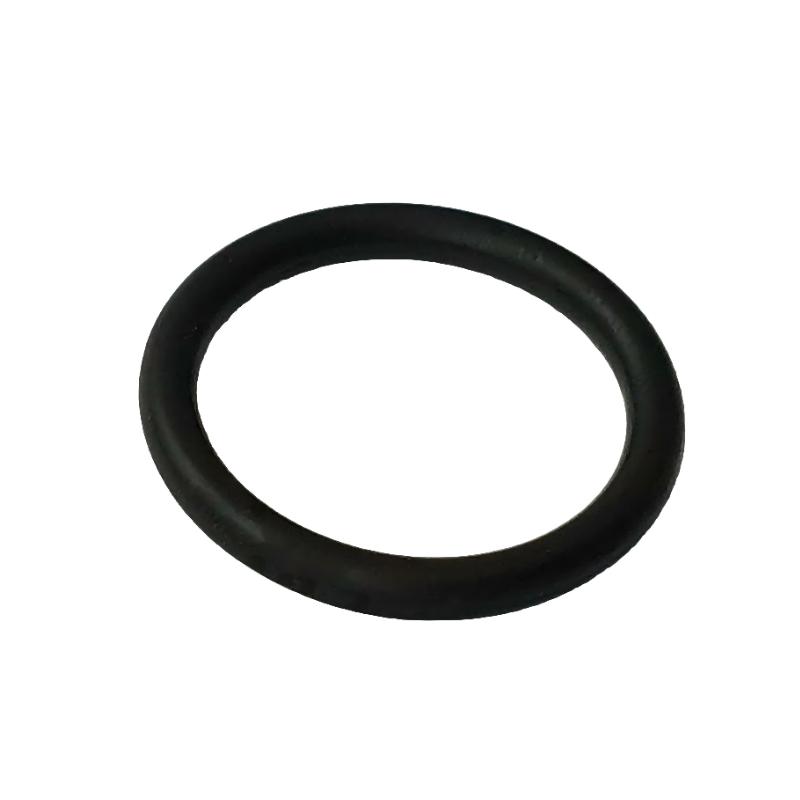

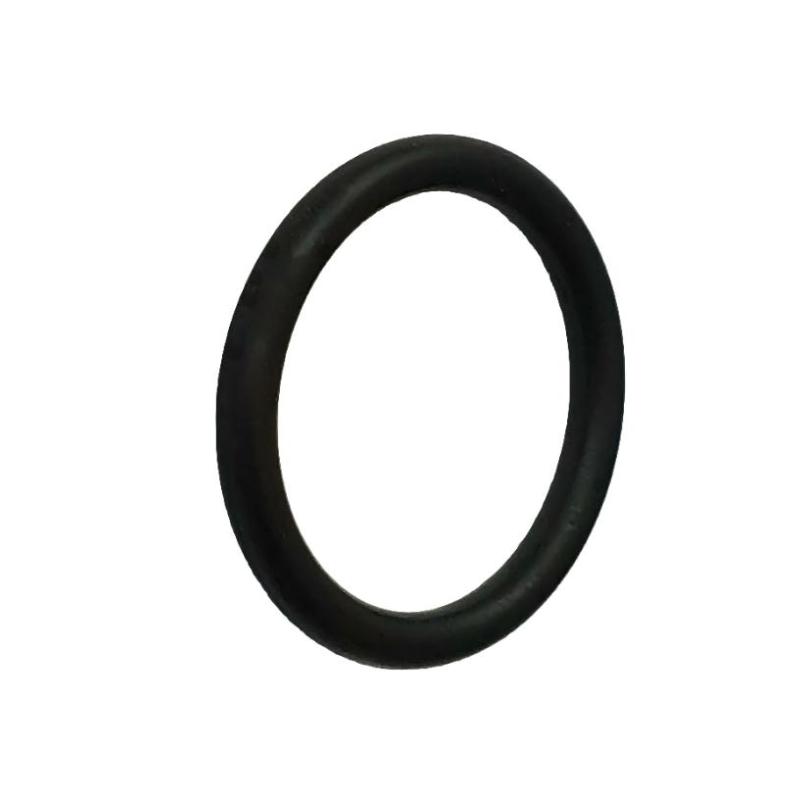

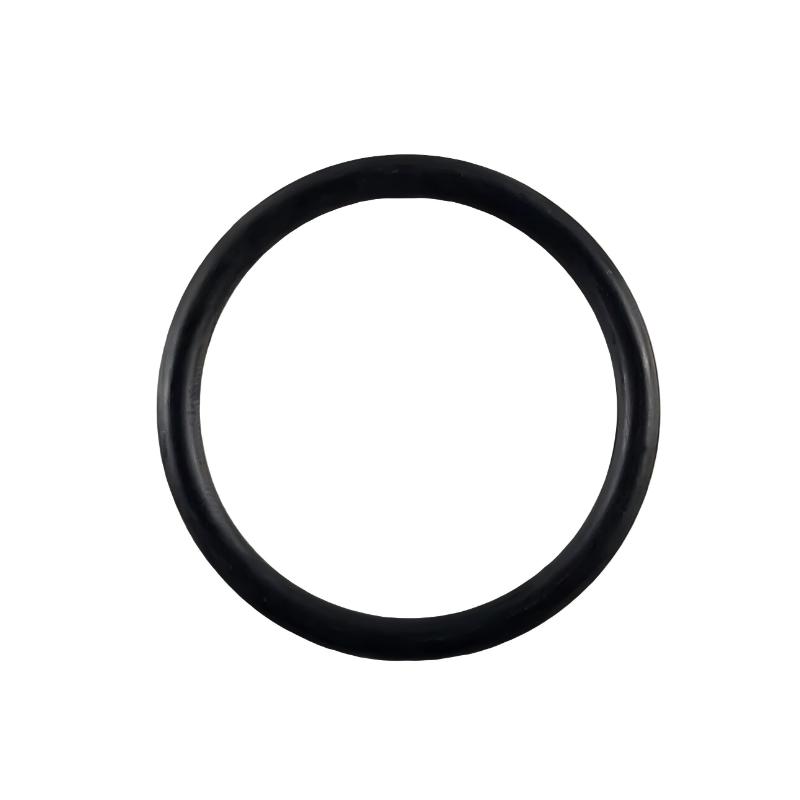

The Yokogawa F9340GE Washer is a mechanical sealing / fastening washer component used in Yokogawa pressure transmitter assemblies and industrial instrumentation installations.
It is typically used as a supporting or sealing accessory part, ensuring proper mechanical fit, pressure sealing stability, and assembly reliability in transmitter mounting structures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F9340GE |
| Product Type | Washer (Instrument Assembly Part) |
| Function | Mechanical support / sealing / mounting aid |
| Material | Industrial-grade sealing / metallic composite (variant dependent) |
| Application System | Pressure transmitter assemblies |
| Compatibility | Yokogawa DP / pressure transmitter series |
| Dimensions | 30 × 10 × 20 mm |
| Weight | Shipping weight approx. 3 kg (packaged assembly context) |
| Installation Position | Transmitter flange / sealing interface |
Function and Working Principle
The F9340GE washer does not perform measurement or electrical functions.
It is a mechanical interface component used to:
- Distribute mechanical load evenly
- Improve sealing integrity in pressure assemblies
- Reduce vibration and mechanical stress
- Ensure proper alignment between flange and sensor housing
Fseal=P×AF_{seal} = P \times A
Where sealing force is distributed across the washer surface to maintain pressure integrity in the assembly.
Key Features
- Designed for pressure transmitter mechanical assembly
- Improves sealing reliability
- Supports high-pressure industrial environments
- Reduces mechanical stress on transmitter housing
- Stable long-term mechanical performance
- Compatible with Yokogawa transmitter flange systems
System Role
Process piping → impulse line → transmitter flange → F9340GE washer interface → sensing unit
It acts as a supporting mechanical interface element within the pressure measurement system.
Applications
- Pressure transmitter installation systems
- Differential pressure measurement assemblies
- Oil & gas instrumentation panels
- Chemical process plants
- Power plant instrumentation
- Industrial piping systems requiring sealed mounting
Installation Notes
- Install between flange and mating mechanical surface
- Ensure correct alignment before tightening
- Avoid over-torquing during assembly
- Replace if deformation or wear is detected
- Use only with compatible Yokogawa transmitter assemblies
Advantages
- Enhances mechanical sealing stability
- Improves installation reliability
- Reduces stress on instrument housing
- Long service life in static installation conditions
- Supports consistent transmitter performance
Frequently Asked Questions
What is the F9340GE used for?
It is used as a mechanical washer/support component in pressure transmitter assemblies.
Does it have electronic function?
No, it is a purely mechanical accessory part.
Where is it installed?
It is installed in the transmitter flange or sealing interface area.
Is it critical for operation?
Yes, it supports proper sealing and mechanical stability of the measurement system.
Conclusion
The Yokogawa F9340GE Washer is a small but important mechanical component used in pressure transmitter assemblies. It ensures proper sealing, mechanical stability, and installation reliability, supporting the overall accuracy and durability of Yokogawa pressure measurement systems.
