Product Overview

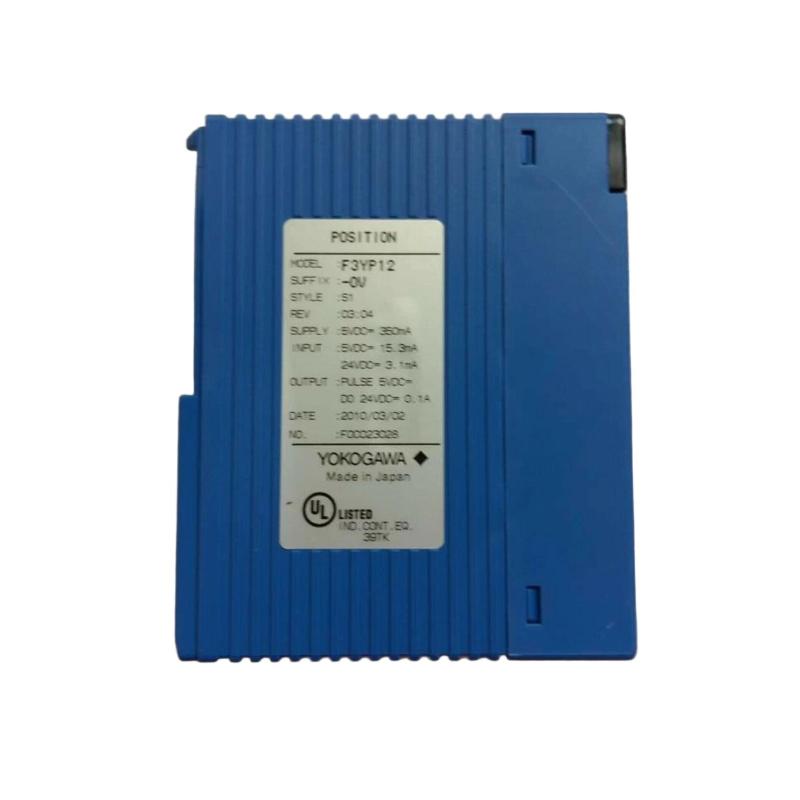

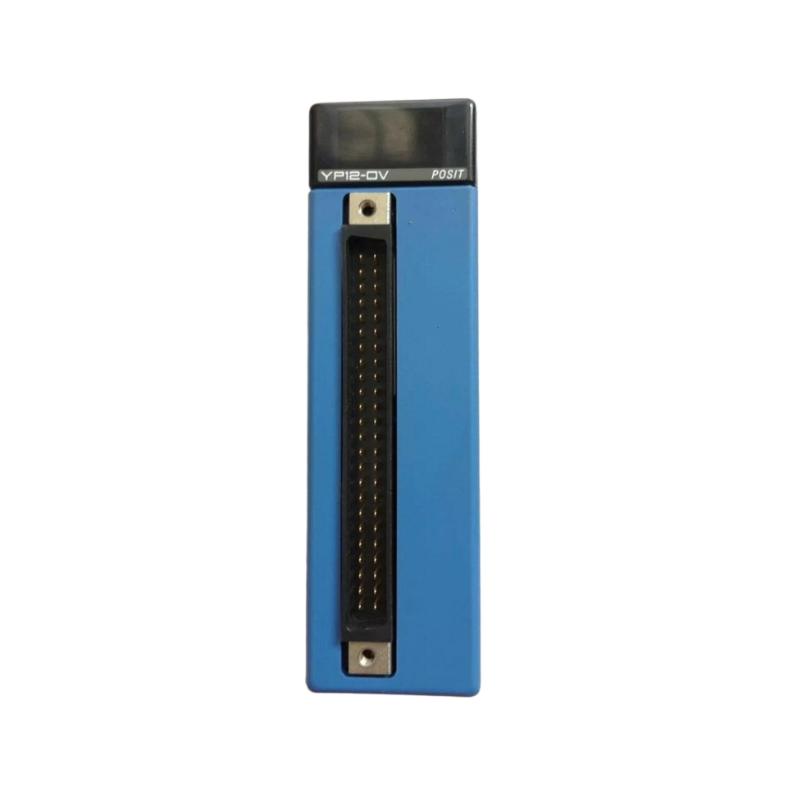

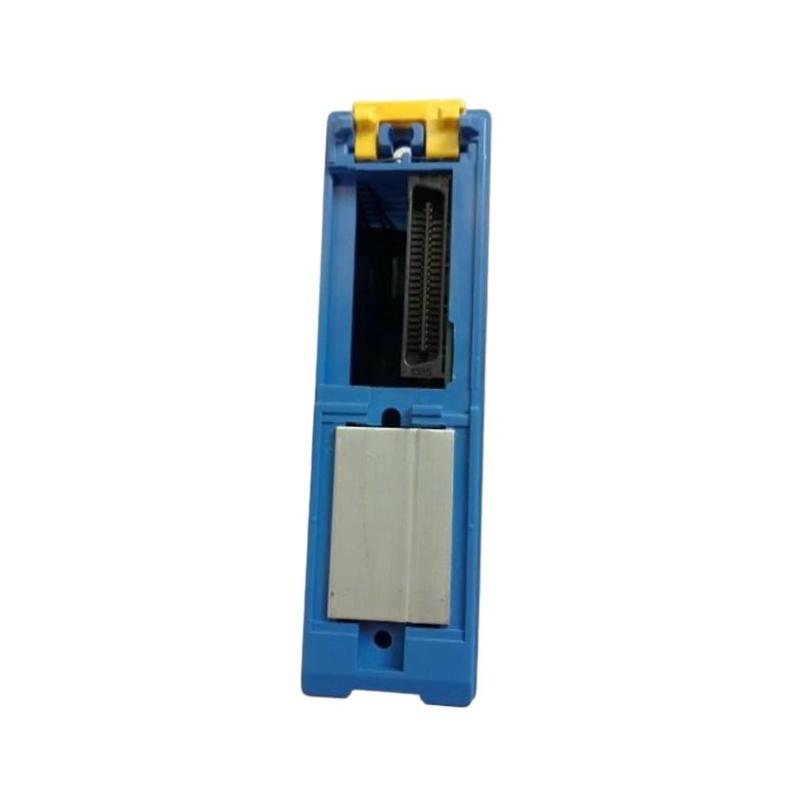

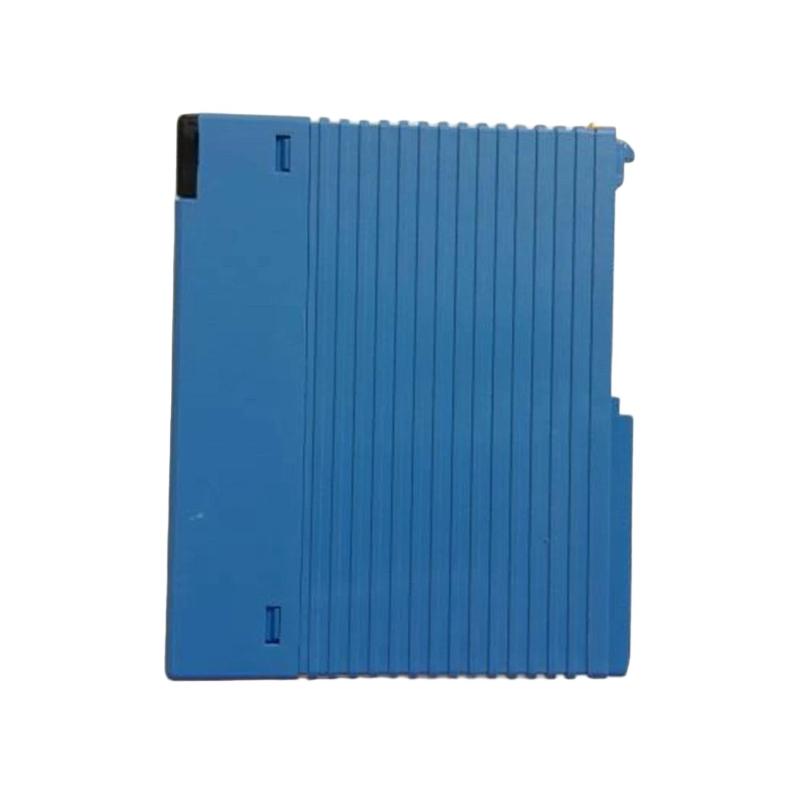

The Yokogawa F3YP12 is a Dual-Axis Control Module designed for the FA-M3 PLC Series. It is used to perform precise motion control of two independent axes, typically in positioning systems such as servo motors, stepping motors, and high-precision industrial machinery.
This module integrates motion control functions that allow the PLC to handle positioning, speed control, and coordinated multi-axis movement, making it suitable for advanced automation systems requiring synchronized control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3YP12 |
| Product Type | Dual-Axis Control Module |
| PLC Platform | FA-M3 Series |
| Number of Controlled Axes | 2 Axes |
| Control Type | Position / Speed Control |
| Output Interface | Pulse + Direction / Control signals |
| Positioning Capability | Absolute / Incremental control |
| Pulse Output Frequency | High-speed pulse output (motion control level) |
| Control Functions | Acceleration / Deceleration control |
| Feedback Support | Encoder / position feedback (system dependent) |
| Communication | FA-M3 backplane integration |
| Power Supply | 5 V DC (backplane supply) |
| Mounting Method | FA-M3 base unit |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.12 kg |
Function and Working Principle
The F3YP12 module acts as a motion control interface between the PLC CPU and servo/positioning systems.
It generates high-speed pulse signals and directional control outputs to drive servo amplifiers or stepper motor drivers. The module handles motion profiles such as acceleration, deceleration, and target positioning.
By managing two independent axes, it enables both single-axis motion control and coordinated multi-axis operations.
Operating Sequence
- PLC CPU sends motion command (position/speed)
- F3YP12 calculates motion profile
- High-speed pulse signals are generated
- Servo/stepper driver executes movement
- Position feedback is processed (if enabled)
- Motion completion signal is returned
PLC Command→Motion Control Profile→Pulse Output→Servo SystemPLC\;Command\rightarrow Motion\;Control\;Profile\rightarrow Pulse\;Output\rightarrow Servo\;System
Key Features
- Dual-axis independent motion control
- High-speed pulse output capability
- Supports position and speed control modes
- Acceleration and deceleration profile control
- Compatible with servo and stepper systems
- FA-M3 system integration
- Compact and lightweight module design
- Real-time motion control processing
System Role
The F3YP12 functions as a motion control processor module within the FA-M3 PLC system.
Typical Control Architecture
PLC CPU → F3YP12 Dual-Axis Control Module → Servo Amplifiers / Stepper Drivers → Motors → Mechanical Load
Industrial Applications
The F3YP12 is widely used in:
- CNC auxiliary control systems
- Packaging machinery
- Robotics and pick-and-place systems
- Conveyor positioning systems
- Semiconductor manufacturing equipment
- Automated assembly systems
- Labeling and printing machines
- Precision inspection systems
- Multi-axis synchronization systems
- Industrial motion control systems
Installation Guidelines
- Install into a compatible FA-M3 base unit
- Ensure correct wiring to servo/stepper drivers
- Use shielded cables for pulse signals
- Maintain proper grounding to reduce noise
- Configure motion parameters in PLC software
- Verify axis calibration before operation
- Avoid exceeding pulse frequency limits
Compatible Components
The F3YP12 is compatible with:
- FA-M3 CPU Modules
- Servo amplifiers
- Stepper motor drivers
- Encoder feedback systems
- F3PU Power Supply Modules
- Communication Modules
- Input/Output modules for interlocking
Alternative Models
| Model | Description |
|---|---|
| F3YP21 | Multi-axis motion control module (advanced version) |
| F3NC34-0N | Positioning module (simplified control) |
| F3NC51-0N | Positioning module variant |
| F3SP series | CPU-based motion control modules |
| F3LE series | Communication modules for motion integration |
Advantages
- Enables precise dual-axis motion control
- High-speed pulse generation
- Supports complex motion profiles
- Reduces need for external motion controllers
- Seamless FA-M3 integration
- Suitable for synchronized automation systems
- Compact and efficient design
Frequently Asked Questions
What is the main function of the F3YP12?
It controls two independent motion axes using high-speed pulse outputs for servo or stepper systems.
What type of systems does it support?
It supports servo motors and stepper motor control systems.
Can it perform coordinated motion?
Yes, it supports multi-axis synchronization and coordinated control.
What is its role in automation systems?
It acts as a motion control module between PLC logic and mechanical motion systems.
Where is it commonly used?
It is used in robotics, packaging machines, CNC auxiliary systems, semiconductor equipment, and precision automation systems.
Conclusion
The Yokogawa F3YP12 Dual-Axis Control Module is a compact and powerful motion control solution for FA-M3 PLC systems. With dual-axis capability, high-speed pulse output, and advanced motion profiling, it is ideal for industrial automation systems requiring precise and synchronized mechanical movement.
