Product Overview

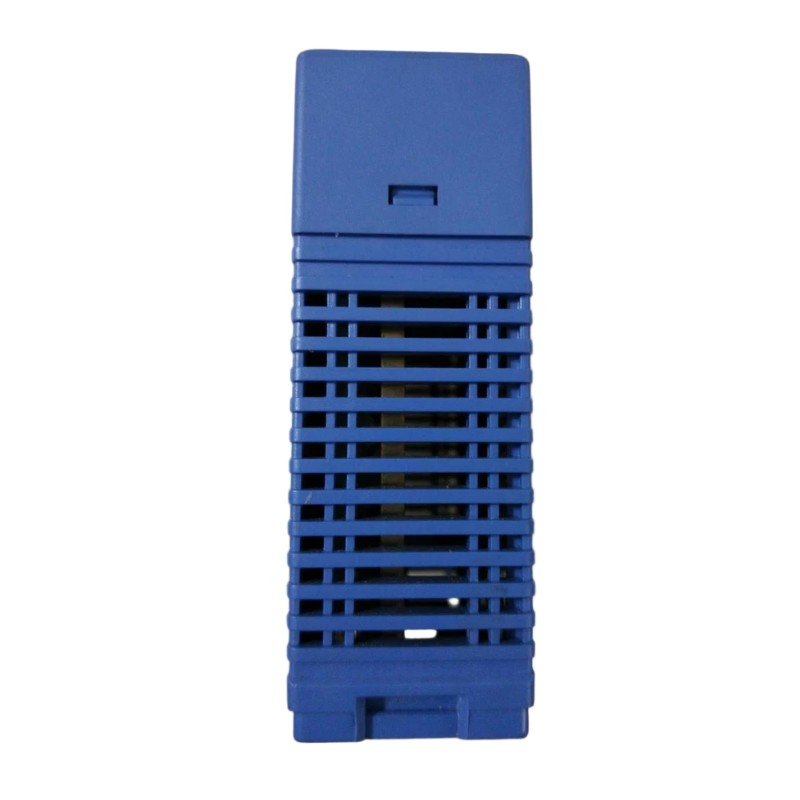

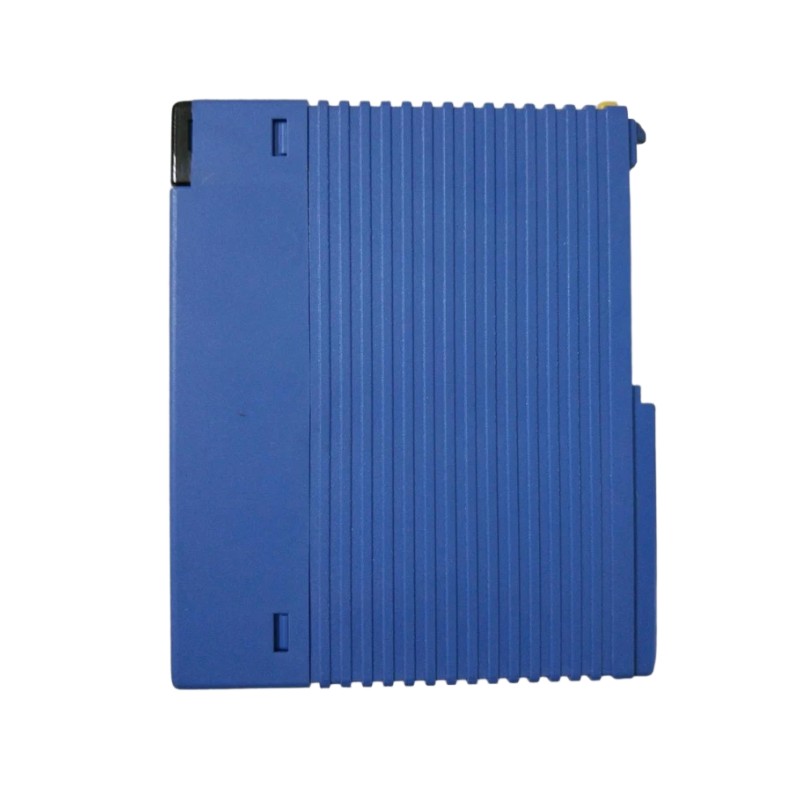

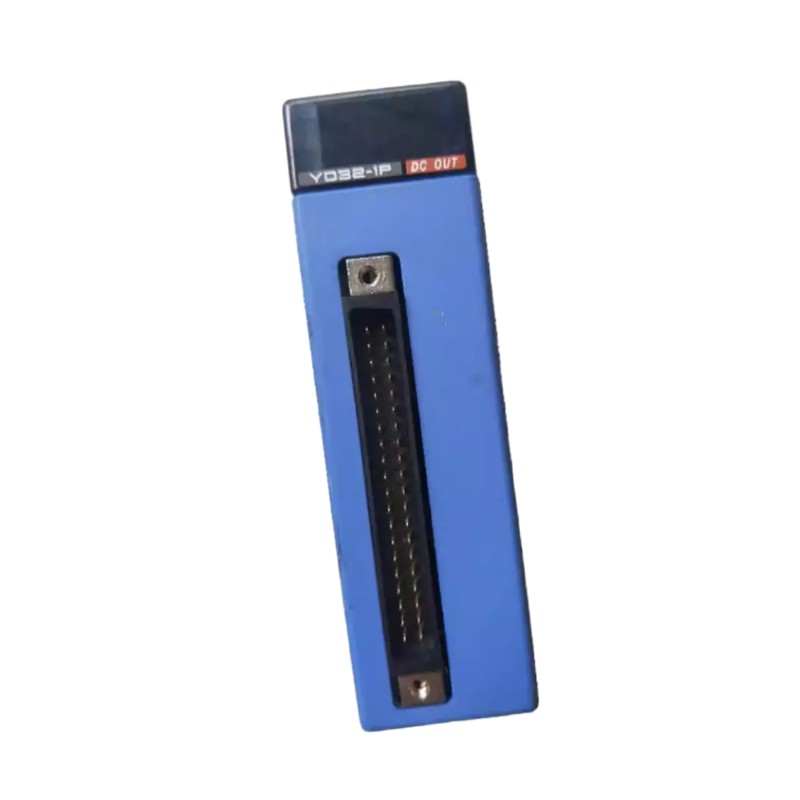

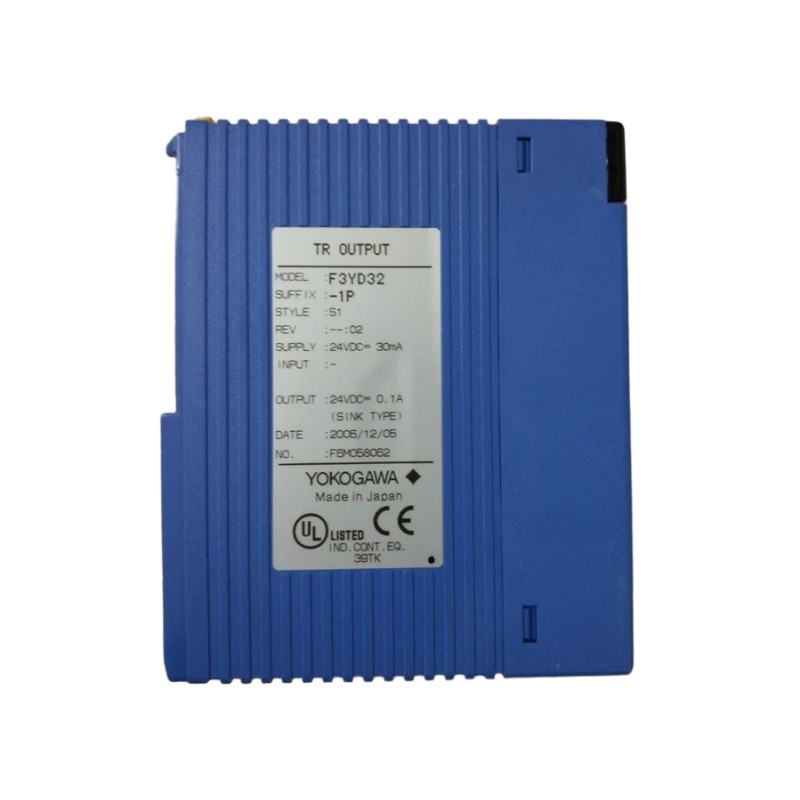

The Yokogawa F3YD32-1P is a 32-point transistor output module designed for the FA-M3 PLC Series. It provides reliable DC output switching for industrial automation systems, enabling the control of multiple field devices such as relays, solenoids, lamps, and actuators.

This module uses a sink-type transistor output structure, optimized for stable, low-noise, and high-density control applications in machine automation and process control systems.

Technical Specifications

Function and Working Principle

The F3YD32-1P receives output commands from the PLC CPU and switches DC field loads electronically using transistor switching elements.

When an output is ON, the transistor conducts current and powers the connected device. When OFF, it stops conduction immediately. This allows fast, silent, and wear-free switching, ideal for repetitive automation tasks.

Unlike relay outputs, there are no mechanical contacts, so durability and switching speed are significantly improved.

Operating Sequence

1. PLC CPU sends output signal
2. Photocoupler isolates control circuit
3. Transistor output stage activates
4. DC load is energized
5. Output switches OFF → transistor stops conduction
6. Load is de-energized

$PLCCPU\to Photocoupler\to TransistorOutput\to DCLoad$

Key Features

• 32-channel high-density transistor output
• Sink-type DC switching (12–24 V DC)
• Fast response (≤ 1 ms)
• Photocoupler isolation for noise immunity
• Built-in short-circuit protection
• Active surge suppression circuit
• Compact FA-M3 module design
• LED status indicators for diagnostics

System Role

The F3YD32-1P acts as the final digital output interface between PLC logic and field devices.

Typical Control Architecture

PLC CPU → F3YD32-1P Output Module → Solenoids / Relays / Lamps / Small DC Loads

Industrial Applications

The F3YD32-1P is widely used in:

• Factory automation systems
• Packaging machinery
• Conveyor systems
• Assembly lines
• Robotics systems
• Semiconductor equipment
• Inspection and testing systems
• Material handling systems
• Process automation systems
• High-speed industrial control

Installation Guidelines

• Install in a compatible FA-M3 base unit
• Ensure power is OFF before wiring
• Use only 12–24 V DC loads
• Observe sink-type wiring configuration
• Do not exceed 0.1 A per output point
• Use surge suppression for inductive loads
• Keep signal wiring separated from power lines

Compatible Components

The F3YD32-1P is compatible with:

• FA-M3 CPU Modules
• FA-M3 Base Units
• F3PU Power Supply Modules
• DC Input Modules (F3XD series)
• Relay Output Modules (F3YC series)
• Communication Modules
• Analog I/O Modules

Alternative Models

Advantages

• High-density 32-point output design
• Fast and reliable switching performance
• Long service life (no mechanical wear)
• Compact and space-saving structure
• Strong electrical isolation
• Stable operation in industrial environments
• Easy integration with FA-M3 systems

Frequently Asked Questions

What is the main function of F3YD32-1P?

It controls external DC devices by switching PLC output signals using transistor-based outputs.

What type of output does it use?

It uses sink-type transistor outputs for DC load control.

What is its switching speed?

It typically supports switching speeds up to 1 ms or faster.

Can it control AC loads?

No, it is designed for DC loads only (12–24 V DC).

Where is it commonly used?

It is used in automation systems such as manufacturing lines, robotics, packaging machines, and industrial process control.

Conclusion

The Yokogawa F3YD32-1P Transistor Output Module is a robust 32-point FA-M3 output solution designed for reliable DC switching, high-density control, and long operational life. With its fast response, compact design, and strong isolation features, it is widely used in modern industrial automation systems requiring stable and efficient output control.
