Product Overview

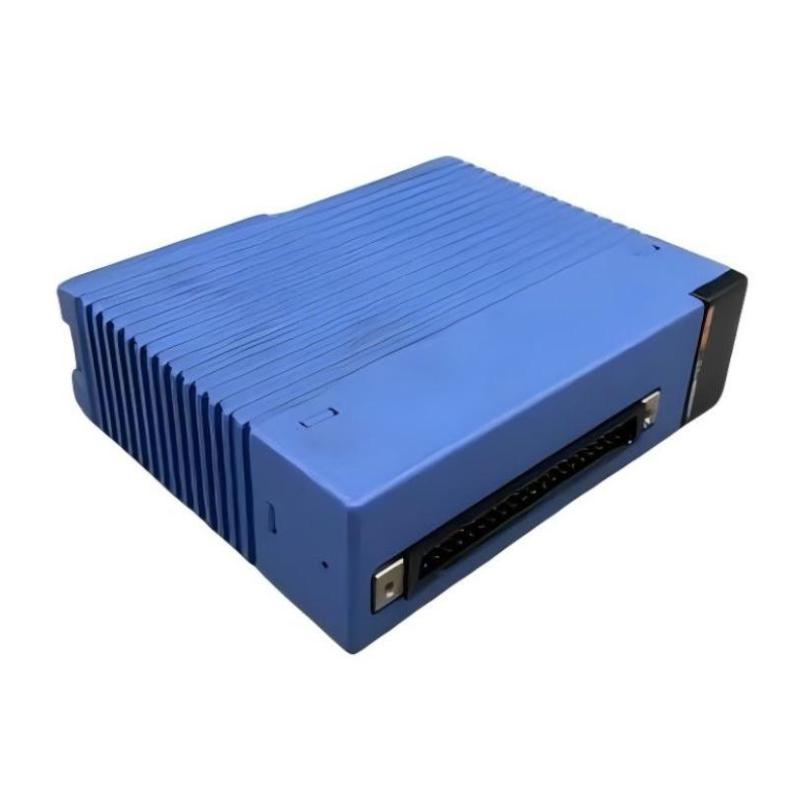

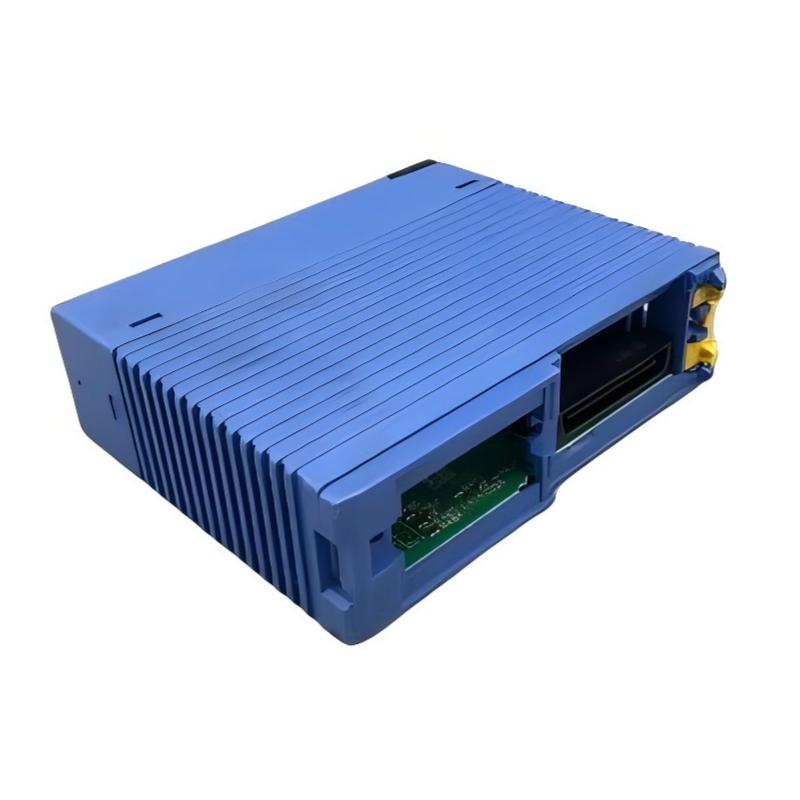

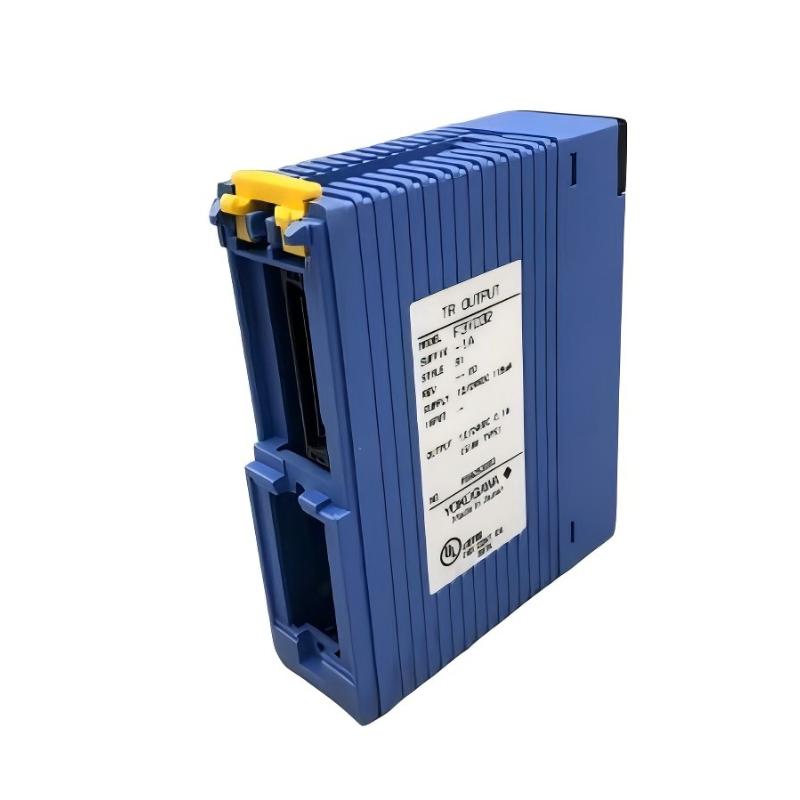

The Yokogawa F3YD32-1H is a 32-point High-Speed Transistor Output Module designed for the FA-M3 PLC Series. It is used for ultra-fast switching of DC loads in applications where standard output modules cannot meet timing requirements.
This module is optimized for high-speed pulse output control, such as driving encoders, fast actuators, positioning systems, and synchronized machine sequences. It provides extremely fast response performance and is suitable for precision automation systems requiring microsecond-level control behavior.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3YD32-1H |
| Product Type | High-Speed Transistor Output Module |
| PLC Platform | FA-M3 Series |
| Number of Output Channels | 32 Digital Outputs |
| Output Type | High-Speed Transistor (Sink Type) |
| Rated Load Voltage | 12–24 V DC |
| Maximum Load Current | 0.1 A per point |
| Output Configuration | 8 points per common |
| Isolation Method | Photocoupler Isolation |
| Response Time | ≤ 0.1 ms (100 µs max) |
| Output Protection | Short-circuit protection (built-in limiter) |
| Surge Protection | Active clamp circuit |
| External Connection | 40-pin connector |
| LED Indicators | Individual output status LEDs |
| Power Consumption | ~5 V DC backplane supply |
| Mounting Method | FA-M3 base unit |
| Dimensions | 84.5 × 102 × 28.9 mm |
| Weight | 0.11 kg |
Function and Working Principle
The F3YD32-1H operates as a high-speed digital switching interface between the PLC CPU and fast-acting field devices.
Unlike standard transistor outputs, this module is designed to handle rapid ON/OFF pulse sequences with minimal delay, ensuring precise timing control.
When the PLC issues a command, the output transistor switches almost instantaneously, enabling accurate synchronization of high-speed industrial processes.
Operating Sequence
- PLC CPU generates output command
- High-speed driver circuit activates transistor stage
- Output switches within microseconds
- DC load is energized or de-energized
- Output status is fed back via LED indication
- Cycle repeats at high frequency
PLC CPU→HighSpeed Driver→Transistor Output→Fast DC LoadPLC\;CPU\rightarrow HighSpeed\;Driver\rightarrow Transistor\;Output\rightarrow Fast\;DC\;Load
Key Features
- 32-channel high-speed output capability
- Ultra-fast response (up to 0.1 ms)
- Designed for pulse output applications
- Photocoupler isolation for noise immunity
- Built-in short-circuit protection
- Active clamp surge suppression
- Compact high-density FA-M3 design
- Stable operation under high-frequency switching
System Role
The F3YD32-1H acts as the precision timing output interface in FA-M3 systems.
Typical Control Architecture
PLC CPU → F3YD32-1H High-Speed Output Module → Fast Actuators / Servo Systems / Pulse Devices
Industrial Applications
The F3YD32-1H is widely used in:
- High-speed packaging machines
- Motion control systems
- Servo positioning systems
- Robotics synchronization
- Semiconductor manufacturing equipment
- Automated inspection systems
- Conveyor synchronization
- Pulse-driven control systems
- Precision assembly machinery
- High-speed counting/output systems
Installation Guidelines
- Install in a compatible FA-M3 base unit
- Ensure correct polarity for DC loads
- Use shielded wiring for high-speed signals
- Keep signal lines away from high-power cables
- Do not exceed 0.1 A per channel
- Add external protection for inductive loads
- Verify timing configuration in PLC program
Compatible Components
The F3YD32-1H is compatible with:
- FA-M3 CPU Modules
- FA-M3 Base Units
- F3PU Power Supply Modules
- High-speed input modules (F3XH series)
- Standard DC output modules
- Motion and positioning modules
- Communication modules
Alternative Models
| Model | Description |
|---|---|
| F3YD32-1P | Standard 32-point transistor output module |
| F3YD32-1R | Source-type high-speed output module |
| F3YD14-5B | 14-point transistor output module |
| F3YC16-0N | Relay output module (16-point) |
| F3YD64-1P | 64-point transistor output module |
Advantages
- Extremely fast switching performance (100 µs level)
- Ideal for pulse and synchronization control
- High channel density (32 outputs)
- Strong noise immunity via photocoupling
- Built-in output protection circuitry
- Suitable for high-precision automation systems
- Compact and lightweight design
Frequently Asked Questions
What is the main function of the F3YD32-1H?
It provides ultra-fast transistor switching outputs for high-speed PLC control applications.
How fast is its response time?
It supports switching speeds up to approximately 0.1 ms (100 microseconds).
What type of loads can it control?
It controls 12–24 V DC loads only, especially fast-switching devices.
Is it suitable for relay control?
It can drive relays, but only for high-speed or pulse applications, not heavy loads.
Where is it commonly used?
It is used in robotics, motion control, packaging systems, semiconductor machines, and any high-speed automation system.
Conclusion
The Yokogawa F3YD32-1H High-Speed Output Module is a specialized FA-M3 output device designed for ultra-fast switching and precision pulse control. With its 100 µs response time, 32-channel capacity, and robust protection features, it is ideal for advanced industrial automation systems requiring accurate timing and high-speed signal output.
