- Yokogawa
- F3YC16-0N
- Output Module
- Japan
- 28.9 × 100 × 83.2 mm
- 0.22 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

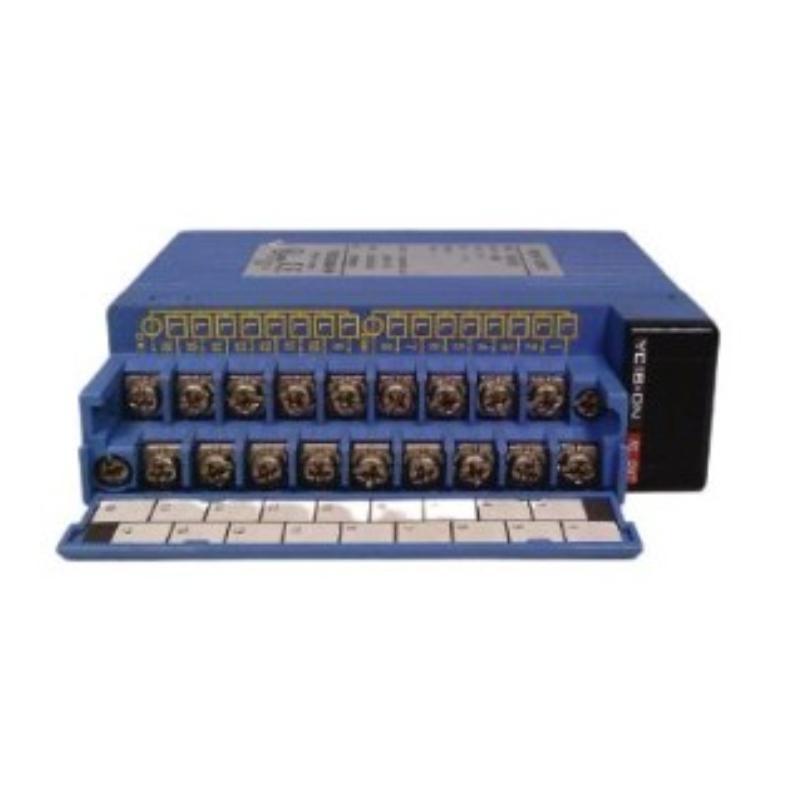

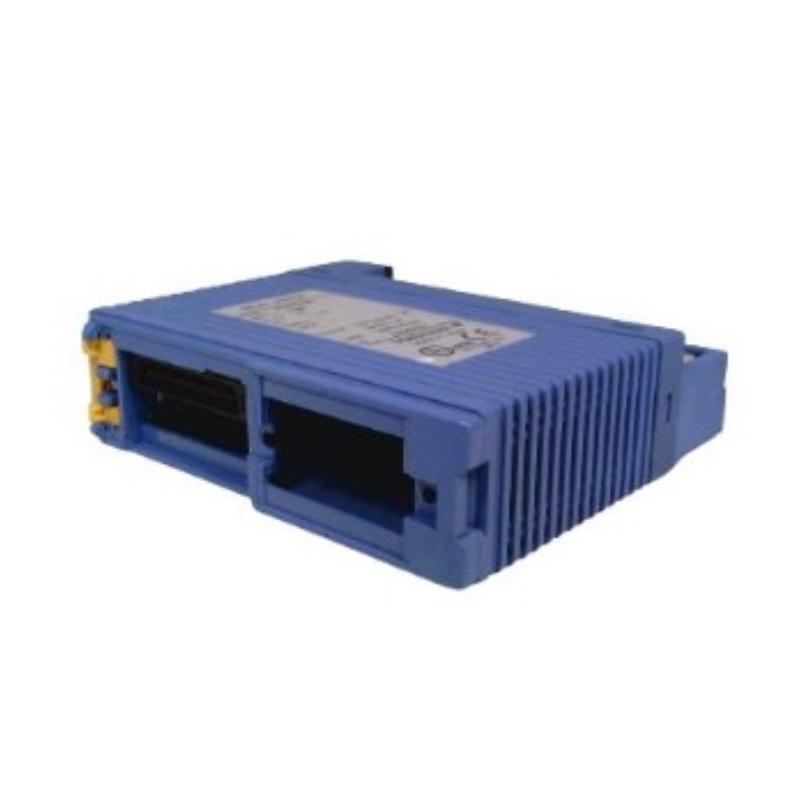

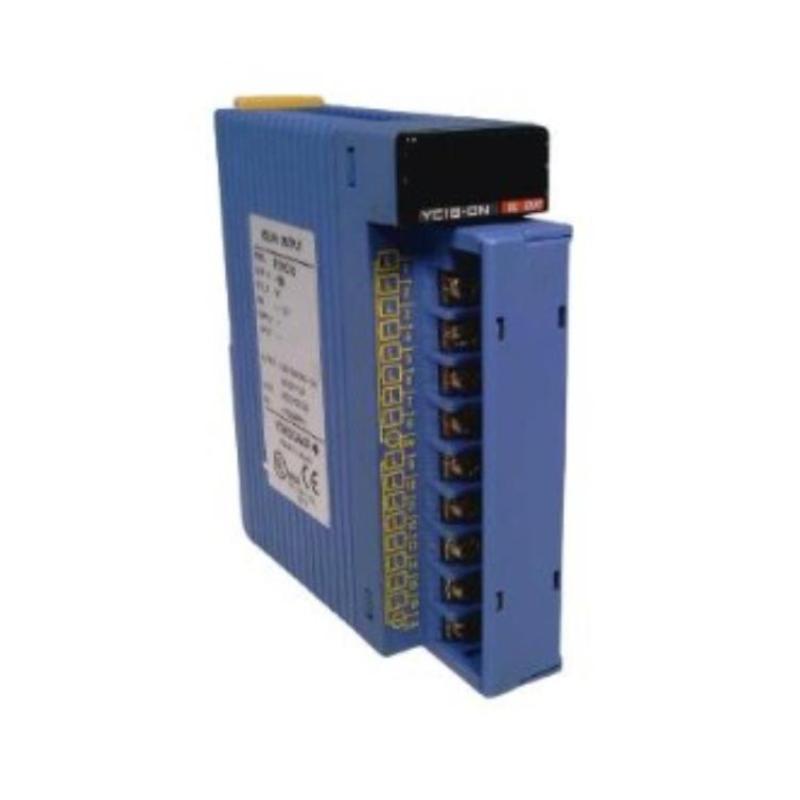

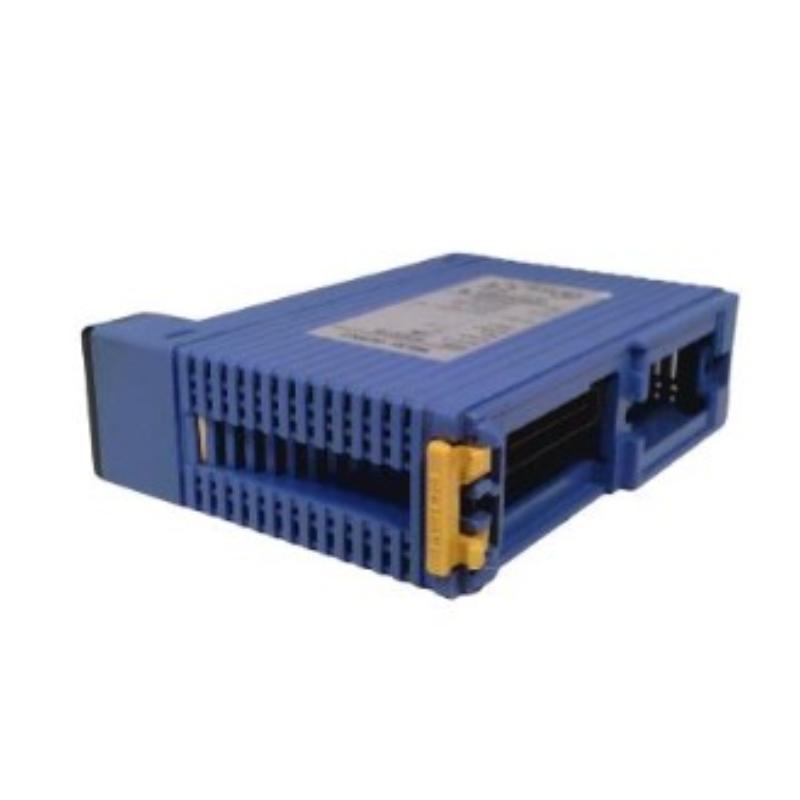

The Yokogawa F3YC16-0N is a 16-point Relay Output Module designed for the FA-M3 PLC Series. It is used to control external field devices such as contactors, solenoids, alarms, indicator lamps, and small motors by switching circuits through mechanical relay contacts.
With support for both AC and DC load switching, the F3YC16-0N is suitable for general-purpose industrial automation systems that require flexible output control and strong electrical isolation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3YC16-0N |
| Product Type | Relay Output Module |
| PLC Platform | FA-M3 Series |
| Number of Output Channels | 16 Relay Outputs |
| Output Type | Mechanical Relay Contact |
| Load Voltage | 5–24 V DC / 100–240 V AC |
| Maximum Load Current | 2 A per point / 8 A per common |
| Isolation Method | Mechanical relay isolation |
| Response Time | ≤ 10 ms (ON/OFF) |
| Output Configuration | 8 points per common |
| Contact Type | Normally Open (NO) |
| LED Indicators | Individual output status LEDs |
| External Connection | Terminal block wiring |
| Power Supply | 5 V DC (backplane supply) |
| Mounting Method | FA-M3 base unit |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.22 kg |
Function and Working Principle
The F3YC16-0N receives ON/OFF commands from the PLC CPU and activates internal relay coils to switch external loads.
When an output signal is ON, the relay energizes and closes the contact, allowing current to flow to the connected device. When OFF, the relay de-energizes and opens the contact, stopping the load.
This mechanical switching method provides complete galvanic isolation, ensuring safe operation when controlling different voltage levels.
Operating Sequence
- PLC CPU sends output command
- Relay coil is energized
- Contact closes (ON state)
- External device is powered
- Signal turns OFF → relay releases
- Contact opens (OFF state)
PLC CPU→Relay Coil→Mechanical Contact→Field LoadPLC\;CPU\rightarrow Relay\;Coil\rightarrow Mechanical\;Contact\rightarrow Field\;Load
Key Features
- 16-channel relay output configuration
- Supports AC and DC load switching
- Mechanical isolation for safe operation
- 2 A output per channel capacity
- 8 points per common grouping
- LED status indication for each output
- Easy wiring and maintenance
- FA-M3 PLC compatibility
System Role
The F3YC16-0N acts as the final output switching interface between the PLC system and field equipment.
Typical Control Architecture
PLC CPU → F3YC16-0N Relay Output Module → Contactors / Solenoids / Lamps / Motors / Alarms
Industrial Applications
The F3YC16-0N is widely used in:
- Factory automation systems
- Machine control panels
- Conveyor systems
- HVAC control systems
- Pump and valve control
- Alarm and safety systems
- Packaging machinery
- Process control systems
- Industrial switching applications
- General-purpose electrical control
Installation Guidelines
- Install into a compatible FA-M3 base unit
- Disconnect power before wiring
- Do not exceed rated load current (2 A per point)
- Use proper suppression for inductive loads
- Separate power wiring from signal wiring
- Ensure correct grounding for stability
- Test outputs before commissioning
Compatible Components
The F3YC16-0N is compatible with:
- FA-M3 CPU Modules
- FA-M3 Base Units
- F3PU Power Supply Modules
- Digital Input Modules
- Analog Modules
- Communication Modules
- Other FA-M3 Output Modules
Alternative Models
| Model | Description |
|---|---|
| F3YC08-0C | 8-point Relay Output Module |
| F3YC08-0N | 8-point Relay Output Module (shared common) |
| F3YD08-6A | Transistor Sink Output Module |
| F3YD08-6B | Transistor Source Output Module |
| F3YA08-2N | TRIAC Output Module |
Advantages
- Higher output density (16 points per module)
- Flexible AC/DC load control
- Strong electrical isolation via relays
- Easy troubleshooting with LED indicators
- Suitable for mixed industrial environments
- Reliable switching for general automation
- Seamless FA-M3 integration
Frequently Asked Questions
What is the main function of F3YC16-0N?
It switches external electrical loads ON or OFF using PLC-controlled relay contacts.
What types of loads can it control?
It can control AC and DC loads, including lamps, relays, solenoids, motors, and alarms.
What is the output current rating?
Each channel supports 2 A per point, with up to 8 A per common.
Does it provide isolation?
Yes, it uses mechanical relay isolation to separate control and field circuits.
Where is it commonly used?
It is used in industrial automation, machine control systems, process control, HVAC systems, and general electrical switching applications.
Conclusion
The Yokogawa F3YC16-0N Relay Output Module is a reliable 16-point output solution for FA-M3 PLC systems. With mechanical relay switching, AC/DC compatibility, and strong isolation, it provides flexible and safe output control for a wide range of industrial automation applications.
