Product Overview

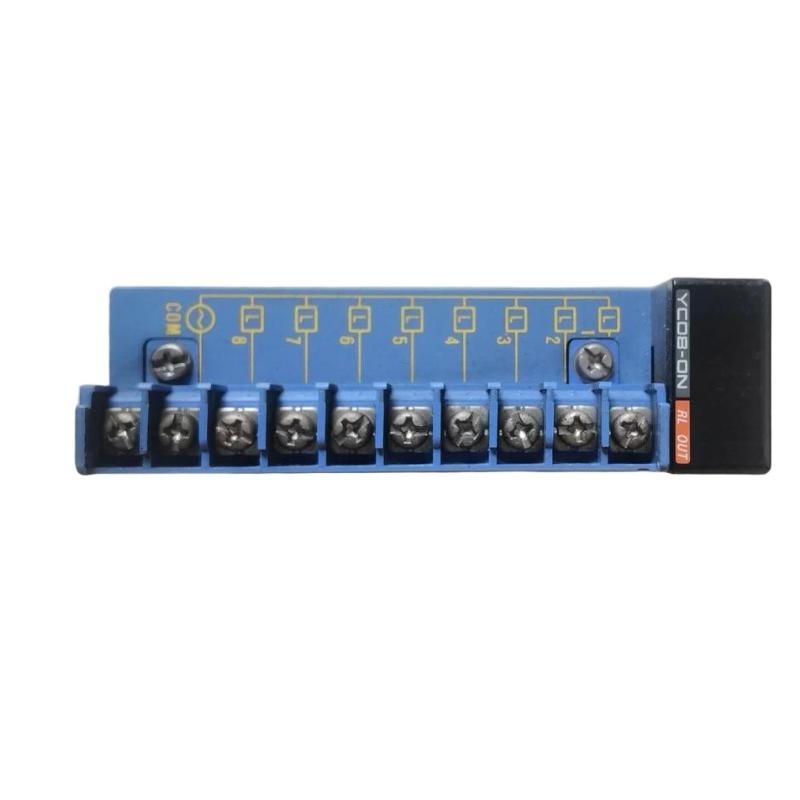

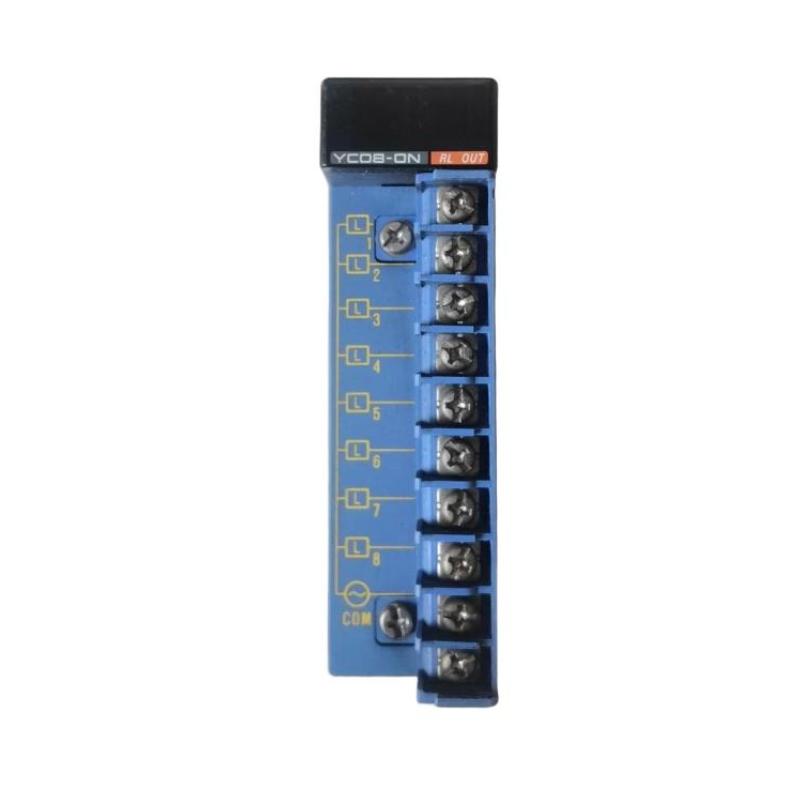

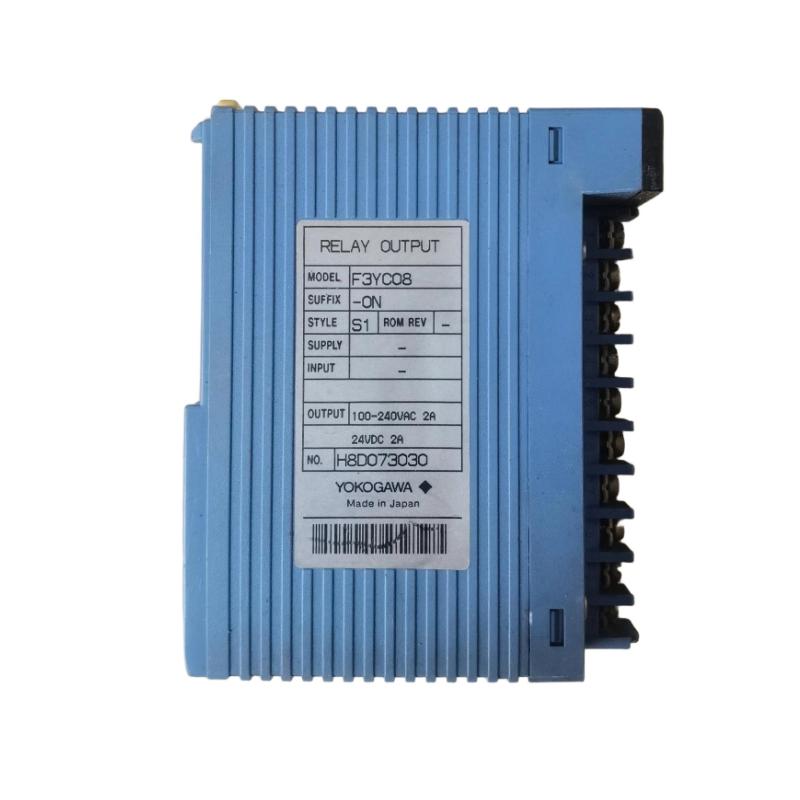

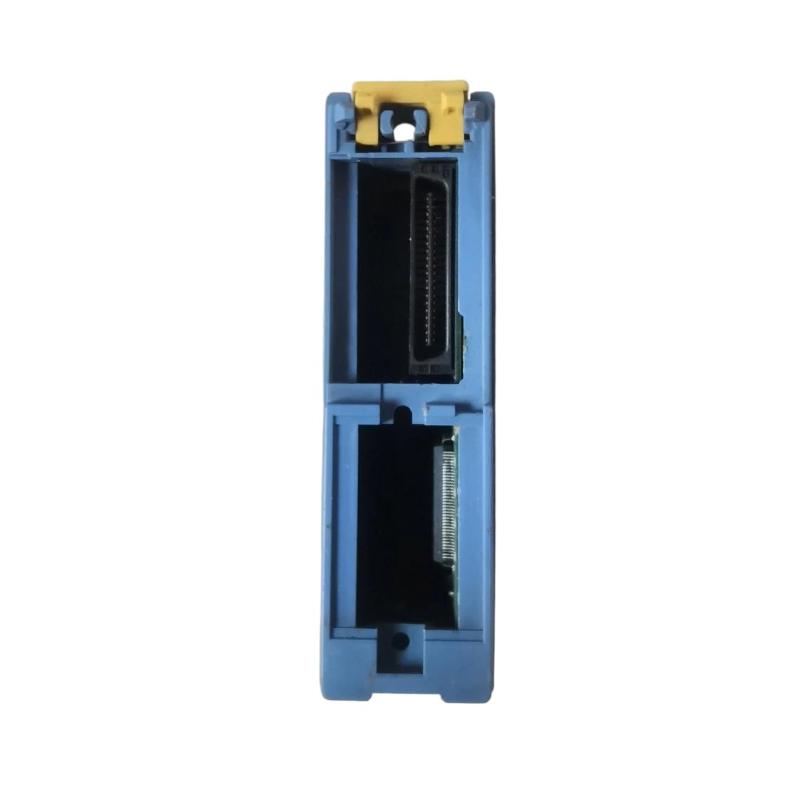

The Yokogawa F3YC08-0N is an 8-point Relay Output Module designed for the FA-M3 PLC Series. It is used to control external electrical devices such as relays, solenoids, contactors, alarm devices, and indicator lamps by switching their circuits through mechanical relay contacts.
Compared with transistor output modules, the F3YC08-0N provides universal load compatibility (AC and DC) and strong electrical isolation, making it suitable for general-purpose industrial switching applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3YC08-0N |
| Product Type | Relay Output Module |
| PLC Platform | FA-M3 Series |
| Number of Output Channels | 8 Relay Outputs |
| Output Type | Mechanical Relay Contact |
| Load Voltage | 5–24 V DC / 100–240 V AC |
| Maximum Load Current | 2 A per point |
| Isolation Method | Mechanical relay isolation |
| Response Time | ≤ 10 ms (ON/OFF) |
| Output Configuration | Common shared output structure |
| Contact Type | Normally Open (NO) |
| LED Indicators | Output status LEDs (per channel) |
| External Connection | Terminal block wiring |
| Power Supply | 5 V DC (backplane supply) |
| Mounting Method | FA-M3 base unit |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.16 kg |
Function and Working Principle
The F3YC08-0N receives output commands from the PLC CPU and switches external loads using internal relay contacts.
When the PLC output signal is ON, the relay coil is energized, causing the contact to close and allow current flow to the connected field device. When the output is OFF, the relay de-energizes and the contact opens, stopping the circuit.
This mechanical switching mechanism provides full electrical isolation between the PLC control circuit and field devices, improving safety and allowing mixed-voltage operation.
Operating Sequence
- PLC CPU sends output command
- Relay coil is energized
- Contact closes (ON state)
- External device is powered
- Output turns OFF → relay releases
- Contact opens (OFF state)
PLC CPU→Relay Coil→Mechanical Contact→Field DevicePLC\;CPU\rightarrow Relay\;Coil\rightarrow Mechanical\;Contact\rightarrow Field\;Device
Key Features
- 8-channel relay output configuration
- Supports AC and DC load switching
- Mechanical isolation for safe operation
- 2 A output capacity per channel
- Individual LED status indicators
- Simple wiring and maintenance
- High compatibility with industrial loads
- FA-M3 PLC integration
System Role
The F3YC08-0N acts as the final output switching interface between the PLC system and external field devices.
Typical Control Architecture
PLC CPU → F3YC08-0N Relay Output Module → Contactors / Solenoids / Lamps / Alarms / Motors
Industrial Applications
The F3YC08-0N is widely used in:
- Factory automation systems
- Machine control panels
- Conveyor systems
- HVAC systems
- Pump and valve control
- Alarm and signaling systems
- Packaging machinery
- Process control systems
- Industrial power switching
- General-purpose automation
Installation Guidelines
- Install into a compatible FA-M3 base unit
- Ensure system power is OFF before wiring
- Do not exceed rated current (2 A per channel)
- Use proper suppression for inductive loads
- Separate high-voltage and low-voltage wiring
- Ensure correct grounding for stability
- Test all outputs before commissioning
Compatible Components
The F3YC08-0N is compatible with:
- FA-M3 CPU Modules
- FA-M3 Base Units
- Power Supply Modules (F3PU series)
- DC Input Modules
- Analog Modules
- Communication Modules
- Other FA-M3 output modules
Alternative Models
| Model | Description |
|---|---|
| F3YC08-0C | Relay Output Module (separate commons) |
| F3YC16-0N | 16-point Relay Output Module |
| F3YD08-6A | Transistor Sink Output Module |
| F3YD08-6B | Transistor Source Output Module |
| F3YA08-2N | TRIAC Output Module |
Advantages
- Simple ON/OFF control for external devices
- Works with both AC and DC loads
- Strong electrical isolation via relay contacts
- Easy wiring and troubleshooting
- Reliable switching for general industrial use
- LED indicators for quick diagnostics
- Compatible with FA-M3 PLC systems
Frequently Asked Questions
What is the main function of F3YC08-0N?
It switches external devices ON or OFF using relay contacts controlled by the PLC.
What types of loads can it control?
It can control AC and DC loads, including relays, motors, solenoids, lamps, and alarms.
What is the output current rating?
Each channel supports up to 2 A per point.
Does it provide isolation?
Yes, it uses mechanical relay isolation, separating PLC logic from field wiring.
Where is it commonly used?
It is used in factory automation, machine control systems, HVAC, process systems, and general industrial switching applications.
Conclusion
The Yokogawa F3YC08-0N Relay Output Module is a reliable 8-point output solution for FA-M3 PLC systems. With mechanical relay switching, AC/DC compatibility, and strong electrical isolation, it is ideal for industrial applications requiring safe and flexible output control.
