Product Overview

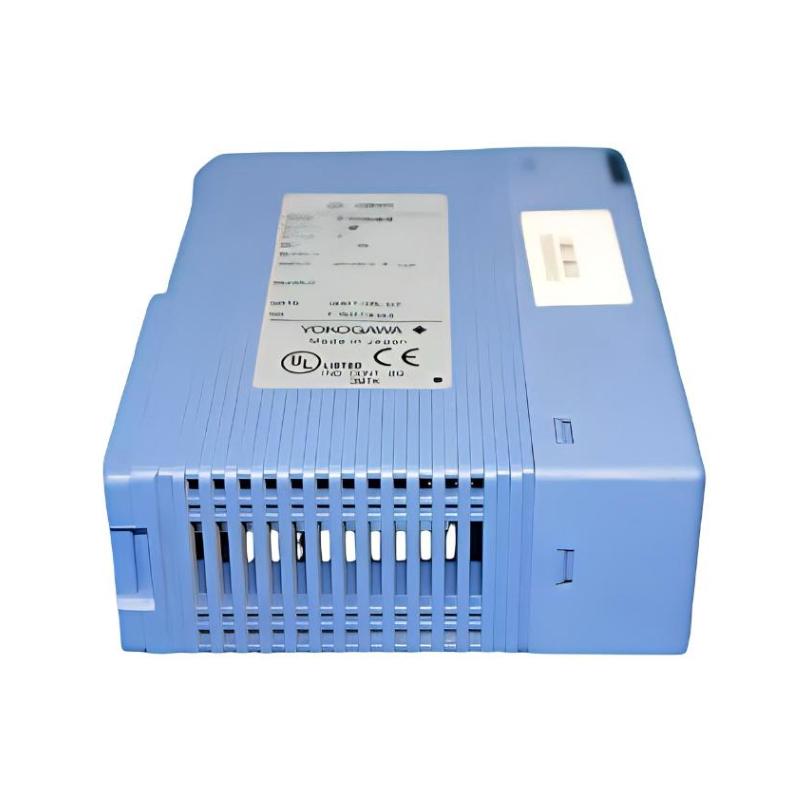

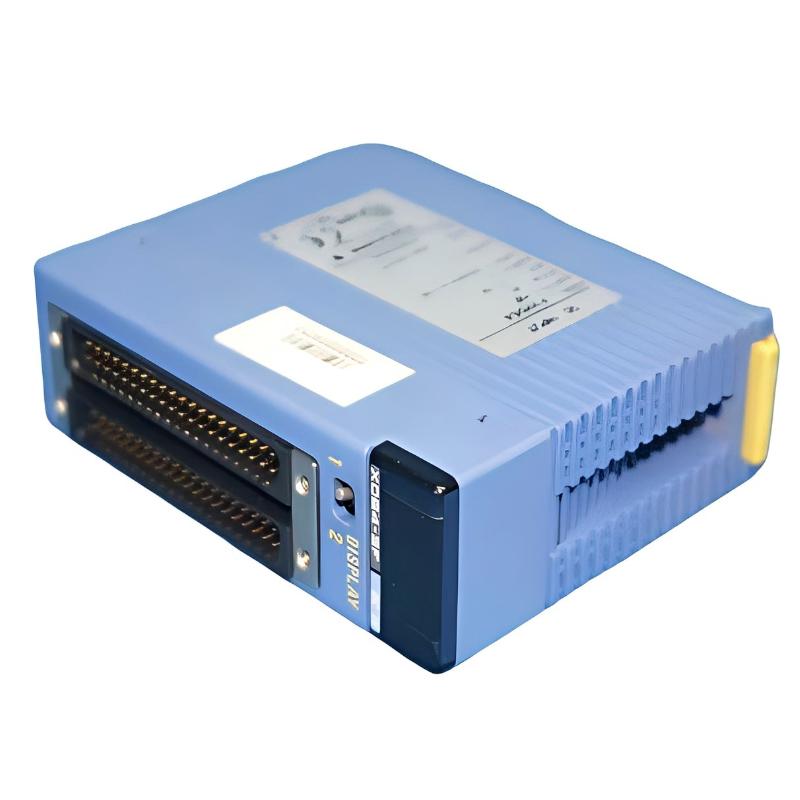

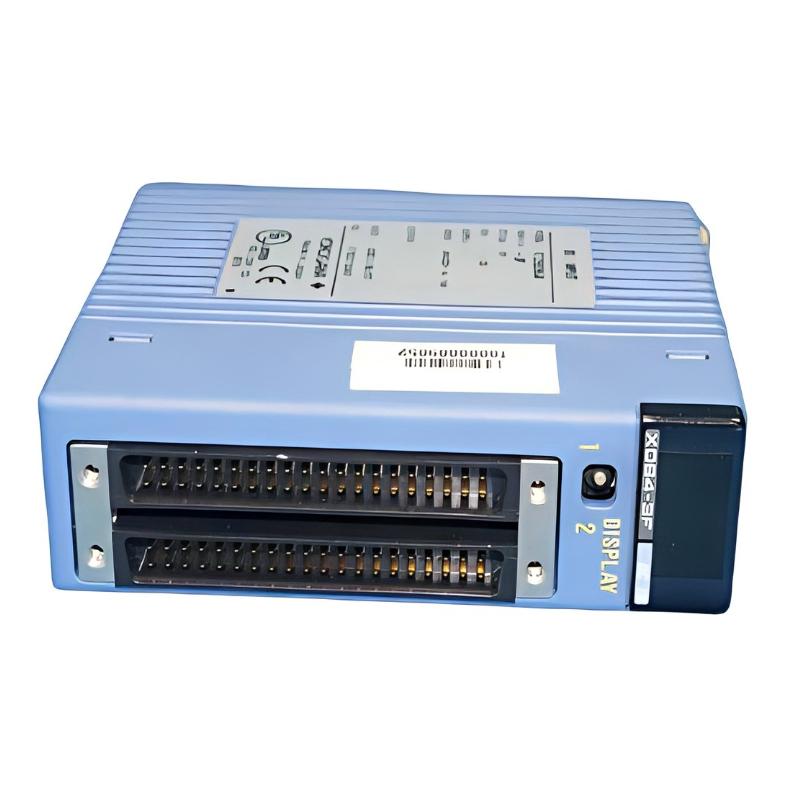

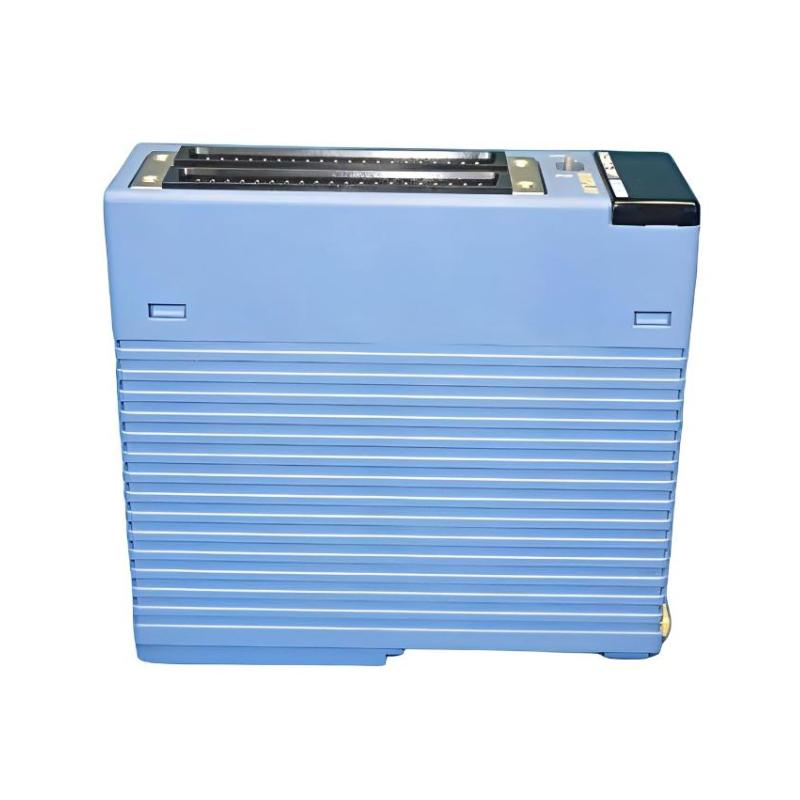

The Yokogawa F3XD64-3F is a 64-point DC Input Module designed for the FA-M3 PLC Series. It is used to receive digital ON/OFF signals from field devices such as sensors, switches, limit switches, push buttons, and relay contacts, and converts them into PLC-readable input data.
This module supports 24 V DC sink/source input wiring, features photocoupler isolation, and provides high-density input capability, making it suitable for large-scale industrial automation systems where space efficiency and fast signal acquisition are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3XD64-3F |
| Product Type | DC Input Module |
| PLC Platform | FA-M3 Series |
| Number of Input Channels | 64 Digital Inputs |
| Input Type | DC Voltage (Sink/Source Compatible) |
| Rated Input Voltage | 24 V DC |
| Operating Voltage Range | 20.4–26.4 V DC |
| Rated Input Current | 4.1 mA per point |
| ON Voltage | ≥ 16.0 V DC |
| OFF Voltage | ≤ 5.8 V DC |
| Isolation Method | Photocoupler Isolation |
| Response Time | Selectable: 0 μs, 62.5 μs, 250 μs, 1 ms, 16 ms |
| Interrupt Function | Supported per input channel |
| Common Configuration | 8 points per common |
| External Connection | Dual 40-pin connectors |
| Power Consumption | 5 V DC (backplane supply) |
| Input Status Indication | Individual LED indicators |
| Mounting Method | FA-M3 base unit |
| Dimensions | 28.9 × 85.1 × 102 mm |
| Weight | 0.16 kg |
Function and Working Principle
The F3XD64-3F continuously monitors the ON/OFF status of connected field devices and transmits this data to the FA-M3 PLC CPU.
Each input channel is electrically isolated using photocouplers to ensure stable operation in noisy industrial environments. During each scan cycle, the PLC reads input status, executes control logic, and updates system outputs accordingly. The module supports configurable sampling times and interrupt processing for high-speed event detection.
Operating Sequence
- Receive digital signals from field devices
- Detect ON/OFF status changes
- Convert signals into digital input data
- Transfer data to PLC CPU
- Execute control program
- Repeat continuously
DC Input→Input Module→PLC CPUDC\;Input\rightarrow Input\;Module\rightarrow PLC\;CPU
Key Features
- 64-channel high-density DC input
- 24 V DC industrial compatibility
- Sink/source wiring support
- Photocoupler isolation for noise immunity
- Fast selectable response times
- Input interrupt capability per channel
- Individual LED status indicators
- Compact FA-M3 module design
- Stable operation in industrial environments
System Role
The F3XD64-3F acts as the digital interface between field devices and the PLC CPU, enabling reliable signal acquisition for large-scale automation systems.
Typical Control Architecture
Sensors / Switches → F3XD64-3F Input Module → PLC CPU → Output Modules → Motors / Relays / Actuators
Industrial Applications
The F3XD64-3F is widely used in:
- Factory automation systems
- Conveyor control systems
- Packaging machinery
- Automotive production lines
- Semiconductor equipment
- Material handling systems
- Process automation
- Food and beverage production
- Water treatment plants
- General industrial control systems
Installation Guidelines
- Install in a compatible FA-M3 base unit
- Disconnect power before installation
- Use 24 V DC field devices only
- Connect wiring via dual 40-pin connectors
- Follow 8-point common wiring structure
- Ensure proper grounding to reduce noise
- Verify all channels before commissioning
Compatible Components
- FA-M3 CPU Modules
- FA-M3 Base Units
- FA-M3 Power Supply Modules
- Digital Output Modules
- Analog I/O Modules
- Communication Modules (Ethernet / Serial)
- Motion Control Modules
- Positioning Modules
- Remote I/O Modules
Alternative Models
| Model | Description |
|---|---|
| F3XD32-3F | 32-point DC Input Module |
| F3XD16-3F | 16-point DC Input Module |
| F3XD08-6F | 8-point DC Input Module |
| F3XC08-0C | 8-point No-Voltage Contact Input Module |
| F3WD64-3P | 64-point I/O Module |
Advantages
- Very high input density (64 points in one module)
- Reduced wiring and cabinet space
- Reliable photocoupler isolation
- Fast response for real-time control
- Flexible sink/source compatibility
- Easy maintenance with LED diagnostics
- Strong industrial durability
- Seamless FA-M3 integration
Frequently Asked Questions
What is the main function of F3XD64-3F?
It collects 64 digital input signals from field devices and sends them to the PLC CPU for processing.
What voltage does it support?
It supports 24 V DC industrial input signals with sink/source compatibility.
Does it support high-speed input detection?
Yes, it offers selectable response times including high-speed sampling modes.
Is each input isolated?
Yes, each channel uses photocoupler isolation for stable and noise-resistant operation.
Where is it commonly used?
It is used in factory automation, machinery control, conveyors, automotive lines, and process industries.
Conclusion
The Yokogawa F3XD64-3F DC Input Module is a high-density and reliable 64-point input solution for FA-M3 PLC systems. With fast response options, photocoupler isolation, sink/source compatibility, and compact design, it is well-suited for complex industrial automation environments requiring efficient and stable digital signal acquisition.
