Product Overview

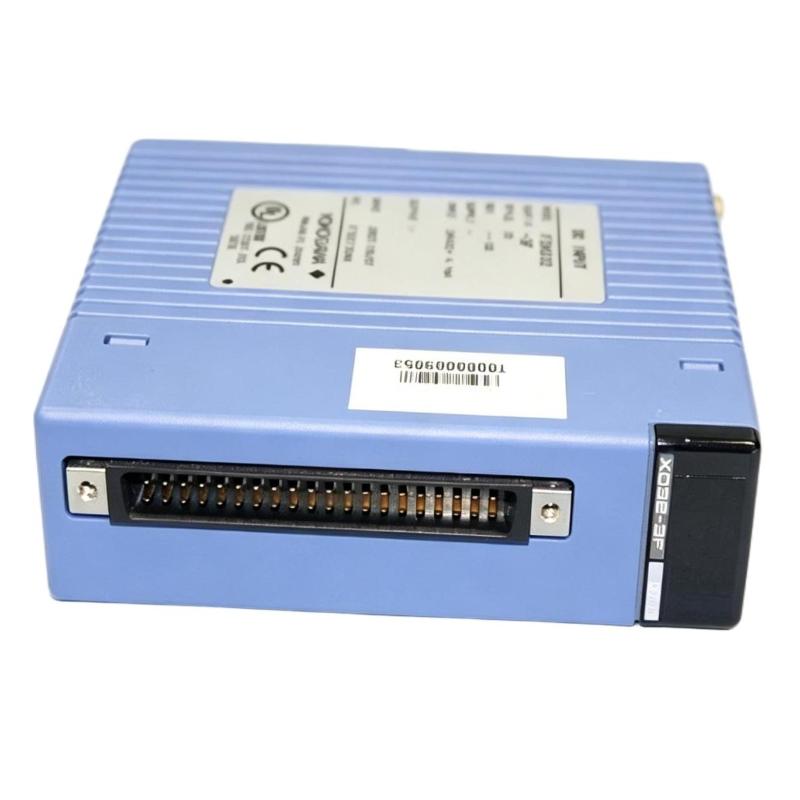

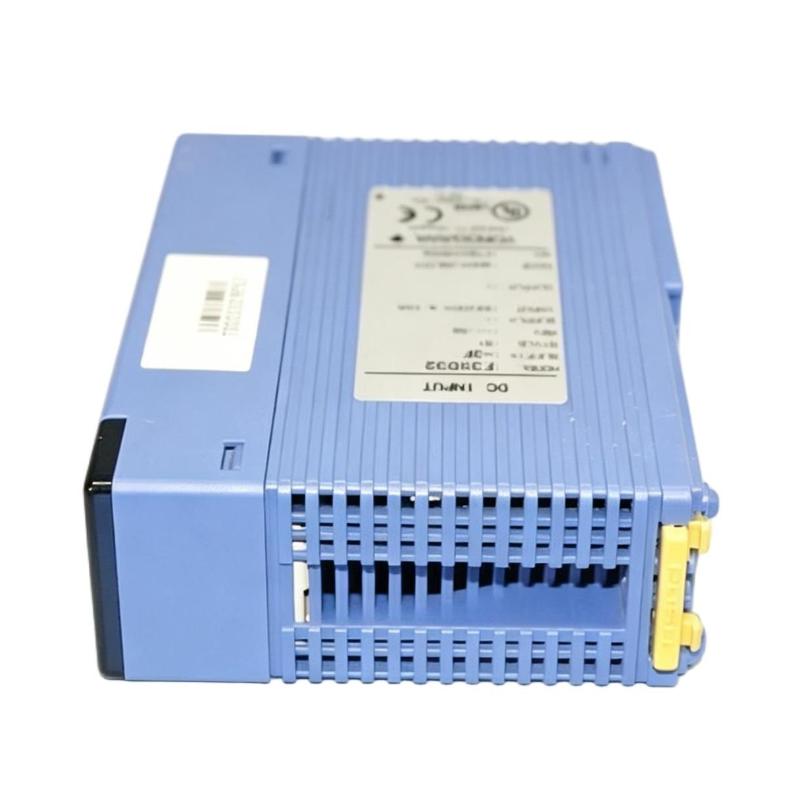

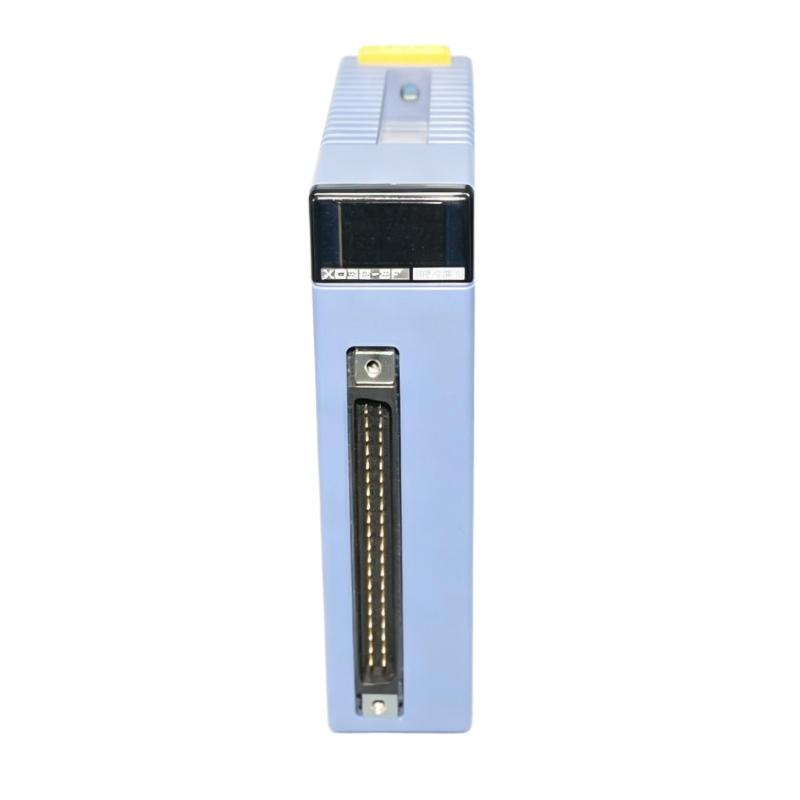

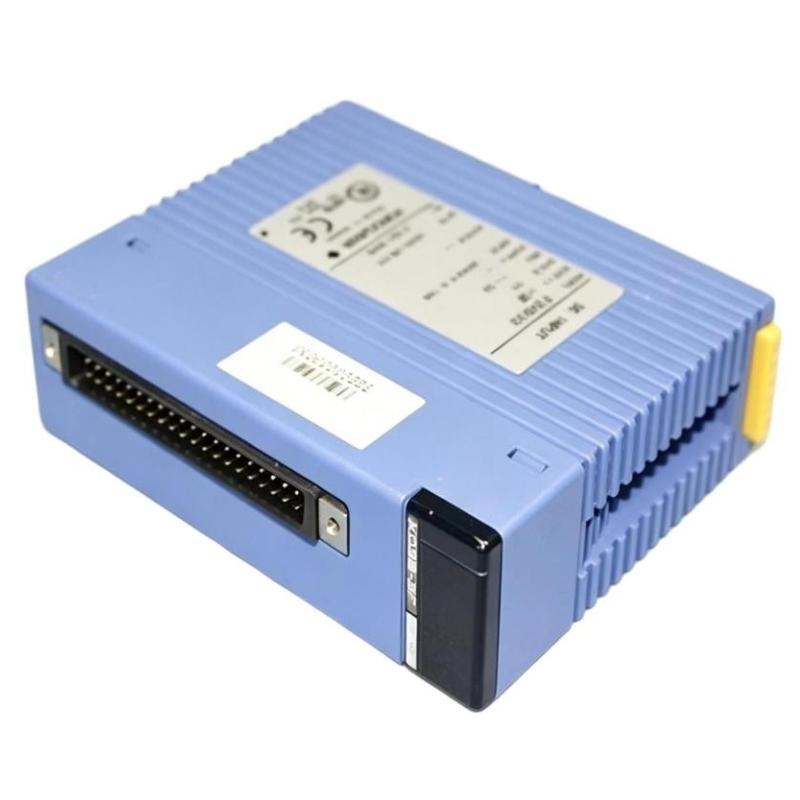

The Yokogawa F3XD32-3F is a 32-point DC Input Module designed for the FA-M3 PLC Series. It provides reliable digital signal acquisition from field devices such as proximity sensors, limit switches, push buttons, photoelectric sensors, and relay contacts, converting field signals into digital data for PLC processing.
Designed for 24 V DC industrial control systems, the F3XD32-3F supports sink/source input wiring, features photocoupler isolation, configurable input sampling times, and interrupt processing capability, making it suitable for high-speed industrial automation and machine control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3XD32-3F |
| Product Type | DC Input Module |
| PLC Platform | FA-M3 Series |
| Number of Input Channels | 32 Digital Inputs |
| Input Type | DC Voltage (Sink/Source Compatible) |
| Rated Input Voltage | 24 V DC |
| Operating Voltage Range | 20.4–26.4 V DC |
| Rated Input Current | 4.1 mA per Channel |
| ON Voltage | ≥16.0 V DC |
| ON Current | ≥3.2 mA |
| OFF Voltage | ≤5.8 V DC |
| OFF Current | ≤0.9 mA |
| Isolation Method | Photocoupler Isolation |
| Response Time | Selectable: 0 μs, 62.5 μs, 250 μs, 1 ms, or 16 ms |
| Interrupt Function | Supported for Each Input Channel |
| Common Configuration | 8 Points per Common |
| External Connection | 40-Pin Connector |
| LED Indicators | Individual Input Status LEDs |
| Power Consumption | 75 mA (5 V DC Backplane Supply) |
| Mounting Method | FA-M3 Base Unit |
| Dimensions | 28.9 × 84.5 × 102 mm |
| Weight | 0.12 kg |
Function and Working Principle
The F3XD32-3F continuously monitors digital DC input signals from field devices and transfers their ON/OFF status to the FA-M3 CPU.
Each input channel is isolated by photocouplers to improve immunity to electrical noise and ensure stable operation in industrial environments. During each PLC scan cycle, the CPU reads the input status, executes the control program, and updates the control system accordingly. Configurable sampling times and interrupt functions allow rapid detection of critical input events.
Operating Sequence
- Receive digital signals from field devices.
- Detect ON/OFF status changes.
- Convert electrical signals into digital input data.
- Transfer input information to the PLC CPU.
- Execute the user control program.
- Repeat the scan cycle continuously.
DC Input→Input Module→PLC CPUDC\;Input\rightarrow Input\;Module\rightarrow PLC\;CPU
Key Features
- 32 digital DC input channels
- 24 V DC industrial input
- Sink/source compatible wiring
- Photocoupler isolation for electrical protection
- Configurable high-speed response times
- Supports input interrupt processing
- Individual LED status indicators
- Compact high-density module design
- Reliable operation in harsh industrial environments
System Role
The F3XD32-3F functions as the digital input interface between field devices and the FA-M3 PLC controller.
Typical Control Architecture
Sensors / Push Buttons / Limit Switches → F3XD32-3F DC Input Module → PLC CPU → Output Modules → Motors, Relays, Solenoid Valves
The module ensures fast and reliable acquisition of digital input signals for industrial automation systems.
Industrial Applications
The F3XD32-3F is widely used in:
- Factory automation
- Packaging machinery
- Conveyor systems
- Assembly lines
- Automotive manufacturing
- Semiconductor equipment
- Material handling systems
- Food and beverage processing
- Water and wastewater treatment
- General industrial automation
Installation Guidelines
- Install the module into a compatible FA-M3 base unit.
- Disconnect system power before installation or maintenance.
- Verify that field devices operate at 24 V DC.
- Connect field wiring using the 40-pin connector.
- Observe the 8-point common wiring configuration.
- Ensure proper grounding to reduce electrical interference.
- Verify all input channels before commissioning.
Compatible Components
The F3XD32-3F is compatible with:
- FA-M3 CPU Modules
- FA-M3 Base Units
- FA-M3 Power Supply Modules
- Digital Output Modules
- Analog Input Modules
- Analog Output Modules
- Ethernet Communication Modules
- Serial Communication Modules
- Motion Control Modules
- Positioning Modules
- Remote I/O Modules
Alternative Models
| Model | Description |
|---|---|
| F3XD08-6F | 8-Point DC Input Module |
| F3XD16-3F | 16-Point DC Input Module |
| F3XD64-3F | 64-Point DC Input Module |
| F3XC08-0C | 8-Point No-Voltage Contact Input Module |
| F3XH04-3N | High-Speed DC Input Module |
Advantages
- High-density 32-point digital input
- Supports sink/source wiring
- Reliable photocoupler isolation
- Configurable input sampling times
- Interrupt processing capability
- Excellent noise immunity
- Compact and lightweight construction
- Easy integration with FA-M3 PLC systems
Frequently Asked Questions
What is the primary function of the F3XD32-3F?
It receives digital DC signals from field devices and transfers them to the FA-M3 PLC CPU for processing.
How many input channels does the module provide?
The module provides 32 digital DC input channels.
What operating voltage does the F3XD32-3F support?
The module is designed for 24 V DC industrial input signals.
Does the module support interrupt processing?
Yes. Each input channel can be configured for interrupt operation, enabling rapid response to critical input events.
What applications is the F3XD32-3F suitable for?
It is widely used in machine automation, packaging equipment, conveyor systems, automotive manufacturing, semiconductor production, process control, and general factory automation.
Conclusion
The Yokogawa F3XD32-3F DC Input Module is a high-density digital input solution for the FA-M3 PLC platform. Featuring 32 digital input channels, 24 V DC sink/source compatibility, photocoupler isolation, configurable response times, and interrupt processing capability, it delivers reliable signal acquisition and dependable performance for a wide range of industrial automation and machine control applications.
